Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

78 part groups · 17 illustrations

Illustrations

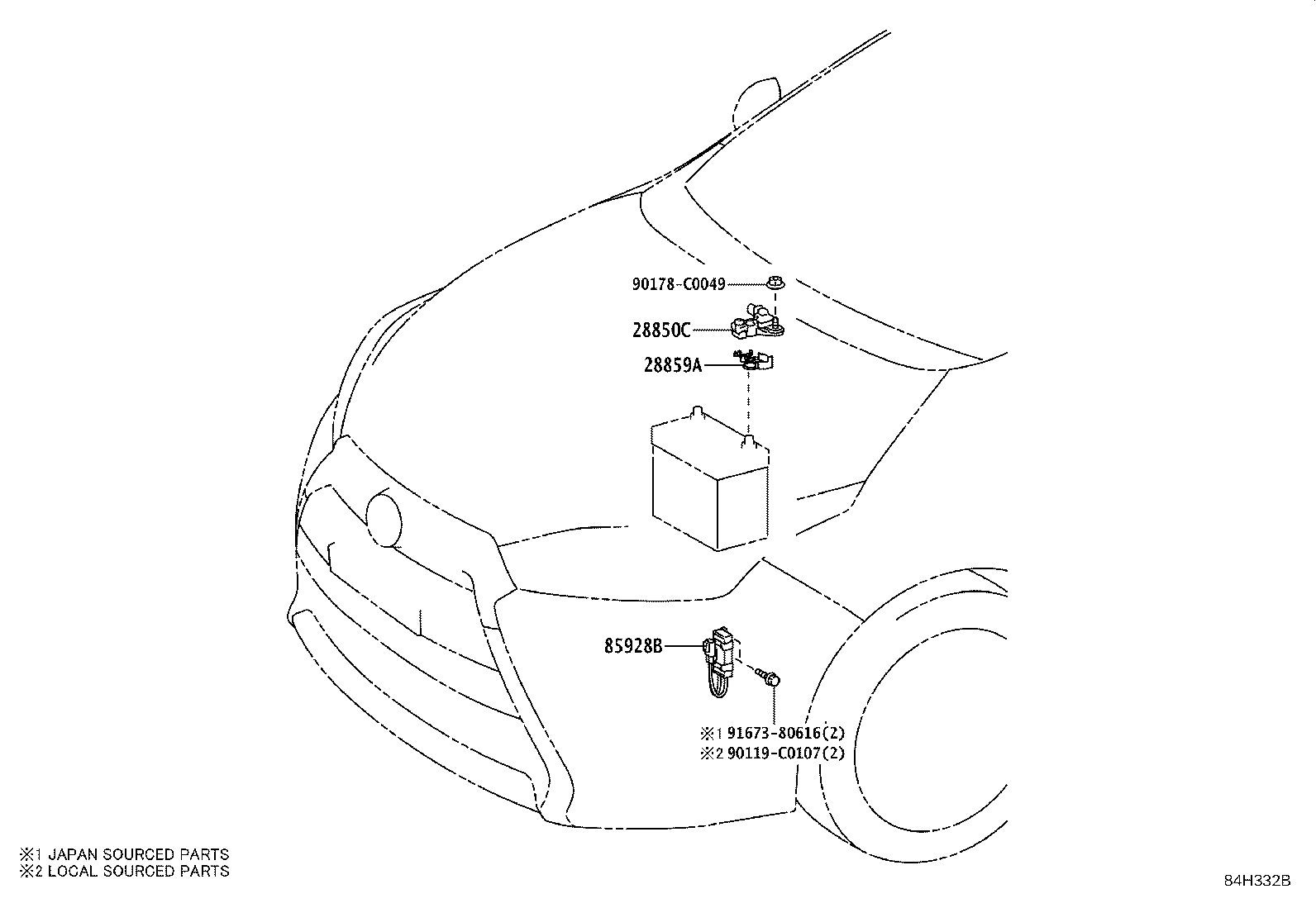

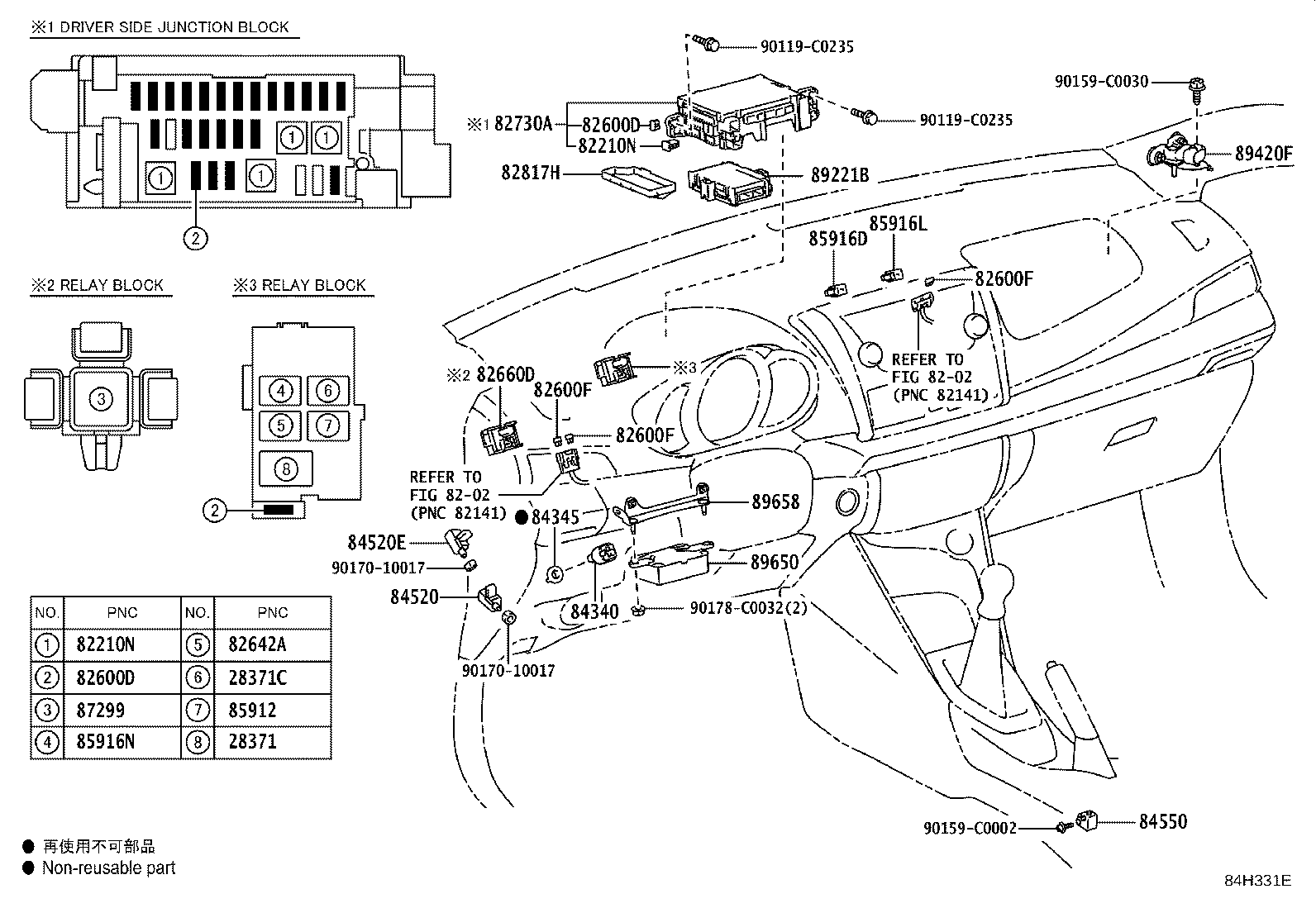

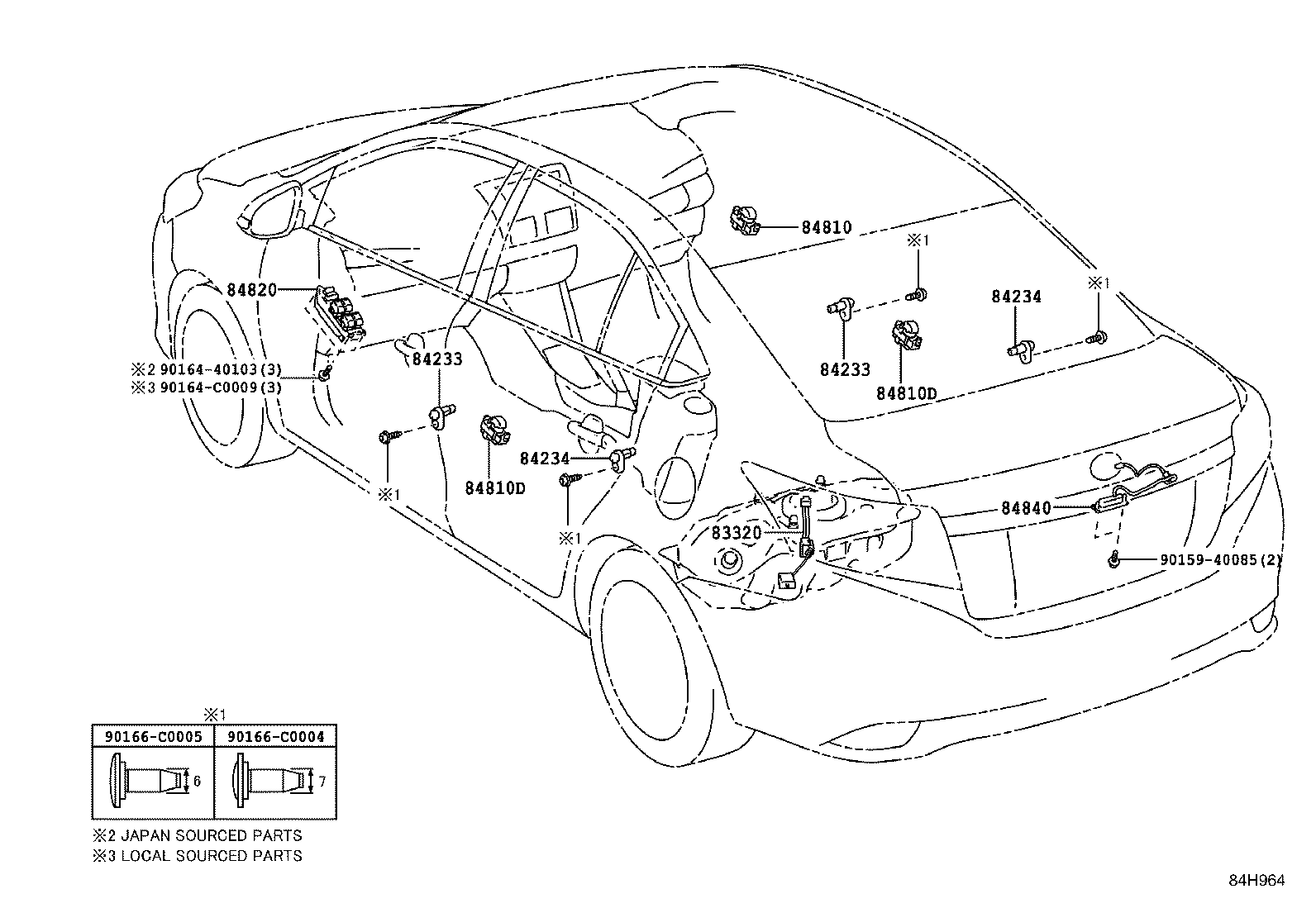

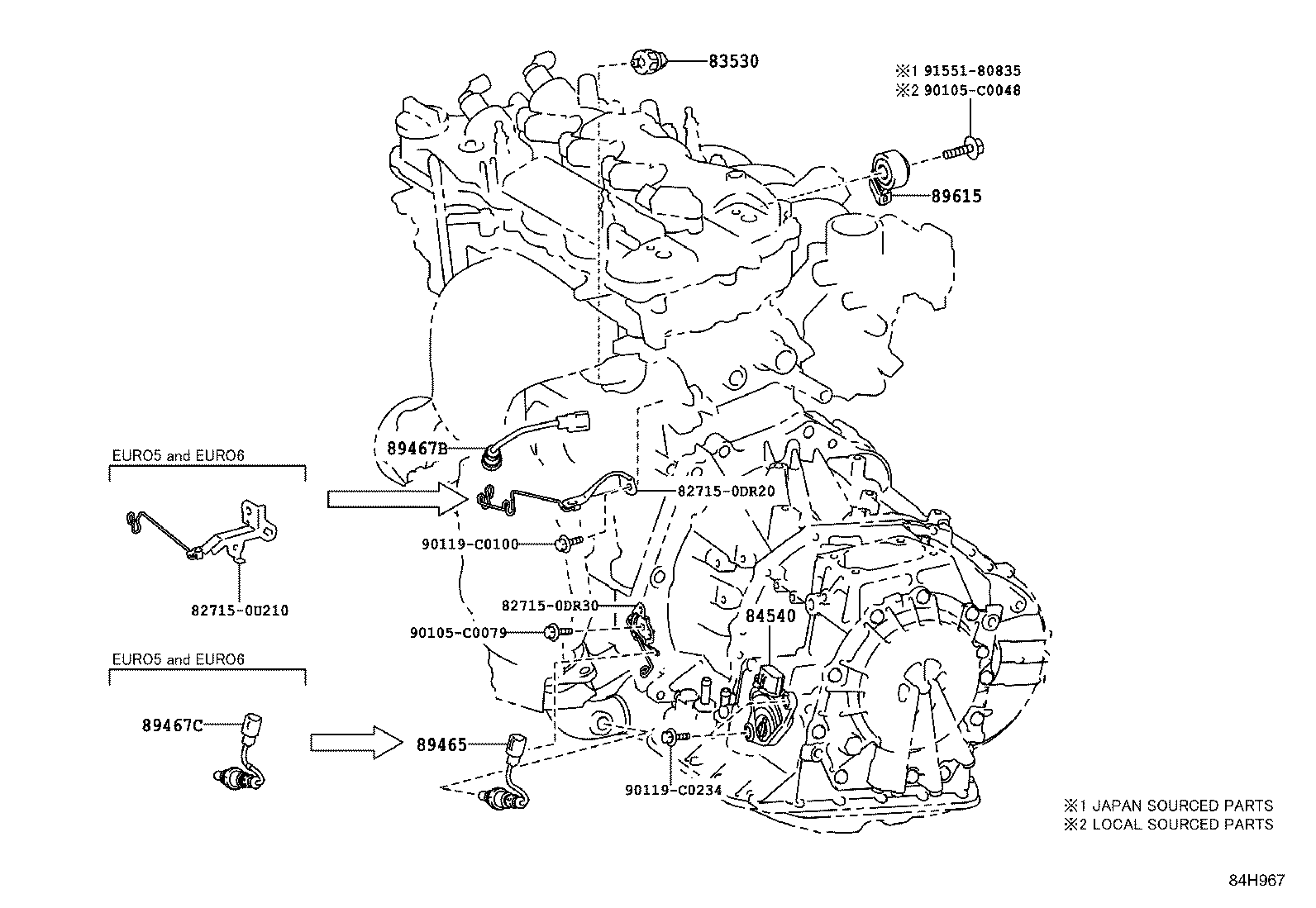

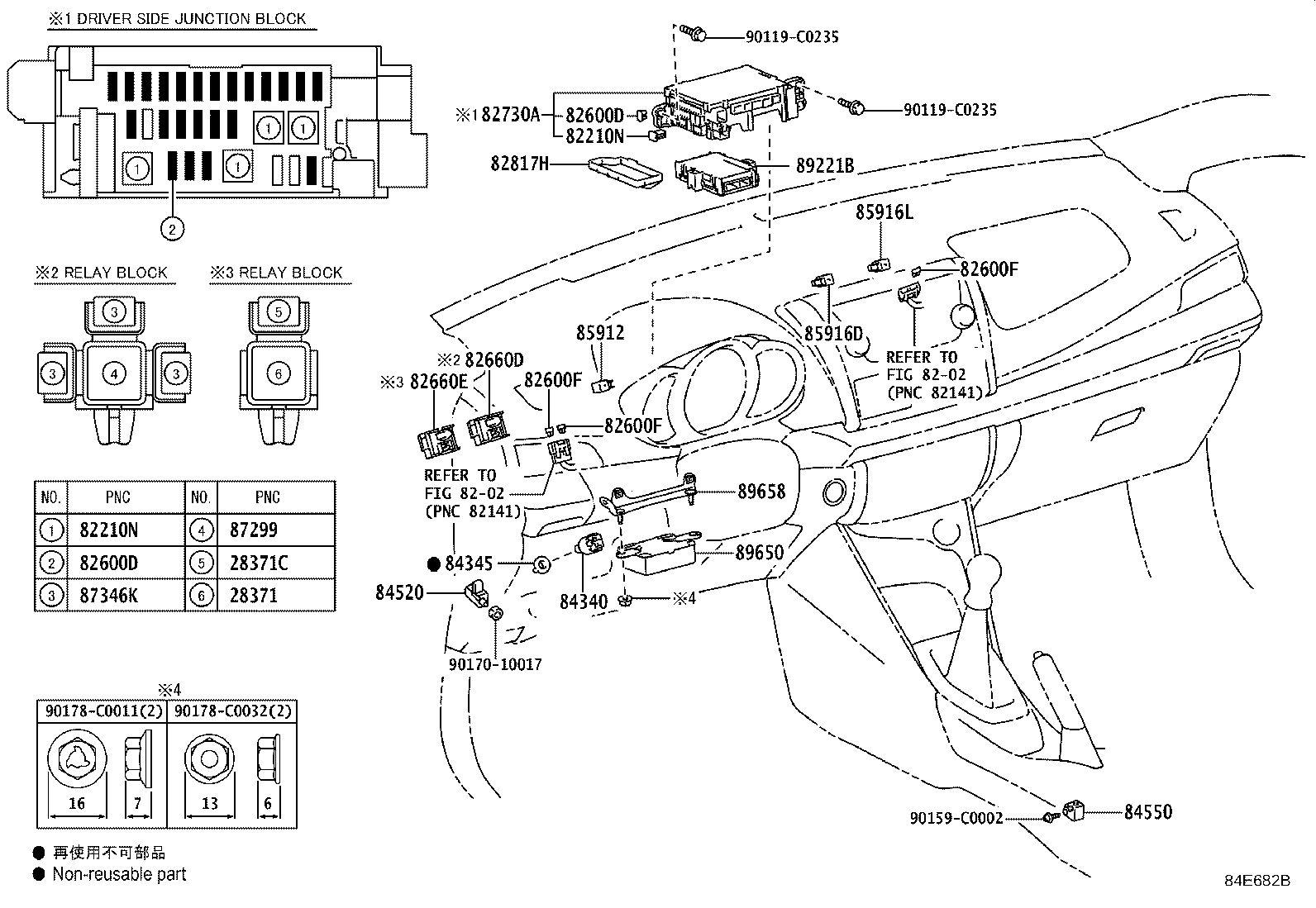

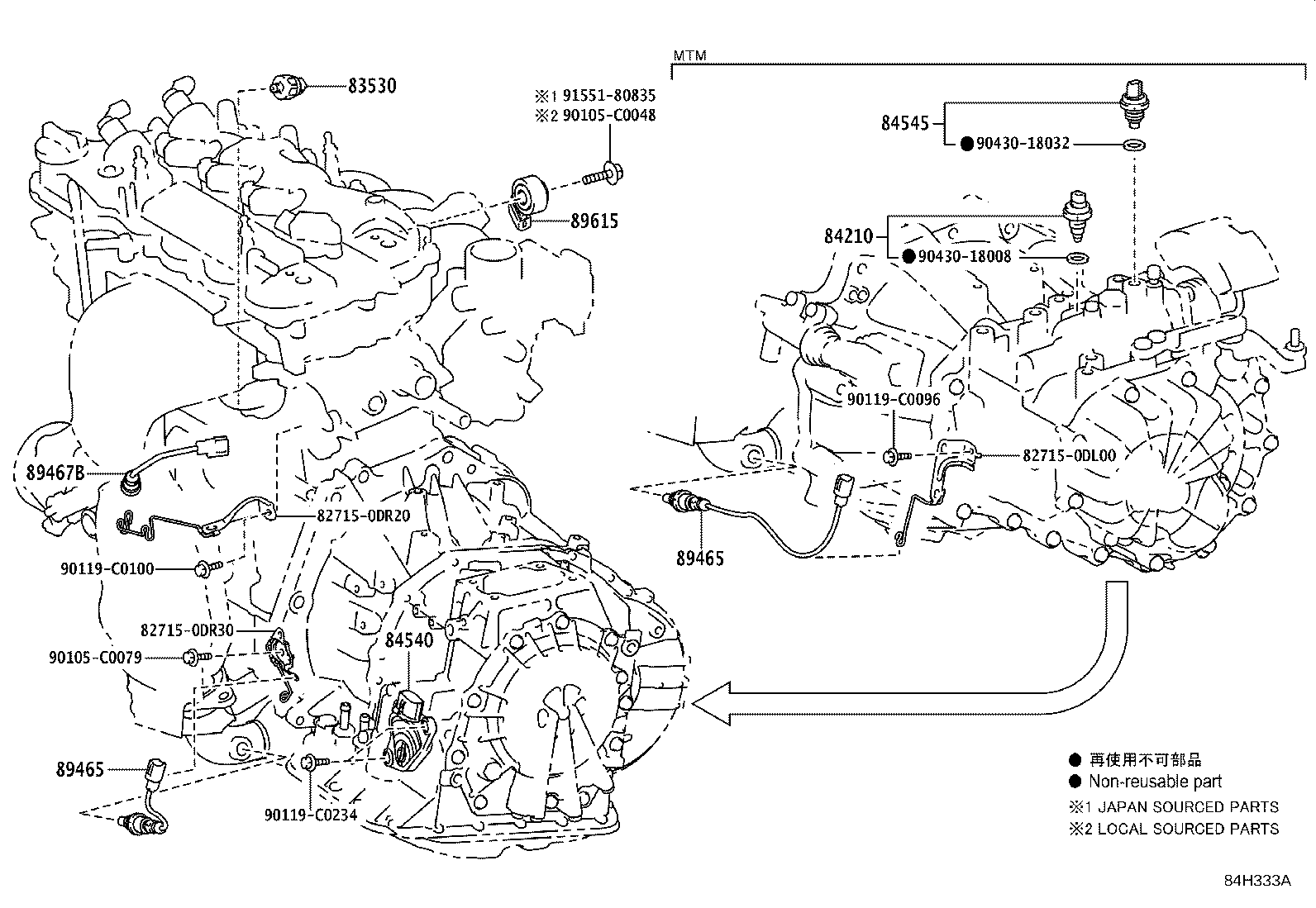

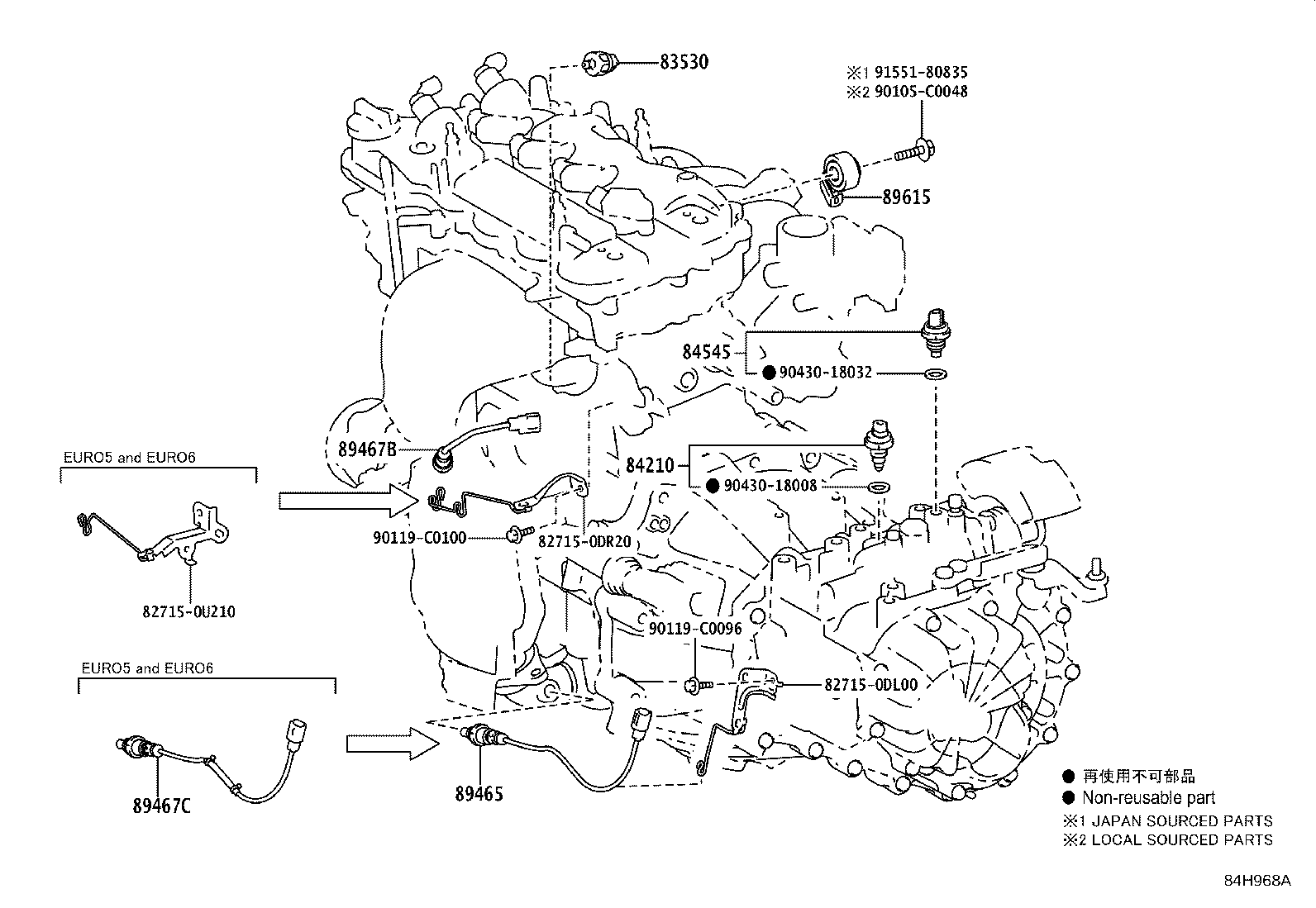

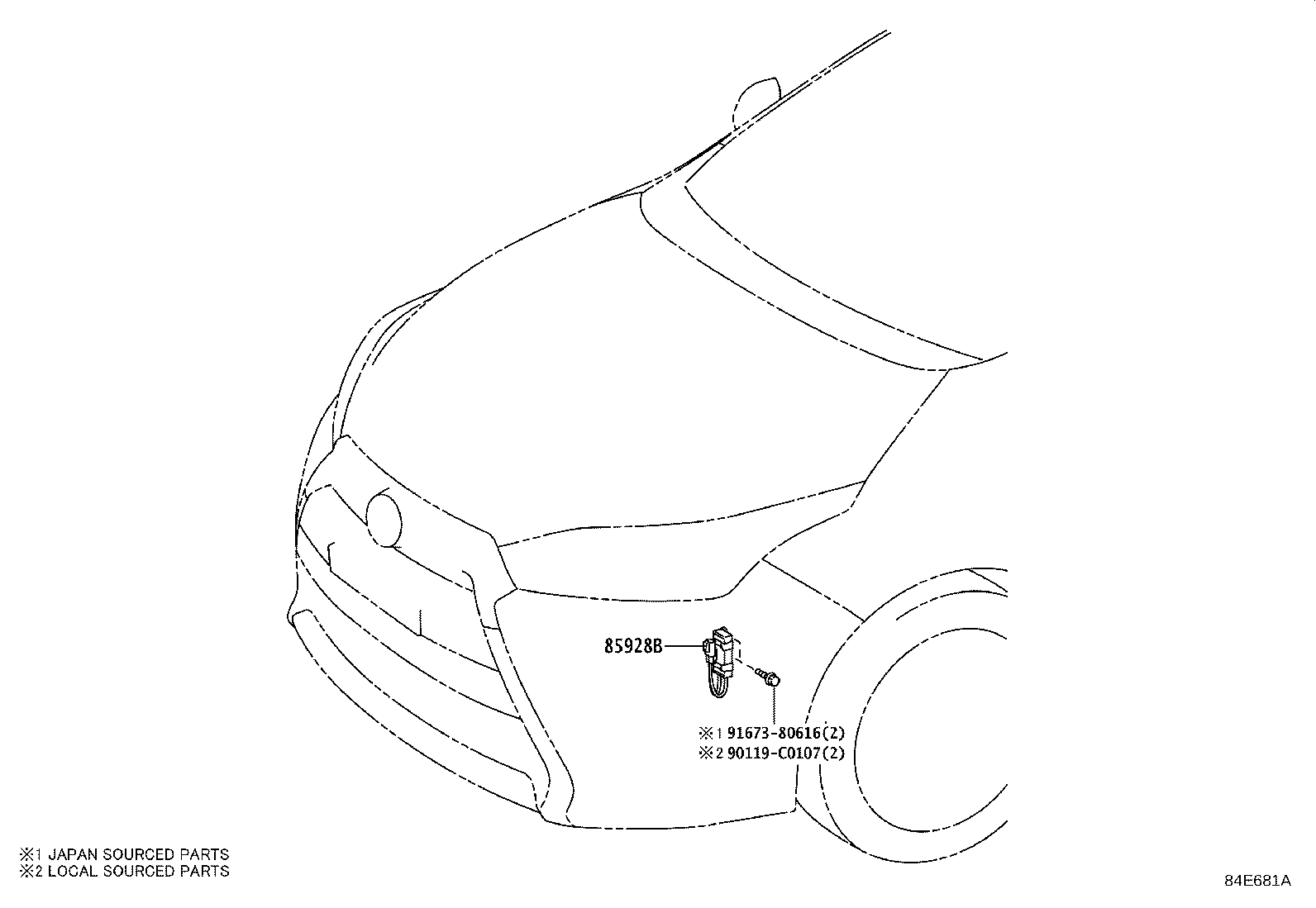

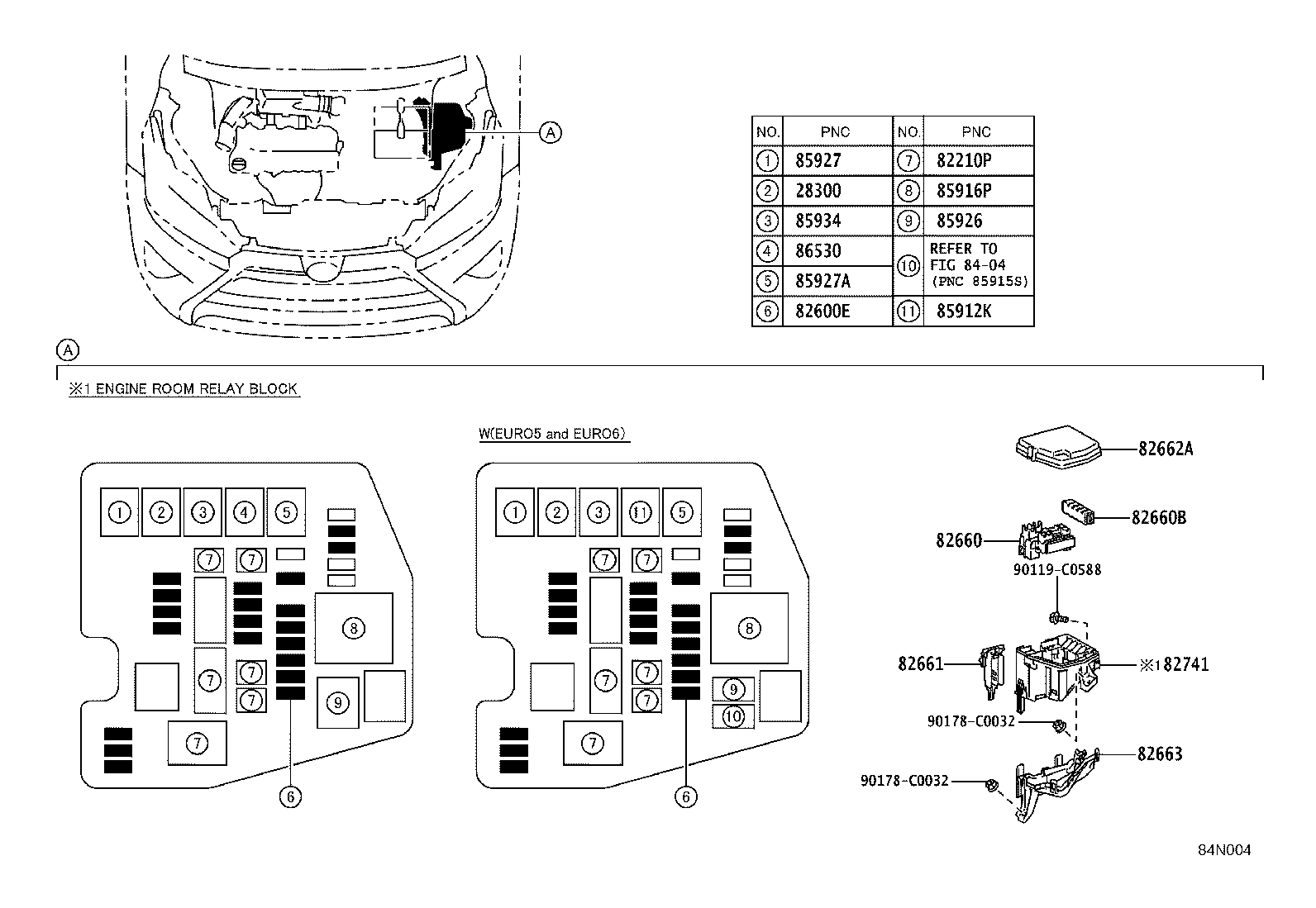

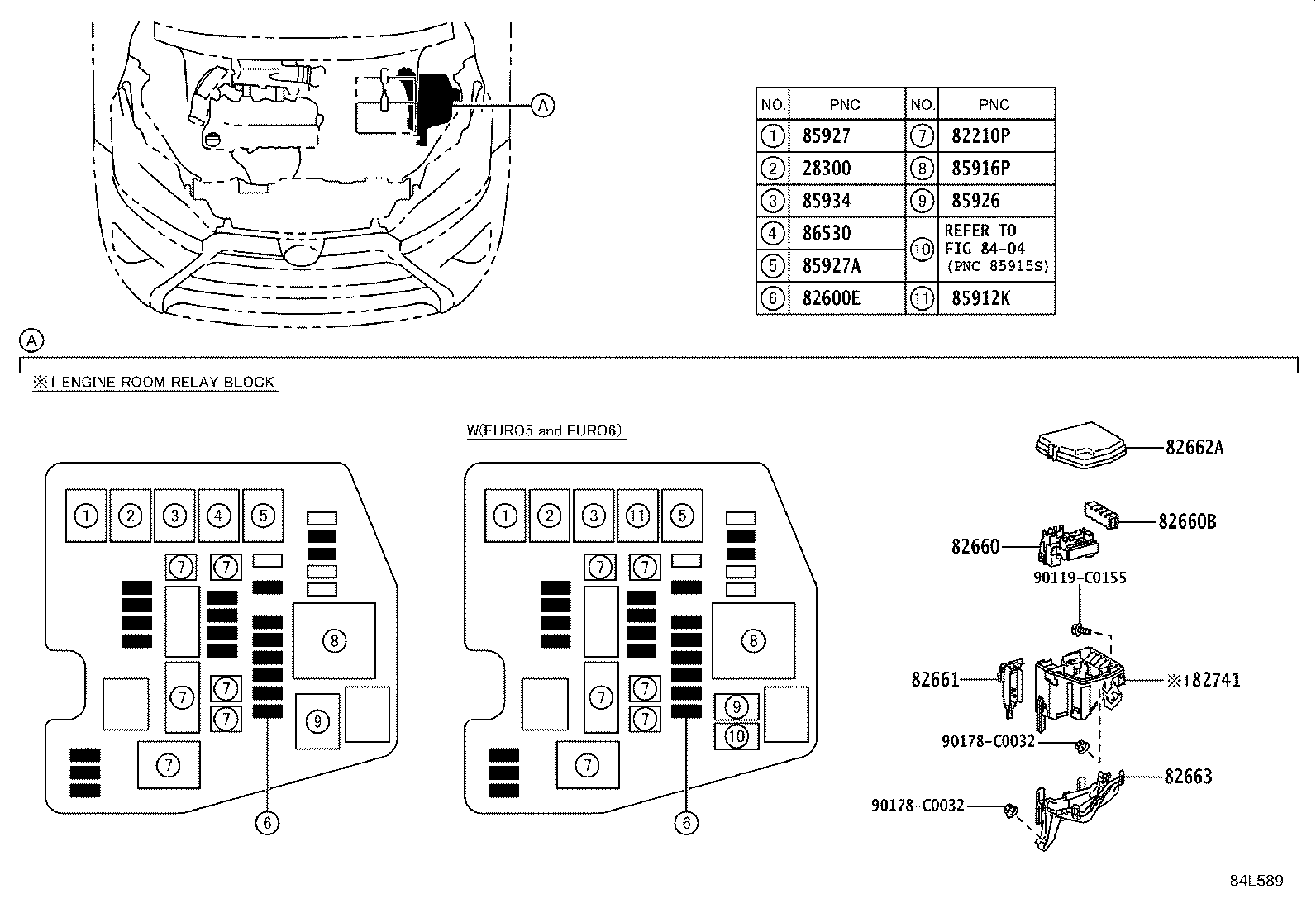

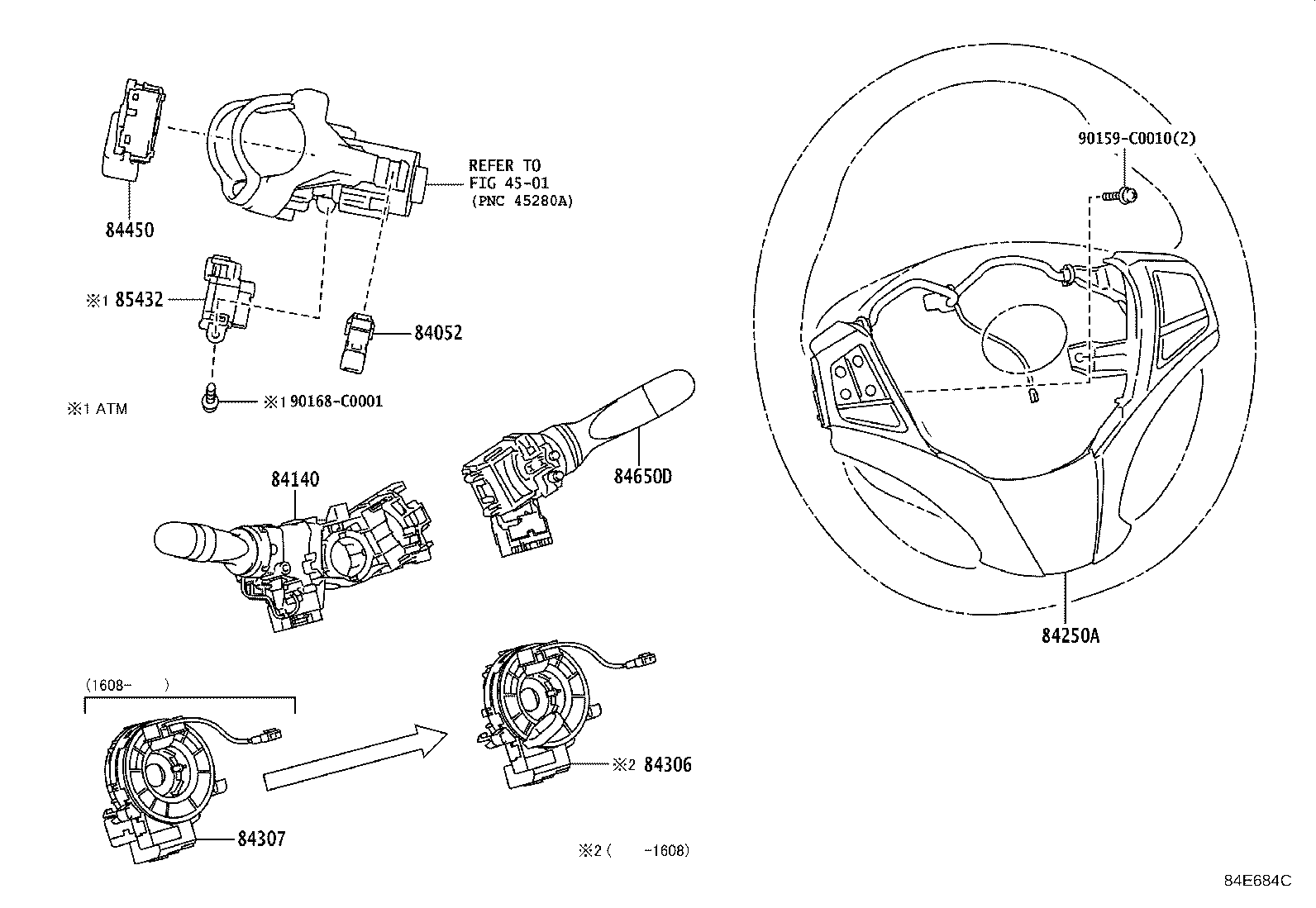

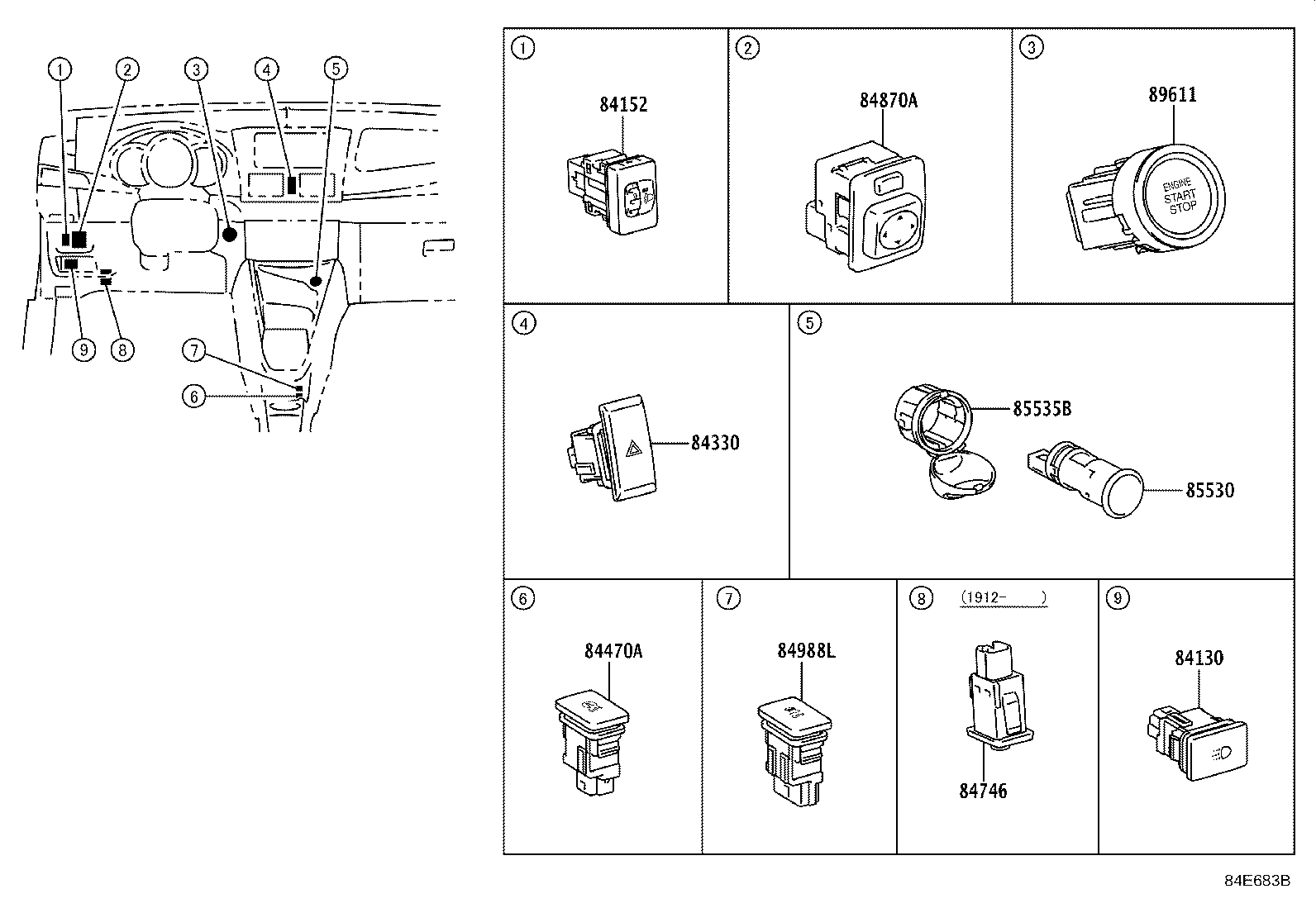

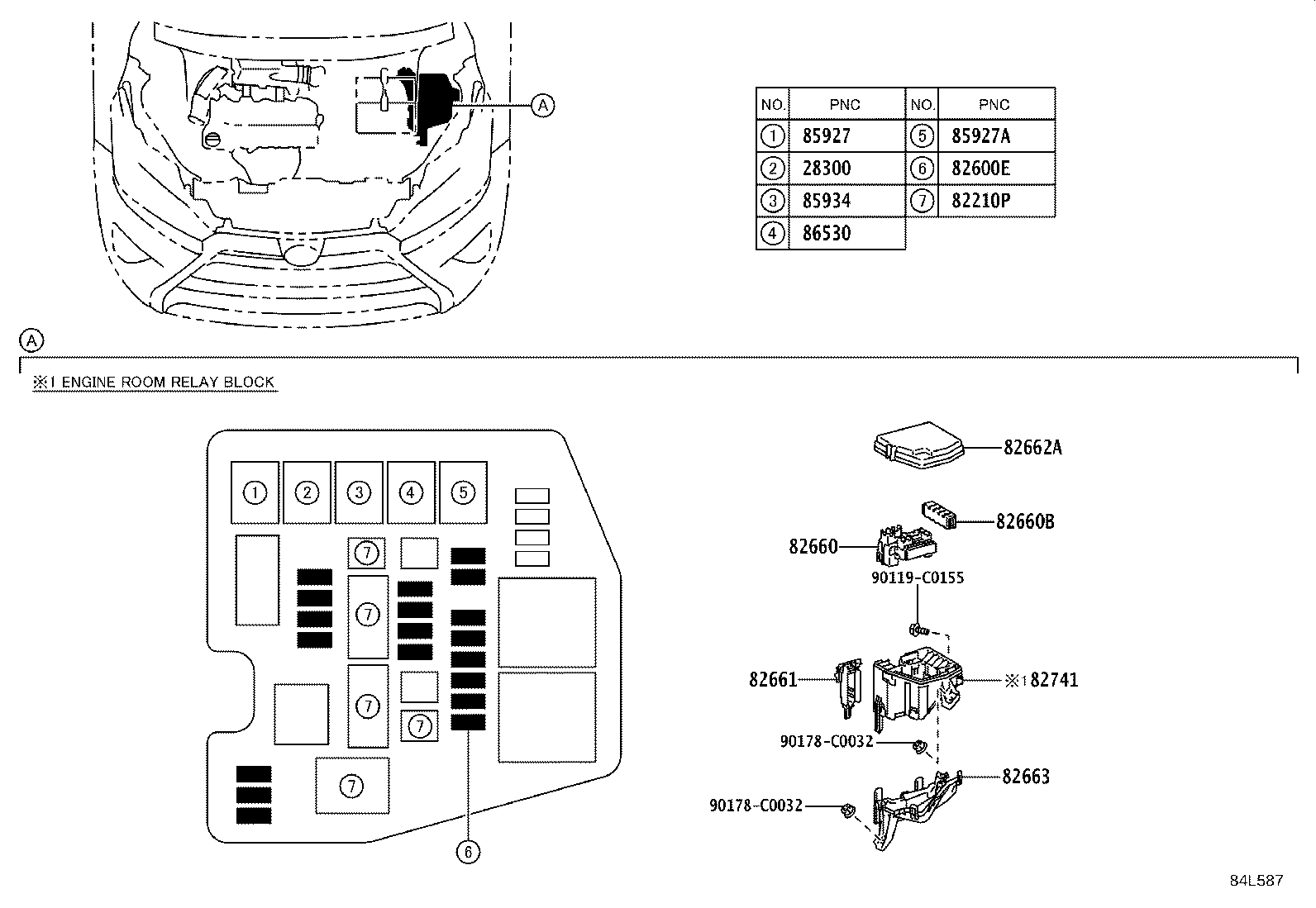

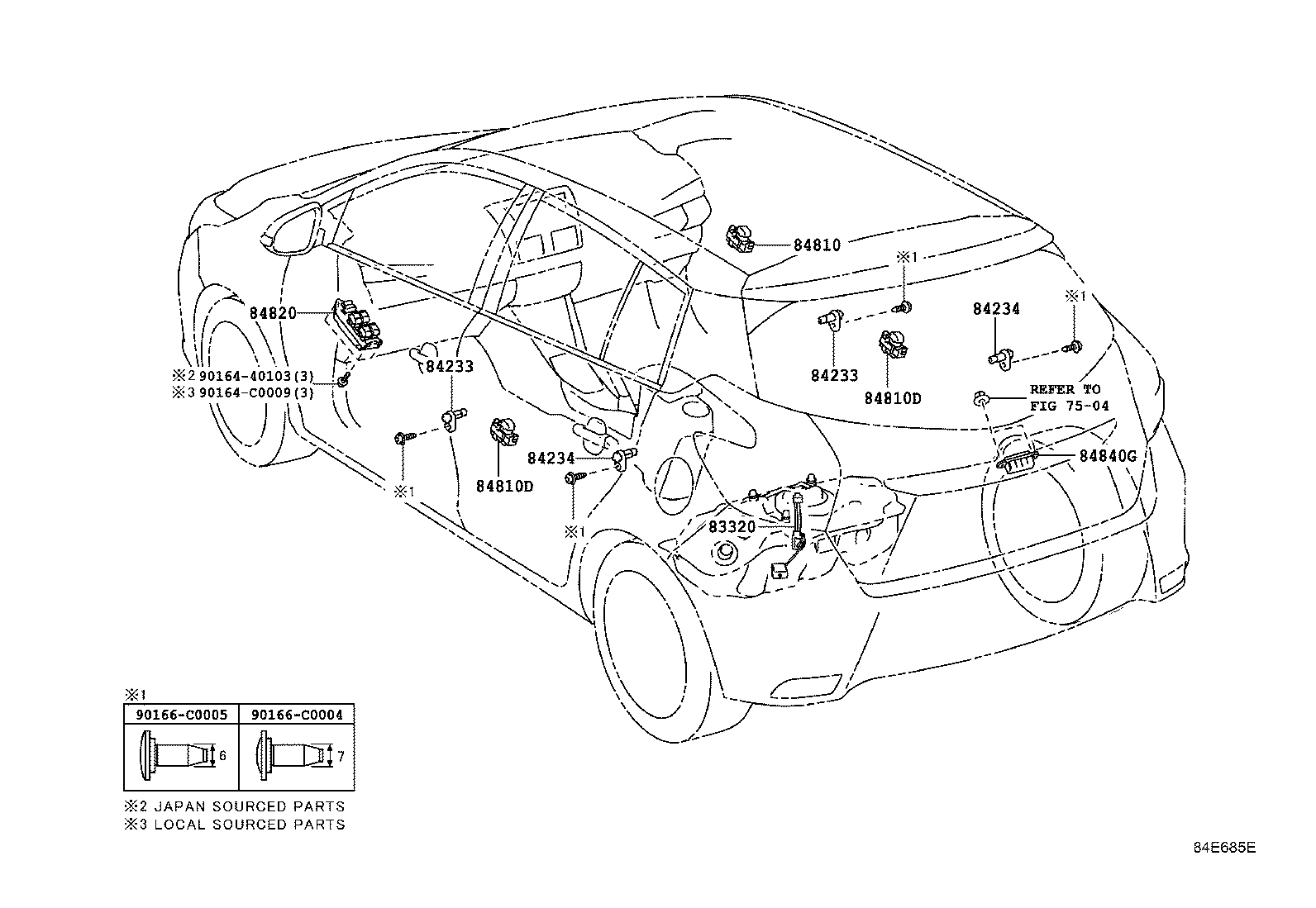

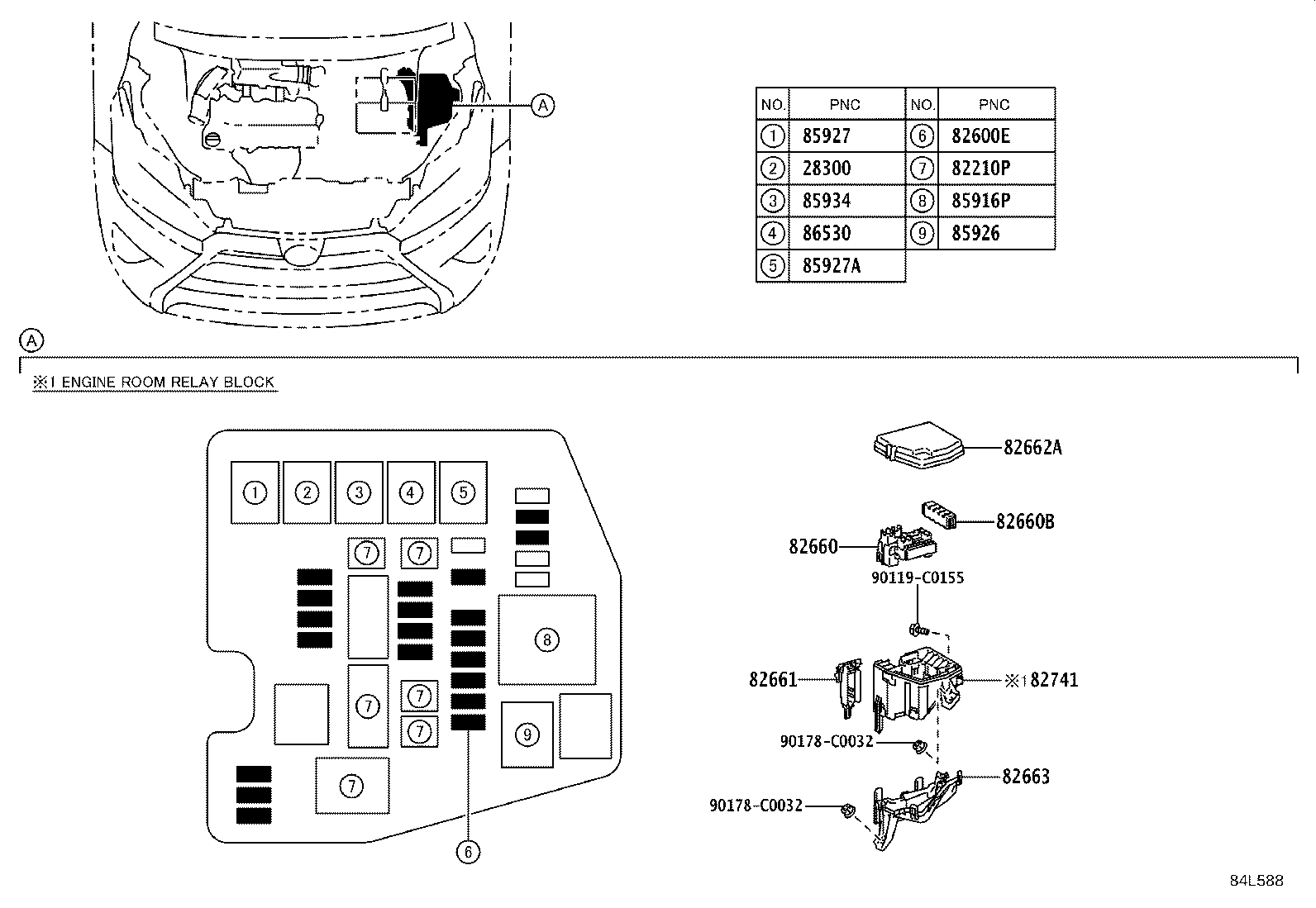

Figure 84E680A 84E680A 2013-12 → 2016-08 Figure 84H333A 84H333A 2016-08 → 2017-12 Figure 84H967 84H967 2017-12 → — Figure 84H968A 84H968A 2017-12 → — Figure 84E681A 84E681A 2013-12 → 2016-08 Figure 84H965A 84H965A 2016-08 → 2017-12 Figure 84H332B 84H332B 2017-12 → — Figure 84L587 84L587 2013-12 → 2016-08 Figure 84L588 84L588 2016-08 → 2017-12 Figure 84L589 84L589 2017-12 → 2021-01 Figure 84N004 84N004 2021-01 → — Figure 84E682B 84E682B 2013-12 → 2016-08 Figure 84H331E 84H331E 2016-08 → — Figure 84E683B 84E683B 2013-12 → — Figure 84E684C 84E684C 2013-12 → — Figure 84H964 84H964 2017-03 → — Figure 84E685E 84E685E 2013-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82642A Relay, Running Light
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82730A Block Assy, Driver Side Junction
82741 Block, Engine Room Relay
82817H Protector, Wiring Harness
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84130 Switch Assy, Daytime Running Light
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84520E Switch Assy, Clutch Start, NO.2
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84746 Switch, Tire Pressure Warning
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840 Switch Assy, Luggage Compartment Door Opening
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85912 Relay, Defogger
85912K Relay, Vvt
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85934 Relay, Magnet-clutch
86530 Relay Assy, Horn
87299 Relay, Heater
87346K Relay, Ptc Heater
89221B Computer, Body
89420F Sensor Assy, Vacuum
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89658 Bracket, Power Steering Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
