Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

5 part groups · 2 illustrations

Illustrations

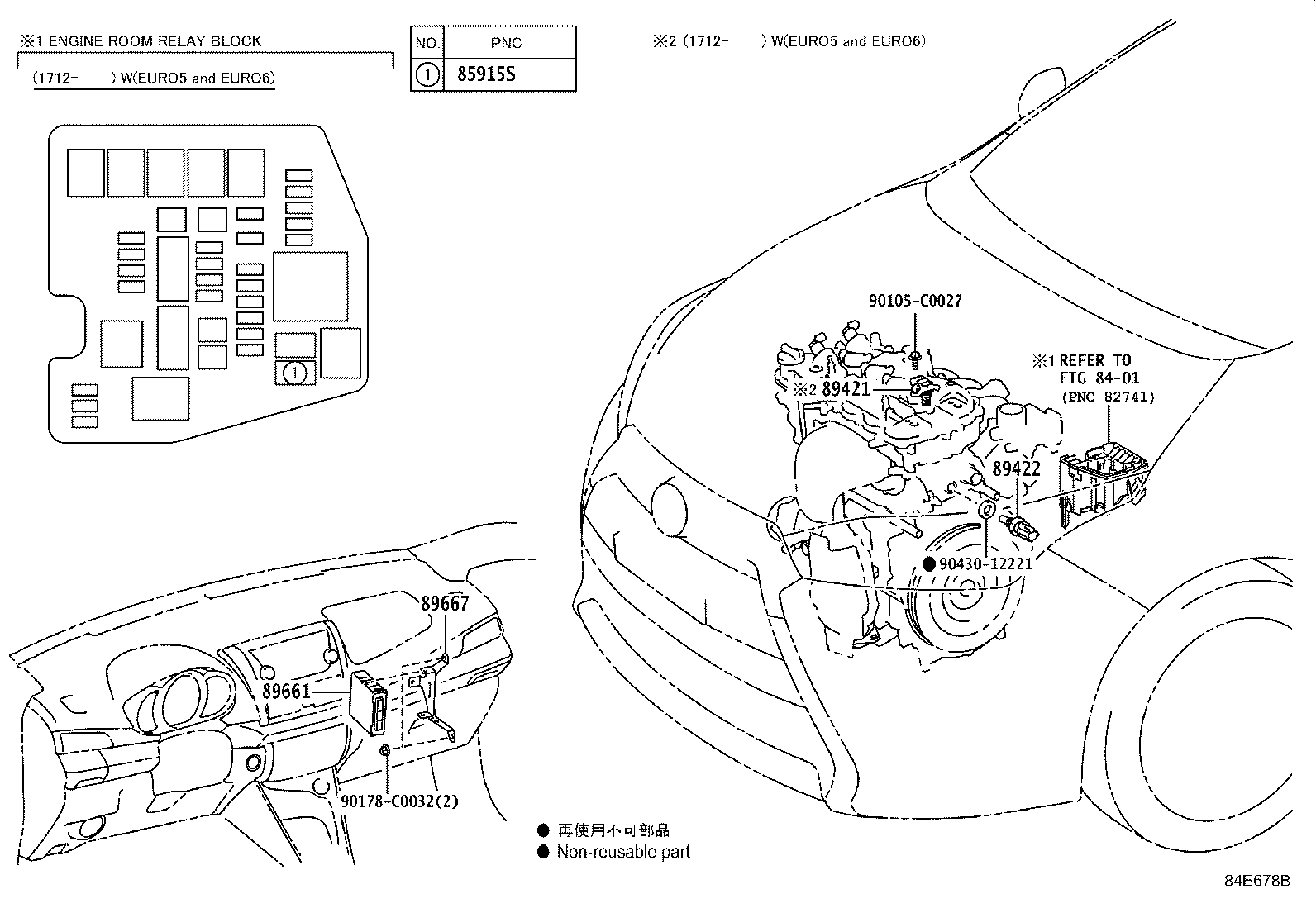

Figure 84H966A 84H966A 2013-12 → 2017-12 Figure 84E678C 84E678C 2017-12 → —

Part groups

PNCDescription
85915S Relay, Heater (FOR AIR FUEL RATIO SENSOR)
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
