Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

2 part groups · 2 illustrations

Illustrations

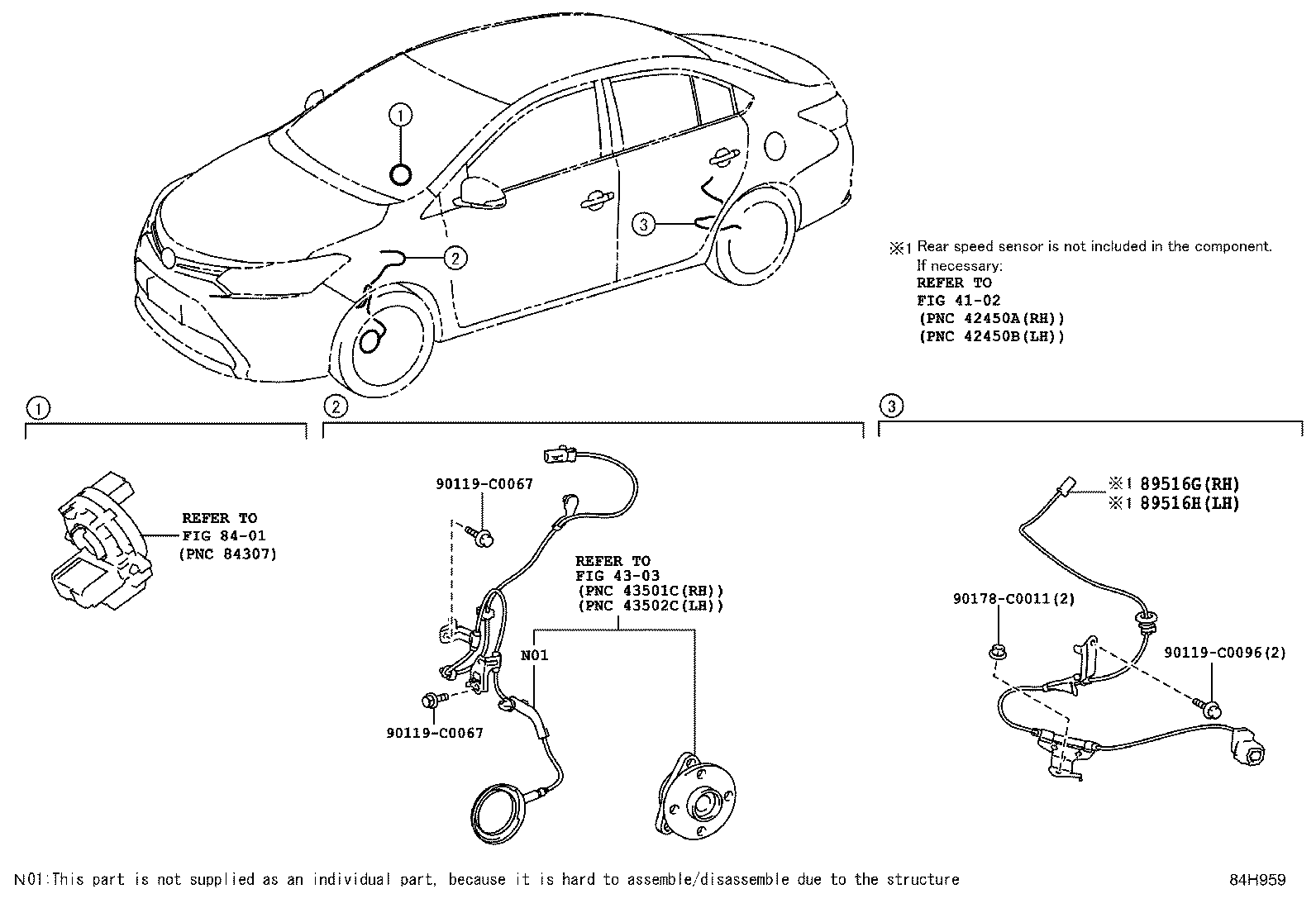

Figure 84E675C 84E675C 2013-12 → — Figure 84H959 84H959 2017-03 → —

Part groups

PNCDescription
89516G Wire, Skid Control Sensor, Rear RH NO.1
89516H Wire, Skid Control Sensor, Rear LH NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
