Toyota Yaris (CHINA)
2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General
Supported model
Data version 2023-11

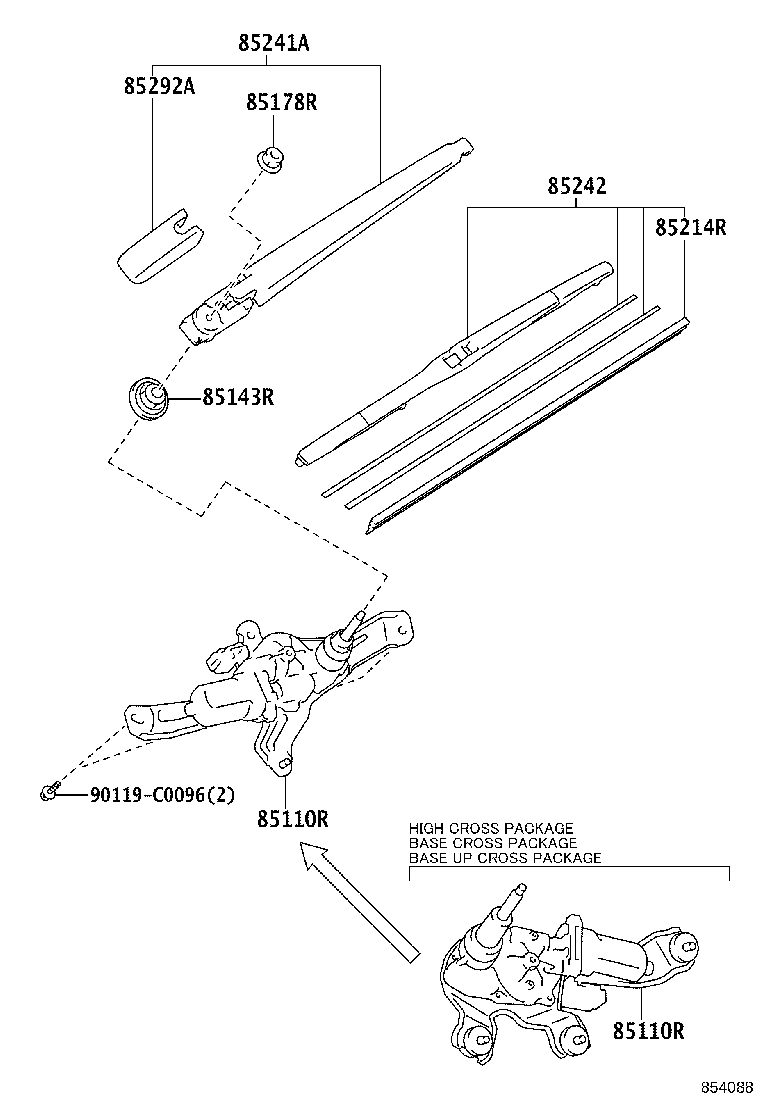

Rear Wiper
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110R | Motor Assy, Rear Wiper |
| 85143R | Grommet, Rear Wiper Motor |
| 85178R | Nut (FOR REAR WIPER ARM SETTING) |
| 85214R | Rubber, Rear Wiper |
| 85241A | Arm, Rear Wiper |
| 85242 | Blade, RR Wiper |
| 85292A | Cap, Rear Wiper Arm Head |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
