Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 3 illustrations

Illustrations

865575 2013-12 → 2016-08

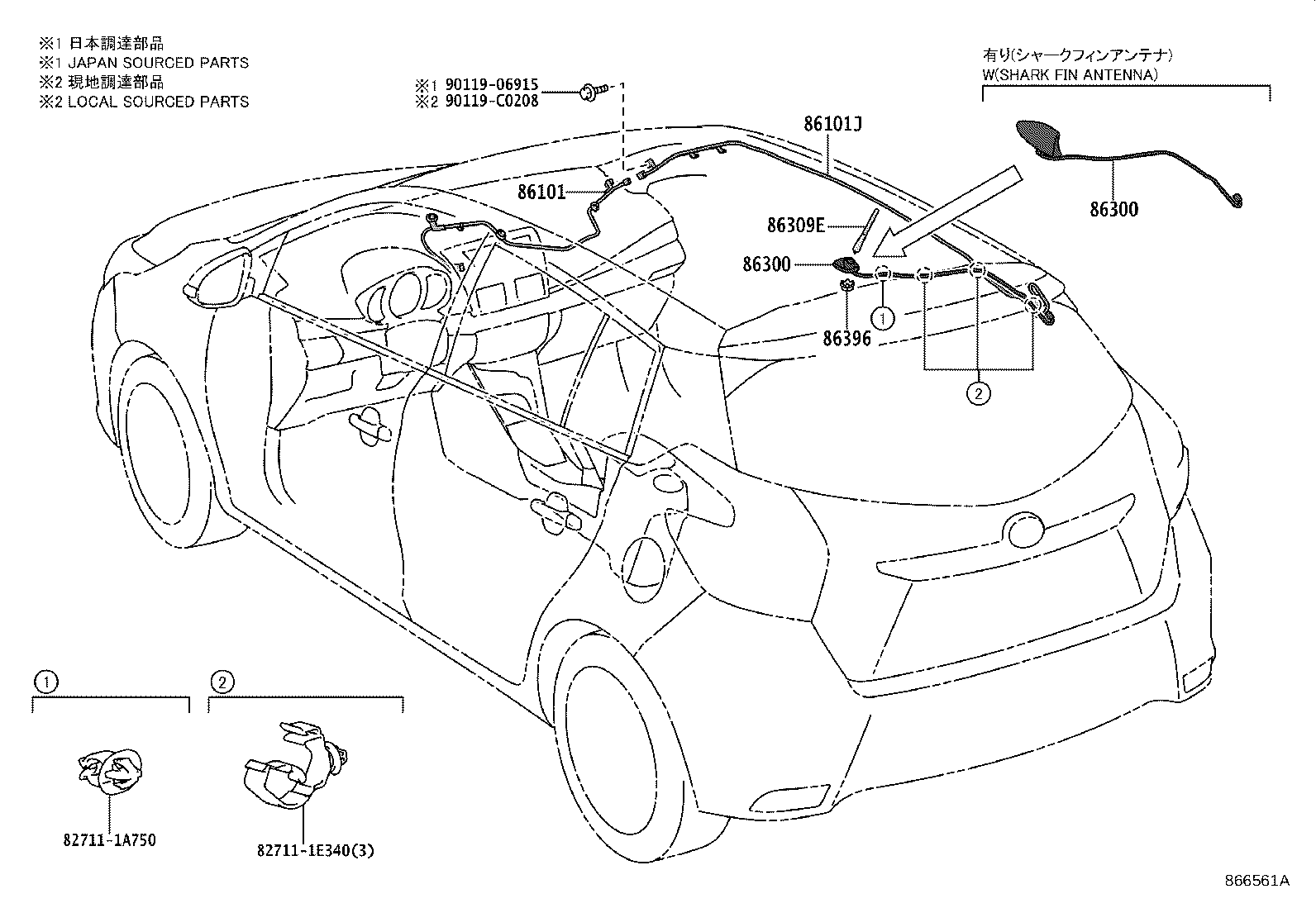

Figure 866561A

866561A 2016-08 → —

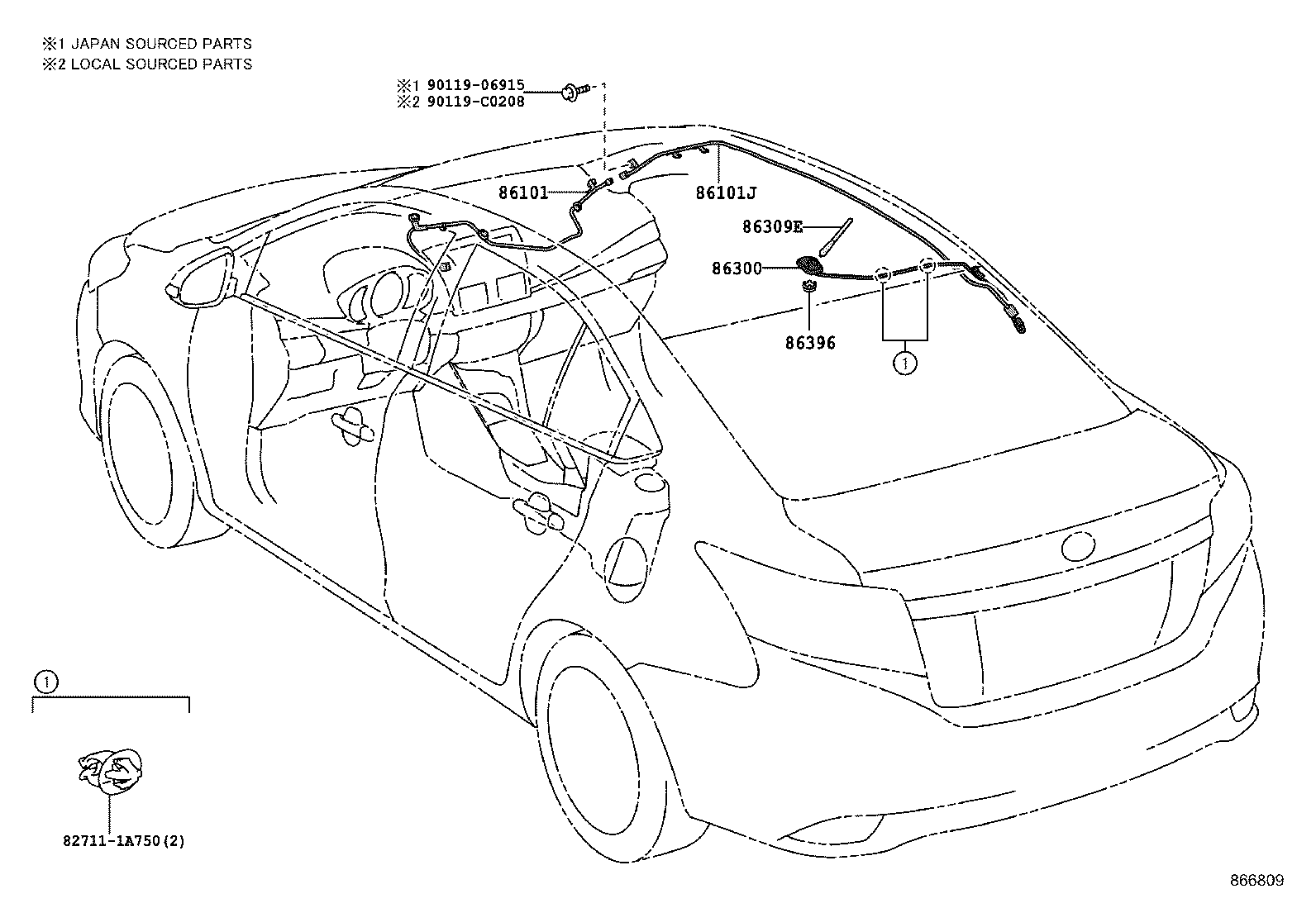

866809 2017-03 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101J	Cord Sub-assy, Antenna, NO.2
86300	Antenna Assy, W/Holder
86309E	Pole Sub-assy, Roof Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
