Toyota Yaris (CHINA)
2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General
Supported model
Data version 2023-11

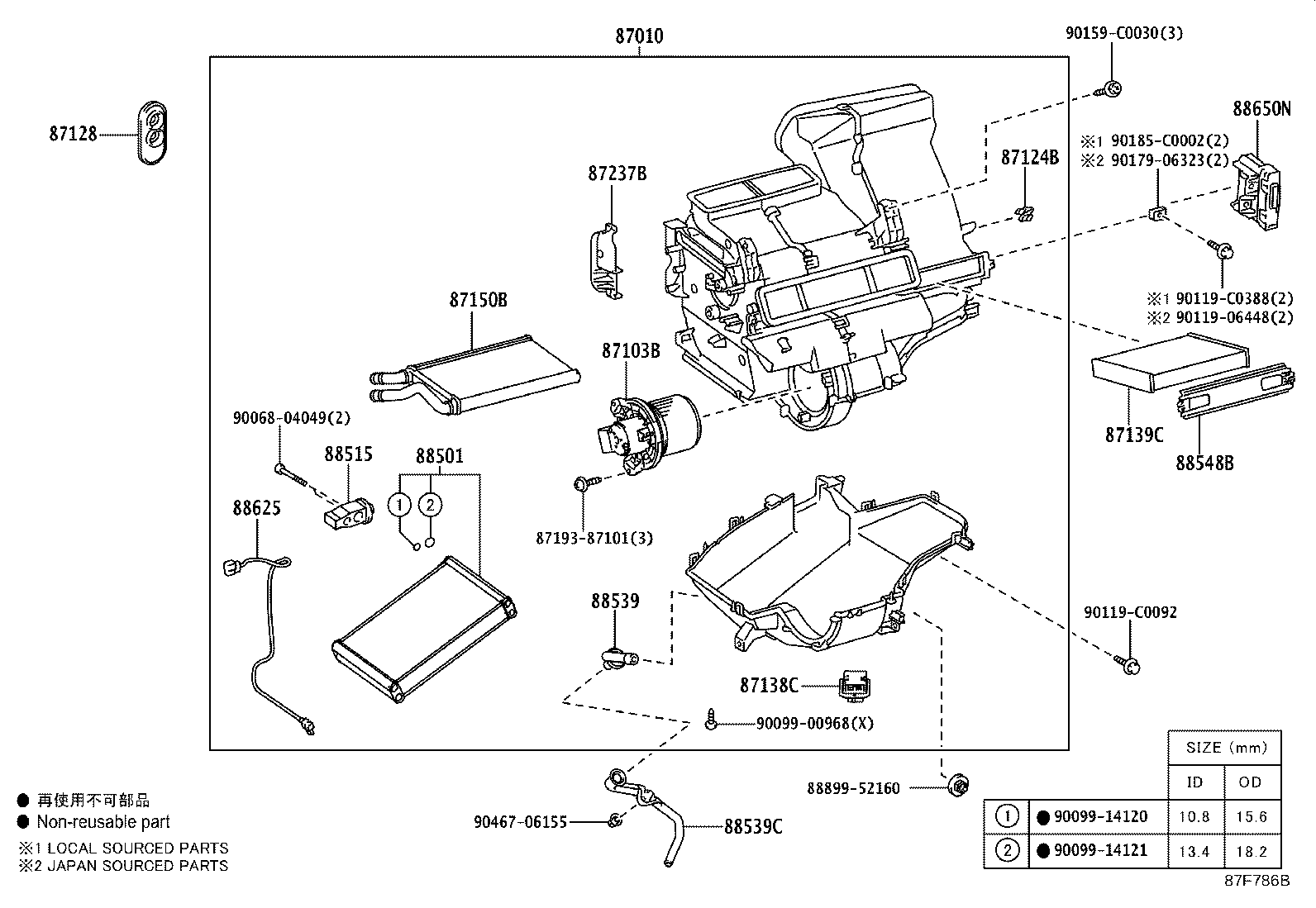

Heating & Air Conditioning - Cooler Unit
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87010 | Unit Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87124B | Clamp, Heater |
| 87128 | Grommet, Heater |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87150B | Radiator Assy, Heater |
| 87237B | Cover, Heater Piping |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88548B | Case, Air Filter |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
