Heating & Air Conditioning - Control & Air Duct

18 part groups · 4 illustrations

Illustrations

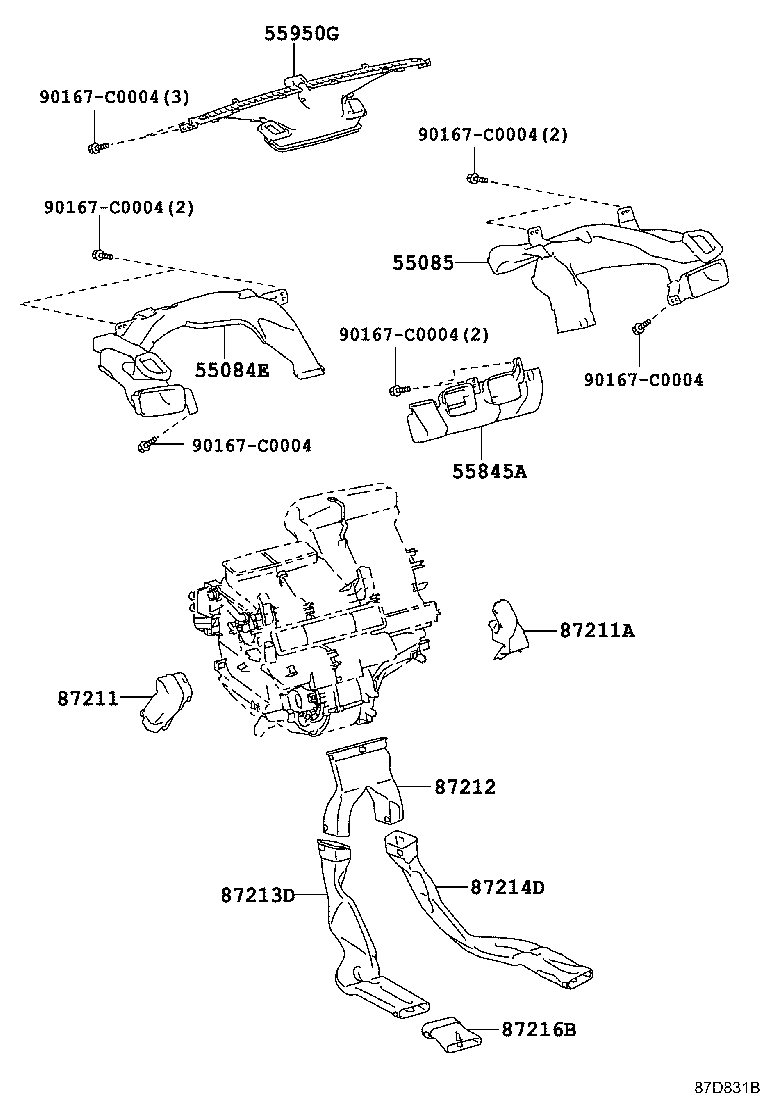

Figure 87D830A 87D830A 2013-12 → 2016-08 Figure 87F787B 87F787B 2016-08 → — Figure 87D831B 87D831B 2013-12 → — Figure 87D832 87D832 2013-12 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55902C Panel Sub-assy, Air Conditioner
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909C Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213D Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
