Heating & Air Conditioning - Water Piping

4 part groups · 7 illustrations

Illustrations

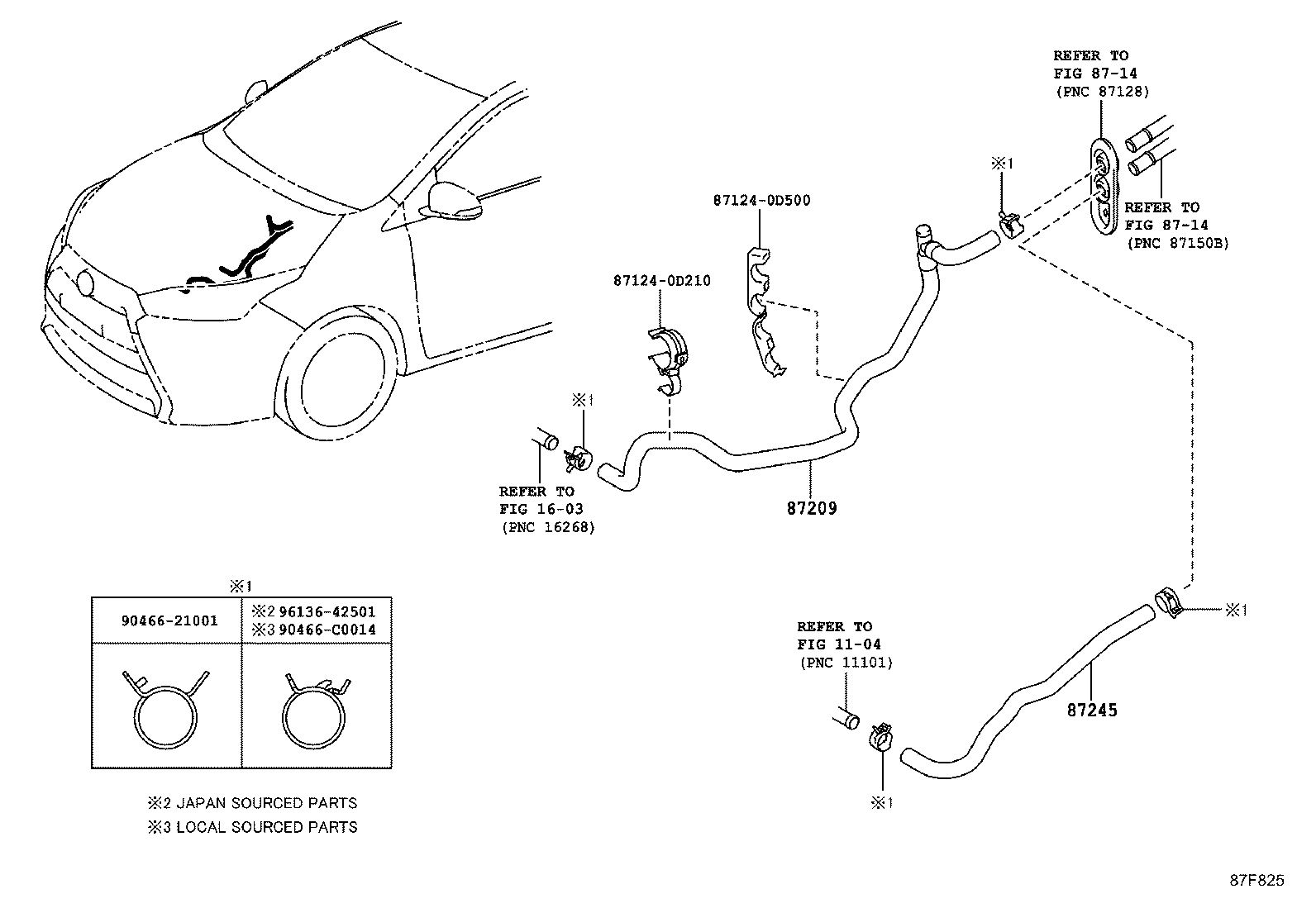

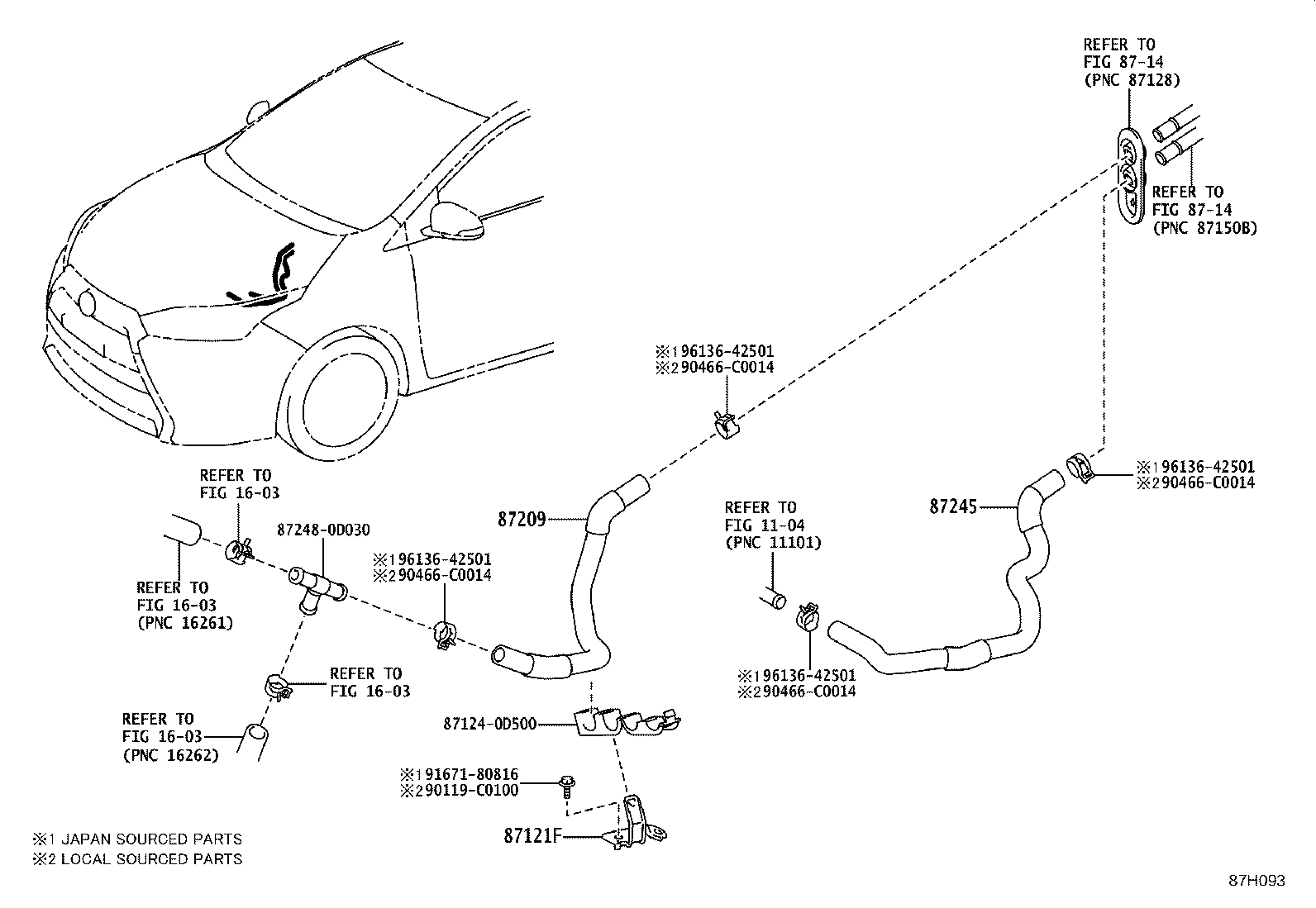

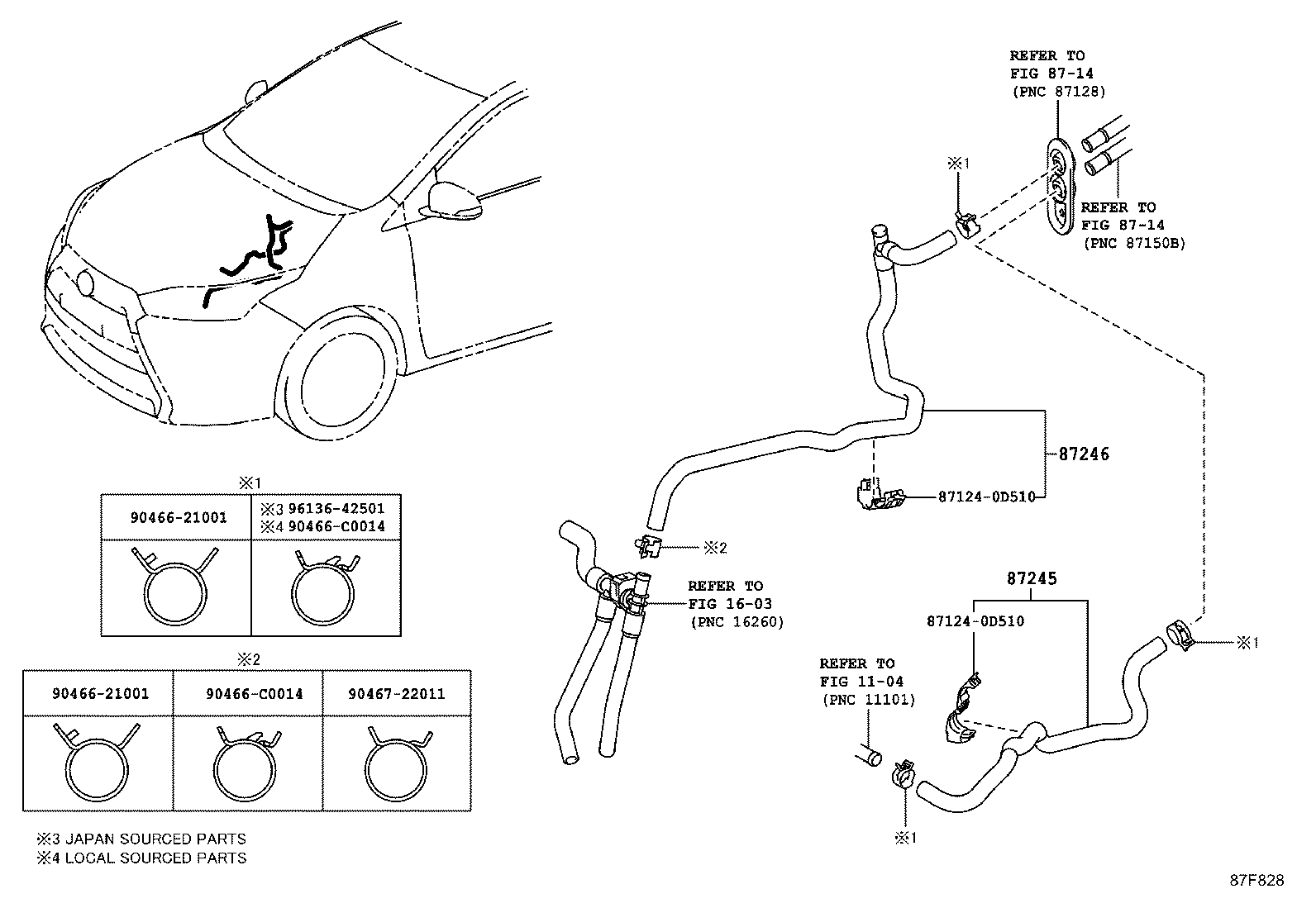

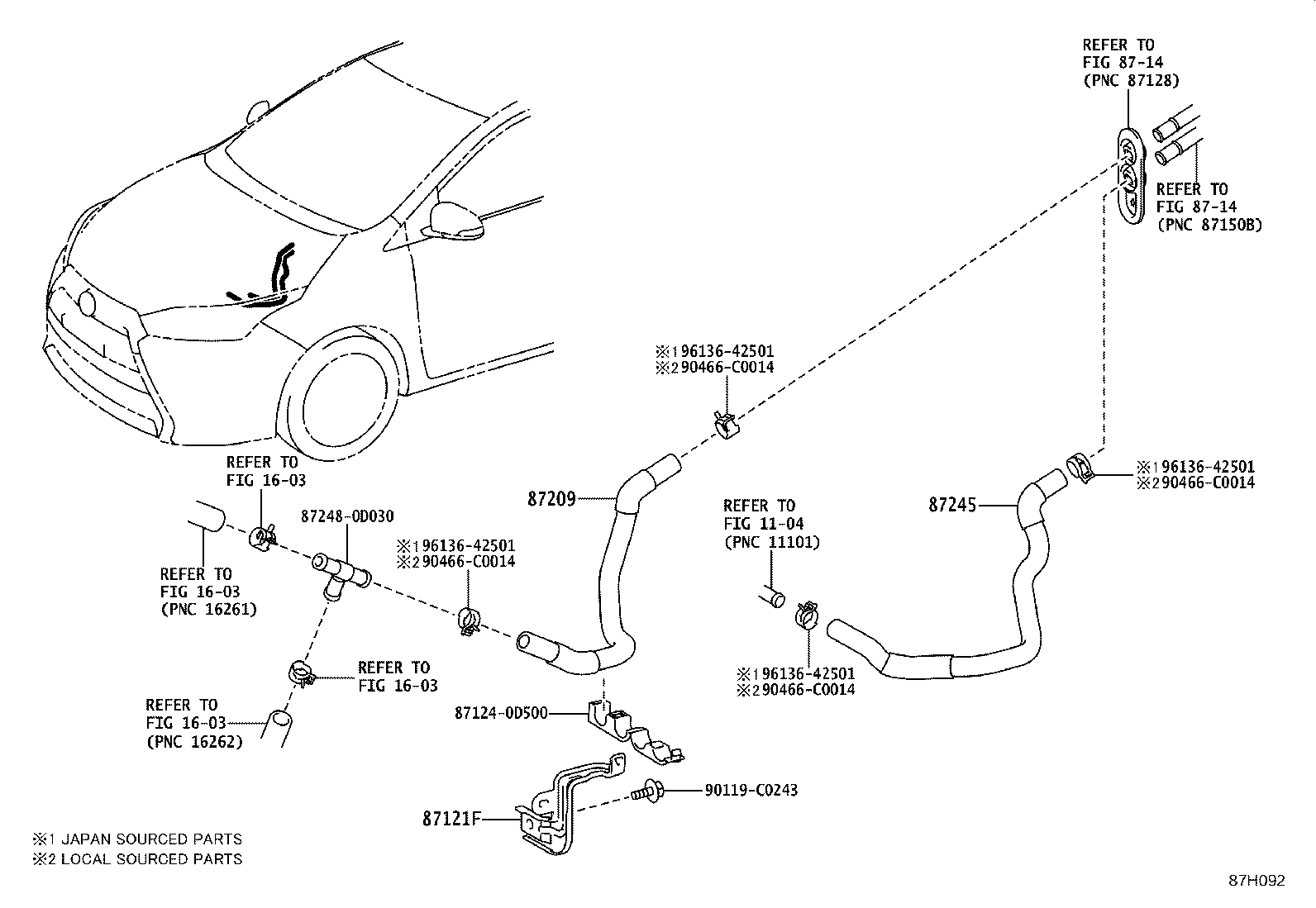

Figure 87D833A 87D833A 2013-12 → 2016-08 Figure 87F825 87F825 2016-08 → 2018-07 Figure 87F825 87F825 2016-08 → — Figure 87F828 87F828 2016-08 → 2018-07 Figure 87F828 87F828 2018-07 → — Figure 87H092 87H092 2018-07 → — Figure 87H093 87H093 2018-07 → —

Part groups

PNCDescription
87121F Bracket, Heater
87209 Hose Sub-assy, Water
87245 Hose, Heater Water, Inlet
87246 Hose, Heater Water, Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
