Toyota Yaris (CHINA)

2013-12 → 2023-04 · chassis NSP15# · catalogue 110320 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

8 part groups · 3 illustrations

Illustrations

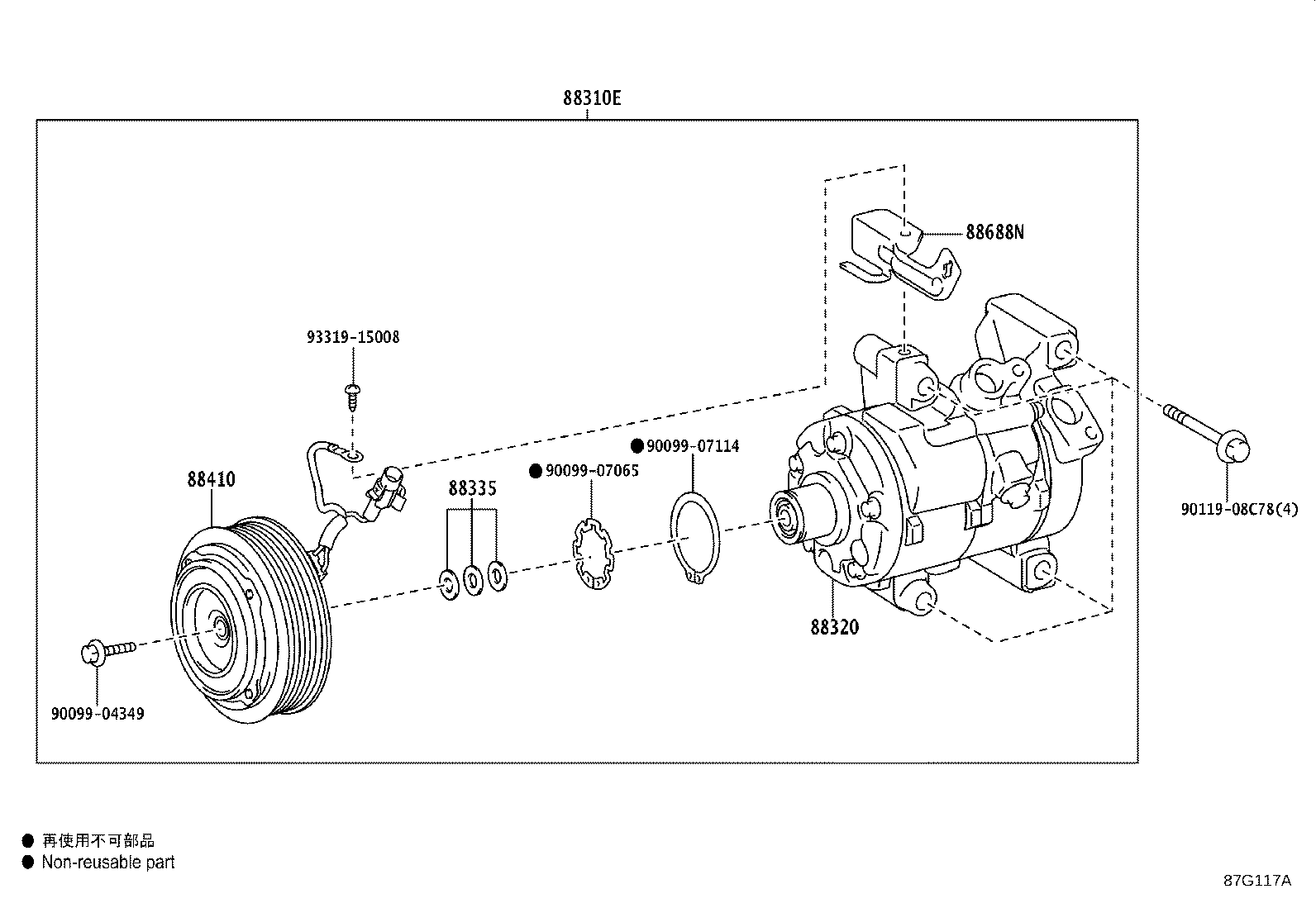

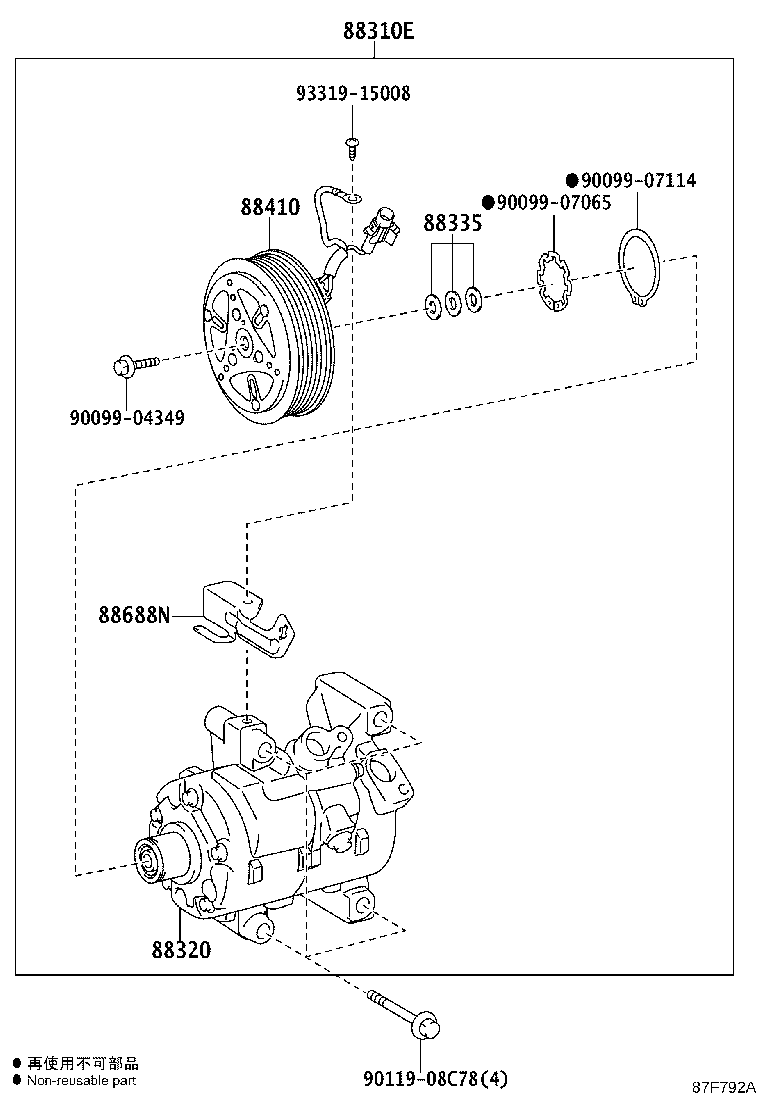

Figure 87D836A 87D836A 2013-12 → 2016-08 Figure 87F792A 87F792A 2016-08 → — Figure 87G117A 87G117A 2016-08 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302B Stator, Magnet Clutch
88310E Compressor, W/Magnet Clutch
88320 Compressor Assy, Cooler
88335 Gasket Kit, Overhaul
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
