Toyota TOYOTA1000
1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · General
Discontinued model
Data version 1988-08
Carburetor

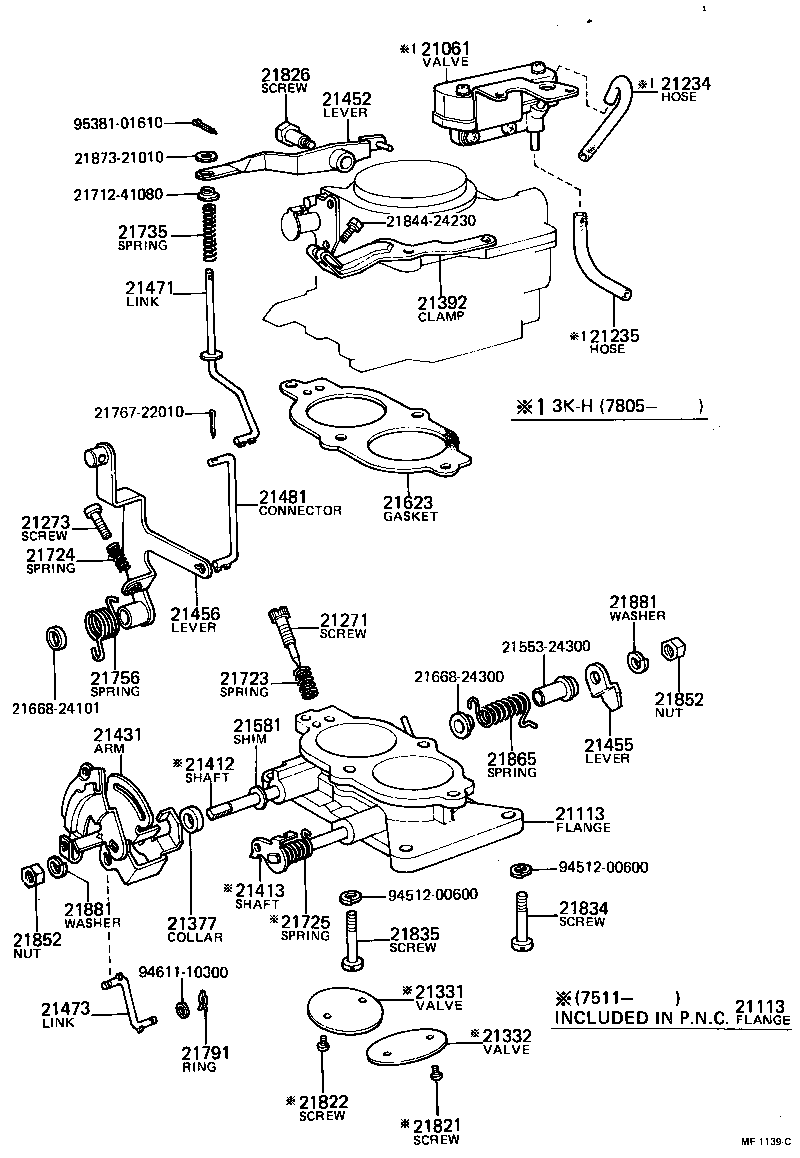

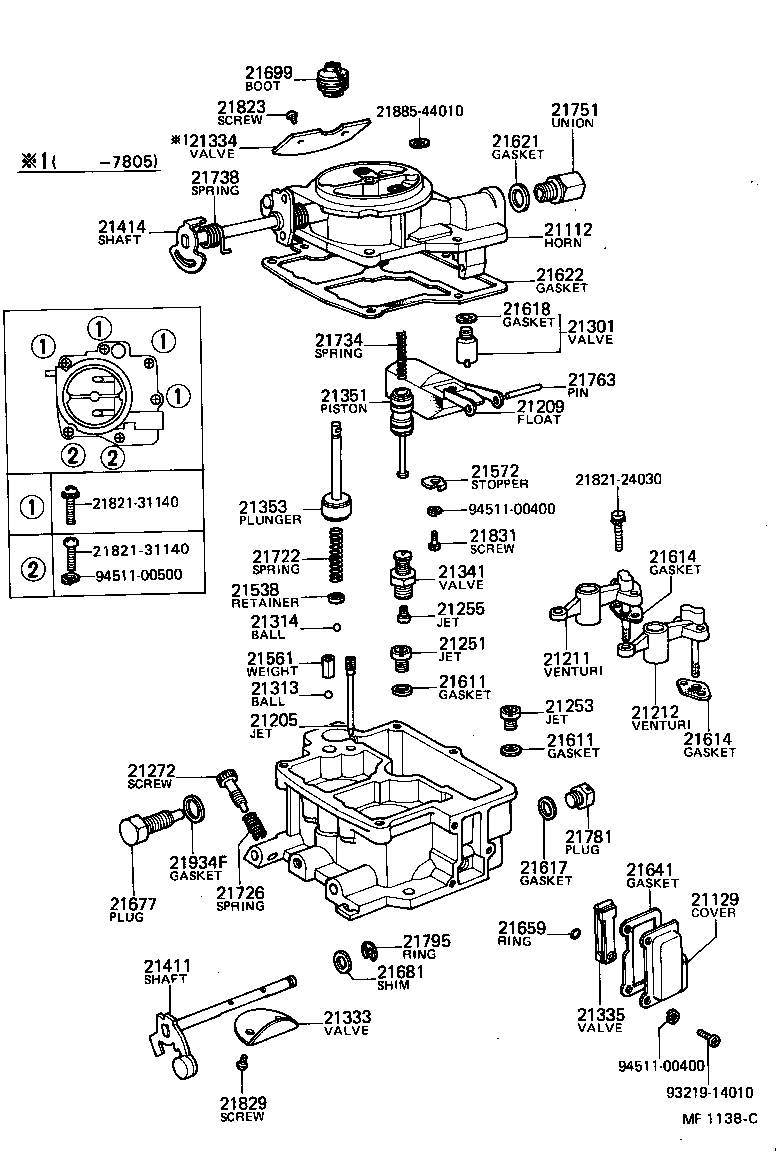

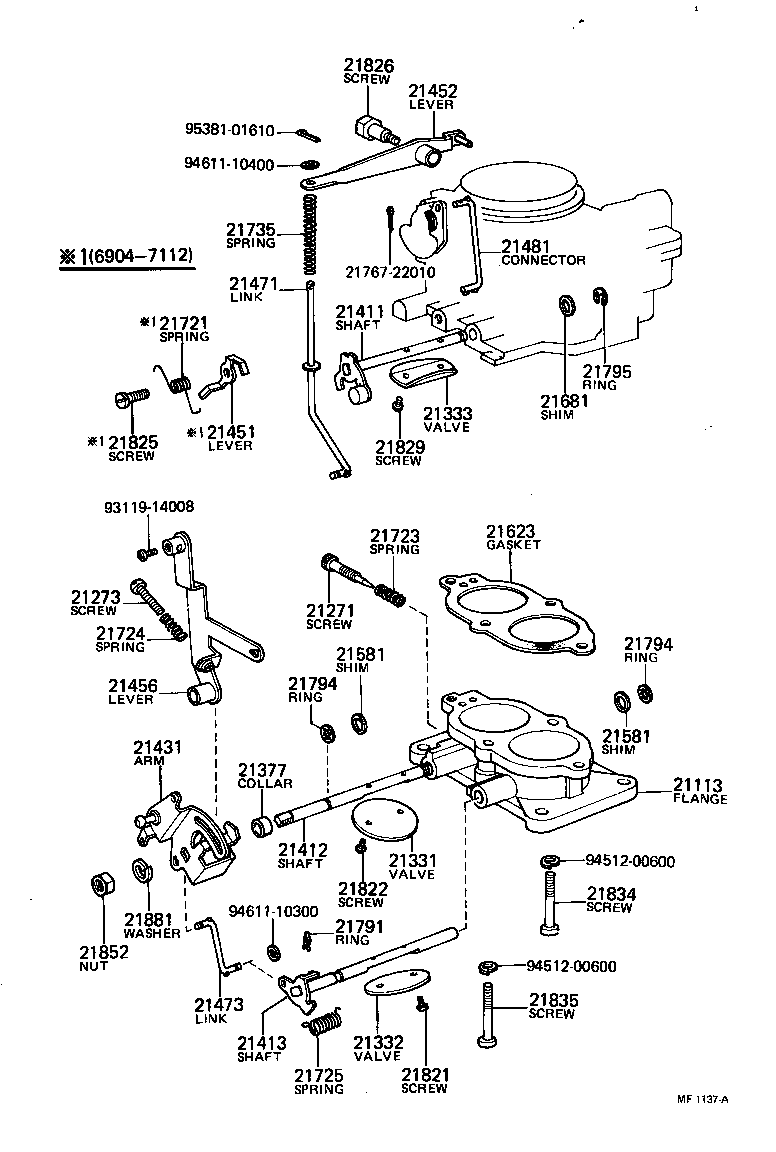

88 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 21061 | Valve Sub-assy, Thermostatic |
| 21112 | Horn, Air |
| 21113 | Flange, Carburetor |
| 21129 | Cover(FOR THERMOSTATIC VALVE) |
| 21205 | Jet Sub-assy, Slow |
| 21206 | Strainer Sub-assy |
| 21209 | Float Sub-assy |
| 21211 | Venturi, 1ST Small |
| 21212 | Venturi, 2ND Small |
| 21234 | Pipe OR Hose |
| 21235 | Pipe OR Hose, Connecting |
| 21251 | Jet, 1ST Main |
| 21253 | Jet, 2ND Main |
| 21255 | Jet, Power |
| 21271 | Screw, Idle Adjusting |
| 21272 | Screw, 1ST Idle Adjusting |
| 21273 | Screw, Throttle Adjusting |
| 21301 | Valve Sub-assy, Needle |
| 21313 | Ball, Steel, NO.1(FOR DISCHARGE WEIGHT) |
| 21314 | Ball, Steel, NO.2(FOR PUMP PLUNGER) |
| 21331 | Valve, 1ST Throttle |
| 21332 | Valve, 2ND Throttle |
| 21333 | Valve, High Speed |
| 21334 | Valve, Choke |
| 21335 | Valve, Thermostatic |
| 21341 | Valve, Power |
| 21351 | Piston, Power |
| 21353 | Plunger, Pump |
| 21377 | Collar(FOR 2ND THROTTLE SHAFT) |
| 21392 | Clamp, Choke Wire |
| 21411 | Shaft, High Speed |
| 21412 | Shaft, 1ST Throttle |
| 21413 | Shaft, 2ND Throttle |
| 21414 | Shaft, Choke |
| 21431 | Arm, 1ST Throttle Shaft |
| 21451 | Lever, High Speed Valve Stop |
| 21452 | Lever, Pump |
| 21455 | Lever, Throttle |
| 21456 | Lever, 1ST Throttle Idle Adjusting, NO.1 |
| 21471 | Link, Pump Connecting |
| 21473 | Link, Throttle Shaft |
| 21481 | Connector, 1ST Idle |
| 21538 | Retainer, Ball Check |
| 21561 | Weight, Pump Discharge |
| 21572 | Stop, Power Piston |
| 21581 | Shim, 1ST Throttle Shaft |
| 21611 | Gasket, Main Jet |
| 21614 | Gasket, Venturi |
| 21617 | Gasket, Main Passage Plug |
| 21618 | Gasket, Needle Valve Seat |
| 21621 | Gasket, Union Nipple |
| 21622 | Gasket, Air Horn |
| 21623 | Gasket, Body Flange |
| 21641 | Gasket(FOR THERMOSTATIC VALVE COVER) |
| 21659 | Ring, O(FOR THERMOSTATIC VALVE) |
| 21677 | Plug |
| 21681 | Shim(FOR HIGH SPEED SHAFT) |
| 21699 | Boot(FOR PUMP PLUNGER) |
| 21721 | Spring, High Speed Valve Stop Lever |
| 21722 | Spring, Pump Damping |
| 21723 | Spring, Idle Adjusting |
| 21724 | Spring, Throttle Adjusting |
| 21725 | Spring, 2ND Throttle Back |
| 21726 | Spring, 1ST Idle Adjusting |
| 21734 | Spring, Power Piston |
| 21735 | Spring, Pump Arm |
| 21738 | Spring, Choke Valve Relief |
| 21751 | Union, Nipple |
| 21756 | Spring, Back(FOR THROTTLE SHAFT) |
| 21763 | Pin, Float Lever |
| 21781 | Plug, Main Passage(FOR CARBURETOR JET) |
| 21785 | Plug, Carburetor Fuel Inlet Strainer |
| 21791 | Ring, Snap, NO.1(FOR CARBURETOR LINK) |
| 21794 | Ring, Retainer, NO.1(FOR THROTTLE SHAFT) |
| 21795 | Ring, Retainer, NO.2(FOR HIGH SPEED SHAFT) |
| 21821 | Screw, 2ND Throttle Valve Set |
| 21822 | Screw, 1ST Throttle Valve Set |
| 21823 | Screw, Choke, Valve Set |
| 21825 | Screw, Stop Lever Set |
| 21826 | Screw, Pump Arm Set |
| 21829 | Screw, High Speed Valve Set |
| 21831 | Screw, Power Piston Stop |
| 21834 | Screw, Set, NO.2(FOR CARBURETOR BODY SET) |
| 21835 | Screw, Set, NO.3(FOR CARBURETOR BODY SET) |
| 21852 | Nut, Throttle Lever Set |
| 21865 | Spring |
| 21881 | Washer, Lock(FOR THROTTLE SHAFT) |
| 21934F | Gasket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
