Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Gear Shift Fork & Lever Shaft (MTM)

28 part groups · 3 illustrations

Illustrations

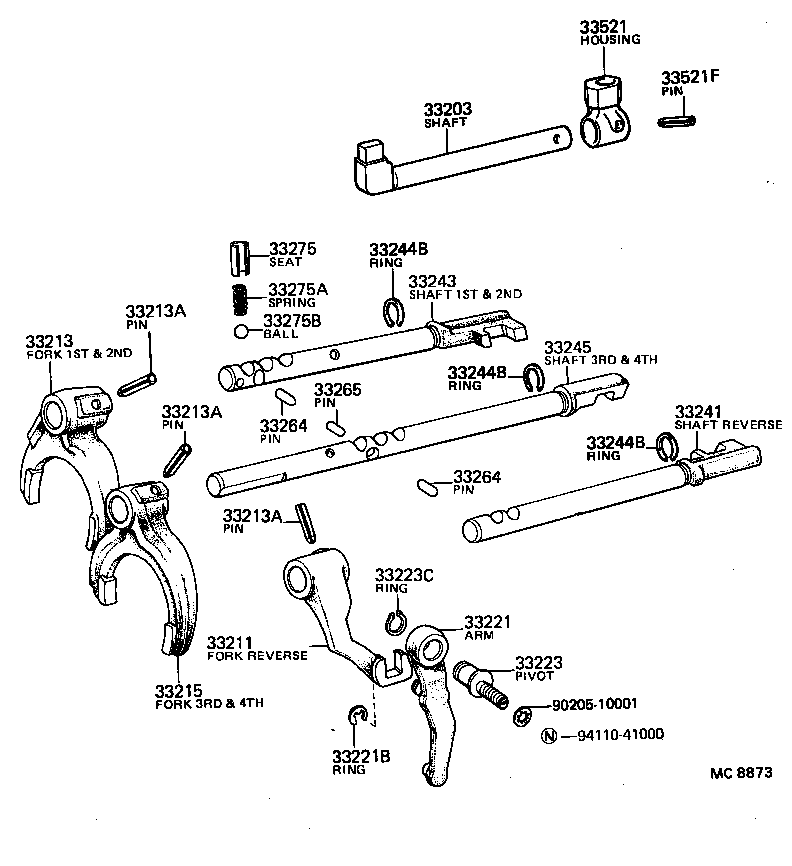

Figure MC0083C MC0083C 1969-04 → 1970-04 Figure MC3515B MC3515B 1970-04 → 1985-01 Figure MC8873 MC8873 1985-01 → —

Part groups

PNCDescription
33203 Shaft Sub-assy, Shift Lever, NO.1
33211 Fork, Reverse Shift
33213 Fork, 1ST & 2ND Shift
33213A Pin, Slotted Spring(FOR SHIFT FORK SET)
33215 Fork, 3RD & 4TH Shift
33221 Arm, Reverse Shift
33221B Ring, E(FOR REVERSE SHIFT ARM)
33223 Pivot, Shift Arm
33223C Ring, Shaft Snap(FOR SHIFT ARM PIVOT)
33241 Shaft, Reverse Shift Fork
33243 Shaft, 1ST & 2ND Shift Fork
33244B Ring, Shaft Snap (FOR SHIFT FORK SHAFT)
33245 Shaft, 3RD & 4TH Shift Fork
33264 Pin, OR Ball, Shift Interlock, NO.1
33265 Pin, Shift Interlock, NO.2
33266 Plate, Shift Interlock
33266A Bolt (FOR SHIFT INTERLOCK PLATE)
33267 Bolt, Shift Interlock Plate Set, NO.1
33268 Bolt, Shift Interlock Plate Set, NO.2
33268A Spring, Torsion (FOR SHIFT INTERLOCK PLATE SET BOLT)
33275 Seat, Shift Detent Ball Spring, NO.1
33275A Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE)
33275B Ball, Shaft Detent
33283 Pin, Reverse Restrict, NO.1
33283A Spring, Compression (FOR REVERSE RESTRICT PIN)
33283B Pin, Straight (FOR REVERSE RESTRICT PIN)
33521 Housing, Shift Lever
33521F Pin OR Bolt (FOR SHIFT LEVER HOUSING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
