Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

24 part groups · 7 illustrations

Illustrations

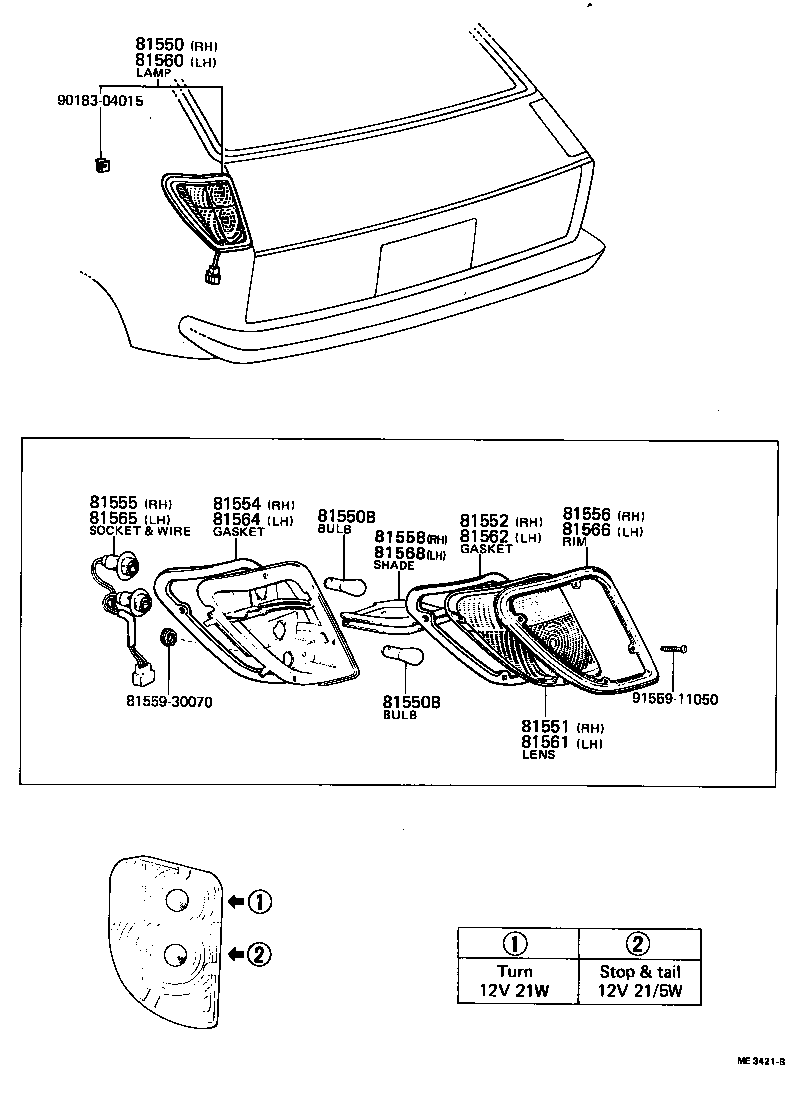

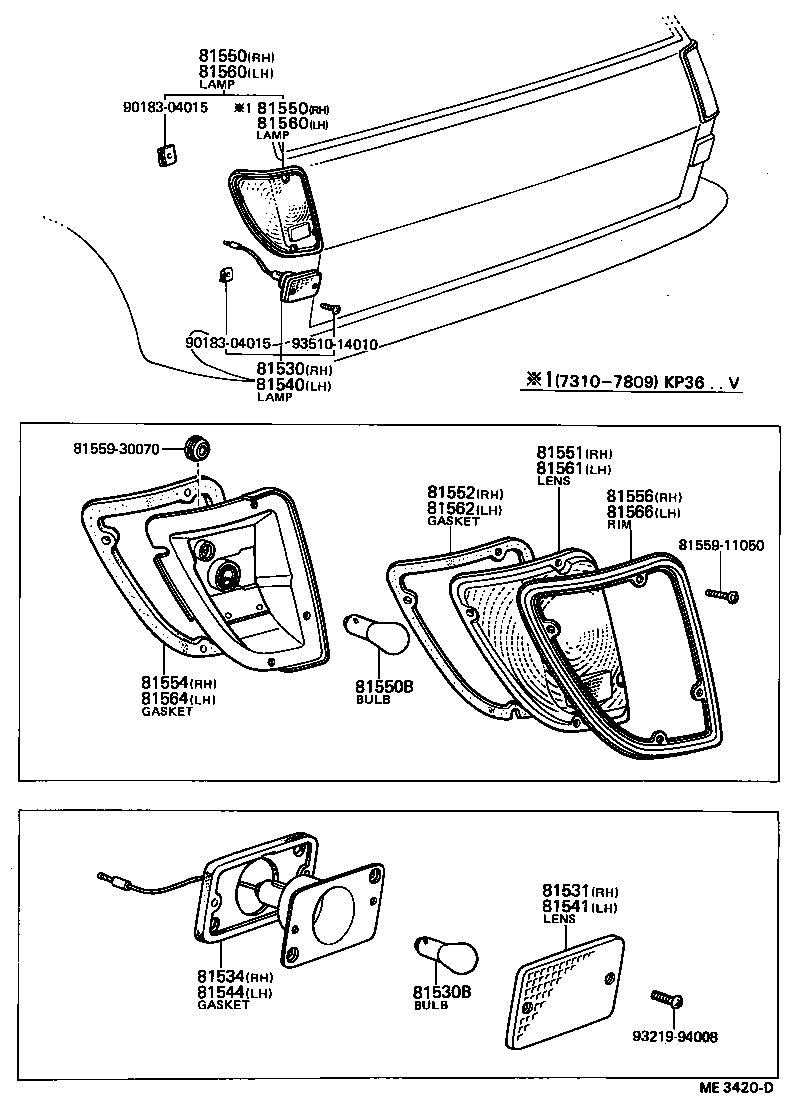

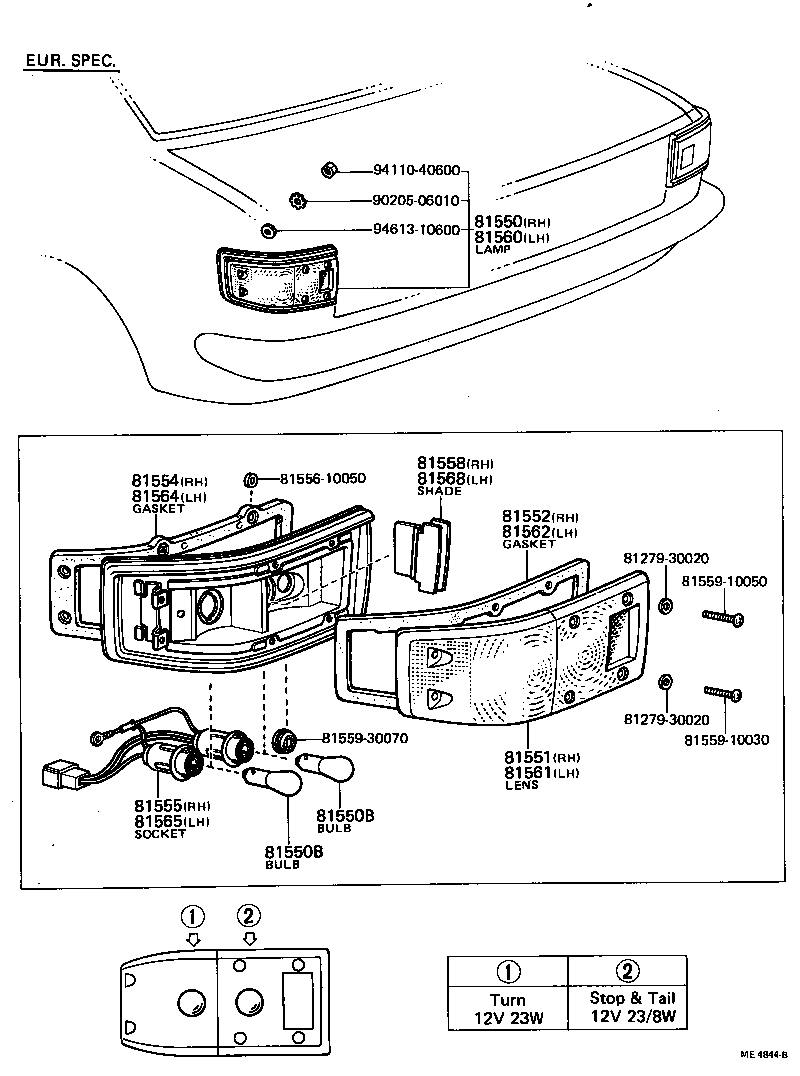

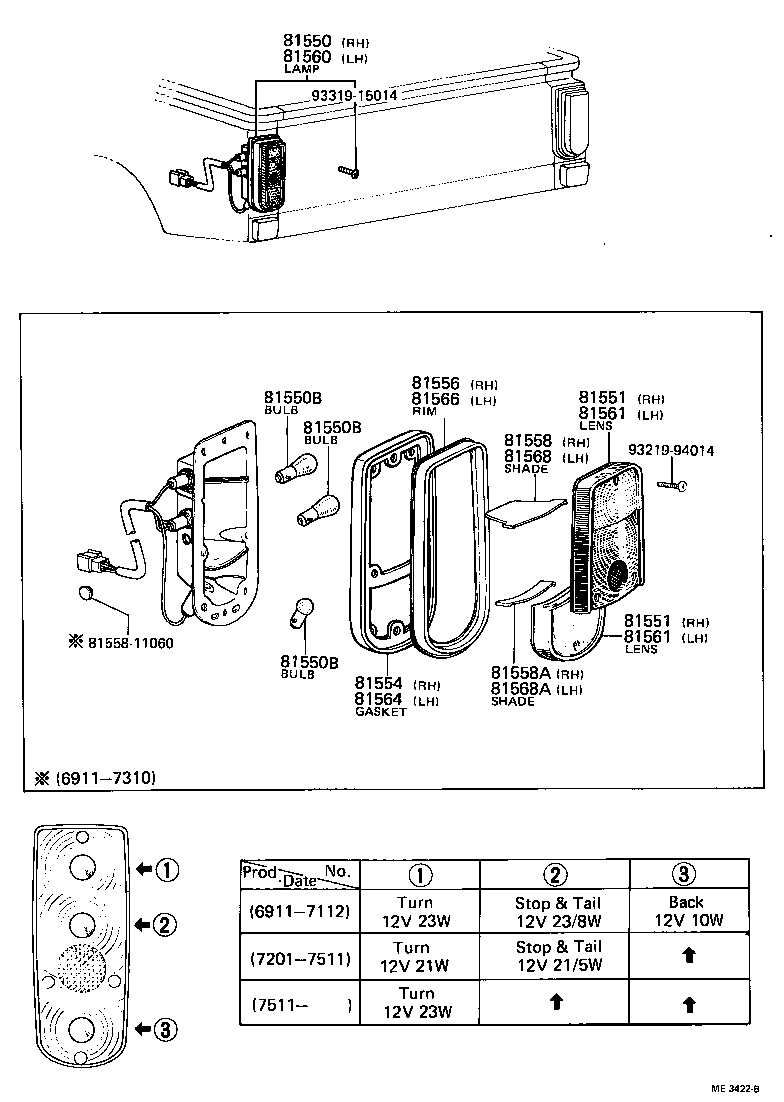

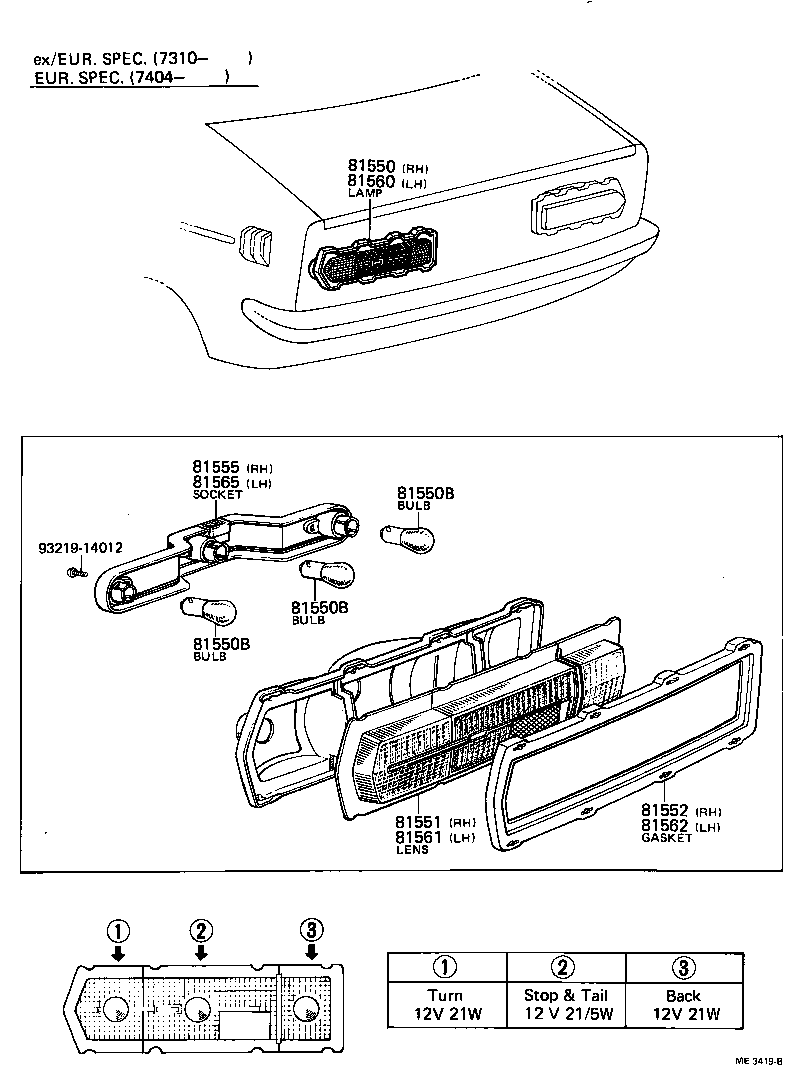

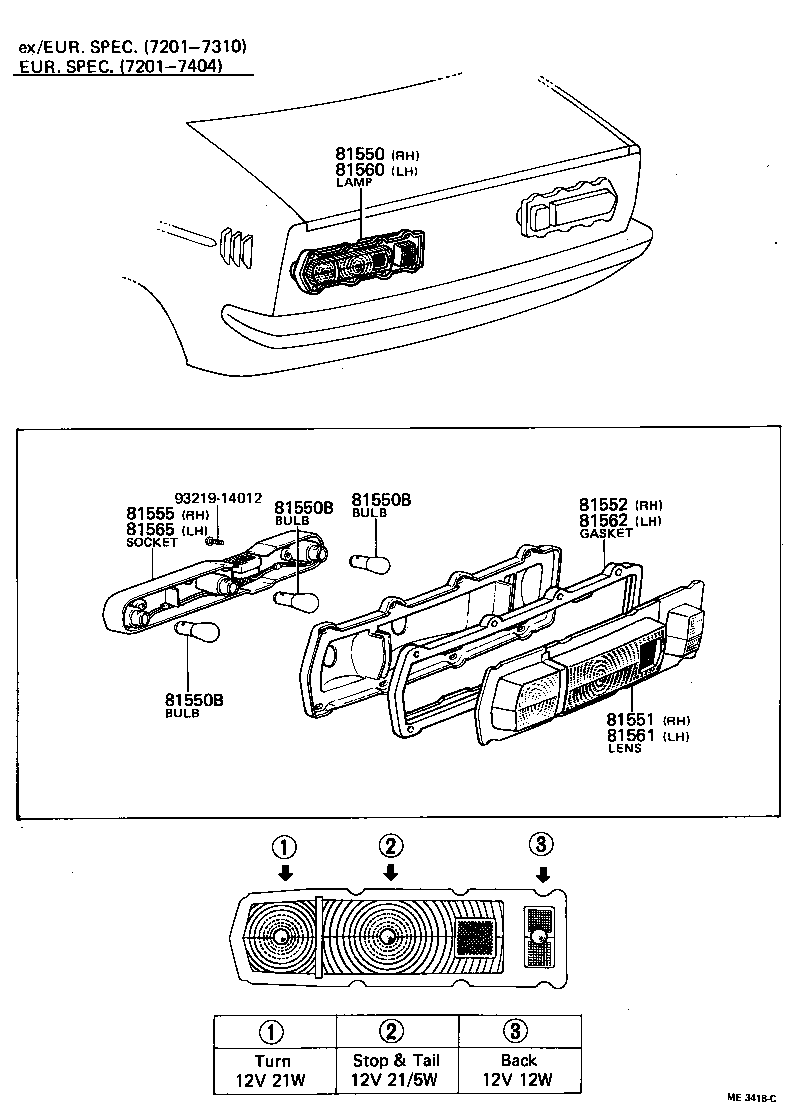

Figure ME3417B ME3417B 1969-04 → 1971-12 Figure ME4844B ME4844B 1970-10 → 1971-12 Figure ME3418C ME3418C 1972-01 → 1974-04 Figure ME3419B ME3419B 1973-10 → 1978-02 Figure ME3420D ME3420D 1969-04 → 1971-12 Figure ME3421B ME3421B 1972-01 → 1978-09 Figure ME3422B ME3422B 1969-11 → —

Part groups

PNCDescription
81530 Lamp Assy, Rear Turn Signal, RH
81530B Bulb, Rear Turn Signal Lamp
81531 Lens, Rear Turn Signal Lamp, RH
81534 Gasket, Rear Turn Signal Lamp Body, RH
81540 Lamp Assy, Rear Turn Signal, LH
81541 Lens, Rear Turn Signal Lamp, LH
81544 Gasket, Rear Turn Signal Lamp Body, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81556 Rim, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81558A Shade, Rear Combination Lamp, NO.2 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81566 Rim, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81568A Shade, Rear Combination Lamp, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
