Toyota Yaris/Echo (3D,5D)
1999-03 → 2005-08 · chassis NCP1#,SCP10 · catalogue 112310 · General
Discontinued model
Data version 2006-04

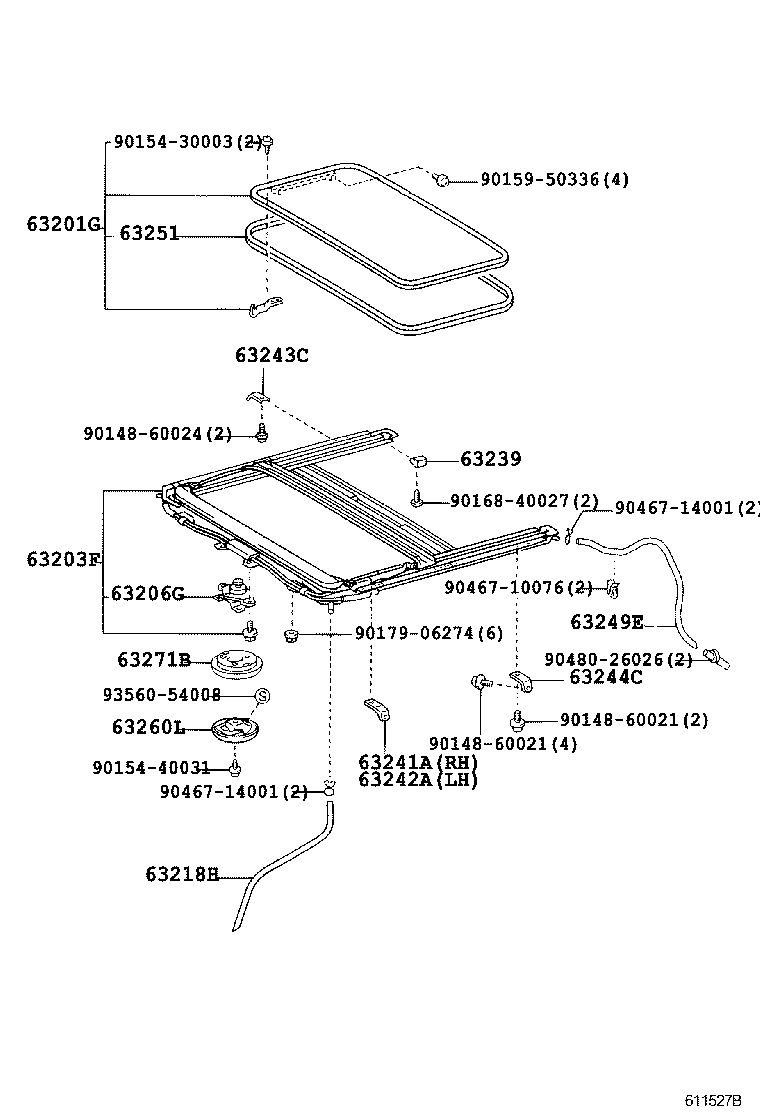

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-52010 note |
Glass Sub-assy, Sliding Roof
1999-03 → 2002-12
ended
|
NCP1#,SCP10 | — | |
| 63201-52010 note |
Glass Sub-assy, Sliding Roof
2002-12 → 2003-08
ended
|
NCP1# ARL | — | |
| 63201-52011 note |
Glass Sub-assy, Sliding Roof
2003-08 → 2003-09
ended
|
NCP1# ARL | — | |
| 63201-52012 note |
Glass Sub-assy, Sliding Roof
2003-09 → —
|
NCP1# ARL | — | |
| 63203F — Housing Sub-assy, Sliding Roof | ||||
| 63200-52090 |
Housing Sub-assy, Sliding Roof
2002-12 → 2003-09
ended
|
NCP1# ARL | — | |
| 63200-52091 |
Housing Sub-assy, Sliding Roof
2003-09 → —
|
NCP1# ARL | — | |
| 63206G — Gear Sub-assy, Sliding Roof Drive | ||||
| 63260-52020 |
Gear Sub-assy, Sliding Roof Drive
1999-03 → 2002-12
ended
|
NCP1#,SCP10 | — | |
| 63260-52020 |
Gear Sub-assy, Sliding Roof Drive
2002-12 → —
|
NCP1# ARL | — | |
| 63218H — Hose, Sliding Roof Drain | ||||
| 63249-52010 |
Hose, Sliding Roof Drain
1999-03 → 2002-12
ended
|
NCP1#,SCP10 | — | |
| 63249-52150 |
Hose, Sliding Roof Drain
2002-12 → 2005-03
ended
|
NCP1# ARL | — | |
| 63249-52151 |
Hose, Sliding Roof Drain
2005-04 → —
|
NCP1# ARL | — | |
| 63239 — Stopper, Sliding Roof Panel | ||||
| 63239-12030 |
Stopper, Sliding Roof Panel
1999-03 → 2002-12
ended
|
NCP1#,SCP10 | — | |
| 63239-12030 |
Stopper, Sliding Roof Panel
2002-12 → —
|
NCP1# ARL | — | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-52010 |
Bracket, Sliding Roof Housing Front Mounting, RH
1999-03 → 2002-12
ended
|
NCP1#,SCP10 | — | |
| 63241-52010 |
Bracket, Sliding Roof Housing Front Mounting, RH
2002-12 → —
|
NCP1# ARL | — | |
| 63242A — Bracket, Sliding Roof Housing Front Mounting, LH | ||||
| 63241-52010 |
Bracket, Sliding Roof Housing Front Mounting, LH
1999-03 → 2002-12
ended
|
NCP1#,SCP10 | — | |
| 63241-52010 |
Bracket, Sliding Roof Housing Front Mounting, LH
2002-12 → —
|
NCP1# ARL | — | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-52010 |
Bracket, Sliding Roof Housing Center Mounting, RH
1999-03 → 2002-12
ended
|
NCP1#,SCP10 | — | |
| 63243-52010 |
Bracket, Sliding Roof Housing Center Mounting, RH
2002-12 → —
|
NCP1# ARL | — | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63243-52010 |
Bracket, Sliding Roof Housing Center Mounting, LH
1999-03 → 2002-12
ended
|
NCP1#,SCP10 | — | |
| 63243-52010 |
Bracket, Sliding Roof Housing Center Mounting, LH
2002-12 → —
|
NCP1# ARL | — | |
| 63249E — Hose, Sliding Roof Drain | ||||
| 63249-52020 |
Hose, Sliding Roof Drain
1999-03 → 2002-12
ended
|
NCP1#,SCP10 | — | |
| 63249-52020 |
Hose, Sliding Roof Drain
2002-12 → —
|
NCP1# ARL | — | |
| 63251 — Weatherstrip, Sliding Roof Panel OR Removable Roof | ||||
| 63251-12160 |
Weatherstrip, Sliding Roof Panel OR Removable Roof
1999-03 → 2002-12
ended
|
NCP1#,SCP10 | — | |
| 63251-12160 |
Weatherstrip, Sliding Roof Panel OR Removable Roof
2002-12 → 2003-09
ended
|
NCP1# ARL | — | |
| 63251-12161 |
Weatherstrip, Sliding Roof Panel OR Removable Roof
2003-09 → —
|
NCP1# ARL | — | |
| 63260L — Handle Assy, Sliding Roof Regulator | ||||
| 63260-52010-B0 note |
Handle Assy, Sliding Roof Regulator
1999-03 → 2002-12
ended
|
NCP10,SCP10 | — | |
| 63260-52010-B0 note |
Handle Assy, Sliding Roof Regulator
2001-01 → 2002-12
ended
|
NCP13 | — | |
| 63260-52010-B0 note |
Handle Assy, Sliding Roof Regulator
2002-12 → 2005-08
ended
|
NCP13 | — | |
| 63260-52010-B0 note |
Handle Assy, Sliding Roof Regulator
2002-12 → 2005-08
ended
|
NCP10 ARL | — | |
| 63271B — Bezel, Sliding Roof | ||||
| 63271-52010-B0 note |
Bezel, Sliding Roof
1999-03 → 2002-12
ended
|
NCP10,SCP10 | — | |
| 63271-52010-B0 note |
Bezel, Sliding Roof
2001-01 → 2002-12
ended
|
NCP13 | — | |
| 63271-52010-B0 note |
Bezel, Sliding Roof
2002-12 → 2005-08
ended
|
NCP13 | — | |
| 63271-52010-B0 note |
Bezel, Sliding Roof
2002-12 → 2005-08
ended
|
NCP10 ARL | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
