Toyota Yaris/Echo (3D,5D)

1999-03 → 2005-08 · chassis NCP1#,SCP10 · catalogue 112310 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

8 part groups · 2 illustrations

Illustrations

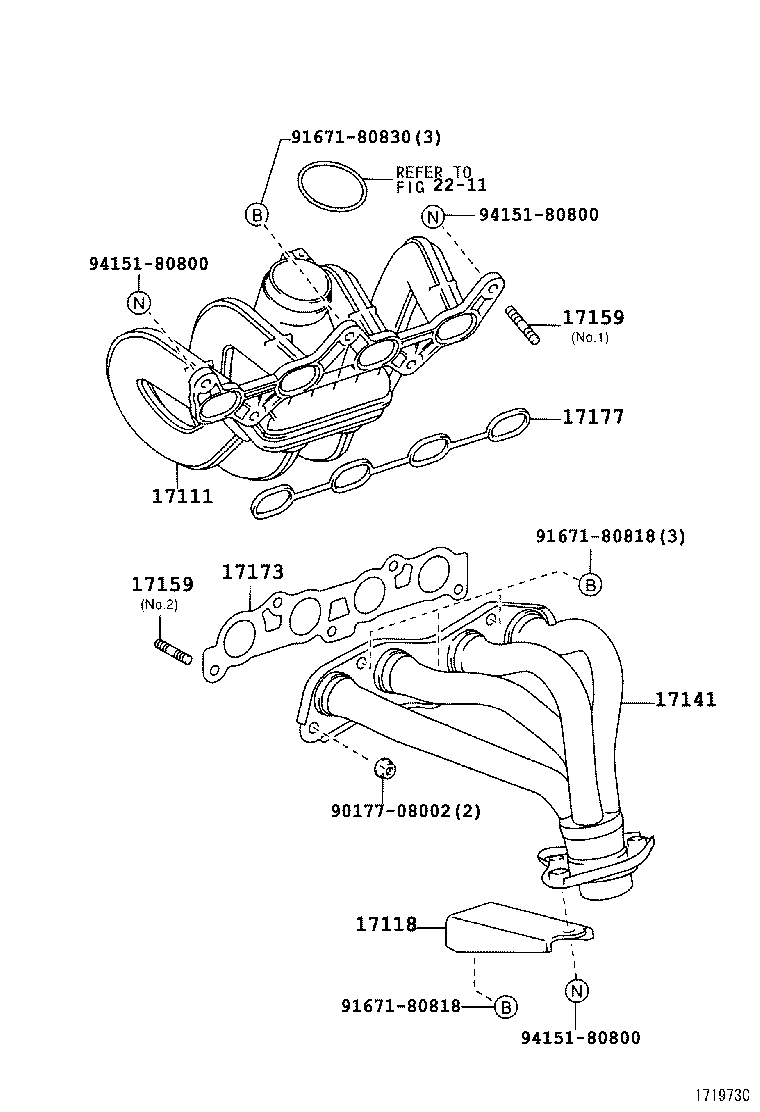

Figure 173219E 173219E 1999-08 → — Figure 171973C 171973C 1999-03 → —

Part groups

PNCDescription
17111 Manifold, Intake
17118 Stay, Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
