Toyota Yaris/Echo (3D,5D)
1999-03 → 2005-08 · chassis NCP1#,SCP10 · catalogue 112310 · General
Discontinued model
Data version 2006-04

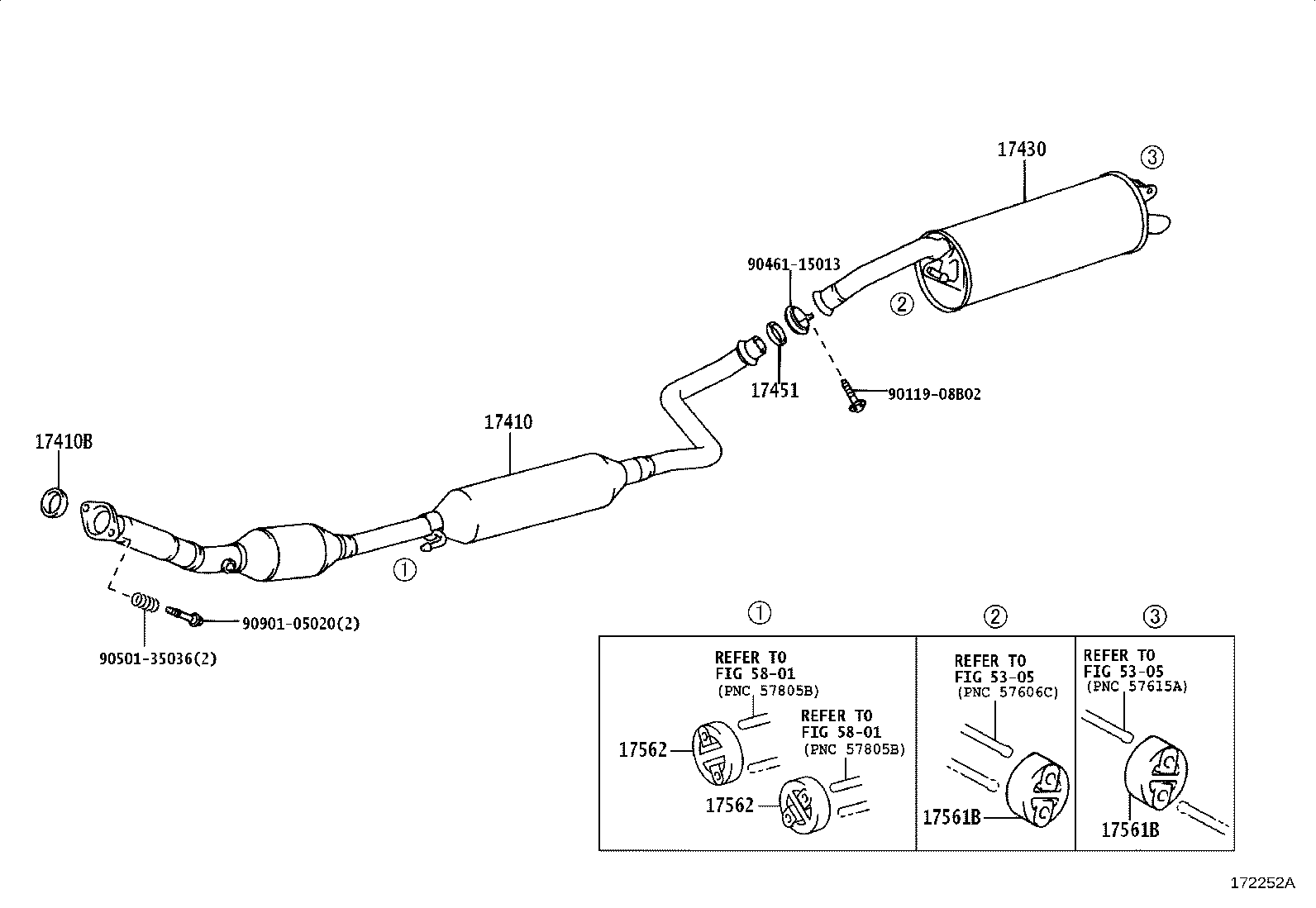

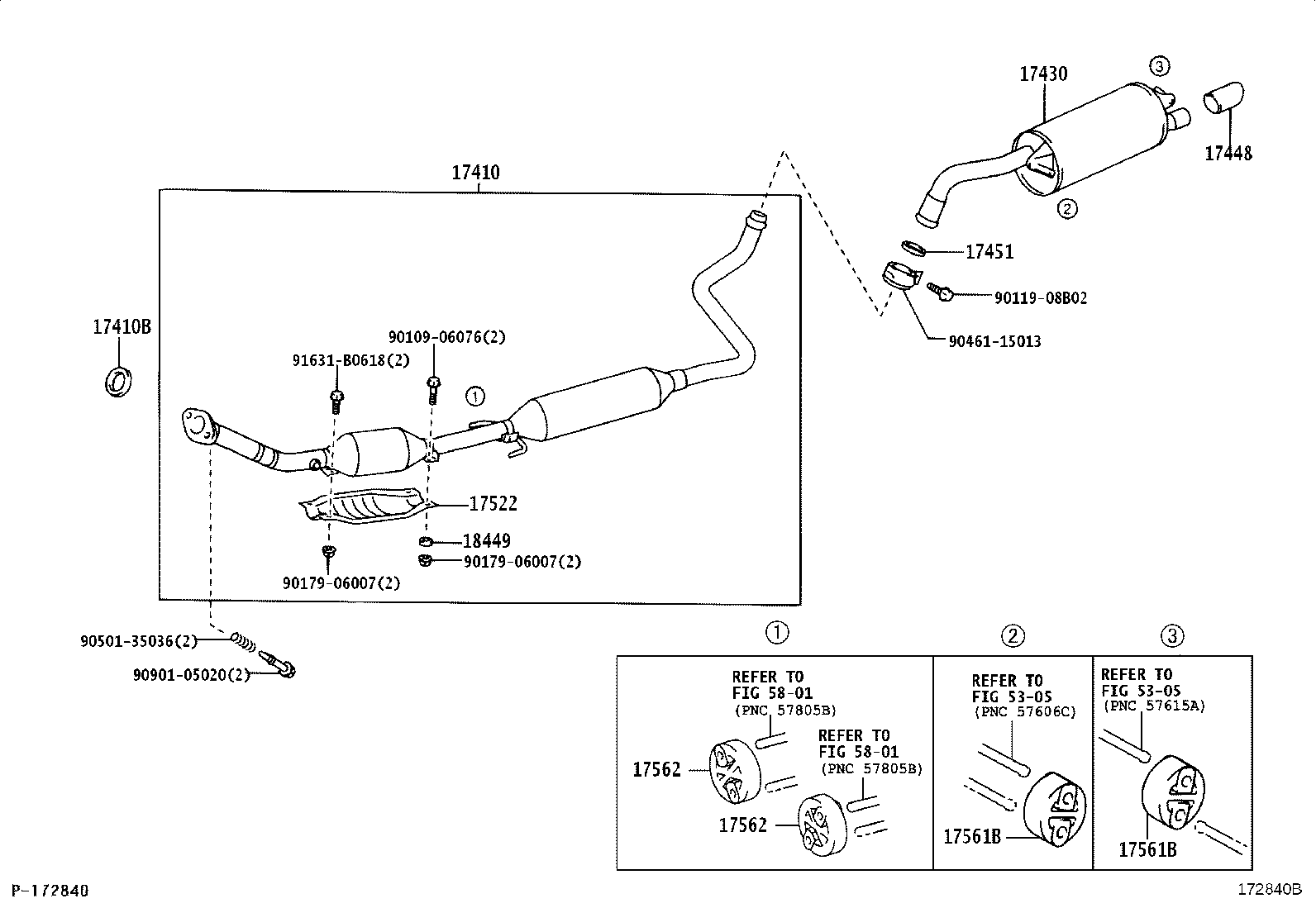

Exhaust Pipe
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 17522 | Protector, Exhaust Pipe, Upper NO.2 |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 18449 | Spacer, Converter Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
