Toyota Yaris/Echo (3D,5D)

1999-03 → 2005-08 · chassis NCP1#,SCP10 · catalogue 112310 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

9 part groups · 9 illustrations

Illustrations

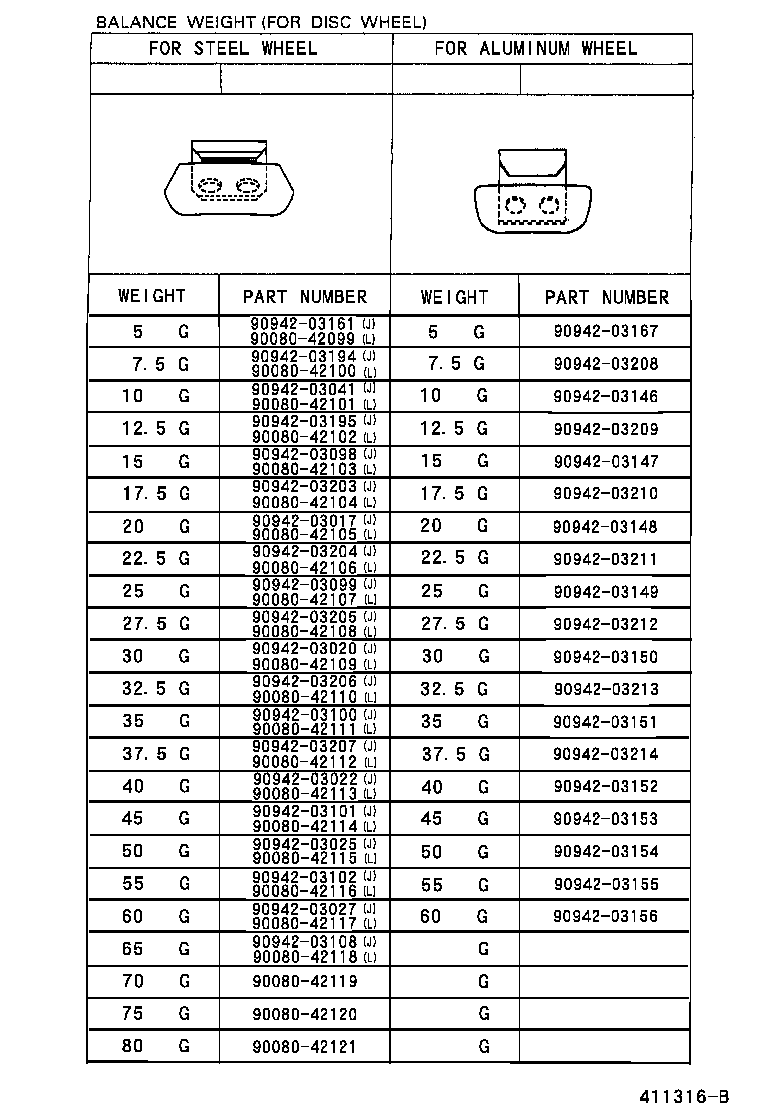

Figure 410909 410909 1999-03 → — Figure 410909 410909 1999-08 → — Figure 410909 410909 2001-01 → — Figure 411311A 411311A 1999-03 → — Figure 411311A 411311A 1999-08 → — Figure 411311A 411311A 2001-01 → — Figure 411316B 411316B 1999-03 → — Figure 411316B 411316B 1999-08 → — Figure 411316B 411316B 2001-01 → —

Part groups

PNCDescription
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)

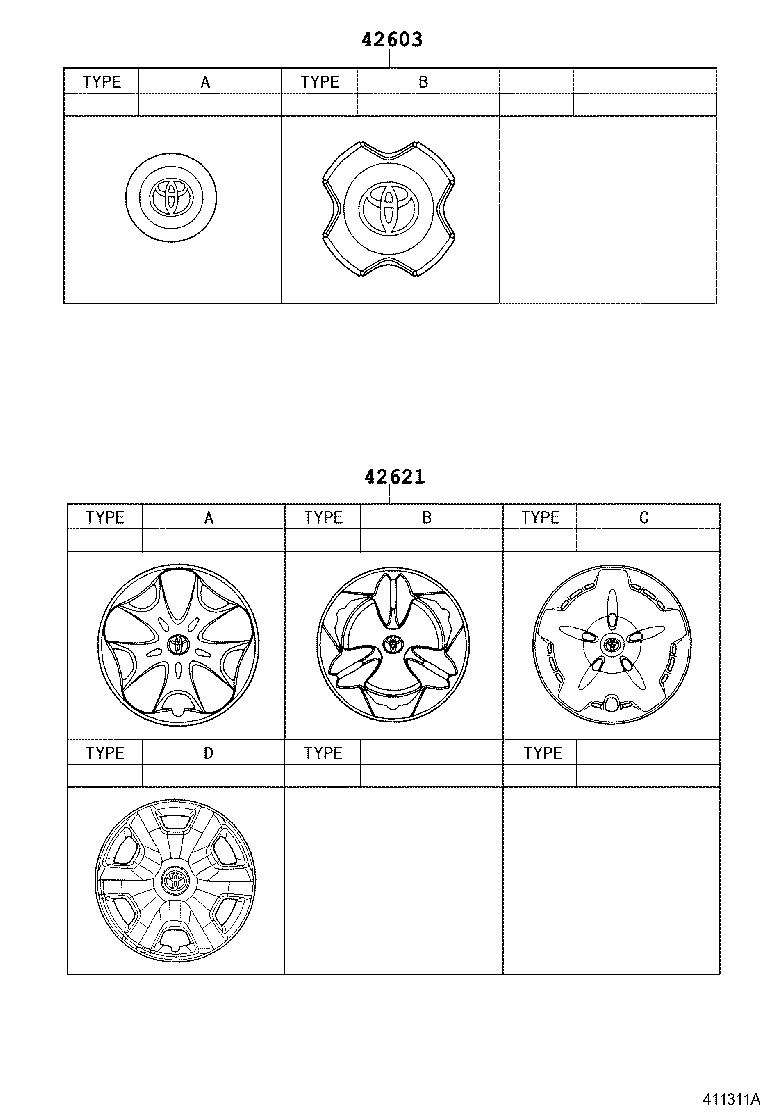

42603 Ornament Sub-assy, Wheel Hub
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42621 Cap, Wheel
42652 Tire
42652A Tire (FOR SPARE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
