Toyota Yaris/Echo (3D,5D)
1999-03 → 2005-08 · chassis NCP1#,SCP10 · catalogue 112310 · General
Discontinued model
Data version 2006-04

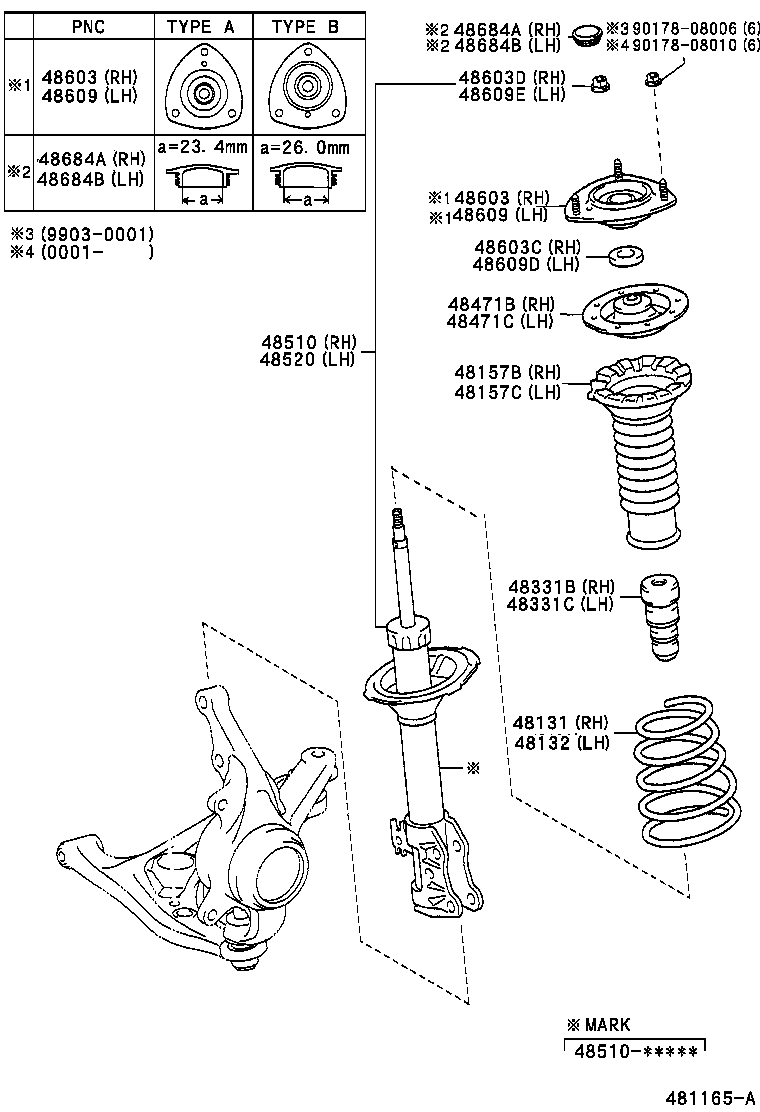

Front Spring & Shock Absorber
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 48131 | Spring, Front Coil, RH |
| 48132 | Spring, Front Coil, LH |
| 48157B | Insulator, Front Coil Spring, Upper RH |
| 48157C | Insulator, Front Coil Spring, Upper LH |
| 48331B | Bumper, Front Spring, RH |
| 48331C | Bumper, Front Spring, LH |
| 48471B | Seat, Front Coil Spring, Upper RH |
| 48471C | Seat, Front Coil Spring, Upper LH |
| 48510 | Absorber Assy, Shock, Front RH |
| 48520 | Absorber Assy, Shock, Front LH |
| 48603 | Support Sub-assy, Front Suspension, RH |
| 48603C | Seal, Dust(FOR FRONT SUSPENSION SUPPORT RH) |
| 48603D | Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) |
| 48609 | Support Sub-assy, Front Suspension, LH |
| 48609D | Seal, Dust(FOR FRONT SUSPENSION SUPPORT LH) |
| 48609E | Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) |
| 48682A | Support, Front Suspension, NO.2 RH |
| 48682B | Support, Front Suspension, NO.2 LH |
| 48684A | Cover, Front Suspension Support Dust, RH |
| 48684B | Cover, Front Suspension Support Dust, LH |
| 48811 | Bar, Stabilizer, Front |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48817 | Cushion, Front Stabilizer |
| 48817A | Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR) |
| 48817B | Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR) |
| 48817F | Nut(FOR FRONT STABILIZER BAR) |
| 48819A | Bolt, Front Stabilizer |
| 48824A | Bracket, Front Stabilizer, NO.1 RH |
| 48829A | Bracket, Front Stabilizer, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
