Toyota Yaris/Echo (3D,5D)

1999-03 → 2005-08 · chassis NCP1#,SCP10 · catalogue 112310 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

23 part groups · 9 illustrations

Illustrations

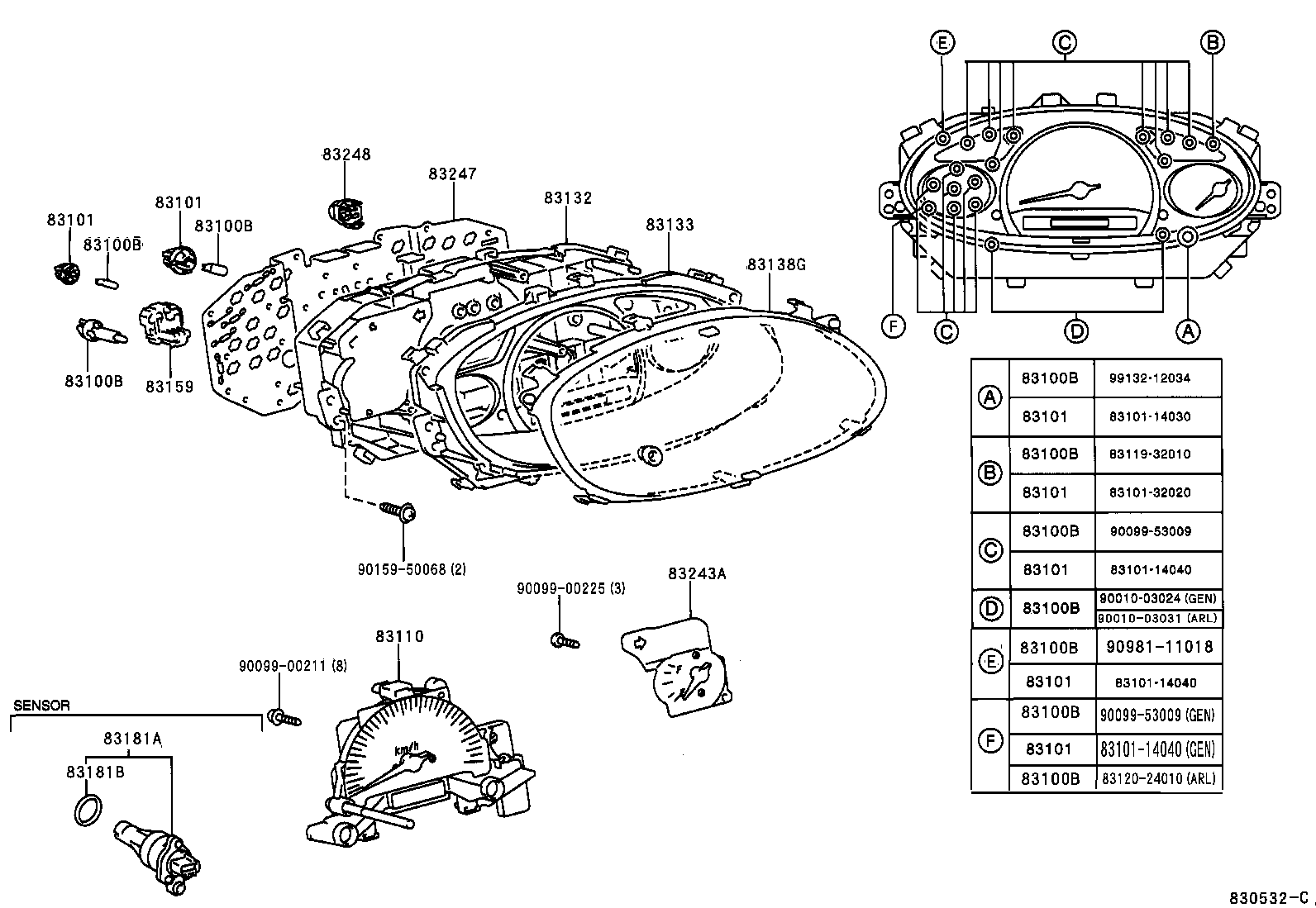

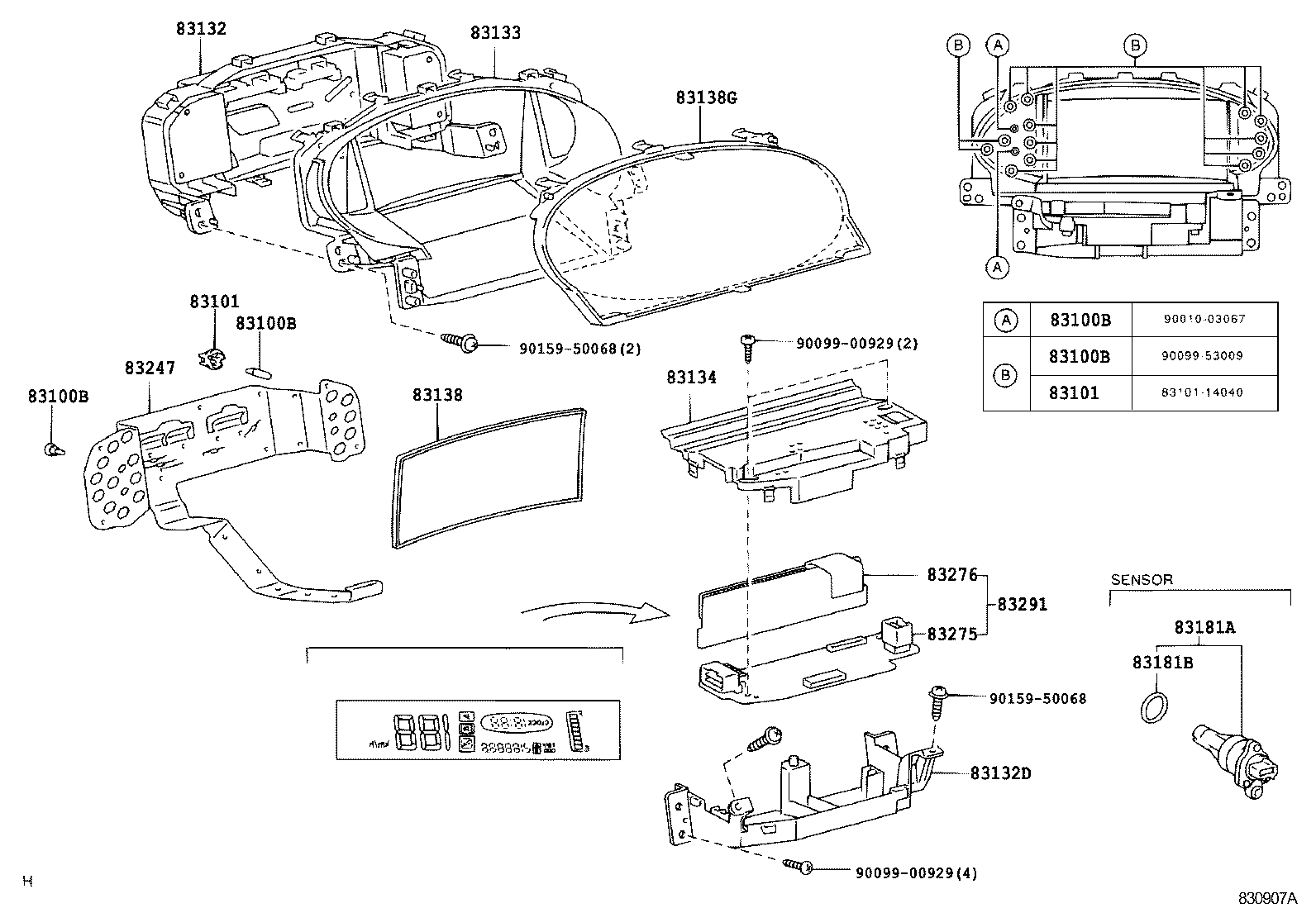

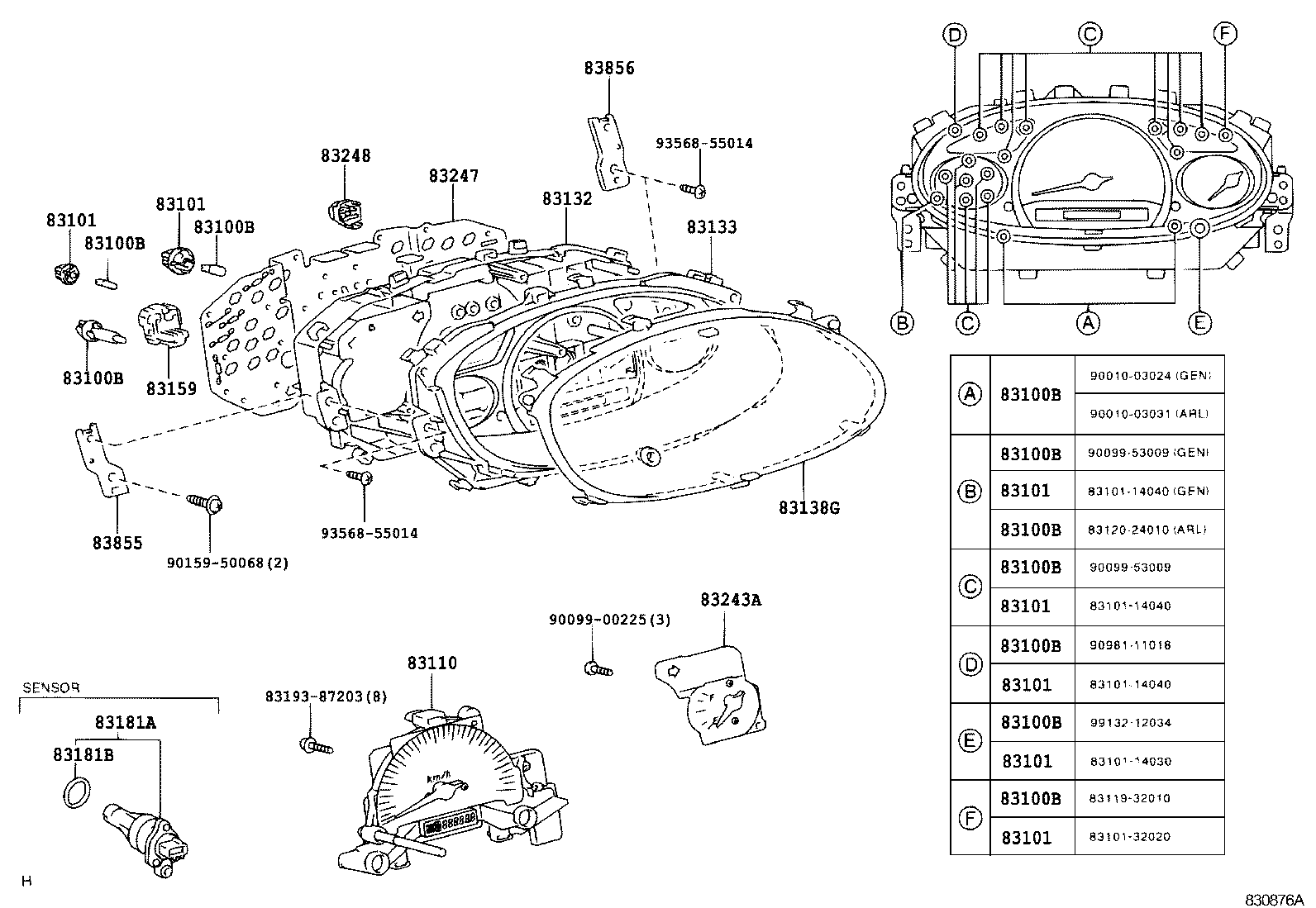

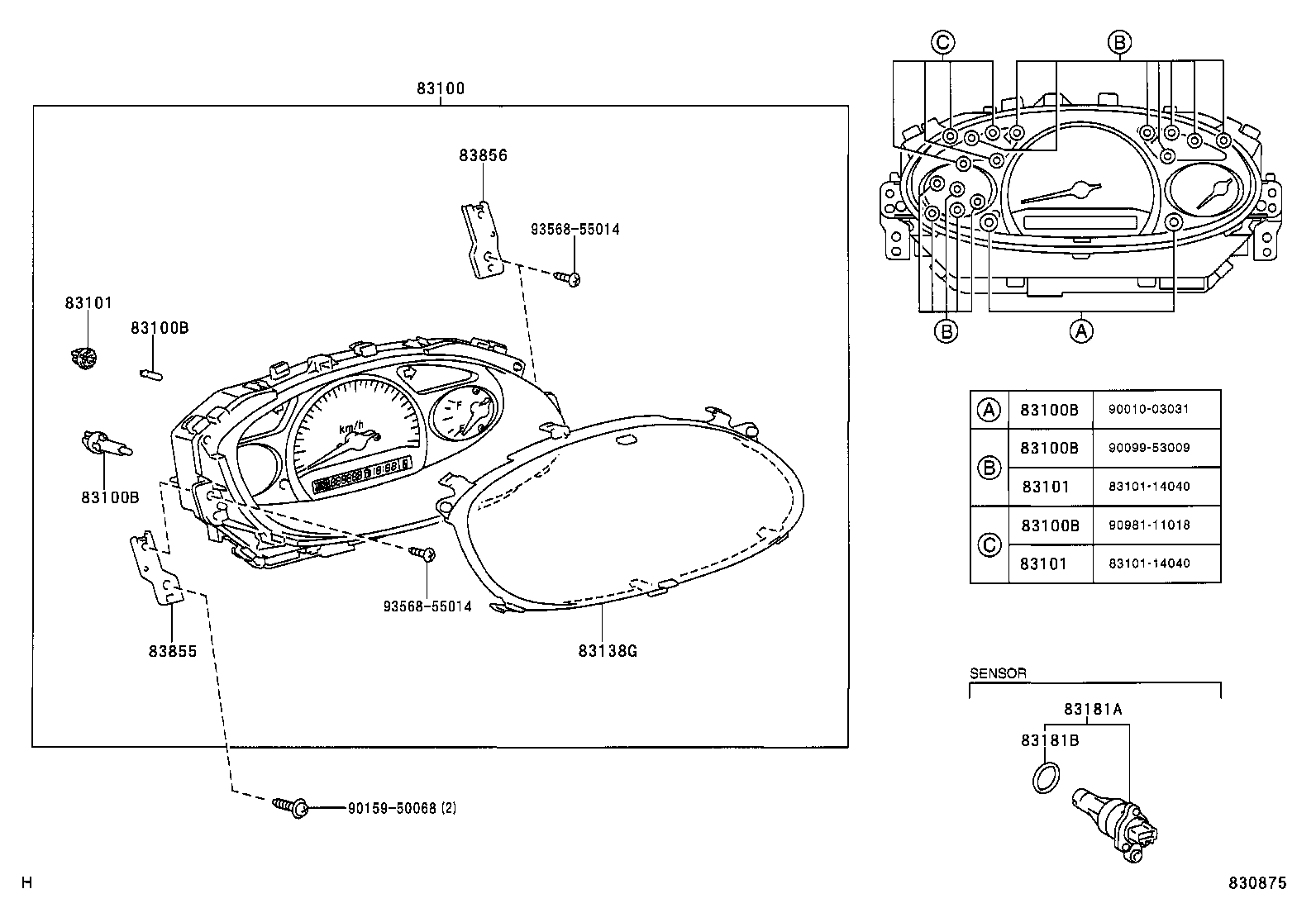

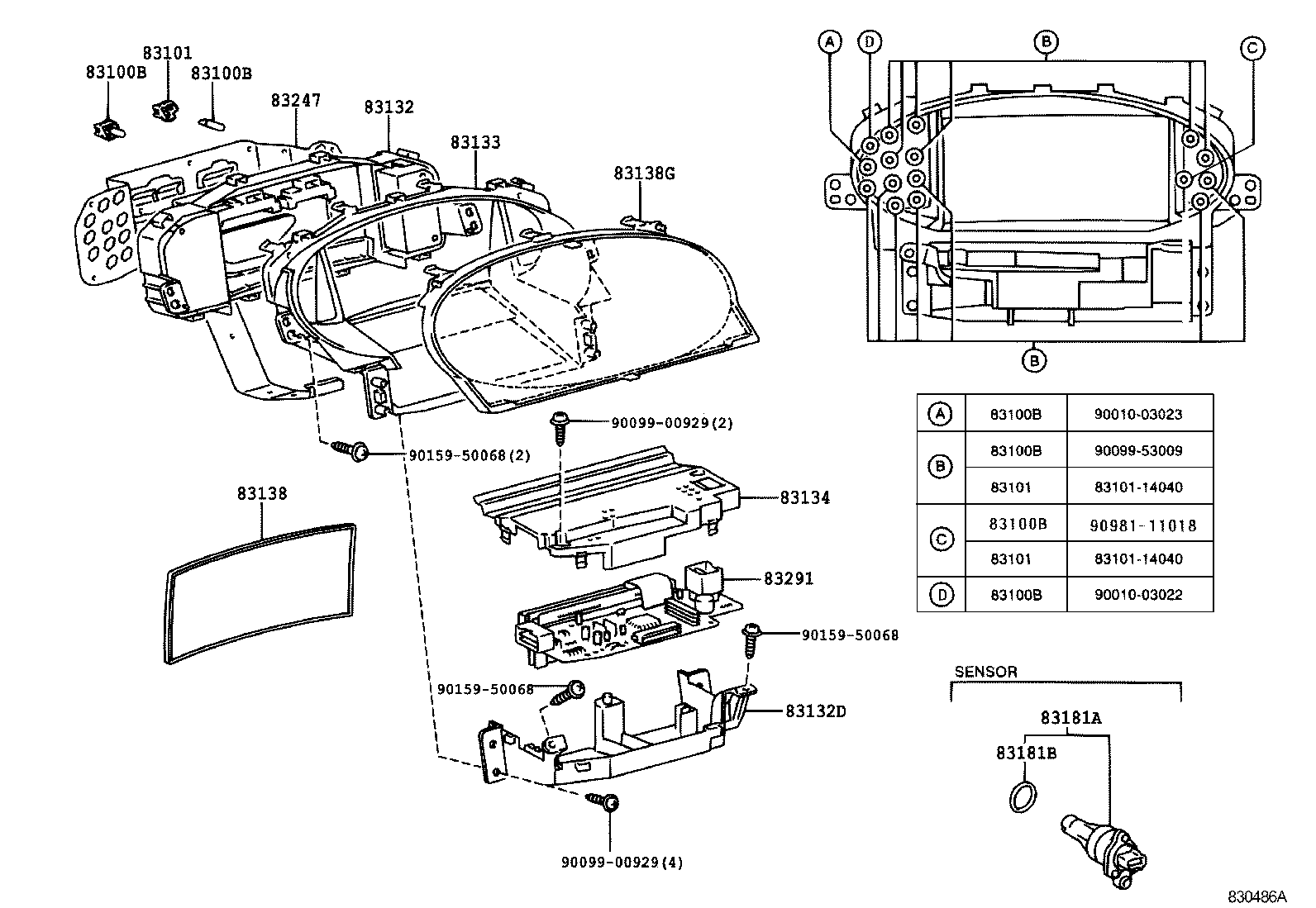

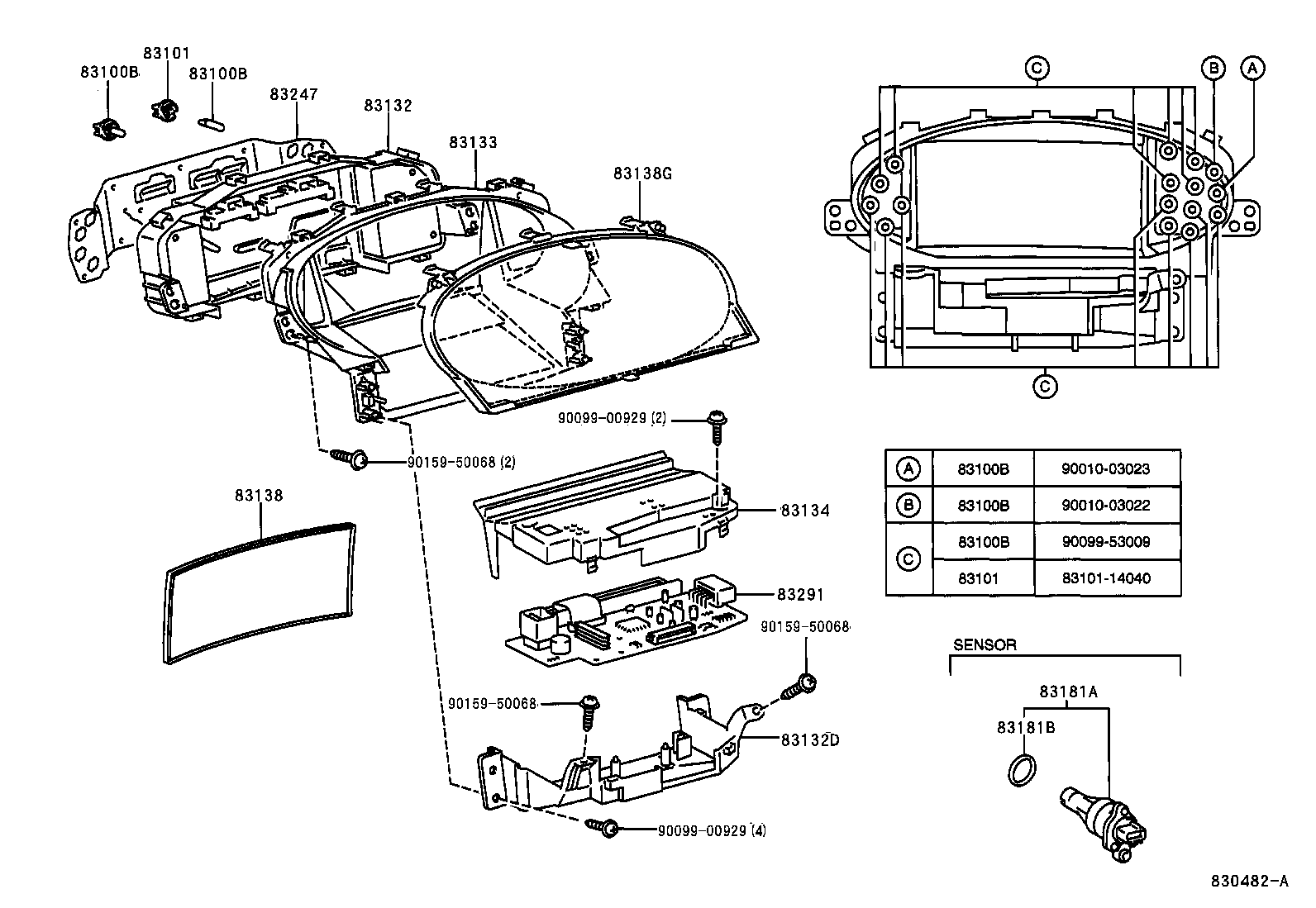

Figure 830479C 830479C 1999-03 → 2002-12 Figure 830532 830532 1999-08 → 2002-12 Figure 830875 830875 2002-12 → — Figure 830876A 830876A 2002-12 → — Figure 830486A 830486A 1999-03 → — Figure 830486A 830486A 1999-08 → 2002-12 Figure 830482A 830482A 1999-08 → 2002-12 Figure 830907A 830907A 2002-12 → — Figure 830483A 830483A 1999-08 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83132D Case, Combination Meter, NO.2
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138 Glass, Speedometer
83138G Glass, Combination Meter
83159 Switch, Meter, NO.1
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83243A Gauge Sub-assy, Fuel Receiver
83247 Plate, Meter Circuit
83248 Chime, Speed Warning
83275 Plate,Computer Meter Circuit NO.1
83276 Plate,Computer Meter Circuit NO.2
83291 Computer, Combination Meter
83855 Bracket, Combination Meter, NO.1
83856 Bracket, Combination Meter, NO.2
83910 Clock Assy
83911C Ornament, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
