Toyota Yaris/Echo (3D,5D)

1999-03 → 2005-08 · chassis NCP1#,SCP10 · catalogue 112310 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

14 part groups · 2 illustrations

Illustrations

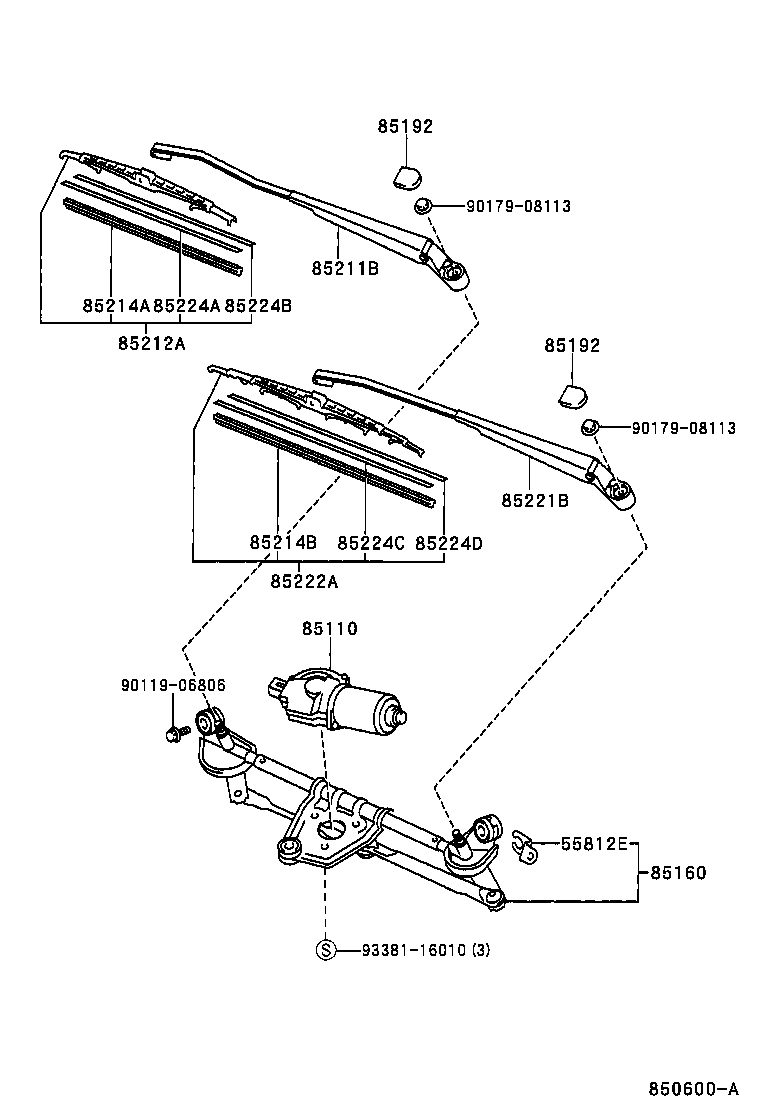

Figure 850602A 850602A 1999-03 → — Figure 850600A 850600A 1999-03 → —

Part groups

PNCDescription
55812E Bracket, Cowl Ventilator
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85224A Plate, Wiper Rubber Backing, NO.1
85224B Plate, Wiper Rubber Backing, NO.2
85224C Plate, Wiper Rubber Backing, NO.3
85224D Plate, Wiper Rubber Backing, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
