Toyota Yaris/Echo (3D,5D)

1999-03 → 2005-08 · chassis NCP1#,SCP10 · catalogue 112310 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Wiper

8 part groups · 2 illustrations

Illustrations

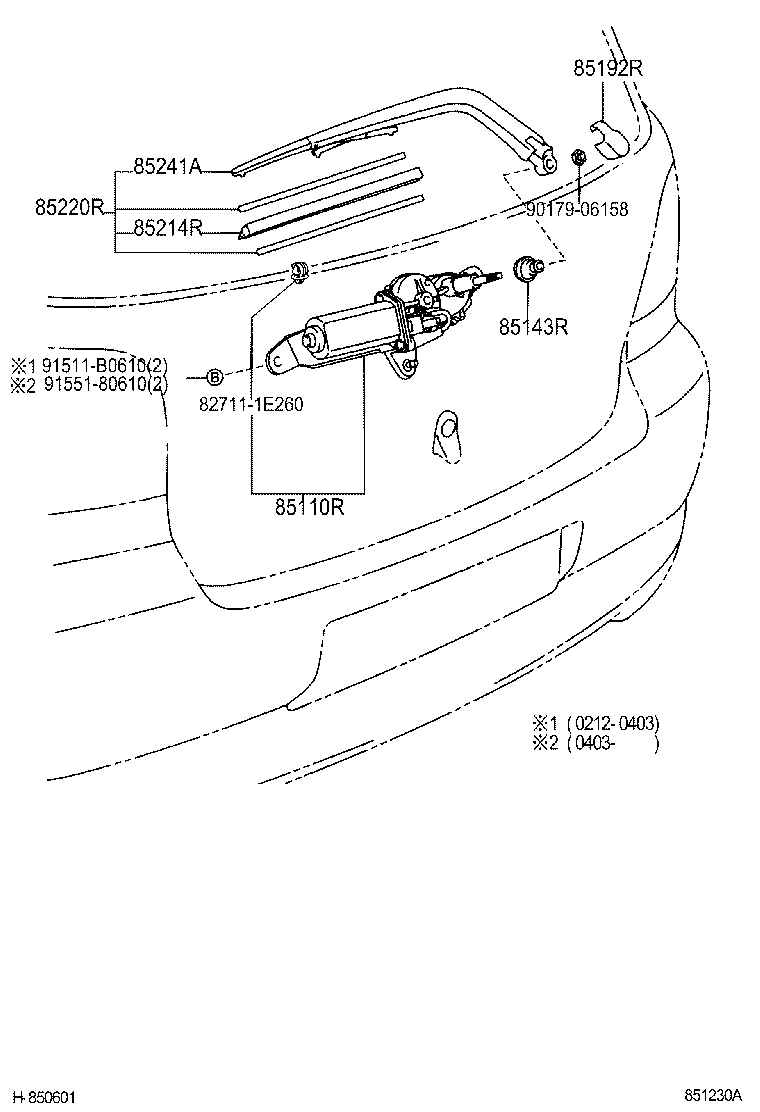

Figure 850601B 850601B 1999-03 → 2002-12 Figure 851230A 851230A 2002-12 → —

Part groups

PNCDescription
85110R Motor Assy, Rear Wiper
85143R Grommet, Rear Wiper Motor
85192R Cover, Rear Wiper Arm
85214R Rubber, Rear Wiper
85220R Blade Assy, Rear Wiper
85224E Plate, Rear Wiper Rubber Backing, NO.1
85224F Plate, Rear Wiper Rubber Backing, NO.2
85241A Arm, Rear Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
