Toyota Yaris/Echo (3D,5D)

1999-03 → 2005-08 · chassis NCP1#,SCP10 · catalogue 112310 · General

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

28 part groups · 10 illustrations

Illustrations

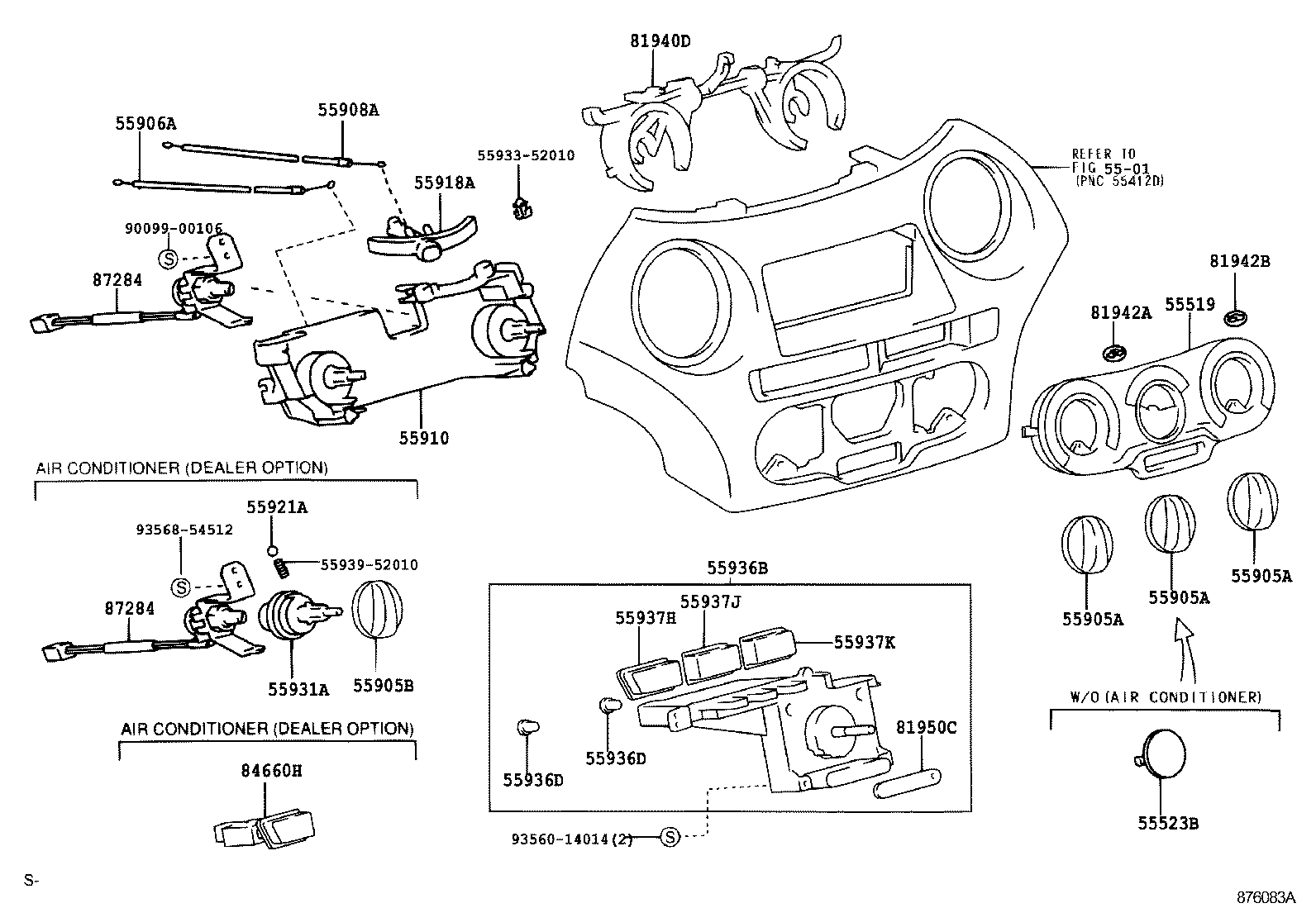

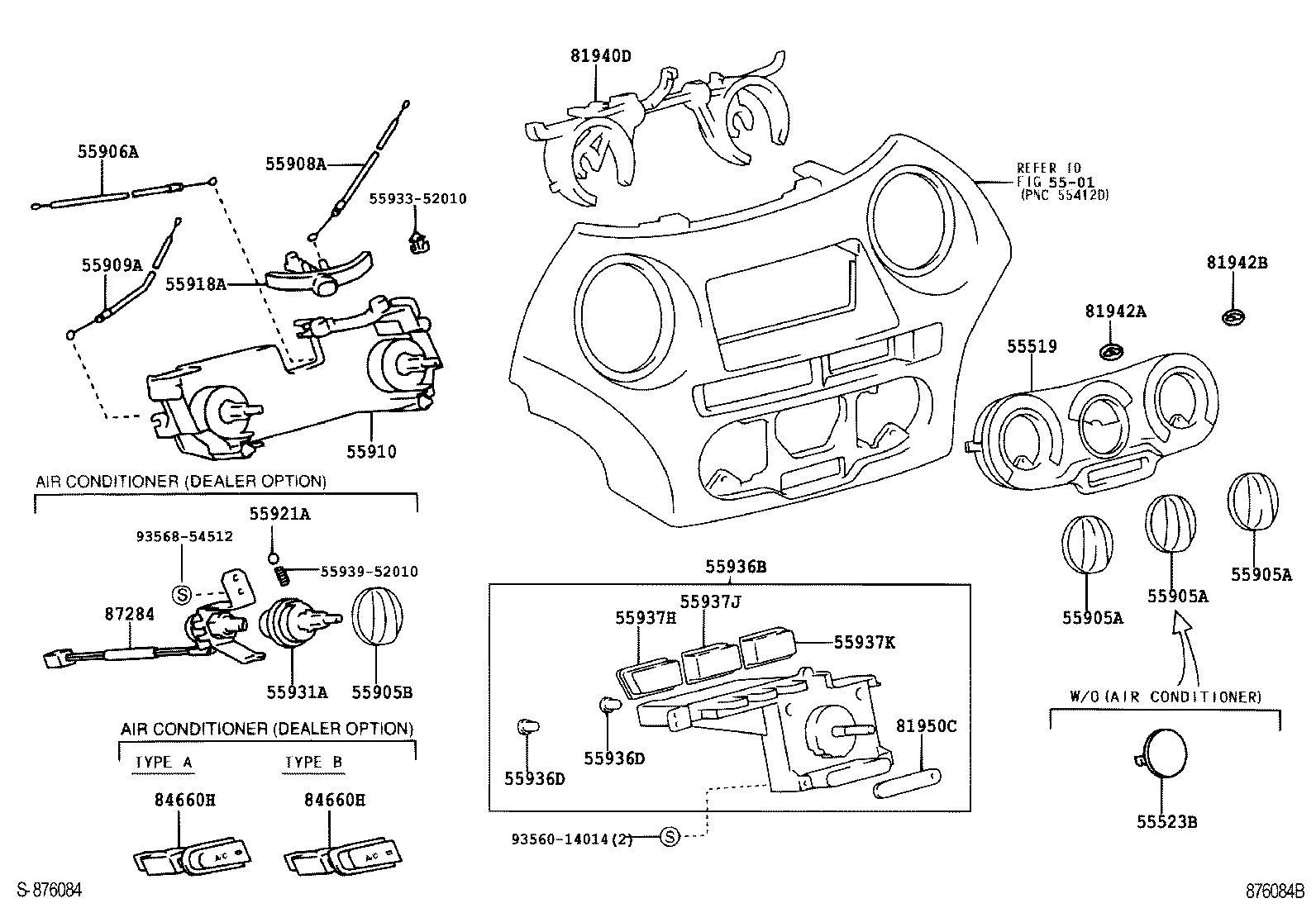

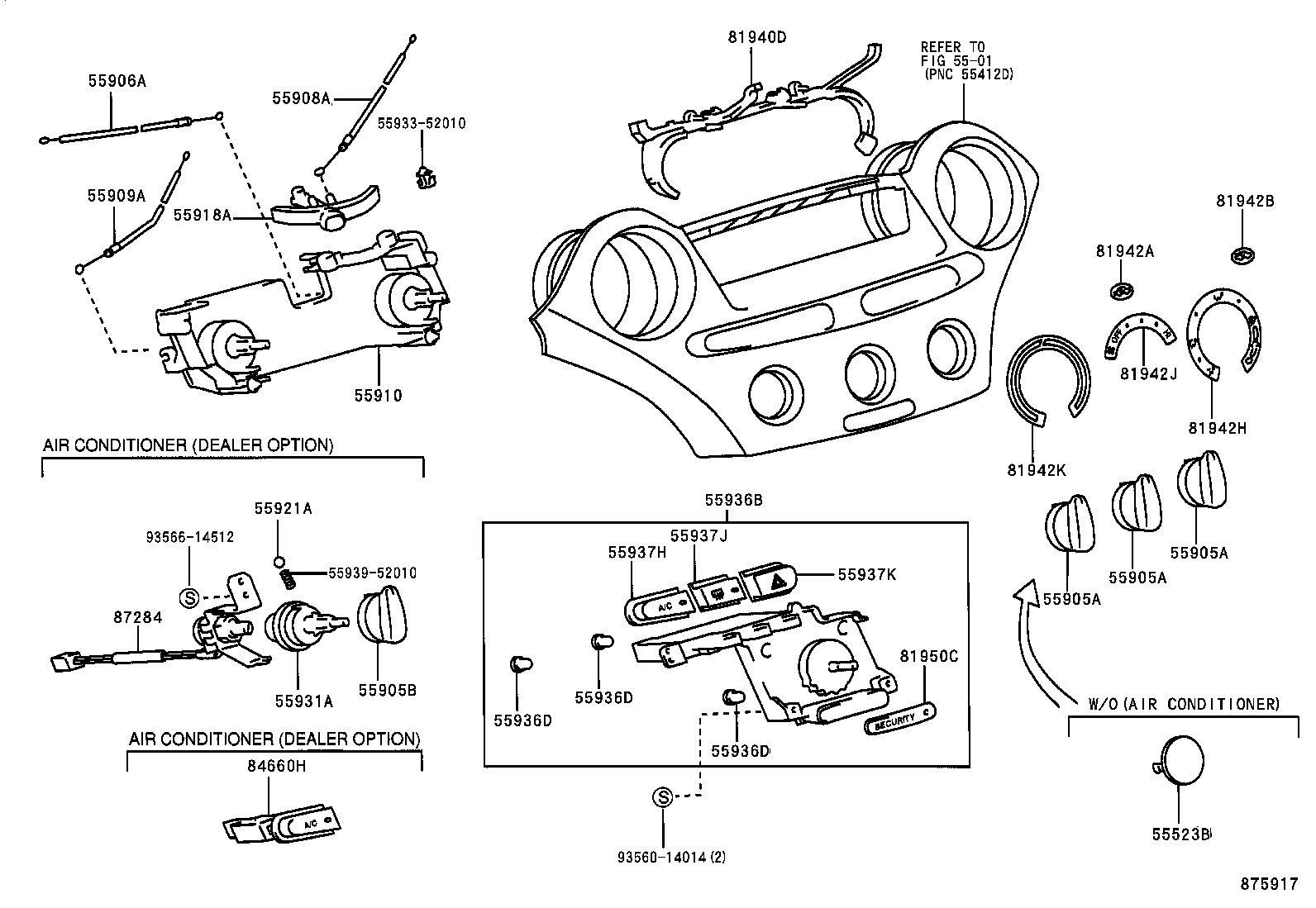

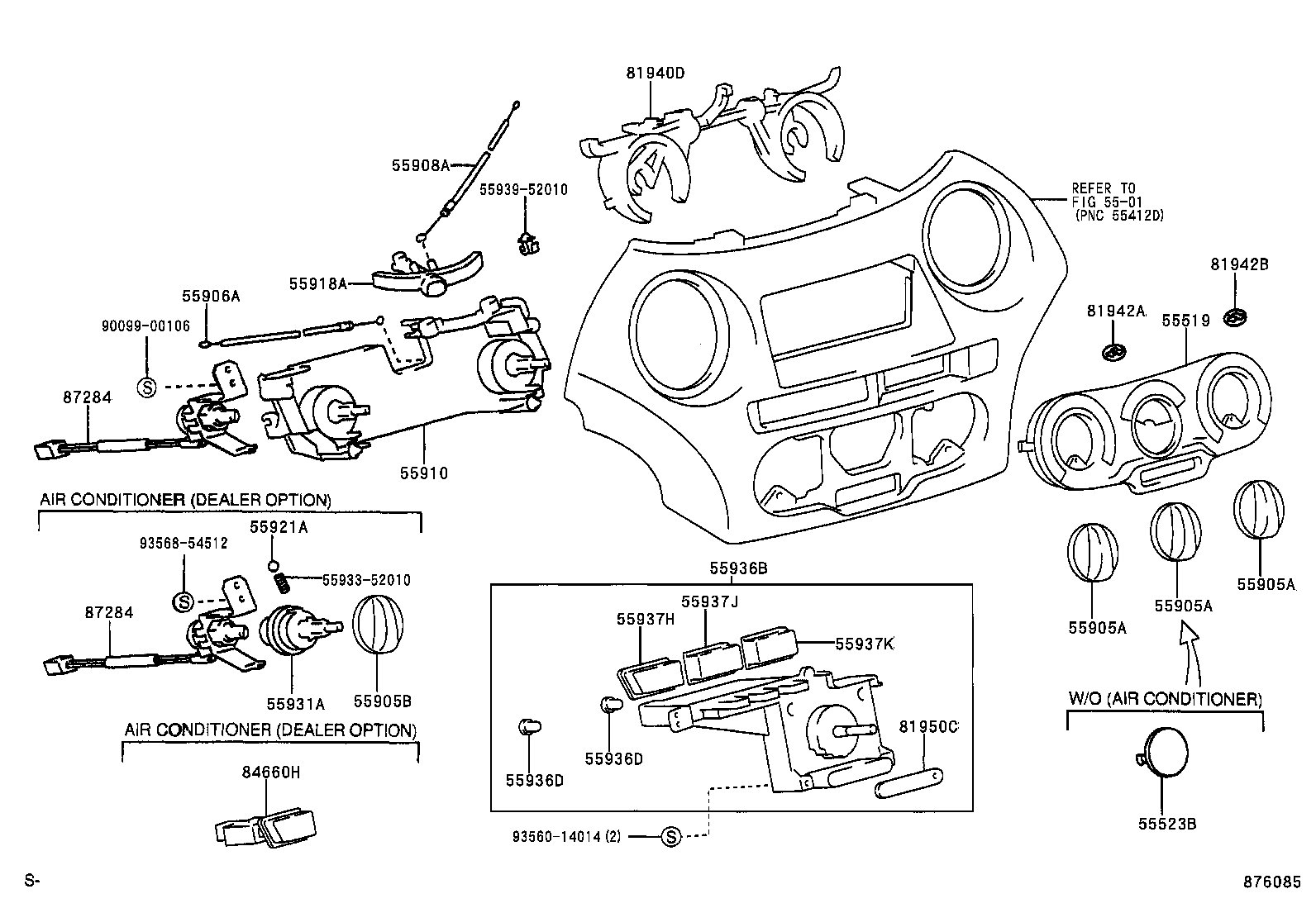

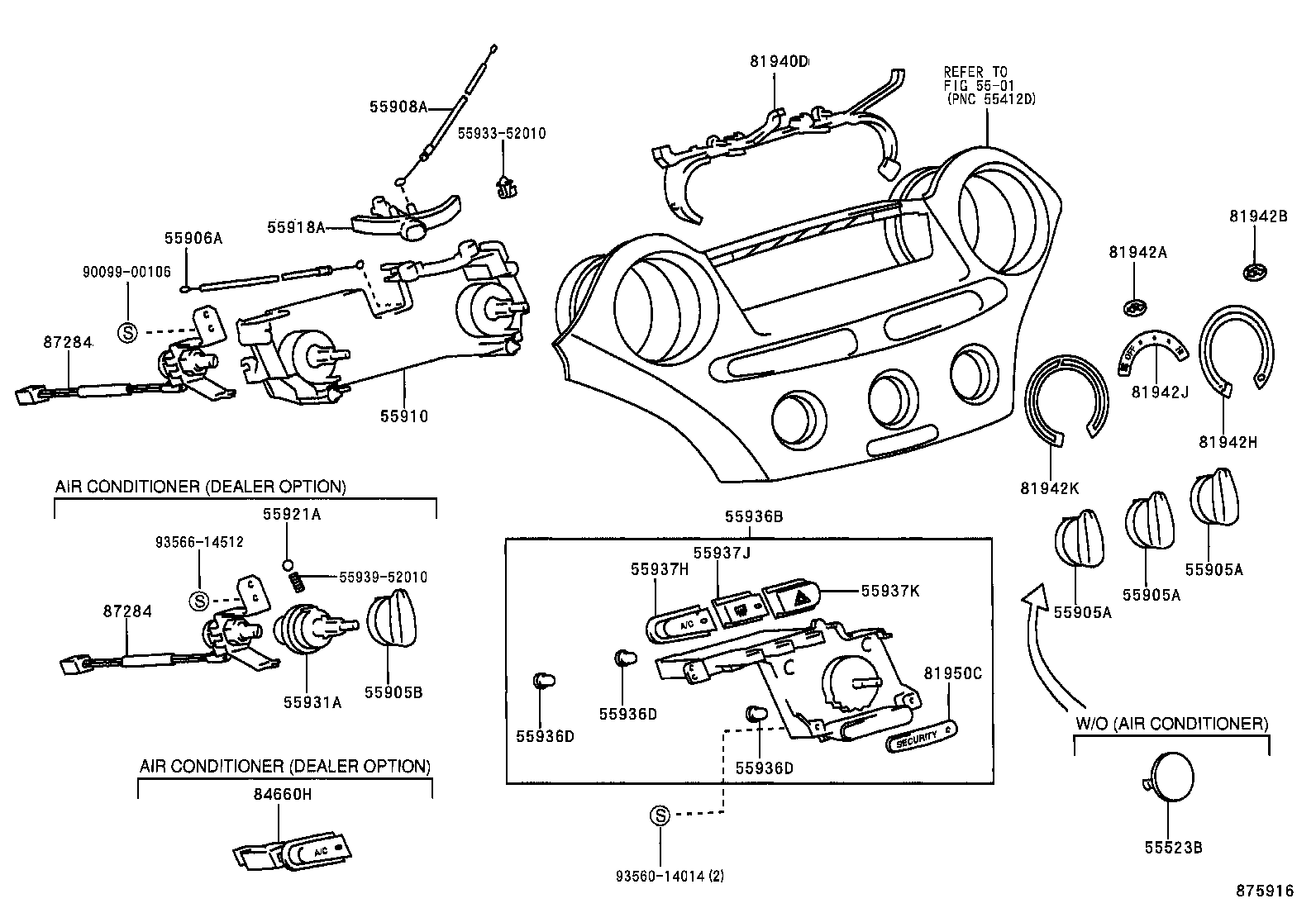

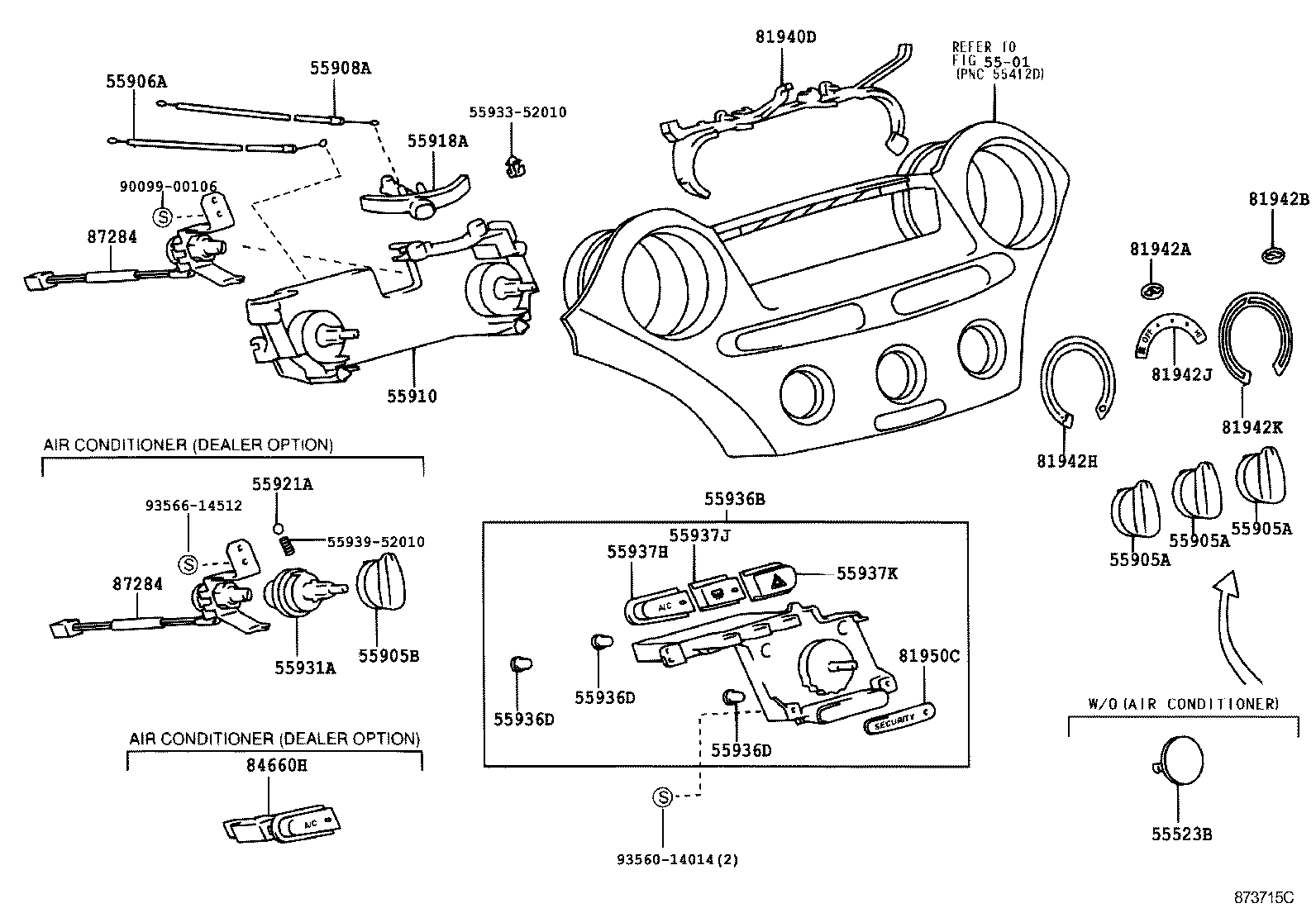

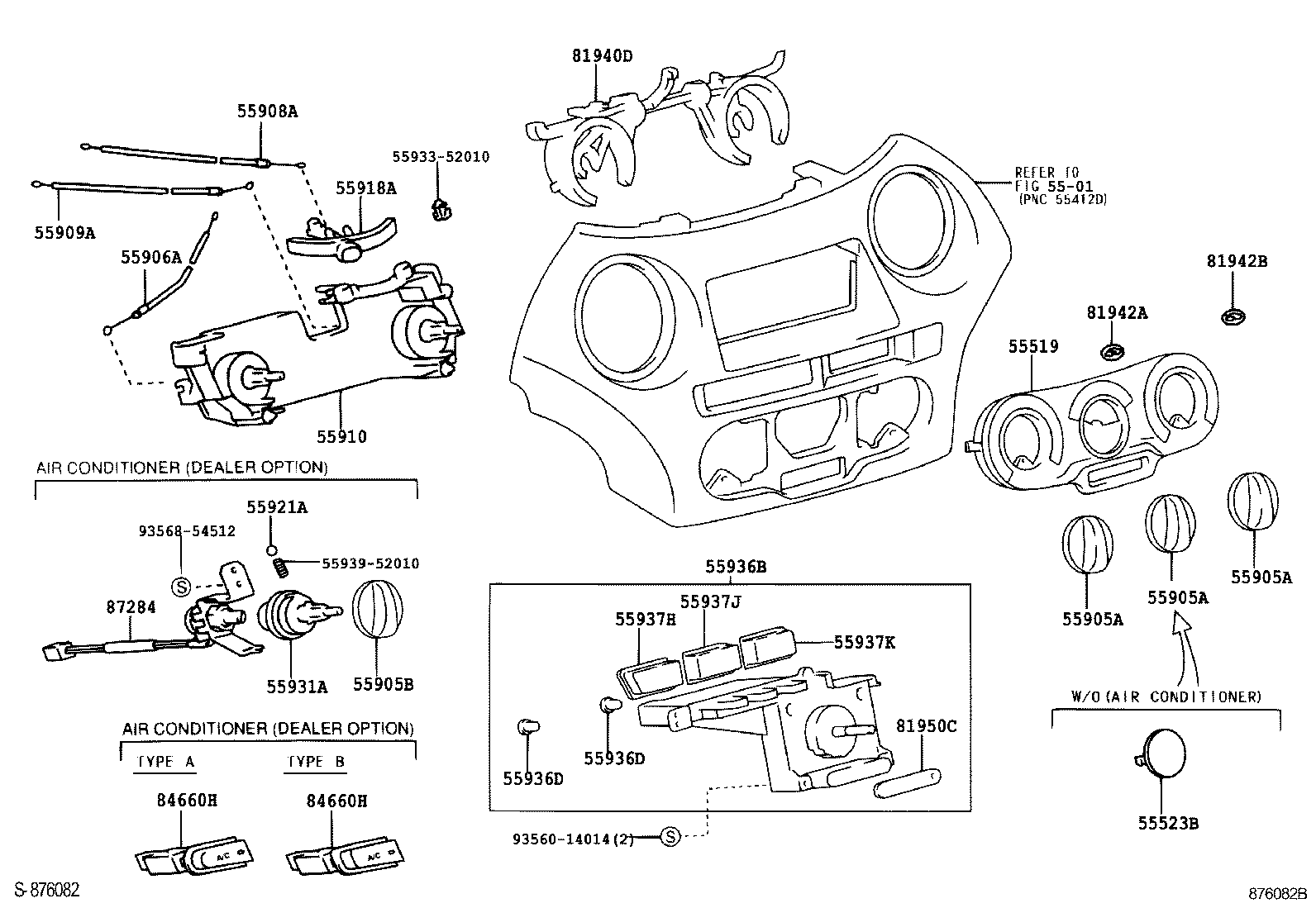

Figure 873509B 873509B 1999-03 → 2002-12 Figure 873715C 873715C 1999-03 → 2002-12 Figure 875917 875917 1999-08 → 2002-12 Figure 875916 875916 1999-08 → 2002-12 Figure 876082B 876082B 2002-12 → — Figure 876083A 876083A 2002-12 → — Figure 876084B 876084B 2002-12 → — Figure 876085 876085 2002-12 → — Figure 873651C 873651C 1999-03 → — Figure 873662C 873662C 1999-08 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55523B Cover, Heater Control Opening
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55918A Lever, Air Inlet Damper Control
55921A Retainer, Heater Control
55931A Shaft, Heater Control Lever
55936B Switch, Center Cluster Module
55936D Blub, Center Cluster Module Switch
55937H Knob, Center Cluster Module, NO.5
55937J Knob, Center Cluster Module, NO.6
55937K Knob, Center Cluster Module, NO.7
81940D Lens Assy, Heater Control
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
81950C Lens Assy, Center Cluster Module Indicator
84660H Switch Assy, Cooler Control
87284 Resistor Sub-assy, Variable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
