Toyota Yaris

2005-08 → 2011-07 · chassis NCP9# · catalogue 112320 · General

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

20 part groups · 2 illustrations

Illustrations

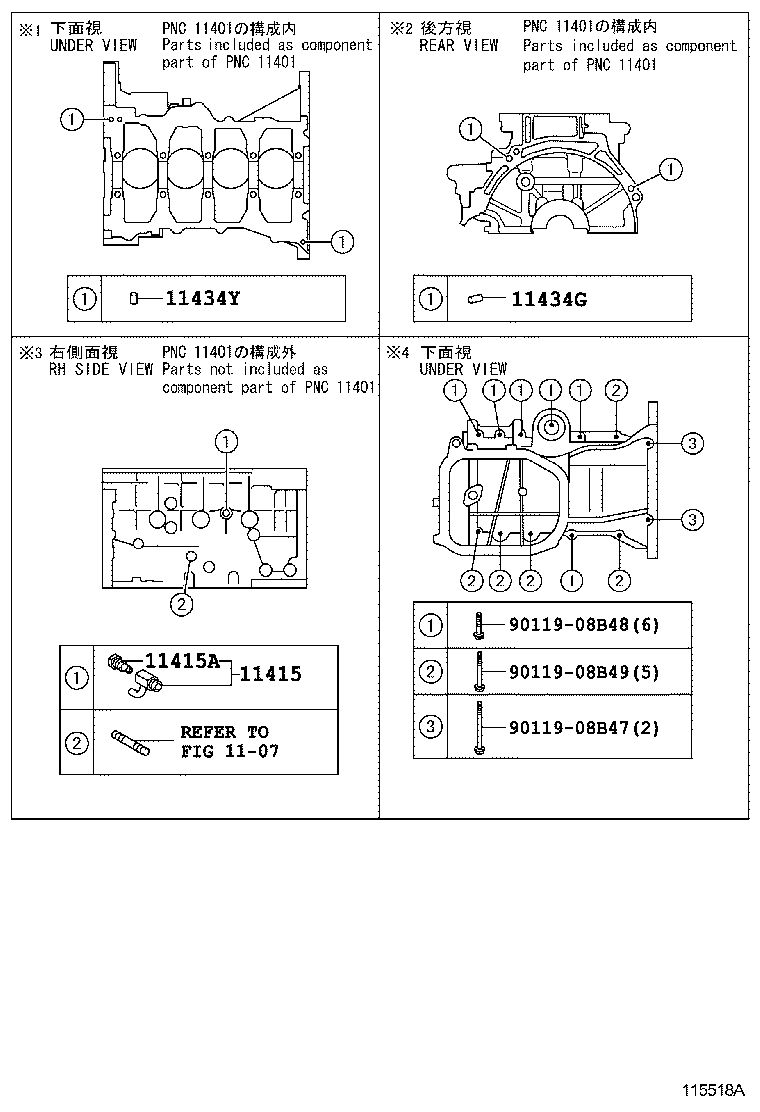

Figure 113753G 113753G 2005-08 → — Figure 115518A 115518A 2005-08 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401L Seal, Engine Rear Oil
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434G Pin, Straight(FOR END PLATE)
11434M Pin, Straight(FOR CHAIN TENSIONER)
11434Y Pin, Straight(FOR OIL PAN)
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101C Ring, O(FOR OIL PAN)
12102A Pan Sub-assy, Oil, NO.2
13516B Jet, Oil
15301 Gage Sub-assy, Oil Level
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
