Toyota Yaris
2005-08 → 2011-07 · chassis NCP9# · catalogue 112320 · General
Supported model
Data version 2012-01
Starter
9 part groups · 3 illustrations

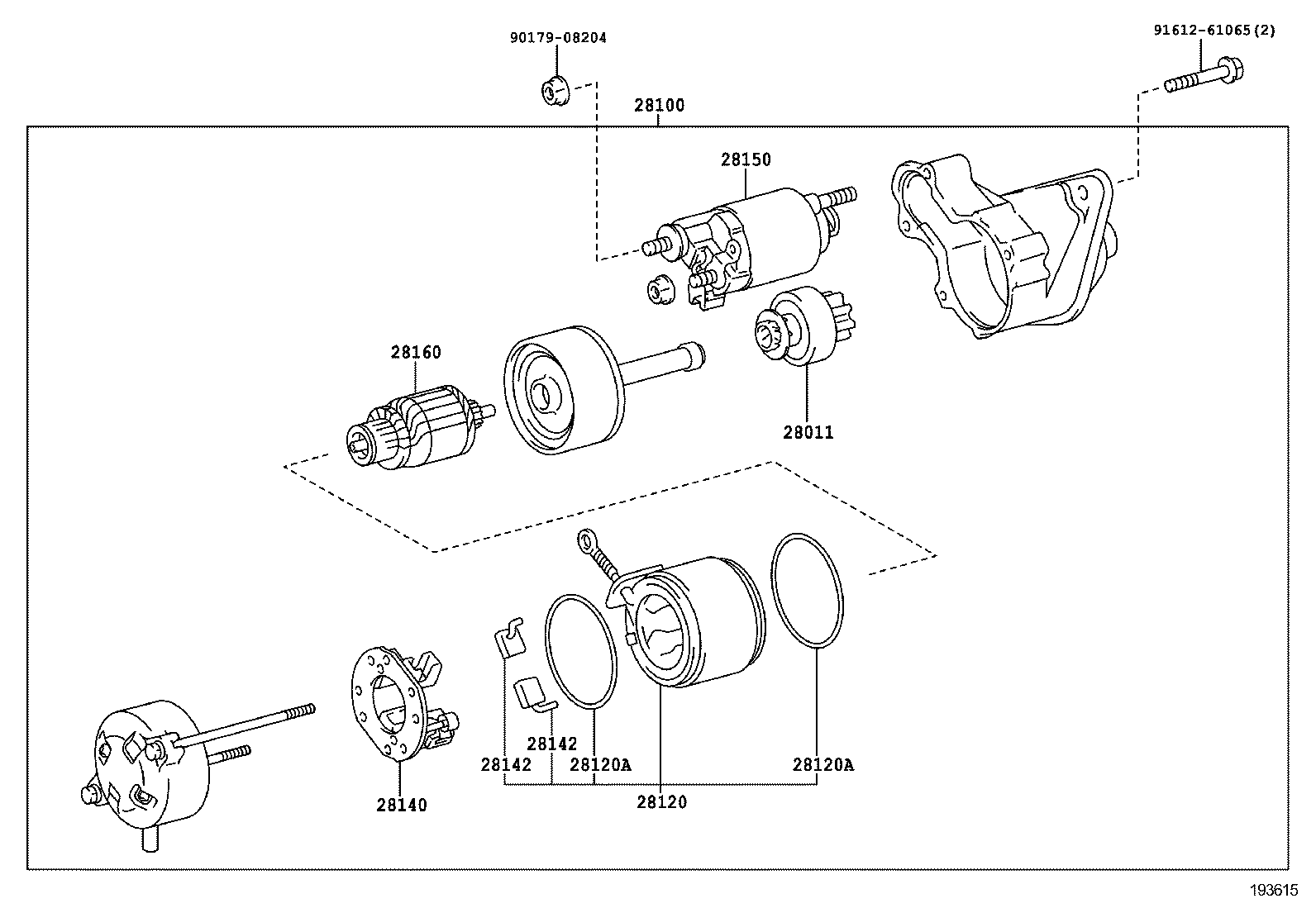

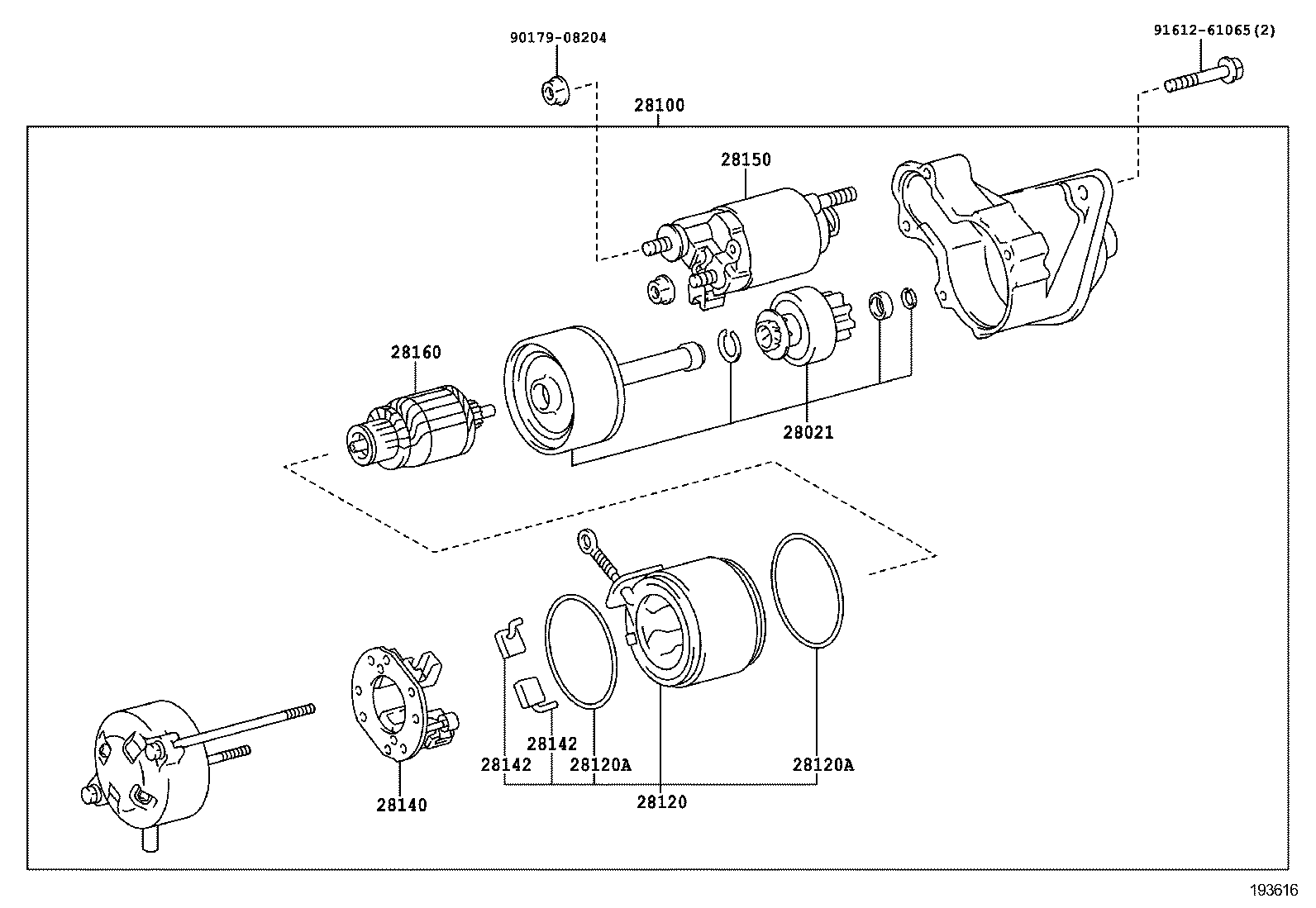

Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28140 | Holder Assy, Starter Brush |
| 28142 | Brush, Starter |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
