Toyota Yaris
2005-08 → 2011-07 · chassis NCP9# · catalogue 112320 · General
Supported model
Data version 2012-01
Steering Wheel

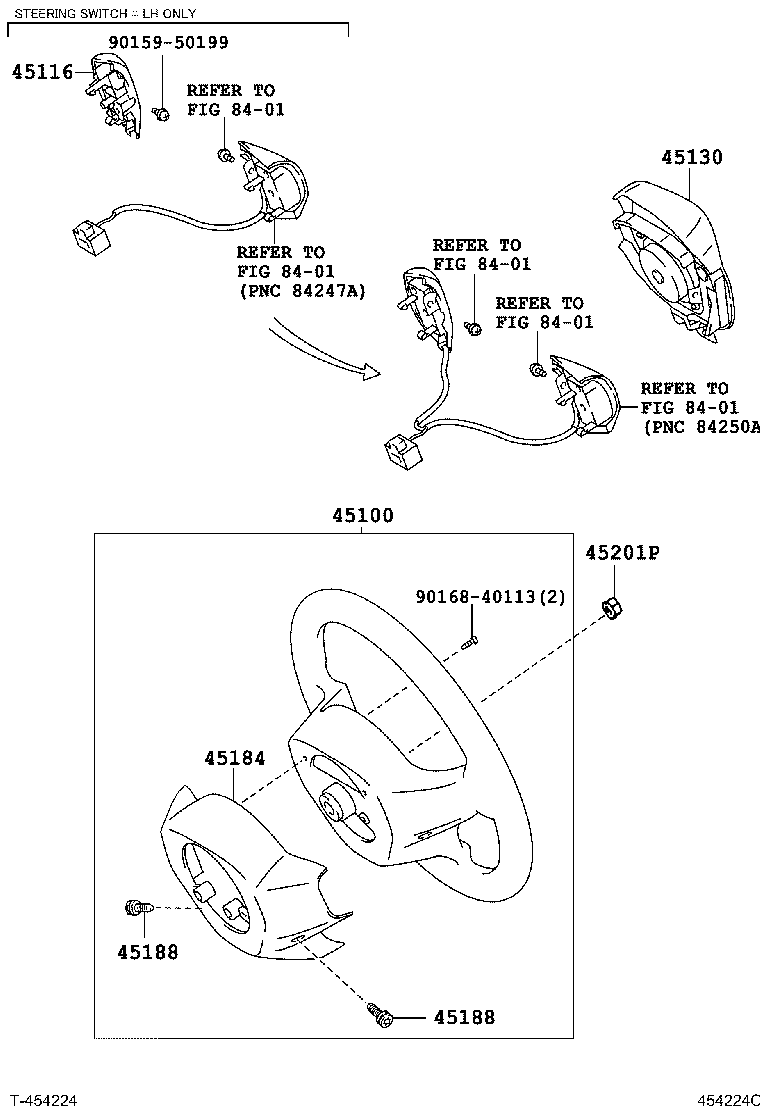

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45107 | Wire Sub-assy, Horn Button |
| 45116 | Ornament, Steering Wheel, NO.1 |
| 45130 | Button Assy, Horn |
| 45184 | Cover, Steering Wheel Boss, Lower |
| 45188 | Screw, Steering Wheel Pad Attaching |
| 45201P | Nut, Steering Wheel Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
