Front Bumper & Bumper Stay

20 part groups · 6 illustrations

Illustrations

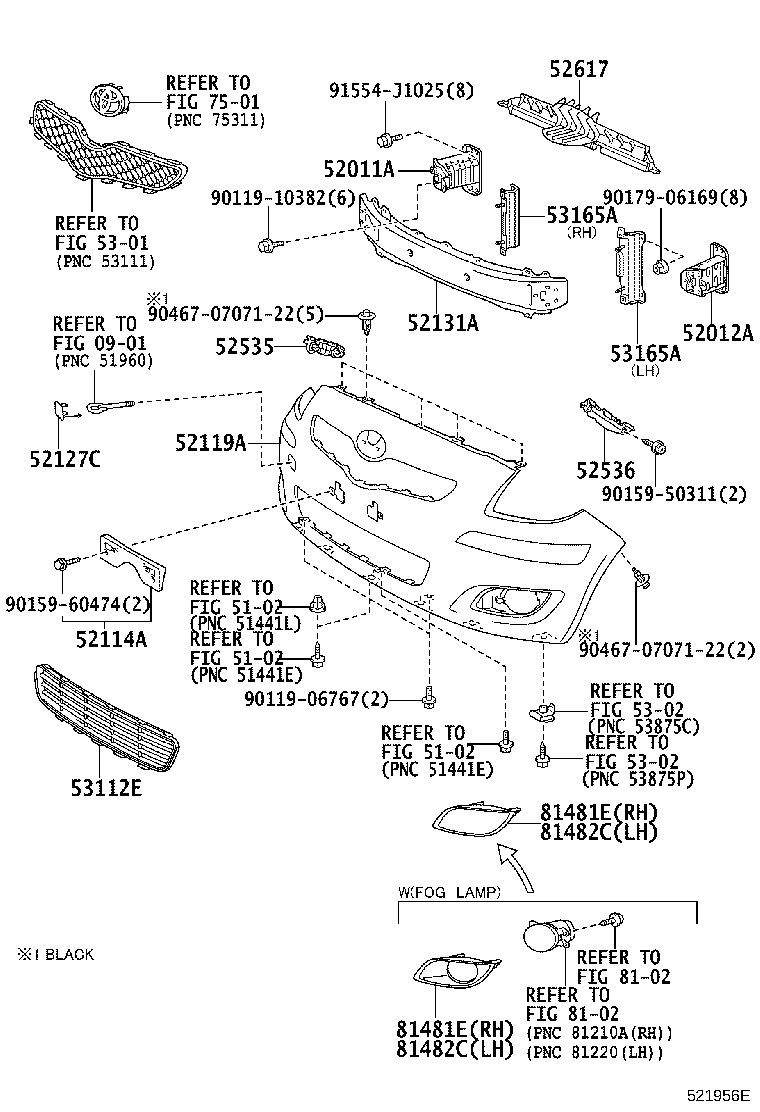

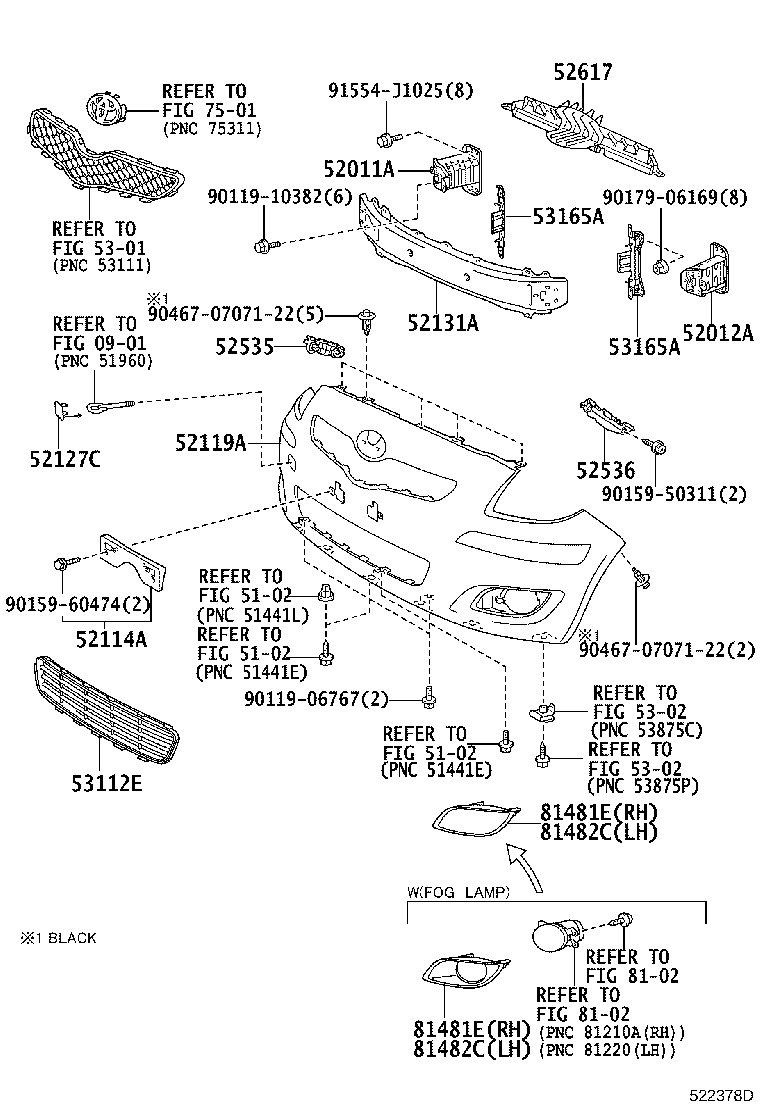

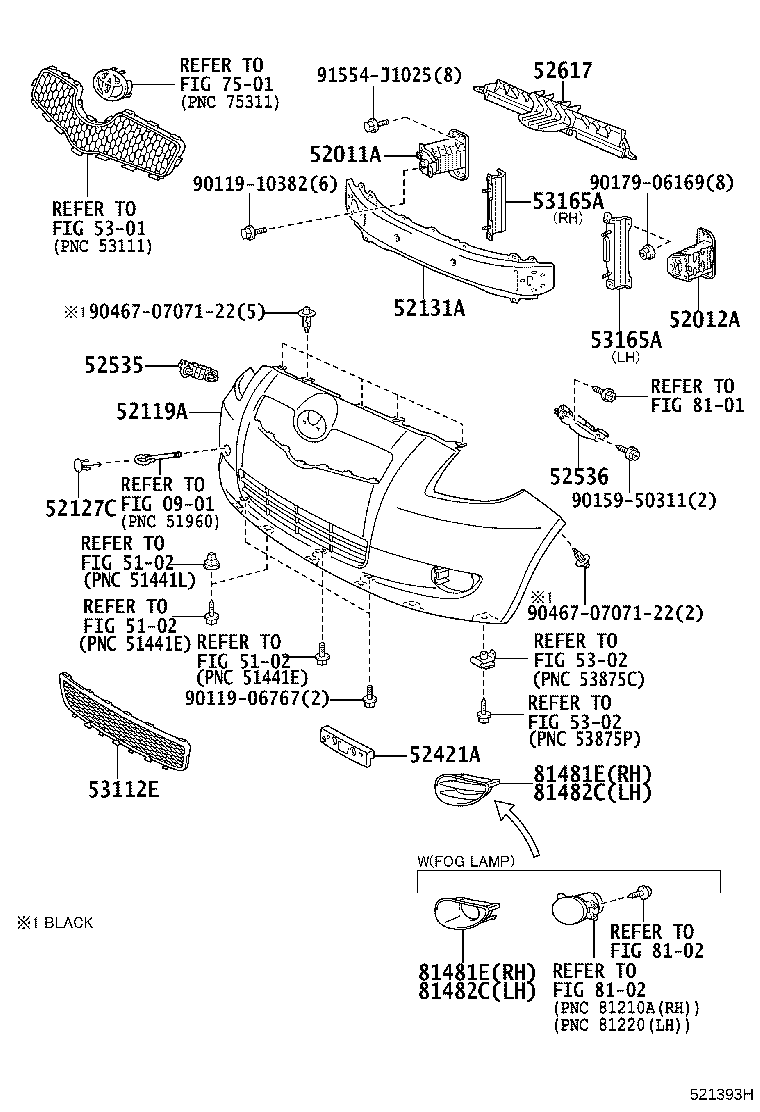

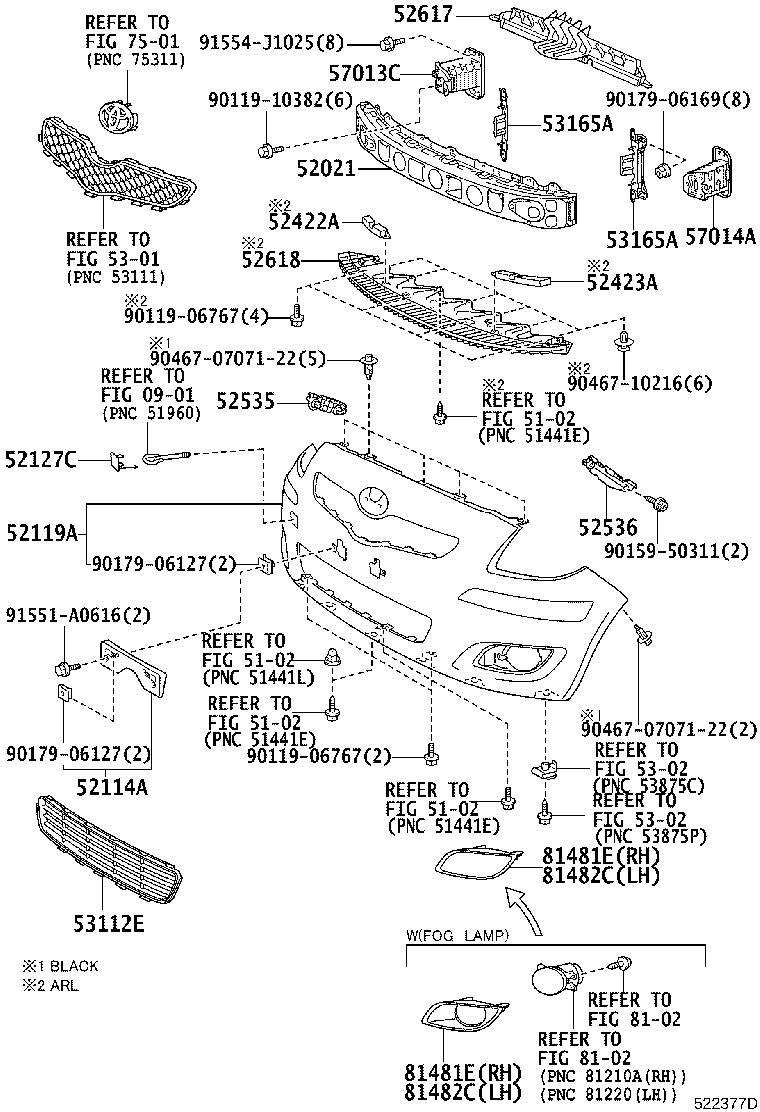

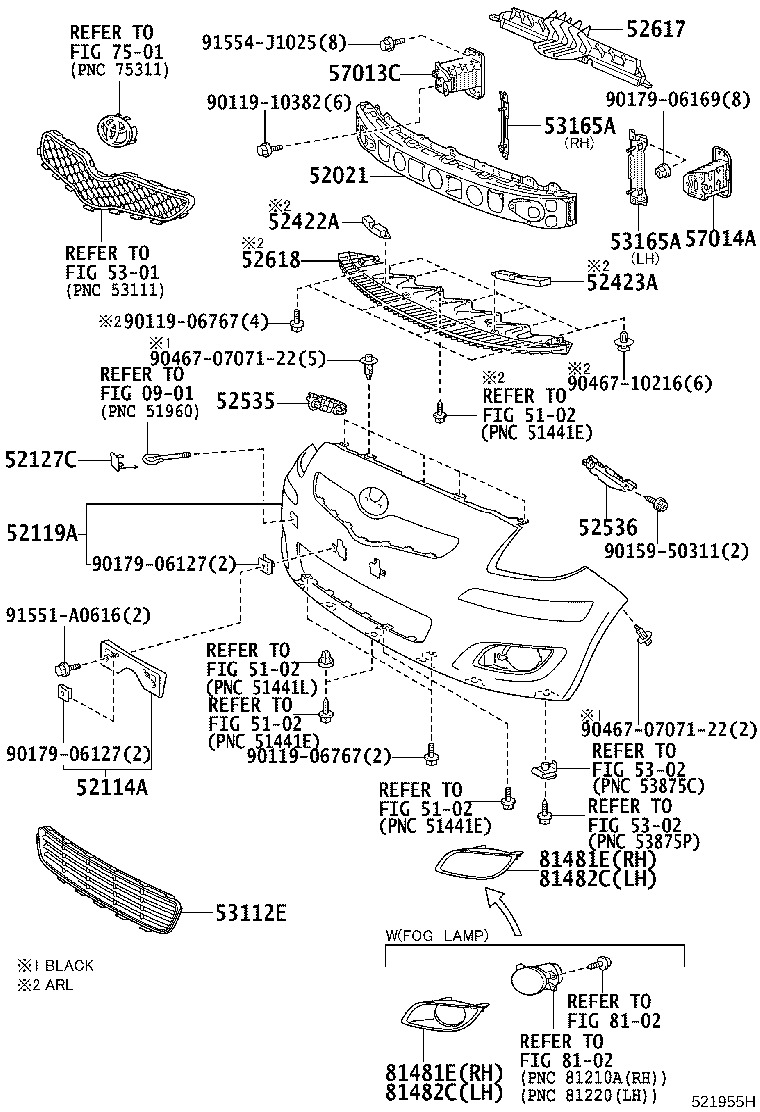

Figure 521400I 521400I 2005-08 → 2008-08 Figure 521393H 521393H 2005-08 → 2008-08 Figure 521955H 521955H 2008-08 → 2010-11 Figure 521956E 521956E 2008-08 → 2010-11 Figure 522377D 522377D 2010-11 → — Figure 522378D 522378D 2010-11 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52131A Reinforcement, Front Bumper
52421A Pad, Front Bumper
52422A Pad, Front Bumper, RH
52423A Pad, Front Bumper, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52617 Absorber, Radiator Support, Upper
52618 Absorber, Front Bumper, Lower
53112E Grille, Radiator, Lower NO.1
53165A Bracket, Front Bumper Stone Deflector, NO.1
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
