Toyota Yaris

2005-08 → 2011-07 · chassis NCP9# · catalogue 112320 · General

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

14 part groups · 2 illustrations

Illustrations

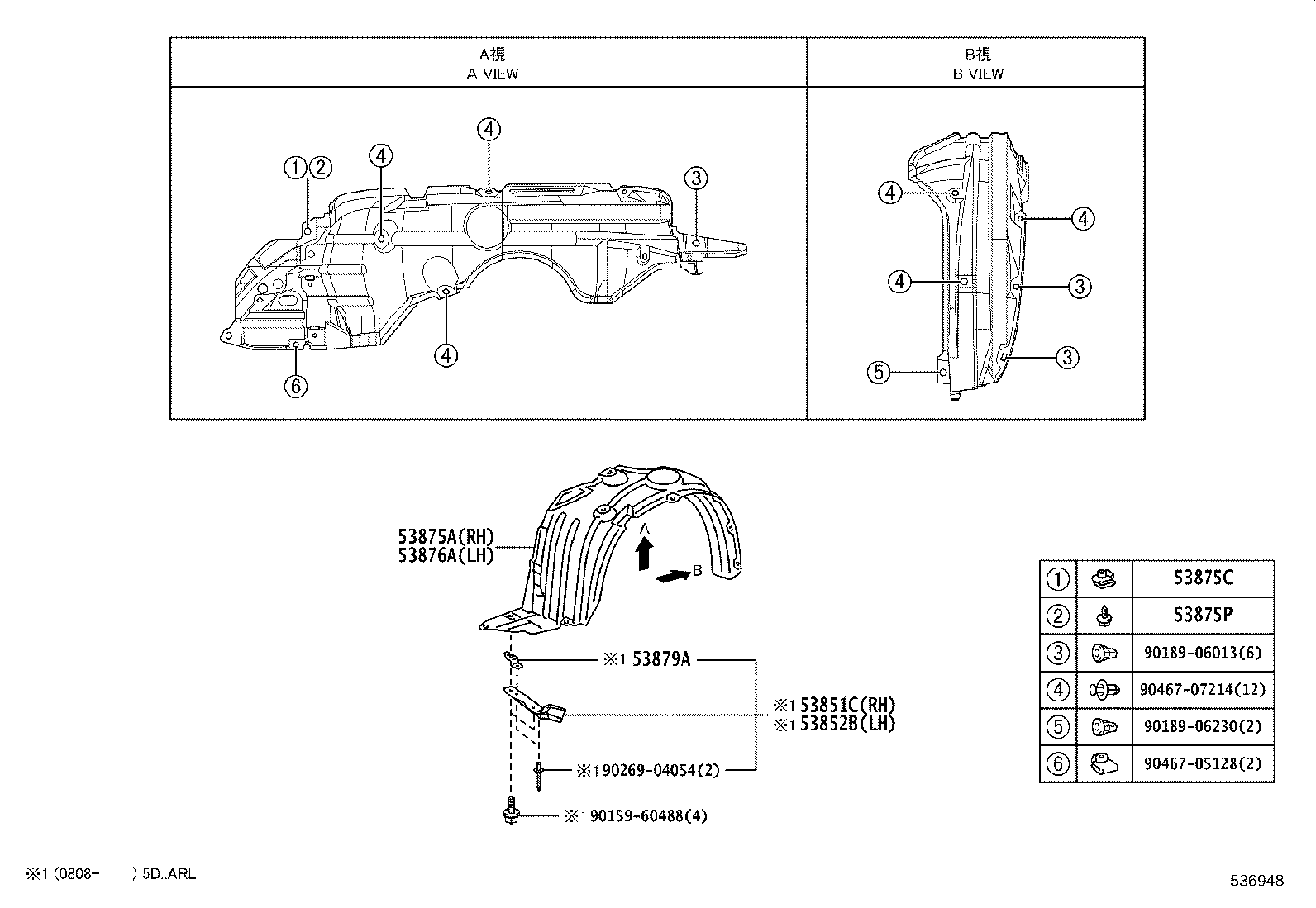

Figure 536947 536947 2005-08 → — Figure 536948 536948 2005-08 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53851C Pad, Front Wheel Opening Extension, NO.1
53852B Pad, Front Wheel Opening Extension, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
55738C Stopper, Hood, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
