Toyota Yaris
2005-08 → 2011-07 · chassis NCP9# · catalogue 112320 · General
Supported model
Data version 2012-01

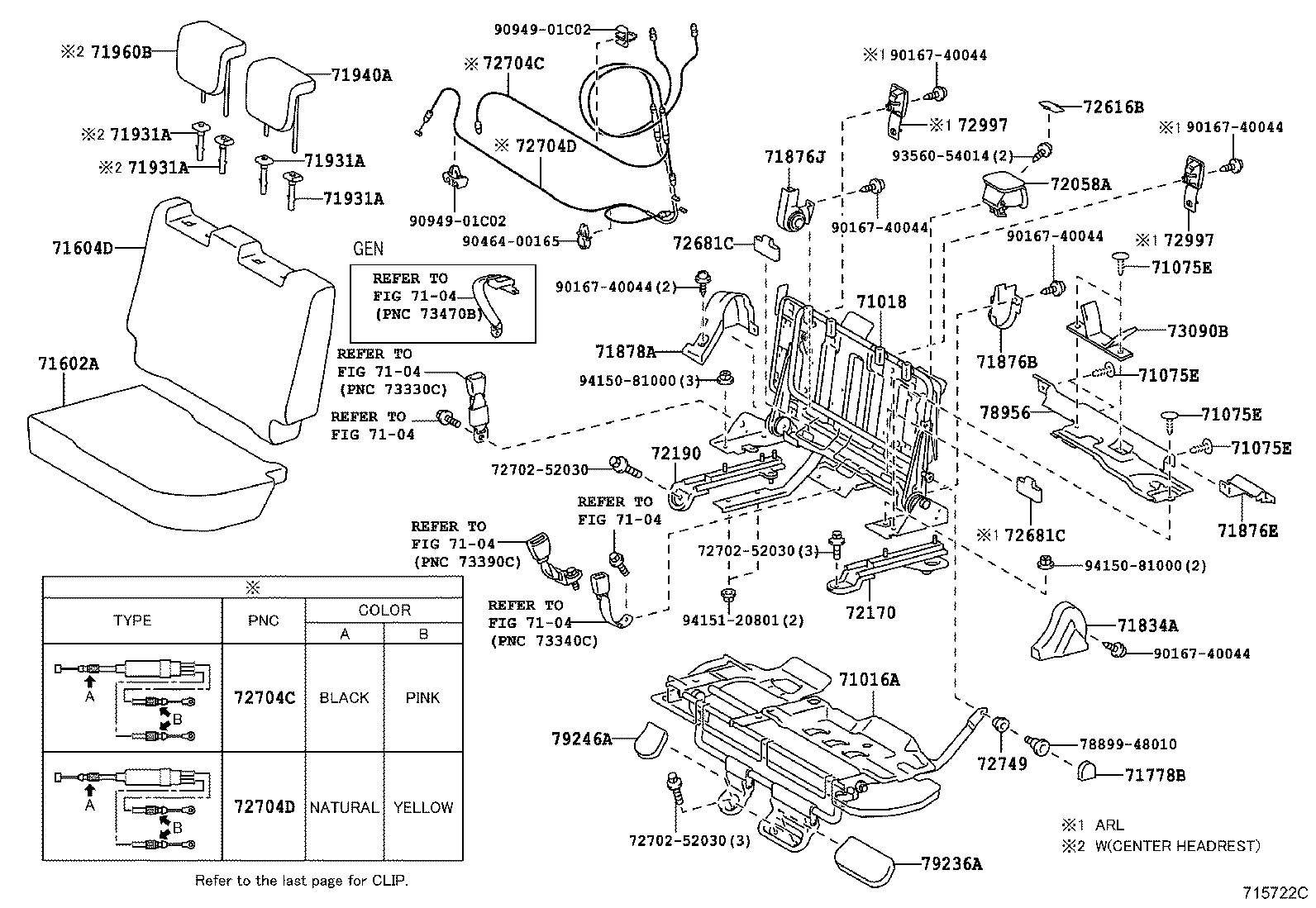

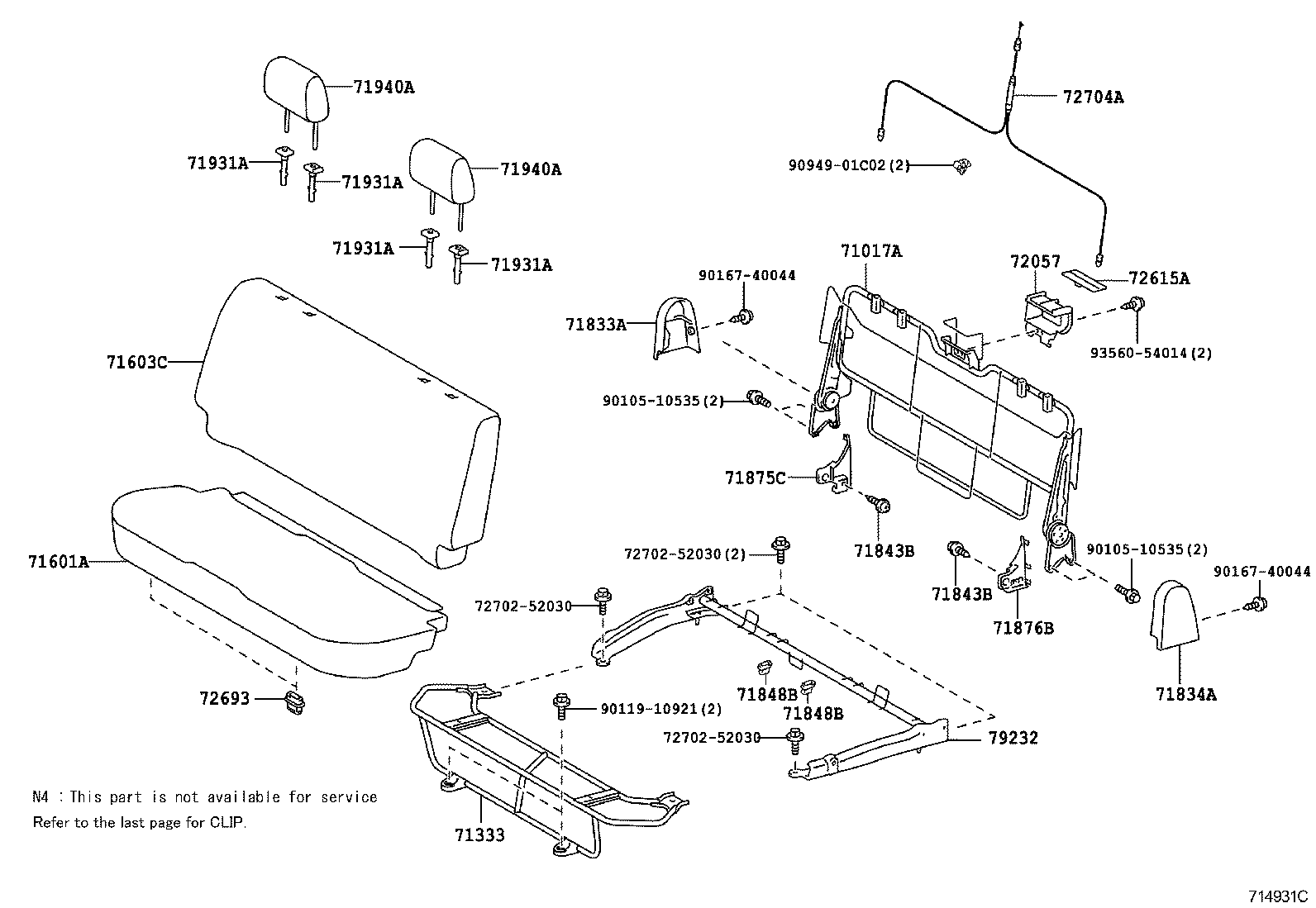

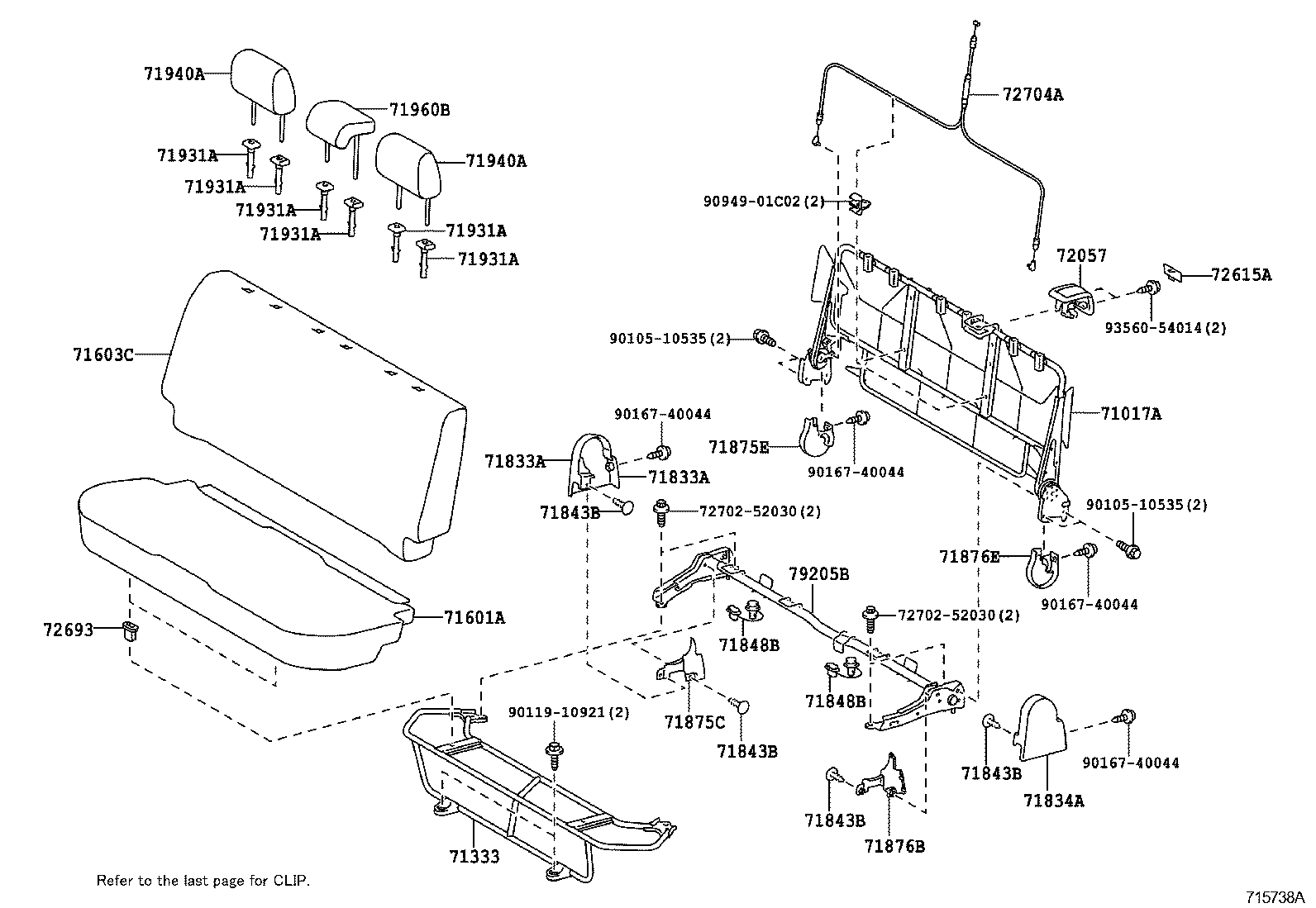

Rear Seat & Seat Track
53 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71017A | Frame Sub-assy, Rear Seatback |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075E | Clip(FOR REAR SEAT) |
| 71333 | Leg, Rear Seat Cushion, NO.1 |
| 71601A | Pad Sub-assy, Rear Seat Cushion W/Cover |
| 71601C | Pad Sub-assy, Rear Seat Cushion W/Cover, RH |
| 71602A | Pad Sub-assy, Rear Seat Cushion W/Cover, LH |
| 71603C | Pad Sub-assy, Rear Seatback W/Cover |
| 71603D | Pad Sub-assy, Rear Seatback W/Cover, RH |
| 71604D | Pad Sub-assy, Rear Seatback W/Cover, LH |
| 71778B | Cover, Rear Seat Side Hinge Male, RH |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71843B | Clip, Rear Seat Reclining Cover |
| 71848B | Cap, Seat Adjuster Cover, RH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71875E | Cover, Reclining Adjuster Inside, RH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71876E | Cover, Reclining Adjuster Inside, LH |
| 71876J | Cover, Reclining Adjuster Inside, LH |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71879C | Cover, Rear Seat Reclining, Inner LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72057 | Lever Sub-assy, Rear Seat Lock Control, RH |
| 72058A | Lever Sub-assy, Rear Seat Lock Control, LH |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72170 | Track Assy, Rear Seat, Outer LH |
| 72180C | Track Assy, Rear Seat, Inner RH |
| 72190 | Track Assy, Rear Seat Inner, LH |
| 72615A | Cover, Rear Seatback Lock Striker, RH |
| 72616B | Cover, Rear Seat Lock Striker |
| 72681C | Hook, Rear Seatback Lock, Lower |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72704A | Cable, Rear Seat Reclining Control |
| 72704B | Cable, Rear Seat Reclining Control, NO.2 |
| 72704C | Cable, Rear NO.2 Seat Reclining Control |
| 72704D | Cable, Rear NO.2 Seat Reclining Control |
| 72749 | Spacer, Rear Seat Reclining |
| 72996 | Cover, Rear Seatback, RH |
| 72997 | Cover, Rear Seatback, LH |
| 73090B | Plate Assy, Seat Belt Anchor |
| 78955 | Cover, Rear Seat Under Tray RH |
| 78956 | Cover, Rear Seat Under Tray LH |
| 79205B | Leg Sub-assy, NO.2 Seat, RH |
| 79232 | Leg, Rear NO.2 Seat, RH |
| 79236A | Cover, NO.2 Seat Leg |
| 79246A | Cover, NO.2 Seat Leg, NO.2 |
| 79977 | Felt, Seatback |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
