Toyota Yaris
2005-08 → 2011-07 · chassis NCP9# · catalogue 112320 · General
Supported model
Data version 2012-01

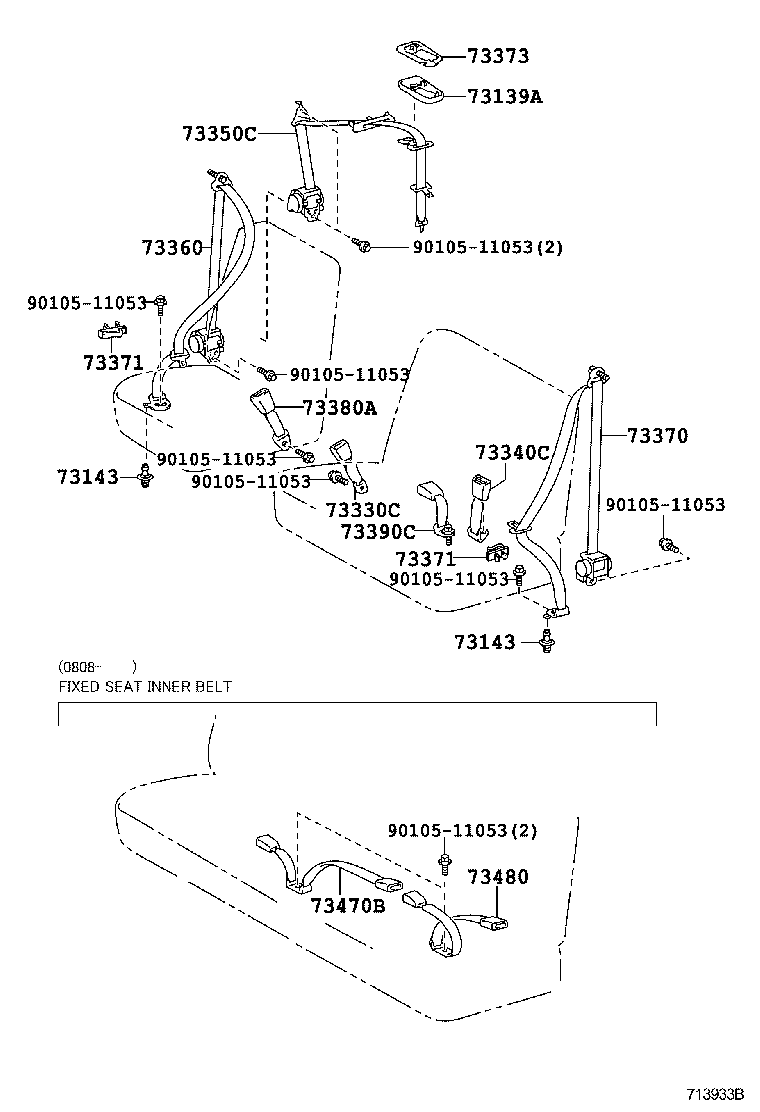

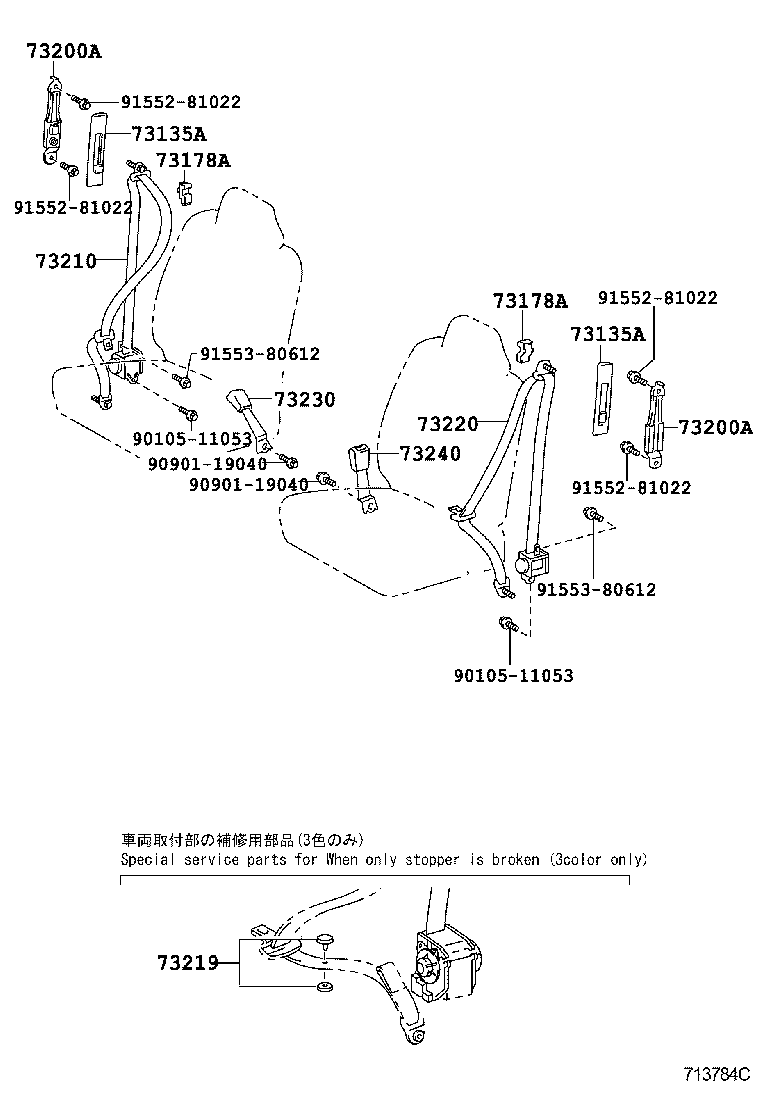

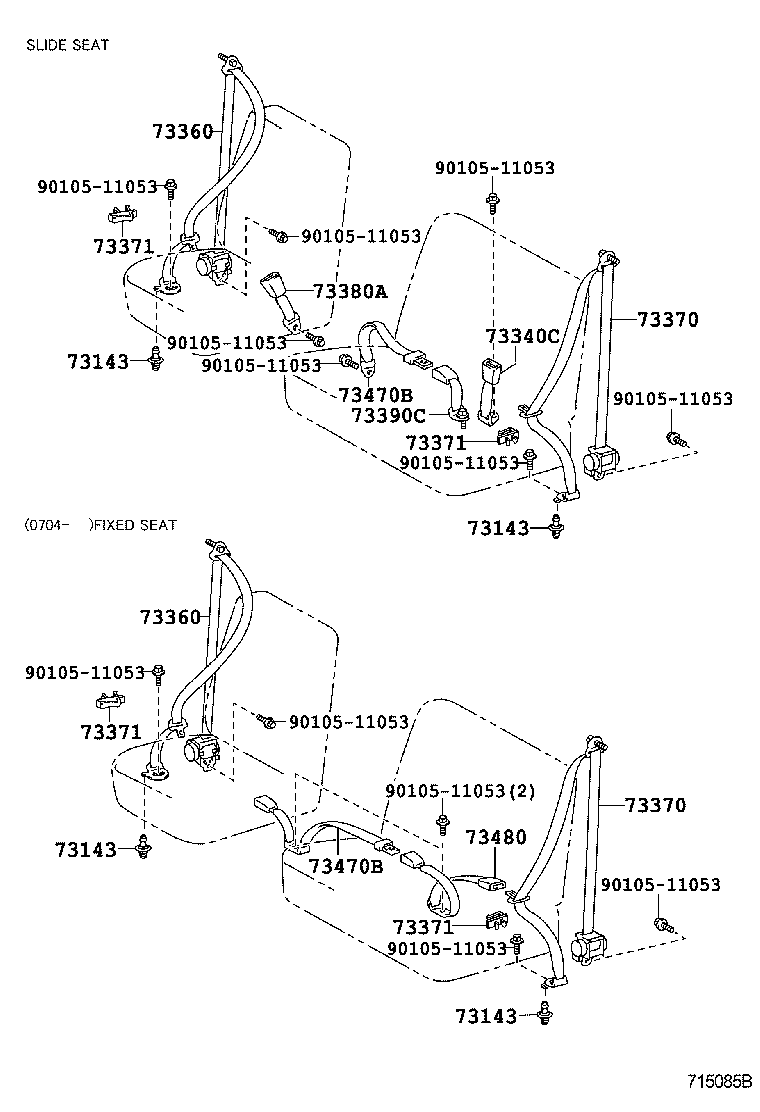

Seat Belt & Child Restraint Seat
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73135A | Cover, Shoulder Belt Anchor, RH |
| 73139A | Cover, Seat Belt Anchor |
| 73143 | Seal, Seat Belt Hole |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73201C | Bar Sub-assy, Front Seat Belt, Outer RH |
| 73202B | Bar Sub-assy, Front Seat Belt, Outer LH |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73330C | Belt Assy, Rear Seat Lap Type, Center RH |
| 73340C | Belt Assy, Rear Seat Lap Type, Center LH |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73371 | Hanger, Rear Seat Shoulder Belt, RH |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
