Toyota Yaris
2005-08 → 2011-07 · chassis NCP9# · catalogue 112320 · General
Supported model
Data version 2012-01
Caution Plate (EXTERIOR & INTERIOR)
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293C | Label, Tune-up Specification Information |
| 11296C | Label, Engine Service Information |

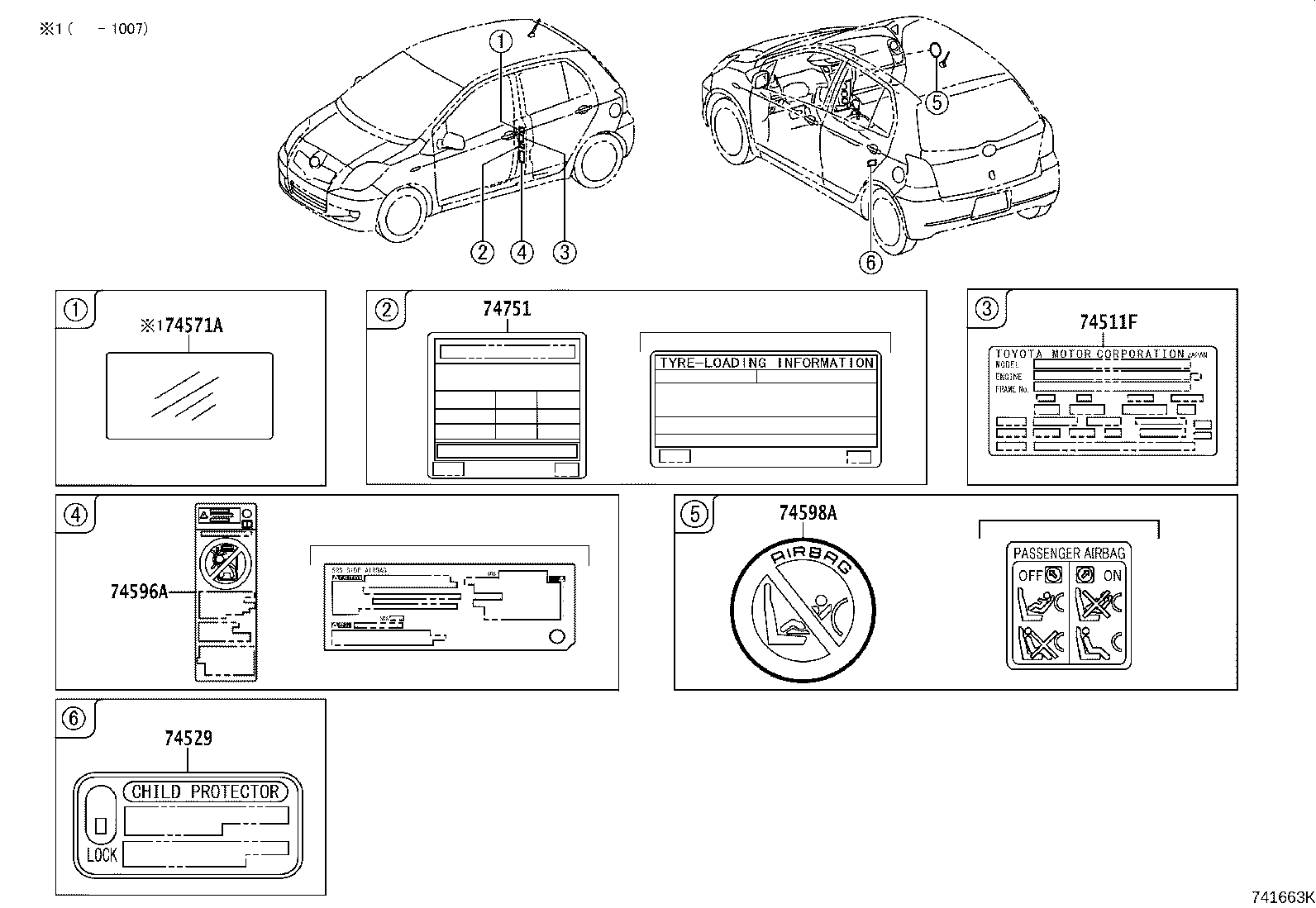

| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |

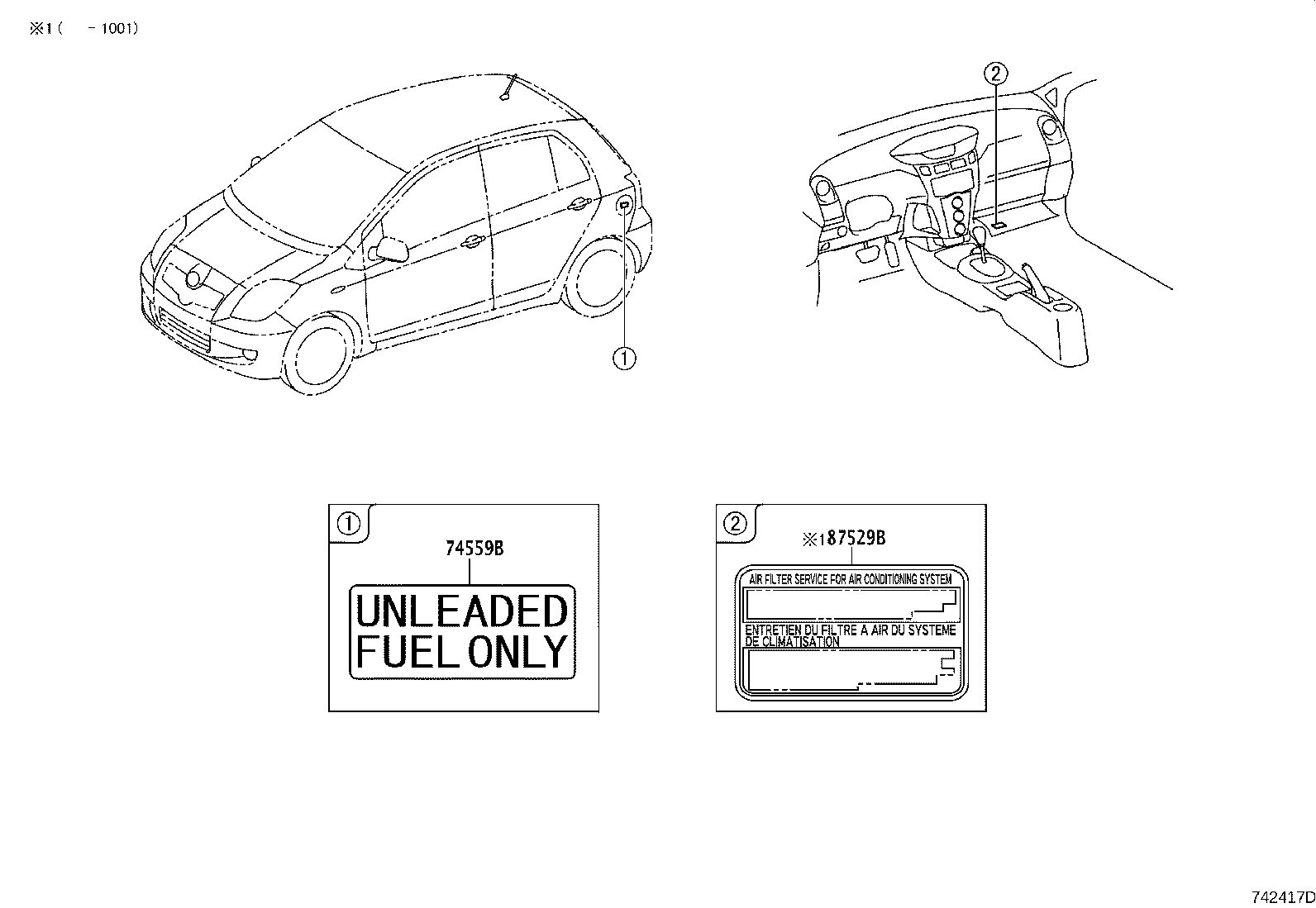

| 74559B | Label, Fuel Information |
| 74571A | Film, Label Cover |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 88723J | Label, Cooler Service Caution, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
