Heating & Air Conditioning - Cooler Piping

15 part groups · 5 illustrations

Illustrations

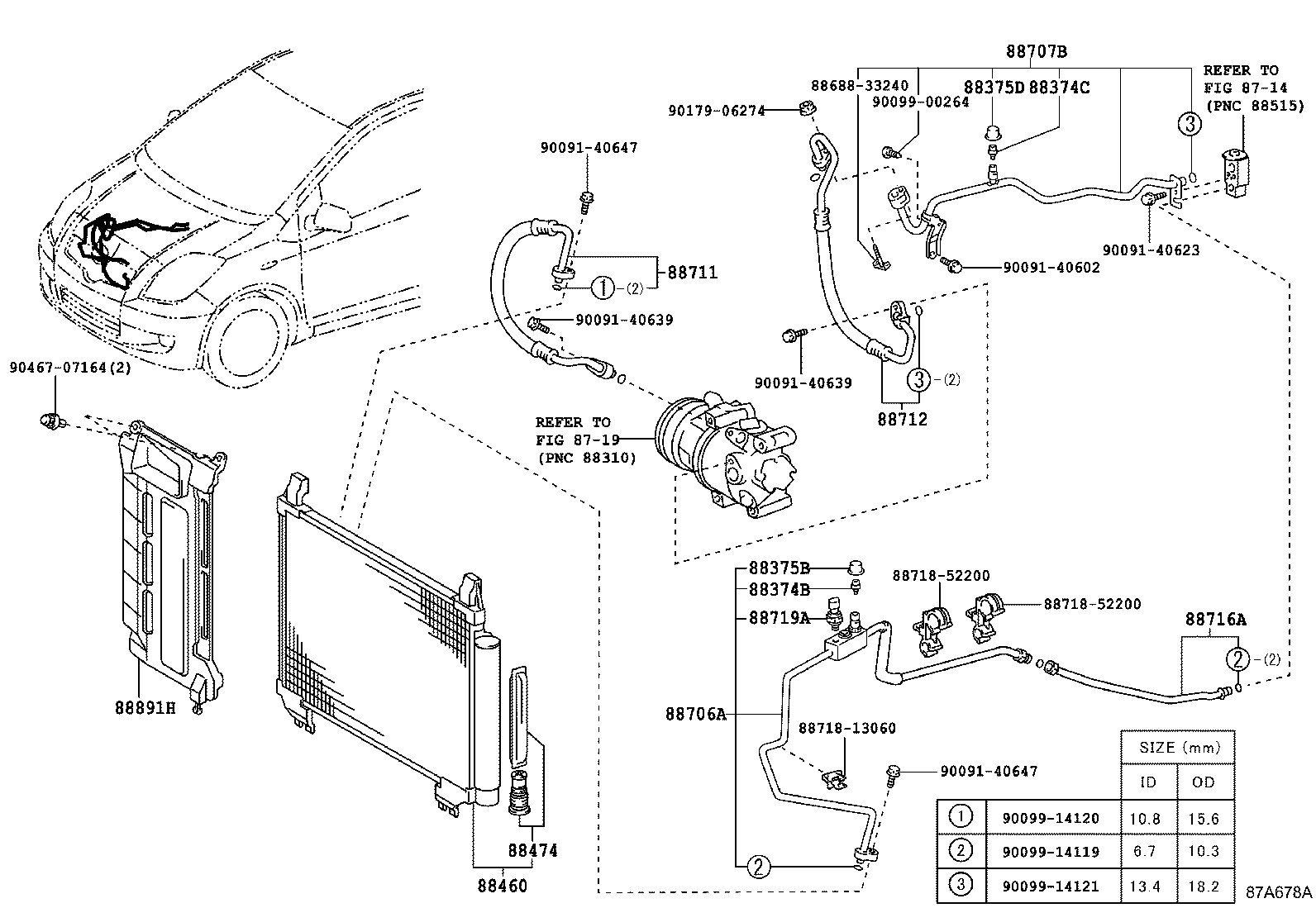

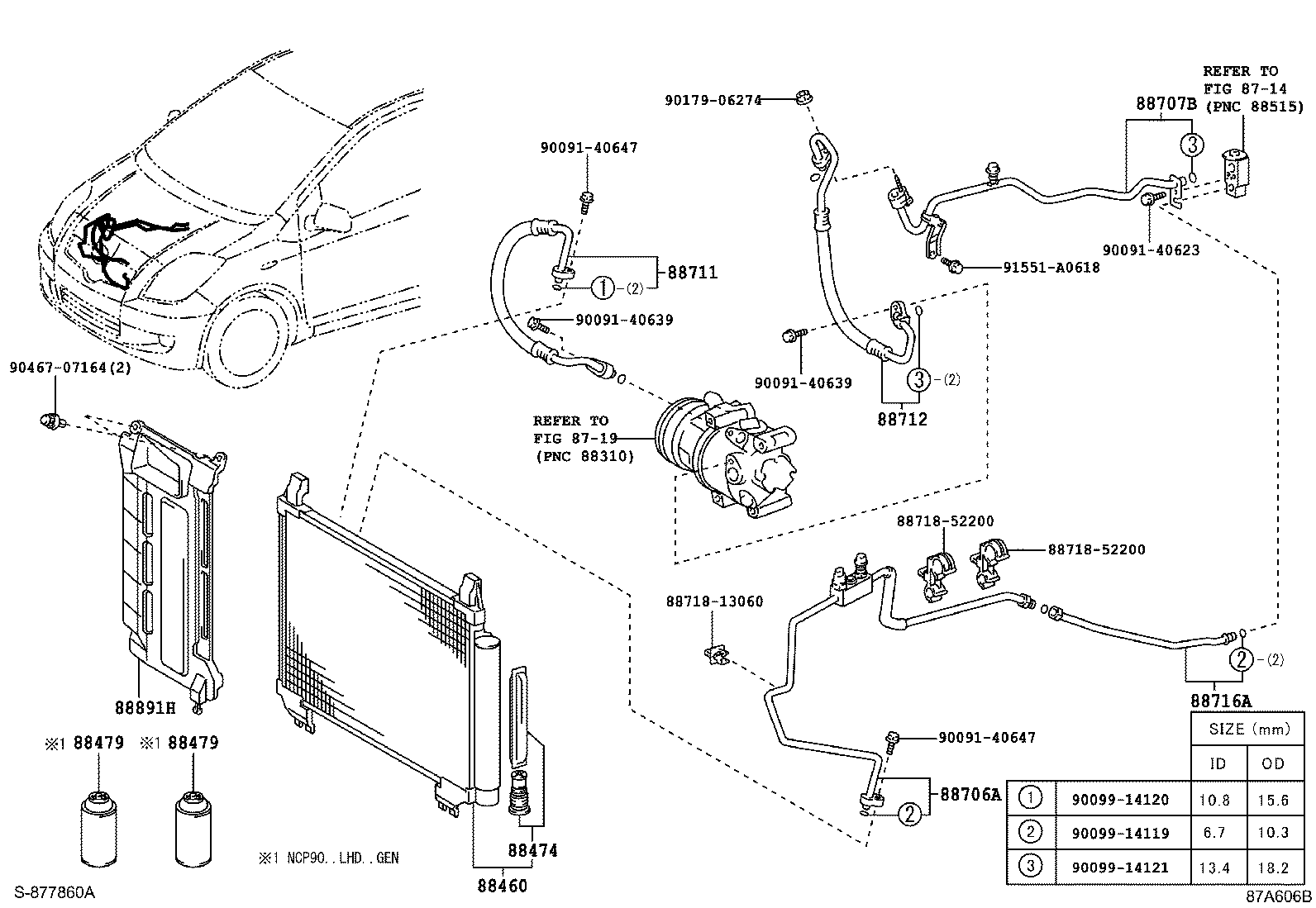

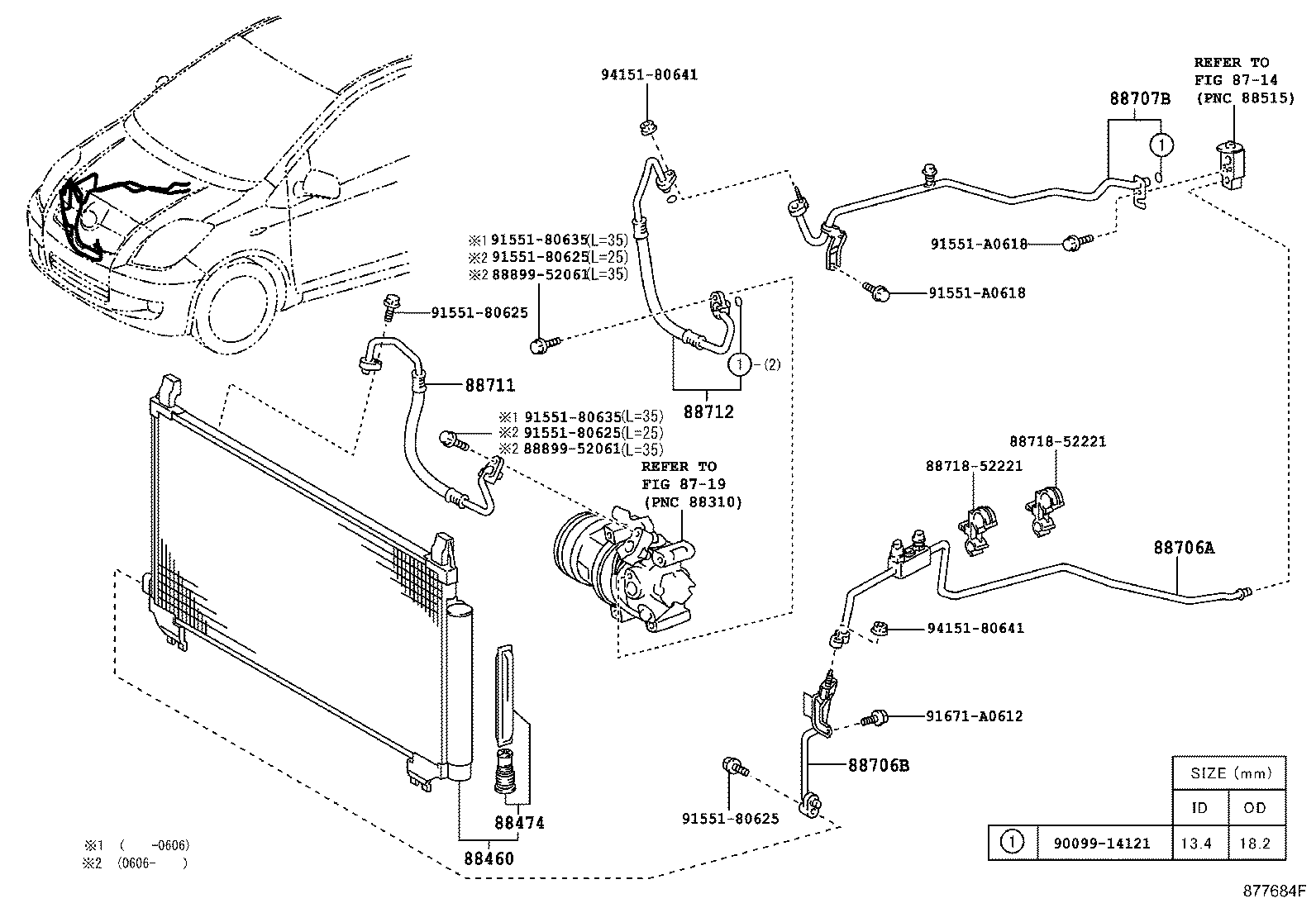

Figure 877423F 877423F 2005-08 → 2011-08 Figure 877860E 877860E 2005-08 → 2008-08 Figure 87A606B 87A606B 2008-08 → 2011-08 Figure 87A678A 87A678A 2008-08 → 2008-12 Figure 877684F 877684F 2005-08 → 2011-08

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
