Toyota Yaris
2011-08 → 2020-01 · chassis NCP13# · catalogue 112330 · General
Supported model
Data version 2018-06

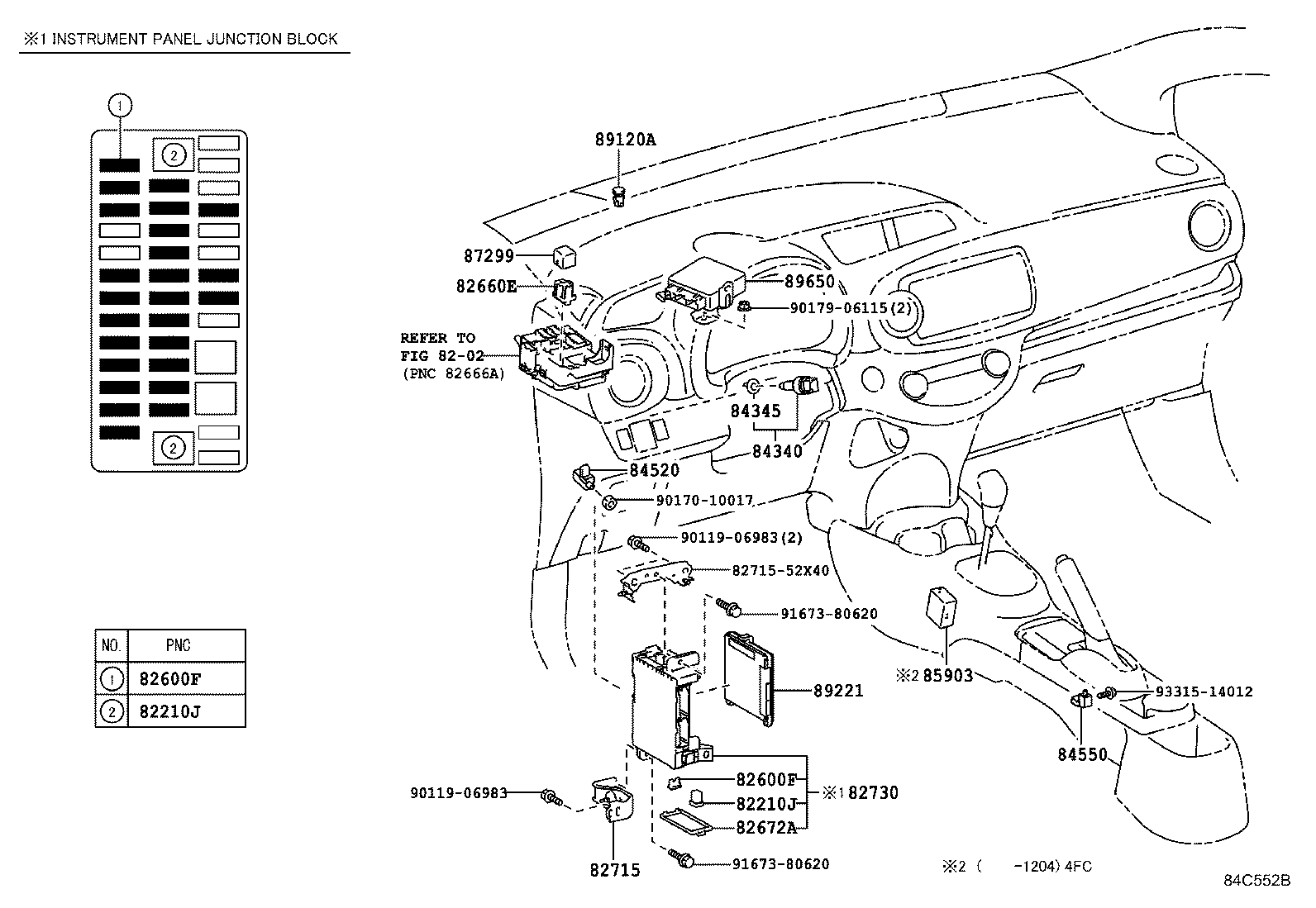

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82210J — Fusible Link | ||||
| 90982-08306 note |
Fusible Link
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 90982-08295 note |
Fusible Link
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 90982-08295 note |
Fusible Link
2017-01 → —
|
NCP13# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09019 note |
Fuse, Fuse Block
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 90982-09020 note |
Fuse, Fuse Block
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 90982-09021 note |
Fuse, Fuse Block
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 90982-09022 note |
Fuse, Fuse Block
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 90982-09023 note |
Fuse, Fuse Block
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 90982-09024 note |
Fuse, Fuse Block
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 90982-09019 note |
Fuse, Fuse Block
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 90982-09020 note |
Fuse, Fuse Block
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 90982-09021 note |
Fuse, Fuse Block
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 90982-09022 note |
Fuse, Fuse Block
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 90982-09023 note |
Fuse, Fuse Block
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 90982-09024 note |
Fuse, Fuse Block
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 90982-09019 note |
Fuse, Fuse Block
2017-01 → —
|
NCP13# | — | |
| 90982-09020 note |
Fuse, Fuse Block
2017-01 → —
|
NCP13# | — | |
| 90982-09021 note |
Fuse, Fuse Block
2017-01 → —
|
NCP13# | — | |
| 90982-09022 note |
Fuse, Fuse Block
2017-01 → —
|
NCP13# | — | |
| 90982-09023 note |
Fuse, Fuse Block
2017-01 → —
|
NCP13# | — | |
| 90982-09024 note |
Fuse, Fuse Block
2017-01 → —
|
NCP13# | — | |
| 82660E — Block Assy, Relay | ||||
| 82660-52100 |
Block Assy, Relay
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 82660-52100 |
Block Assy, Relay
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 82660-52100 |
Block Assy, Relay
2017-01 → —
|
NCP13# | — | |
| 82672A — Cover, Junction Block | ||||
| 82672-52010 |
Cover, Junction Block
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 82672-52011 |
Cover, Junction Block
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 82672-52140 |
Cover, Junction Block
2017-01 → —
|
NCP13# | — | |
| 82715 — Bracket,Wiring Harness Clamp | ||||
| 82715-52X30 |
Bracket,Wiring Harness Clamp
2011-08 → 2014-07
ended
|
NCP13# RHD | — | |
| 82715-52X50 |
Bracket,Wiring Harness Clamp
2011-08 → 2014-07
ended
|
NCP13# LHD | — | |
| 82715-52U70 |
Bracket,Wiring Harness Clamp
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 82715-52U70 |
Bracket,Wiring Harness Clamp
2017-01 → —
|
NCP13# | — | |
| 82730 — Block Assy, Instrument Panel Junction | ||||
| 82730-52L60 |
Block Assy, Instrument Panel Junction
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 82730-52L61 |
Block Assy, Instrument Panel Junction
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 82730-52K20 |
Block Assy, Instrument Panel Junction
2017-01 → —
|
NCP13# | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-19025 |
Switch Assy, Stop Lamp
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 84340-69075 |
Switch Assy, Stop Lamp
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 84340-59005 note |
Switch Assy, Stop Lamp
2017-01 → —
|
NCP13# | — | |
| 84340-59015 |
Switch Assy, Stop Lamp
2017-01 → —
|
NCP13# | — | |
| 84345 — Adjuster, Stop Lamp Switch Mounting | ||||
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2017-01 → —
|
NCP13# | — | |
| 84520 — Switch Assy, Clutch Start | ||||
| 84520-42010 |
Switch Assy, Clutch Start
2011-08 → 2014-07
ended
|
NCP13# 5F | — | |
| 84520-42010 |
Switch Assy, Clutch Start
2014-07 → 2017-01
ended
|
NCP13# 5F | — | |
| 84520-42010 |
Switch Assy, Clutch Start
2017-01 → —
|
NCP13# 5F | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-33010 |
Switch Assy, Parking Brake
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 84550-33010 |
Switch Assy, Parking Brake
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 84550-33010 |
Switch Assy, Parking Brake
2017-01 → —
|
NCP13# | — | |
| 85903 — Computer Sub-assy, Shift Lock Control | ||||
| 85903-52030 |
Computer Sub-assy, Shift Lock Control
2011-08 → 2012-04
ended
|
NCP13# 4FC | — | |
| 87299 — Relay, Heater | ||||
| 90987-04010 |
Relay, Heater
2011-08 → 2014-07
ended
|
NCP13# | — | |
| 90987-04010 note |
Relay, Heater
2011-08 → 2014-07
ended
|
NCP131 ARL,GCC | — | |
| 90987-04010 |
Relay, Heater
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 90987-04010 note |
Relay, Heater
2014-07 → 2017-01
ended
|
NCP131 | — | |
| 90987-04010 |
Relay, Heater
2017-01 → 2020-01
ended
|
NCP13# | — | |
| 90987-04010 note |
Relay, Heater
2017-01 → 2020-01
ended
|
NCP131 | — | |
| 90987-04010 note |
Relay, Heater
2017-01 → 2020-01
ended
|
NCP131 | — | |
| 89120A — Sensor, Automatic Light Control | ||||
| 89121-52010 note |
Sensor, Automatic Light Control
2011-08 → 2014-07
ended
|
NCP131 ARL,GCC | — | |
| 89121-52010 |
Sensor, Automatic Light Control
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 89121-52010 |
Sensor, Automatic Light Control
2017-01 → 2020-01
ended
|
NCP13# | — | |
| 89121-52010 note |
Sensor, Automatic Light Control
2017-01 → 2020-01
ended
|
NCP13# | — | |
| 89221 — Computer, Multiplex Network Body | ||||
| 89220-52280 |
Computer, Multiplex Network Body
2011-08 → 2013-10
ended
|
NCP130 RHD GEN | — | |
| 89220-52281 |
Computer, Multiplex Network Body
2013-11 → 2014-07
ended
|
NCP130 RHD GEN | — | |
| 89220-52290 note |
Computer, Multiplex Network Body
2011-08 → 2013-10
ended
|
NCP13# LHD GEN | — | |
| 89220-52291 note |
Computer, Multiplex Network Body
2013-11 → 2014-07
ended
|
NCP13# LHD GEN | — | |
| 89220-52300 |
Computer, Multiplex Network Body
2011-08 → 2014-07
ended
|
NCP13# LHD GEN | — | |
| 89220-52370 note |
Computer, Multiplex Network Body
2011-08 → 2013-10
ended
|
NCP13# GCC | — | |
| 89220-52371 note |
Computer, Multiplex Network Body
2013-11 → 2014-07
ended
|
NCP13# GCC | — | |
| 89220-52380 note |
Computer, Multiplex Network Body
2011-08 → 2014-07
ended
|
NCP131 GCC | — | |
| 89220-52390 |
Computer, Multiplex Network Body
2011-08 → 2014-07
ended
|
NCP13# GCC | — | |
| 89220-52400 |
Computer, Multiplex Network Body
2011-08 → 2013-10
ended
|
NCP131 ARL | — | |
| 89220-52400 note |
Computer, Multiplex Network Body
2011-08 → 2013-10
ended
|
NCP130 ARL | — | |
| 89220-52401 note |
Computer, Multiplex Network Body
2013-11 → 2014-07
ended
|
NCP130 ARL | — | |
| 89220-52401 |
Computer, Multiplex Network Body
2013-11 → 2014-07
ended
|
NCP131 ARL | — | |
| 89220-52410 note |
Computer, Multiplex Network Body
2011-08 → 2014-07
ended
|
NCP131 ARL | — | |
| 89220-52420 |
Computer, Multiplex Network Body
2011-08 → 2014-07
ended
|
NCP130 ARL | — | |
| 89220-52260 |
Computer, Multiplex Network Body
2015-05 → 2015-10
ended
|
NCP13# | — | |
| 89220-52261 |
Computer, Multiplex Network Body
2015-11 → 2017-01
ended
|
NCP13# | — | |
| 89220-52720 note |
Computer, Multiplex Network Body
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 89220-52730 |
Computer, Multiplex Network Body
2014-07 → 2015-04
ended
|
NCP13# | — | |
| 89220-52760 note |
Computer, Multiplex Network Body
2014-07 → 2015-04
ended
|
NCP131 | — | |
| 89220-52890 note |
Computer, Multiplex Network Body
2015-05 → 2017-01
ended
|
NCP131 | — | |
| 89220-52261 |
Computer, Multiplex Network Body
2017-01 → —
|
NCP13# | — | |
| 89220-52261 note |
Computer, Multiplex Network Body
2017-01 → —
|
NCP13# | — | |
| 89220-52720 note |
Computer, Multiplex Network Body
2017-01 → —
|
NCP13# | — | |
| 89220-52890 note |
Computer, Multiplex Network Body
2017-01 → —
|
NCP131 | — | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-52720 |
Computer Assy, Power Steering
2011-08 → 2012-01
ended
|
NCP13# ARL | — | |
| 89650-52721 |
Computer Assy, Power Steering
2012-02 → 2012-05
ended
|
NCP13# ARL | — | |
| 89650-52731 |
Computer Assy, Power Steering
2011-08 → 2012-01
ended
|
NCP130 RHD GEN | — | |
| 89650-52732 |
Computer Assy, Power Steering
2012-02 → 2012-05
ended
|
NCP130 RHD GEN | — | |
| 89650-52750 note |
Computer Assy, Power Steering
2011-08 → 2012-01
ended
|
NCP130 LHD GEN | — | |
| 89650-52751 note |
Computer Assy, Power Steering
2012-02 → 2014-07
ended
|
NCP130 LHD GEN | — | |
| 89650-52770 |
Computer Assy, Power Steering
2011-08 → 2012-01
ended
|
NCP13# LHD | — | |
| 89650-52771 |
Computer Assy, Power Steering
2012-02 → 2014-07
ended
|
NCP13# LHD | — | |
| 89650-52D80 |
Computer Assy, Power Steering
2012-05 → 2014-07
ended
|
NCP13# ARL | — | |
| 89650-52D90 |
Computer Assy, Power Steering
2012-05 → 2014-07
ended
|
NCP130 RHD GEN | — | |
| 89650-52690 |
Computer Assy, Power Steering
2014-07 → 2017-01
ended
|
NCP13# | — | |
| 89650-52D92 |
Computer Assy, Power Steering
2017-01 → 2020-01
ended
|
NCP13# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
