Toyota Yaris

2011-08 → 2020-01 · chassis NCP13# · catalogue 112330 · General

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

8 part groups · 4 illustrations

Illustrations

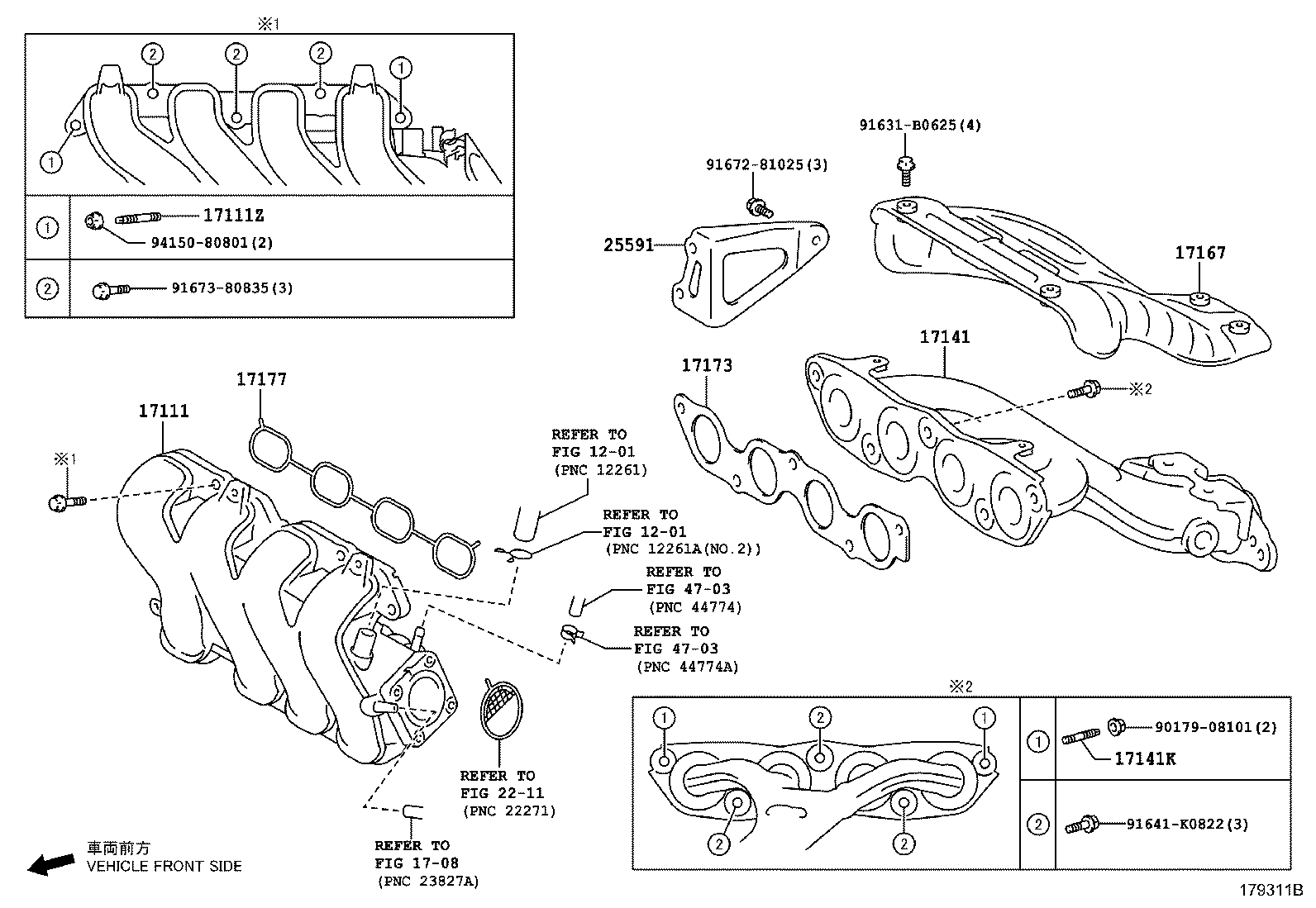

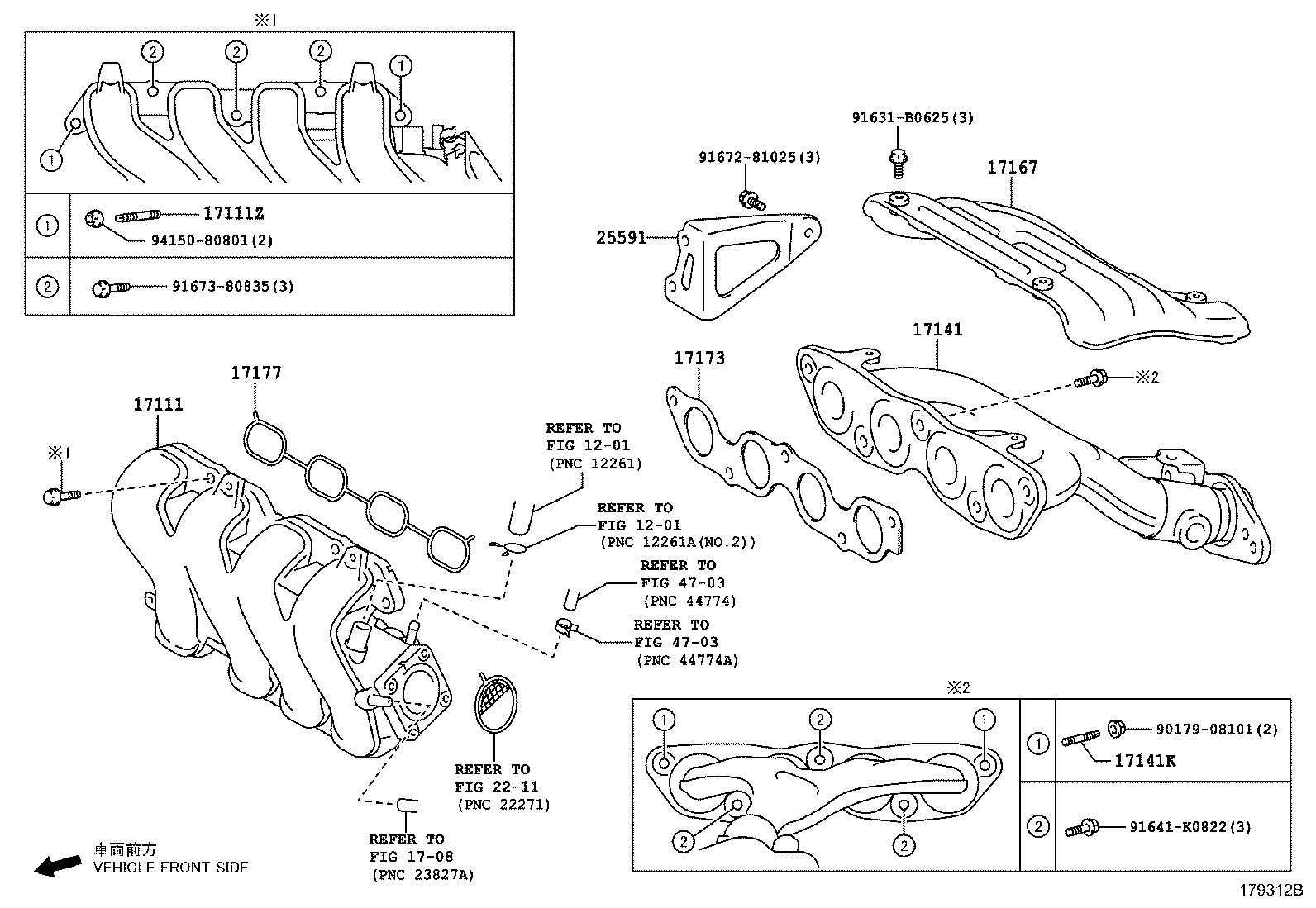

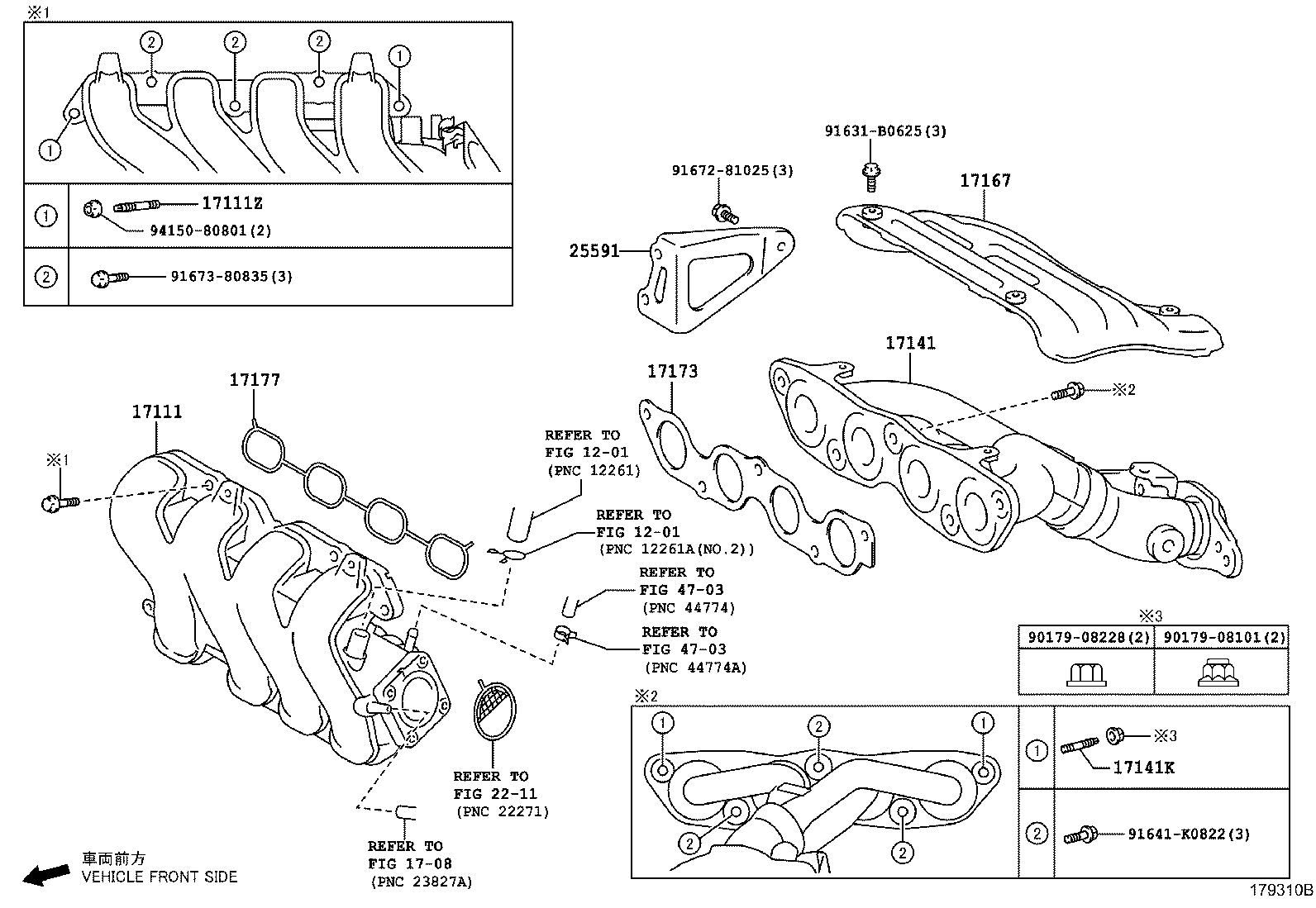

Figure 179309B 179309B 2011-08 → 2016-09 Figure 179310B 179310B 2011-08 → 2016-09 Figure 179311B 179311B 2016-09 → — Figure 179312B 179312B 2016-09 → —

Part groups

PNCDescription
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
