Toyota Yaris

2011-08 → 2020-01 · chassis NCP13# · catalogue 112330 · General

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

3 part groups · 3 illustrations

Illustrations

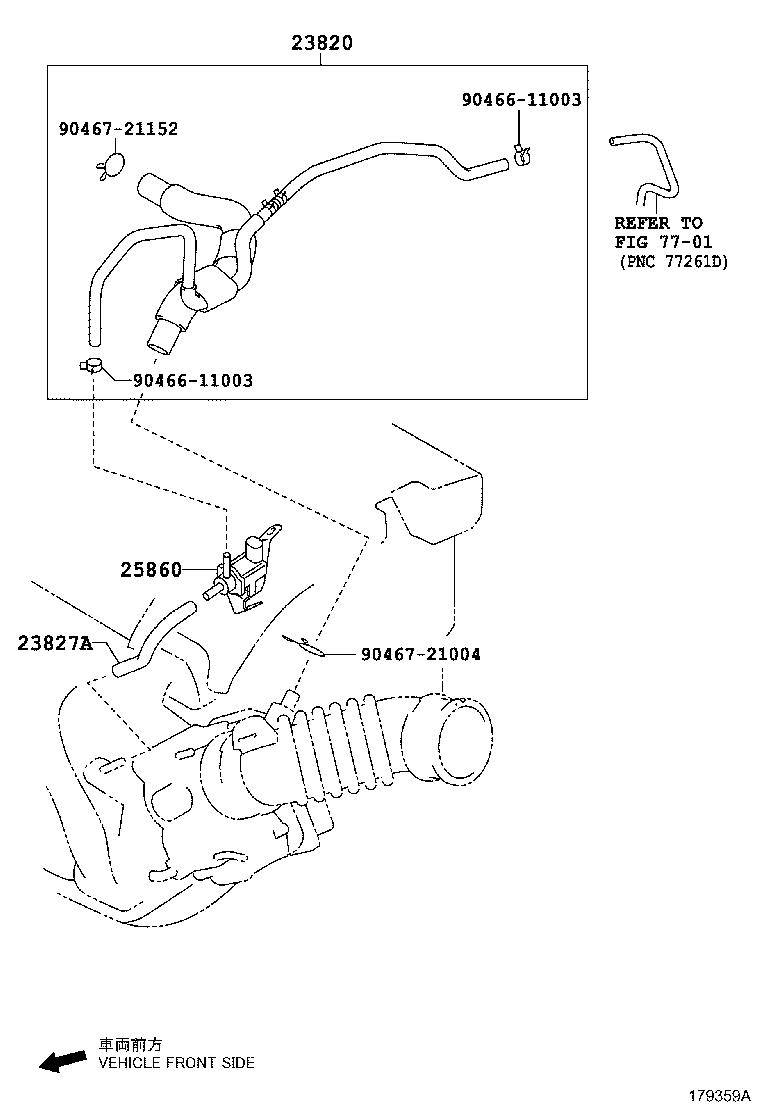

Figure 177361A 177361A 2011-08 → 2015-10 Figure 179173A 179173A 2015-10 → 2016-05 Figure 179359A 179359A 2016-05 → —

Part groups

PNCDescription
23820 Hose Assy, Fuel Vapor Feed
23827A Hose, Fuel Vapor Feed, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
