Toyota Yaris
2011-08 → 2020-01 · chassis NCP13# · catalogue 112330 · General
Supported model
Data version 2018-06

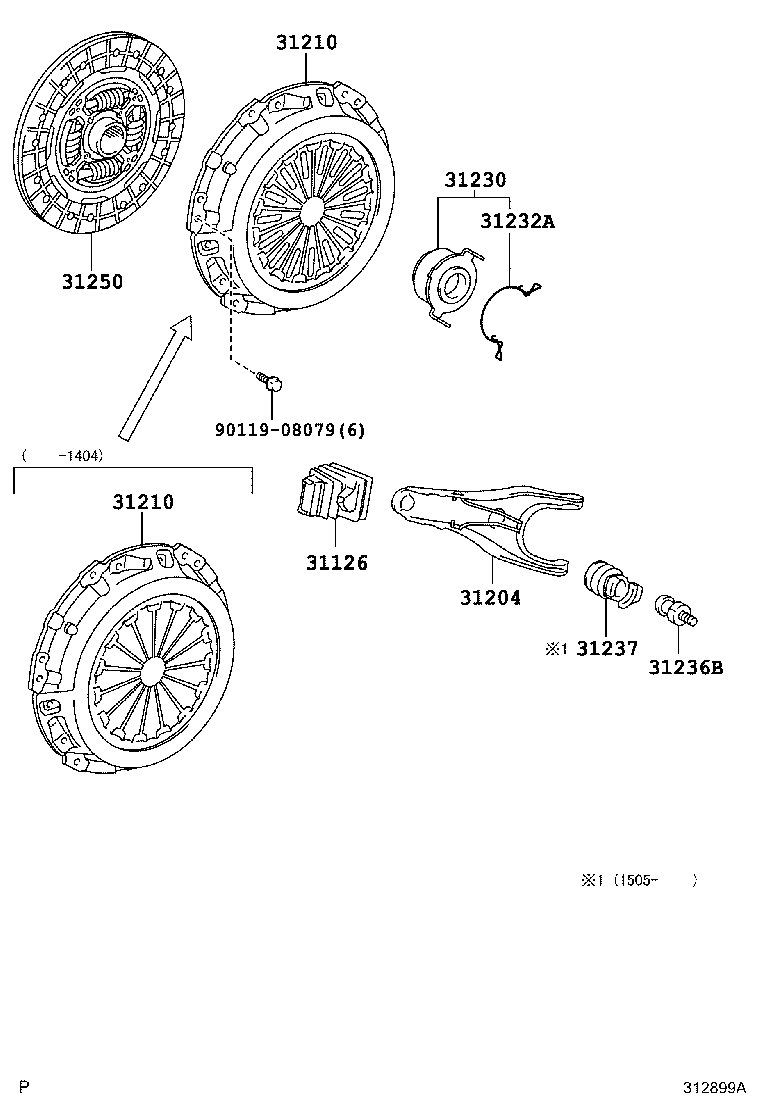

Clutch & Release Fork
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31126 | Boot, Clutch Release Fork |
| 31204 | Fork Sub-assy, Clutch Release |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31232A | Clip, Release Bearing Hub |
| 31236B | Support, Release Fork |
| 31237 | Boot, Clutch Release Fork Support |
| 31250 | Disc Assy, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
