Toyota Yaris
2011-08 → 2020-01 · chassis NCP13# · catalogue 112330 · General
Supported model
Data version 2018-06

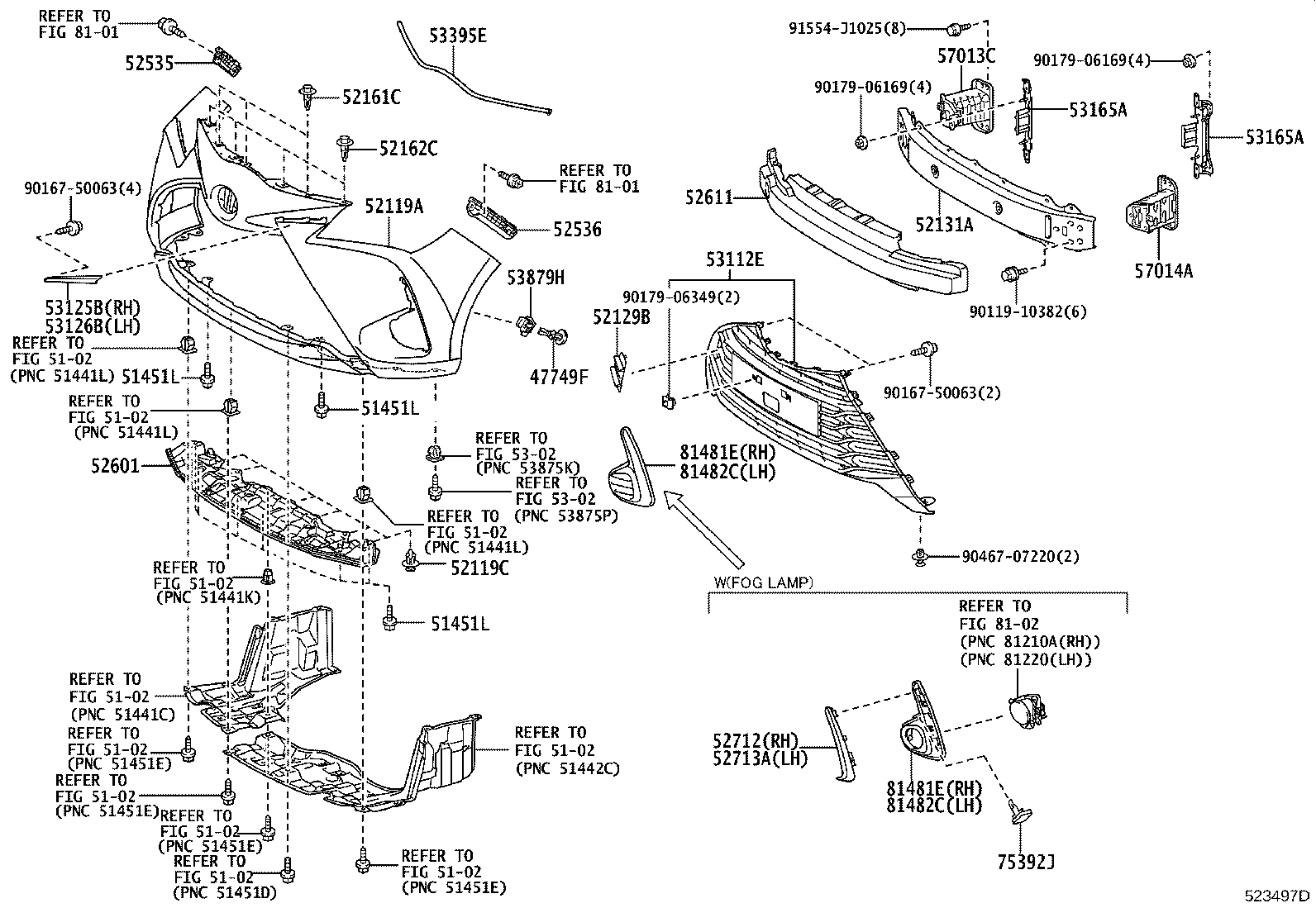

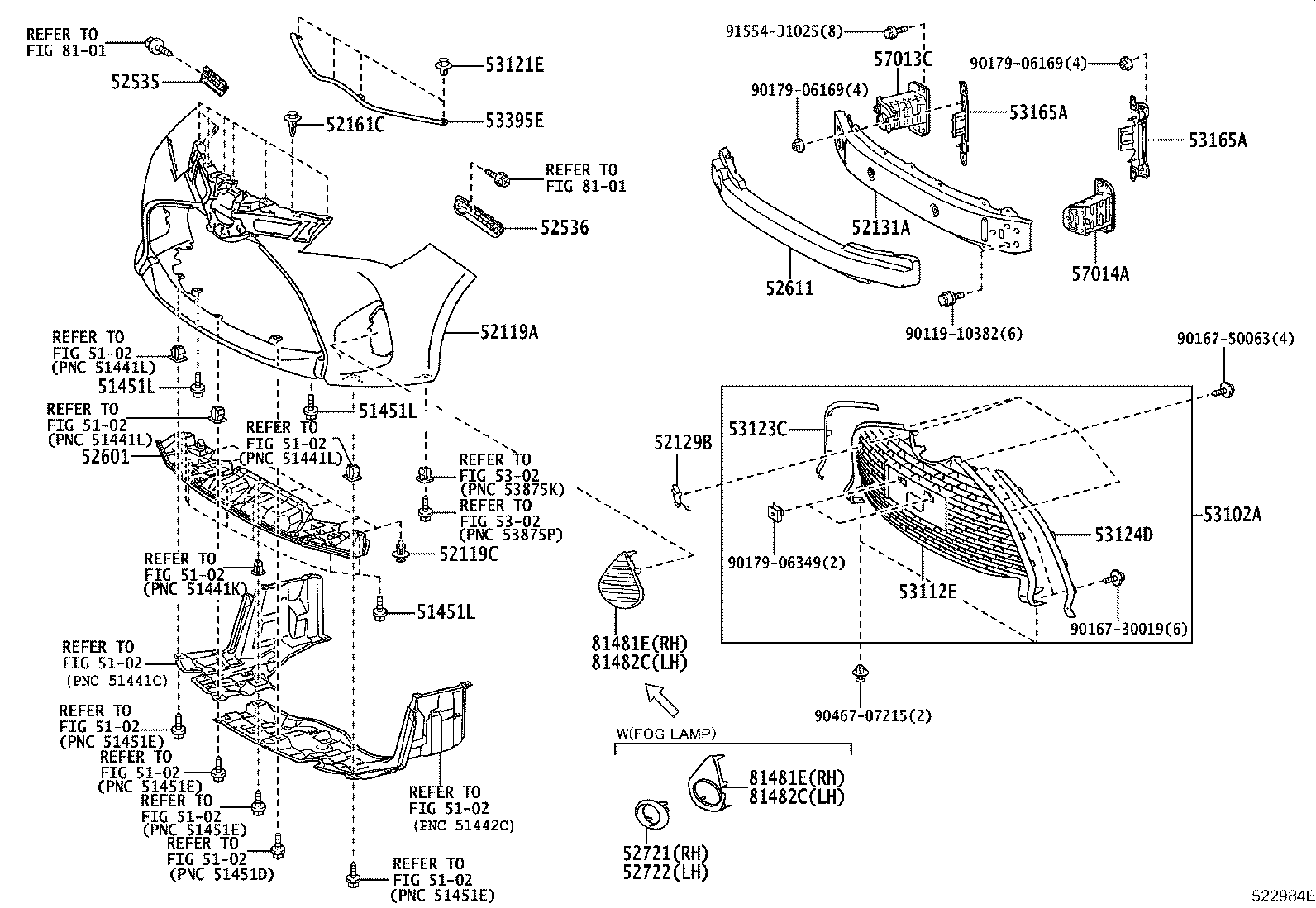

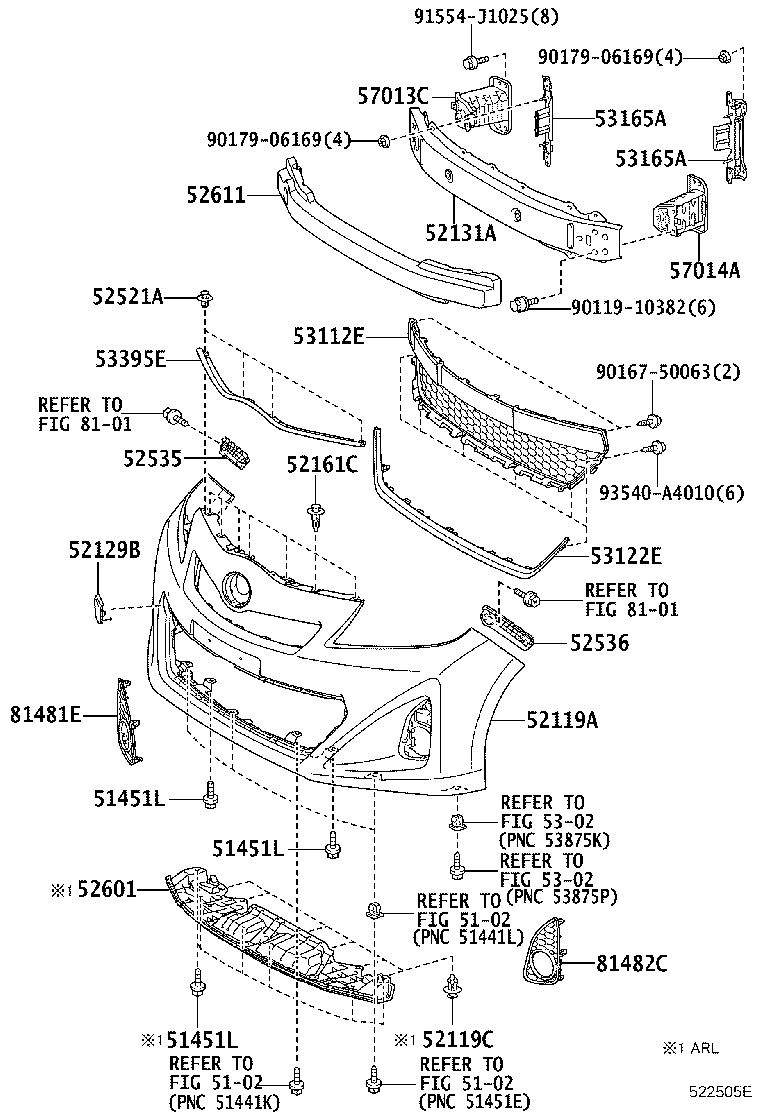

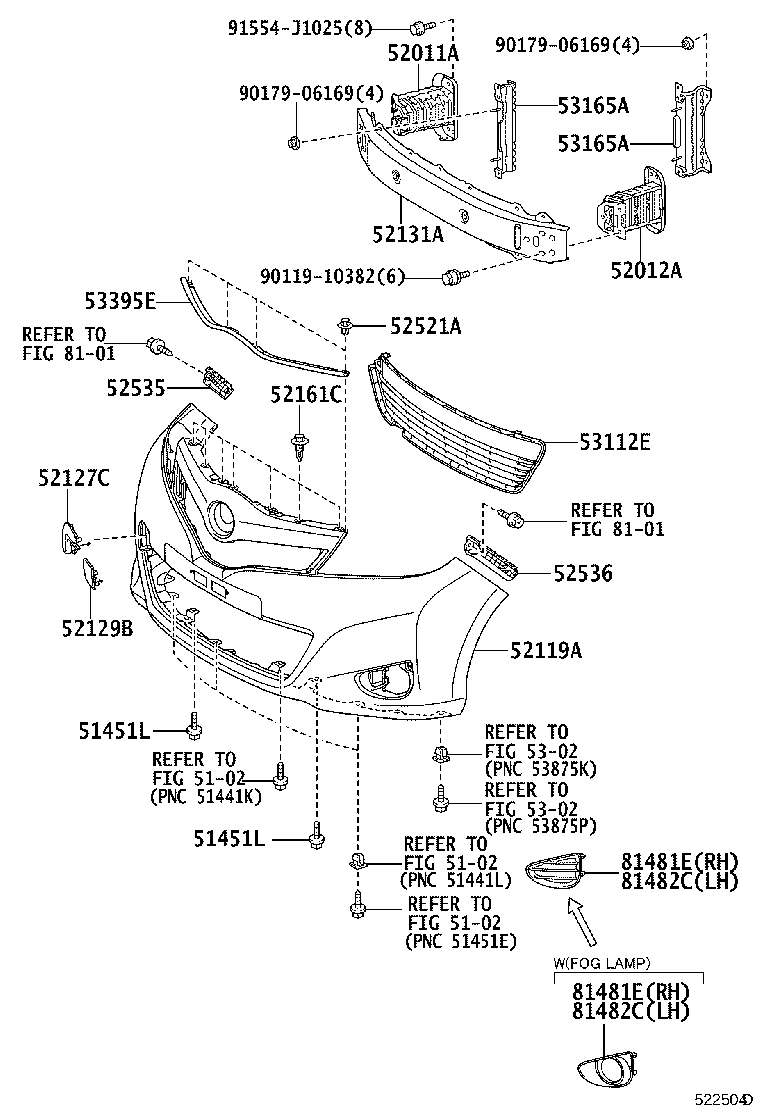

Front Bumper & Bumper Stay
36 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 51451L | Bolt, NO.1 |
| 52011A | Arm Sub-assy, Front Bumper, RH |
| 52012A | Arm Sub-assy, Front Bumper, LH |
| 52119A | Cover, Front Bumper |
| 52119C | Clip, Front Bumper Cover |
| 52127C | Cover, Front Bumper Hole |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52161C | Piece, Front Bumper |
| 52162C | Piece, Front Bumper |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52601 | Absorber Sub-assy, Front Bumper Energy |
| 52611 | Absorber, Front Bumper Energy |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 52721 | Moulding, Front Bumper Extension, RH |
| 52722 | Moulding, Front Bumper Extension, LH |
| 53102A | Grille Sub-assy, Radiator, Lwr |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53121E | Clip(FOR FRONT BUMPER), NO.1 |
| 53122E | Moulding, Radiator Grille, Lower |
| 53123C | Moulding, Radiator Grille, Lower RH |
| 53124D | Moulding, Radiator Grille, Lower LH |
| 53125B | Moulding, Radiator Grille, Center RH |
| 53126B | Moulding, Radiator Grille, Center LH |
| 53165A | Bracket, Front Bumper Stone Deflector, NO.1 |
| 53395E | Seal, Hood TO Front End Panel |
| 53879H | Retainer, Front Fender Liner |
| 57013C | Bracket Sub-assy, Front Side Member, RH |
| 57014A | Bracket Sub-assy, Front Side Member, LH |
| 75392J | Retainer, Outside Moulding |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
