Toyota Yaris
2011-08 → 2020-01 · chassis NCP13# · catalogue 112330 · General
Supported model
Data version 2018-06

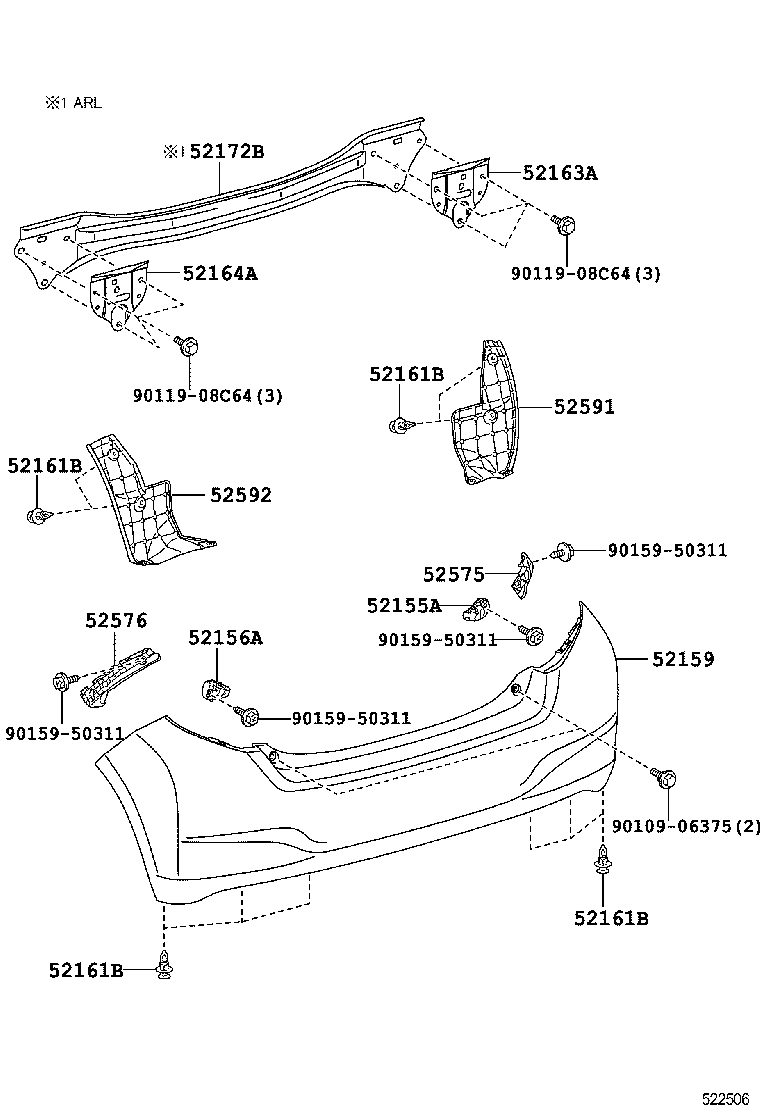

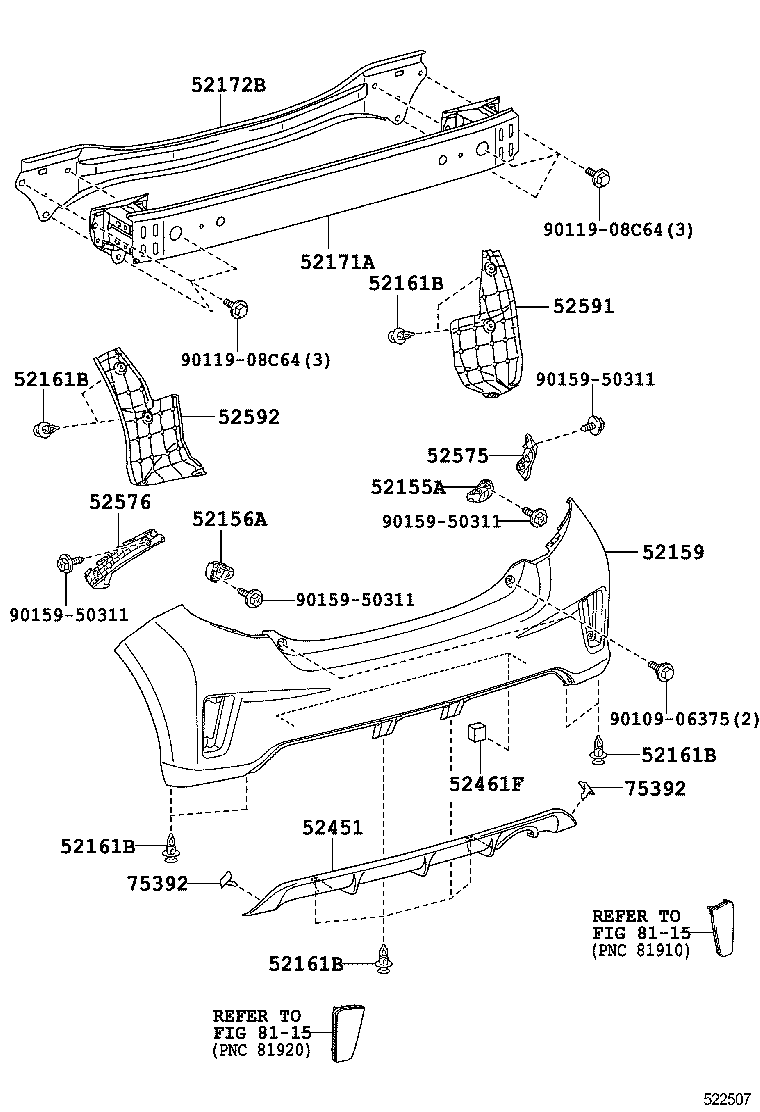

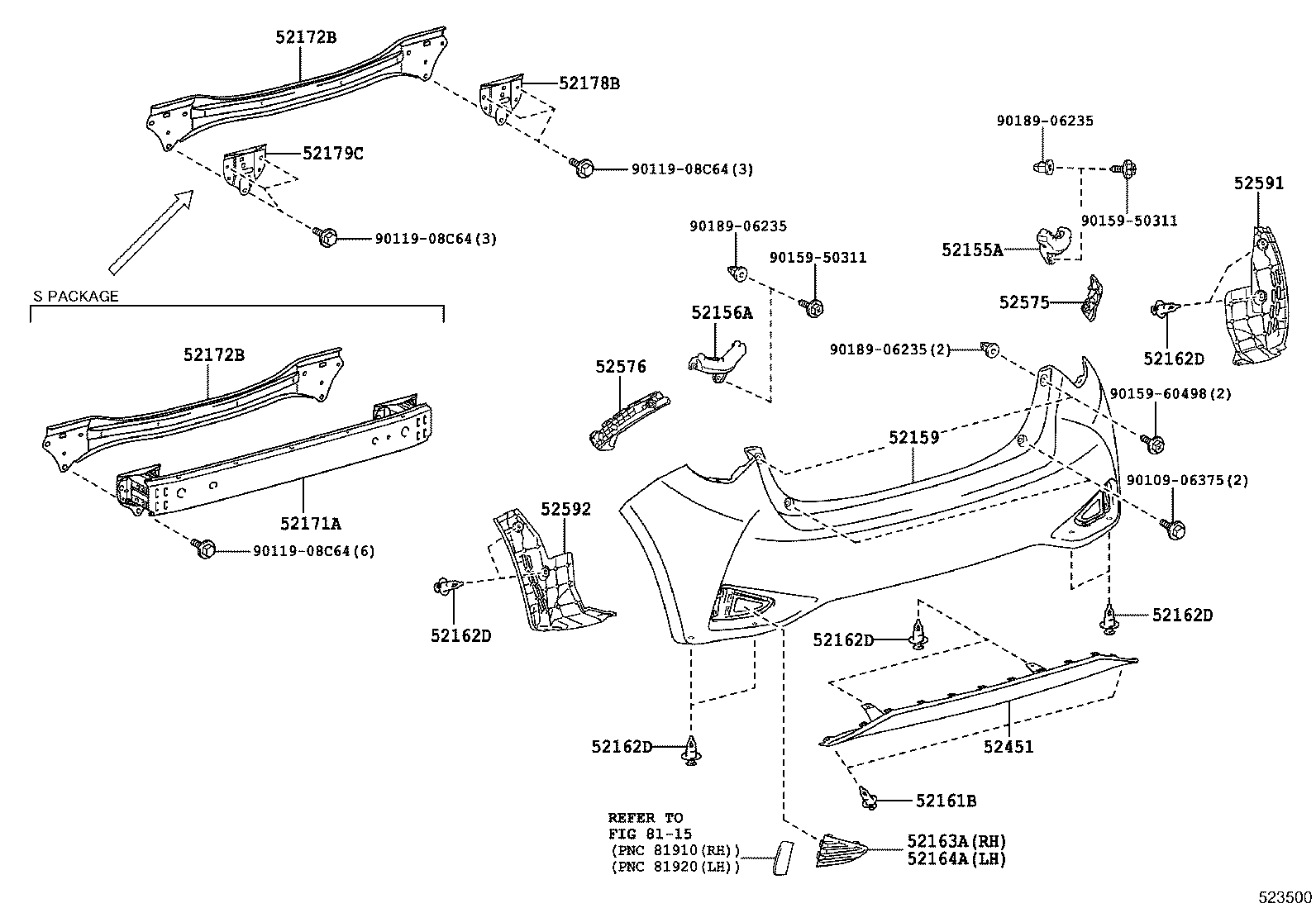

Rear Bumper & Bumper Stay
20 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52162D | Piece, Rear Bumper |
| 52163A | Plate, Rear Bumper, RH |
| 52164A | Plate, Rear Bumper, LH |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52172B | Reinforcement, Rear Bumper, NO.2 |
| 52178B | Plate, Rear Bumper Reinforcement, NO.1 |
| 52179C | Plate, Rear Bumper Reinforcement, NO.2 |
| 52181 | Arm, Rear Bumper, RH |
| 52182 | Arm, Rear Bumper, LH |
| 52451 | Guard, Rear Bumper |
| 52461F | Pad, Rear Bumper |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 75392 | Retainer, Outside Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
