Toyota Yaris

2011-08 → 2020-01 · chassis NCP13# · catalogue 112330 · General

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

13 part groups · 3 illustrations

Illustrations

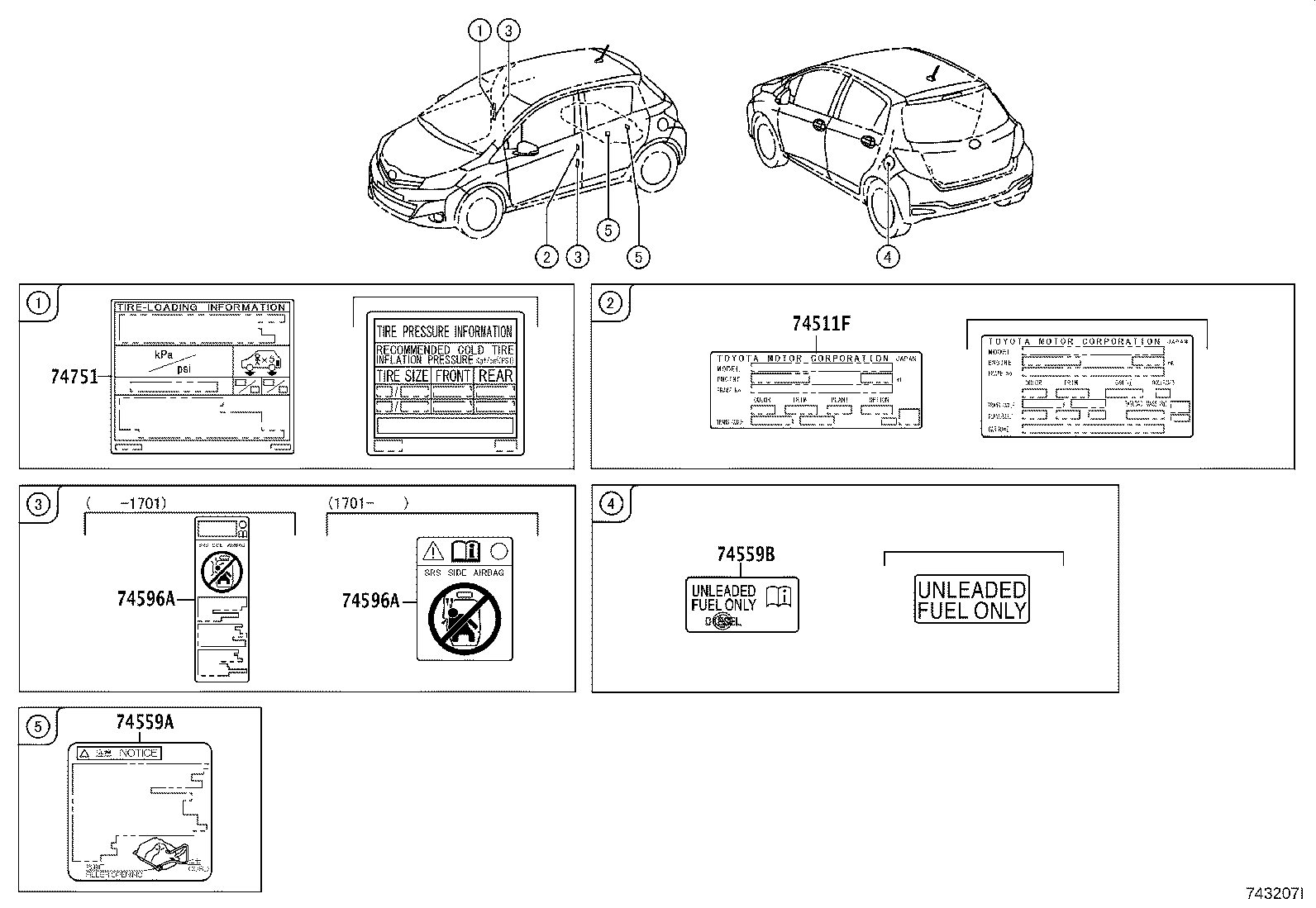

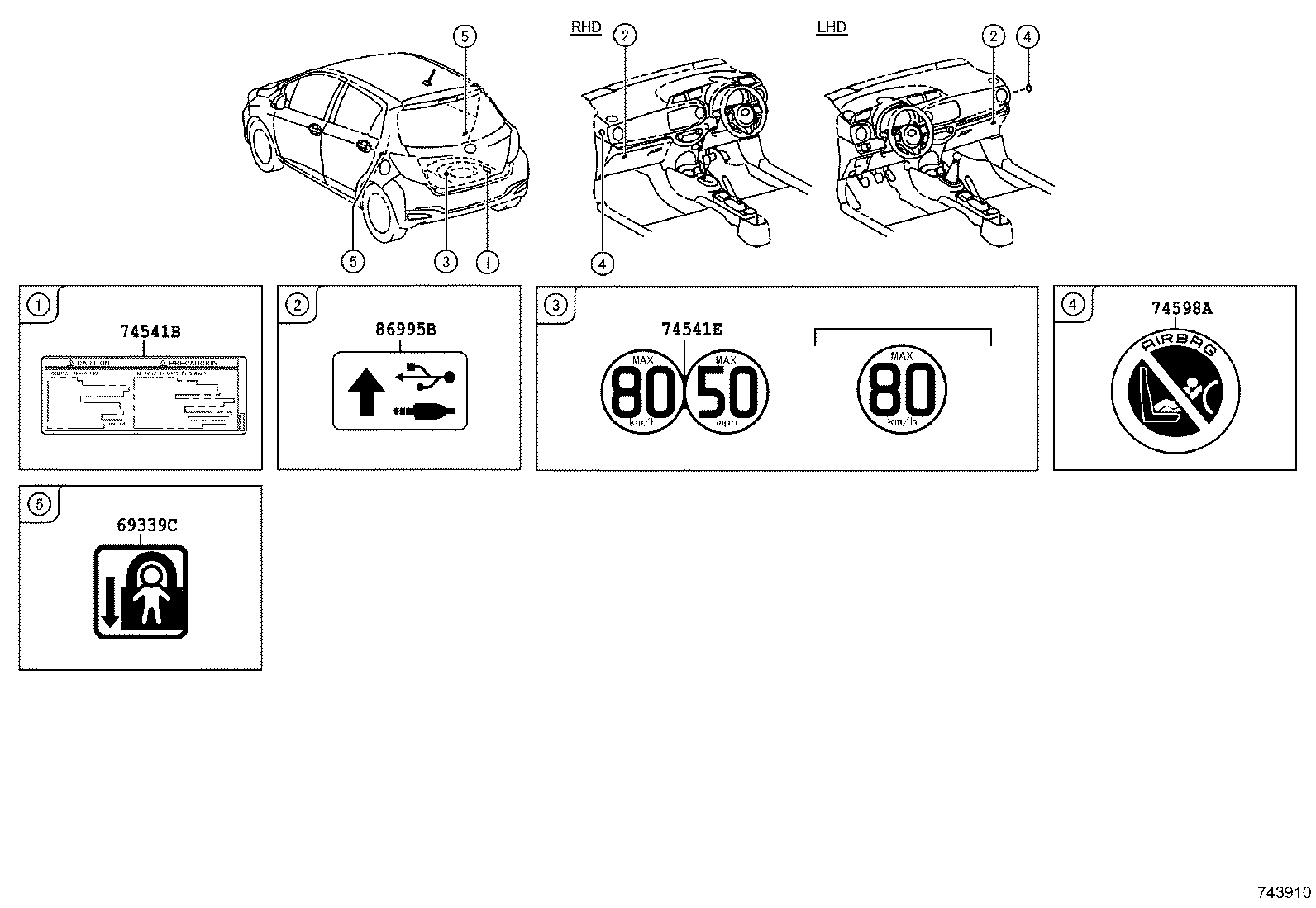

Figure 745418A 745418A 2011-08 → — Figure 743207I 743207I 2011-08 → — Figure 743910 743910 2011-08 → —

Part groups

PNCDescription
16793E Label, Cooling Fan Caution
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
86995B Plate, Caution
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
