Toyota Yaris

2011-08 → 2020-01 · chassis NCP13# · catalogue 112330 · General

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

5 part groups · 3 illustrations

Illustrations

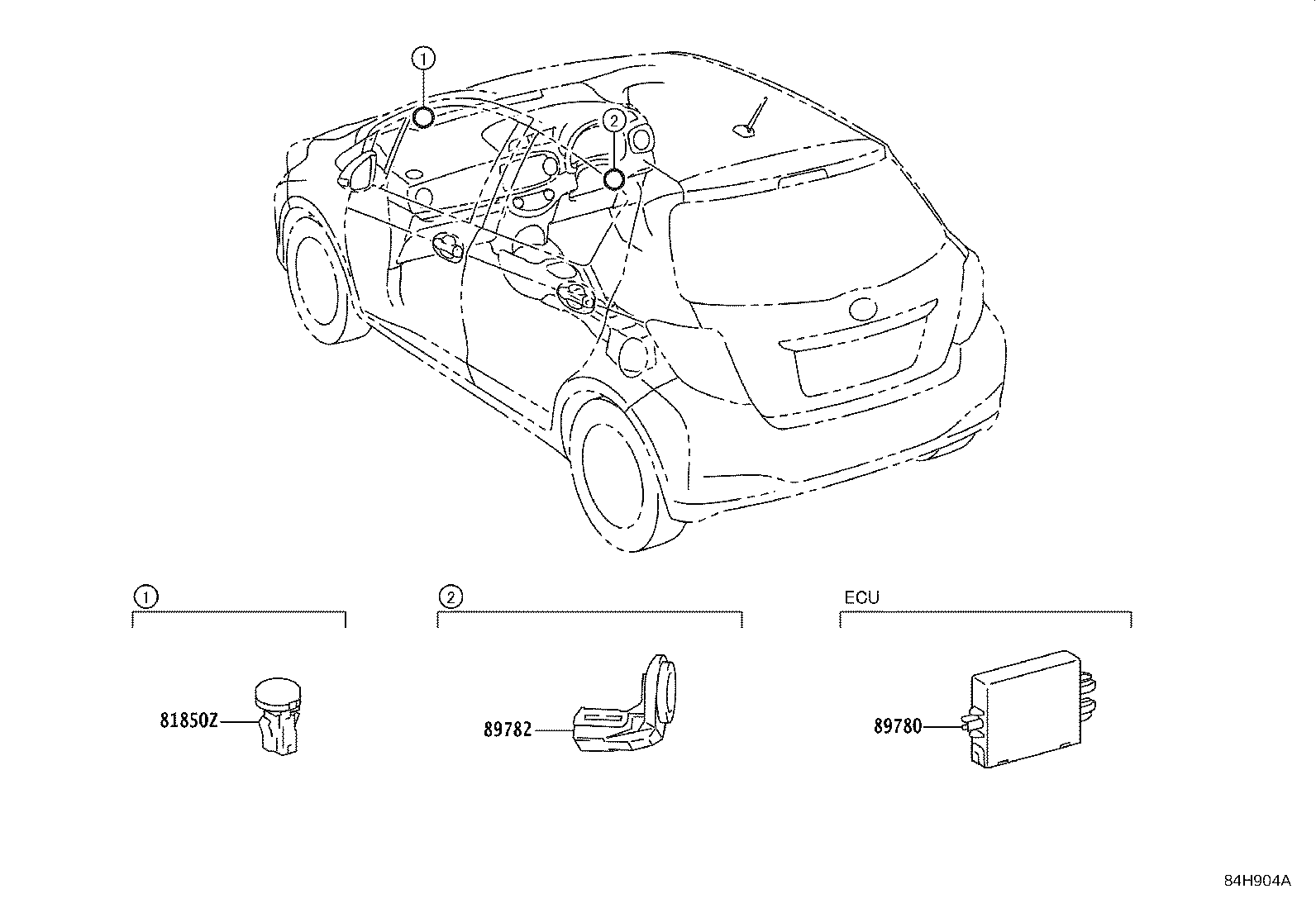

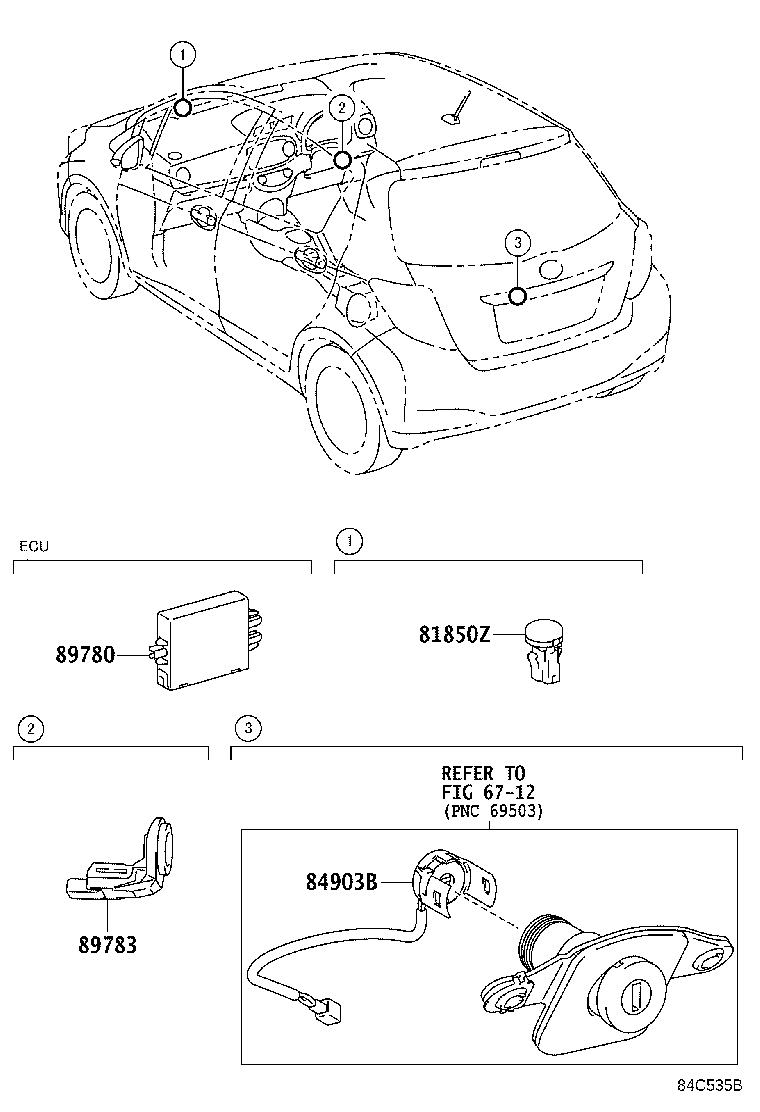

Figure 84C536A 84C536A 2011-08 → 2014-07 Figure 84C535B 84C535B 2011-08 → 2014-07 Figure 84H904A 84H904A 2014-07 → —

Part groups

PNCDescription
81850Z Lamp Assy, Theft Warning Indicator
84903B Switch Sub-assy, Door Unlock
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
