Factory parts data · Europe

Toyota Yaris

2011-08 → 2020-01 · chassis NCP13# · catalogue 112330 · General

Supported model Data version 2018-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 2 illustrations

Illustrations

Figure 864465B

864465B 2011-08 → —

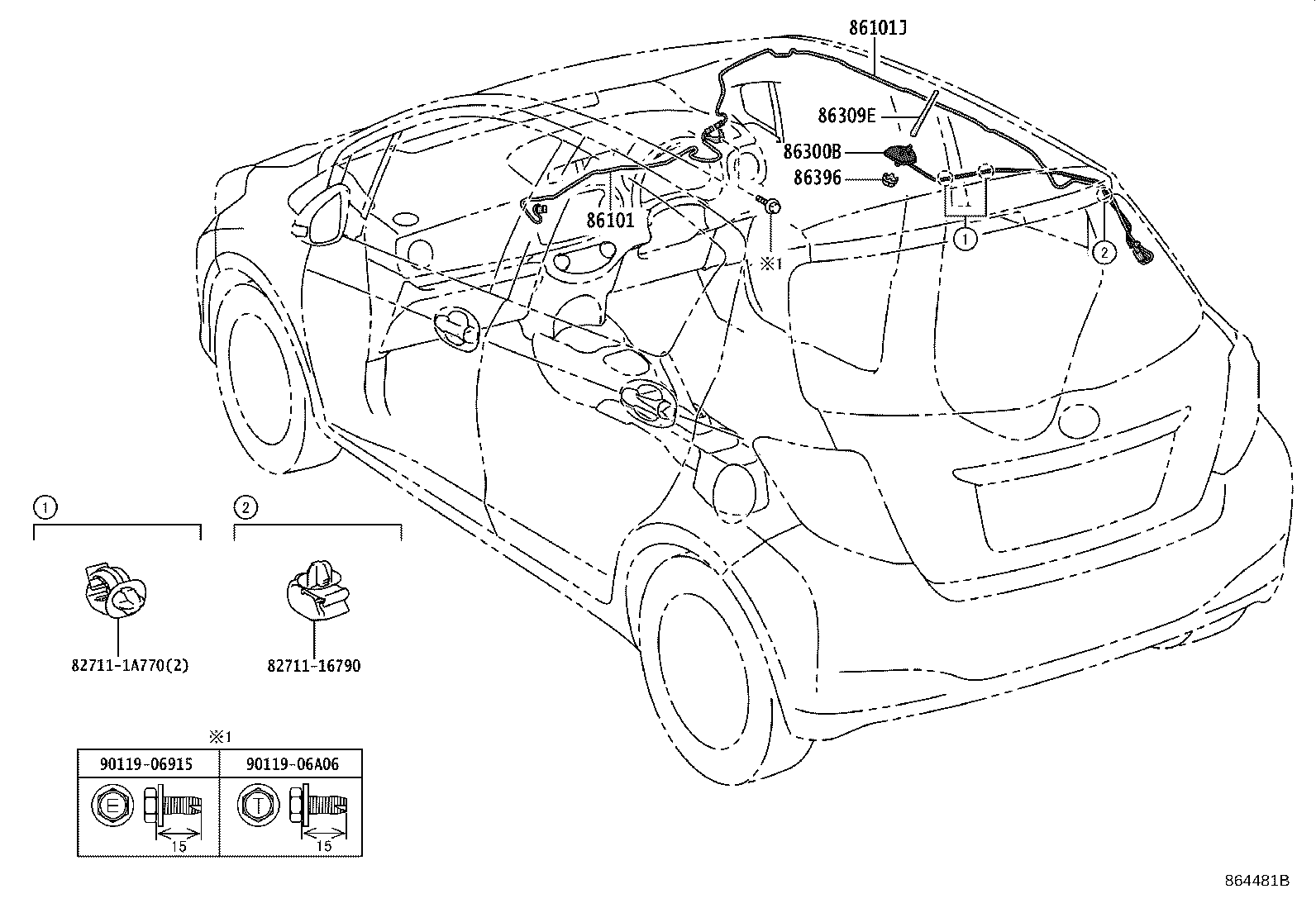

Figure 864481B

864481B 2011-08 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101J	Cord Sub-assy, Antenna, NO.2
86300B	Antenna Assy, Amplifier, NO.1
86309E	Pole Sub-assy, Roof Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
