Heating & Air Conditioning - Cooler Unit

21 part groups · 10 illustrations

Illustrations

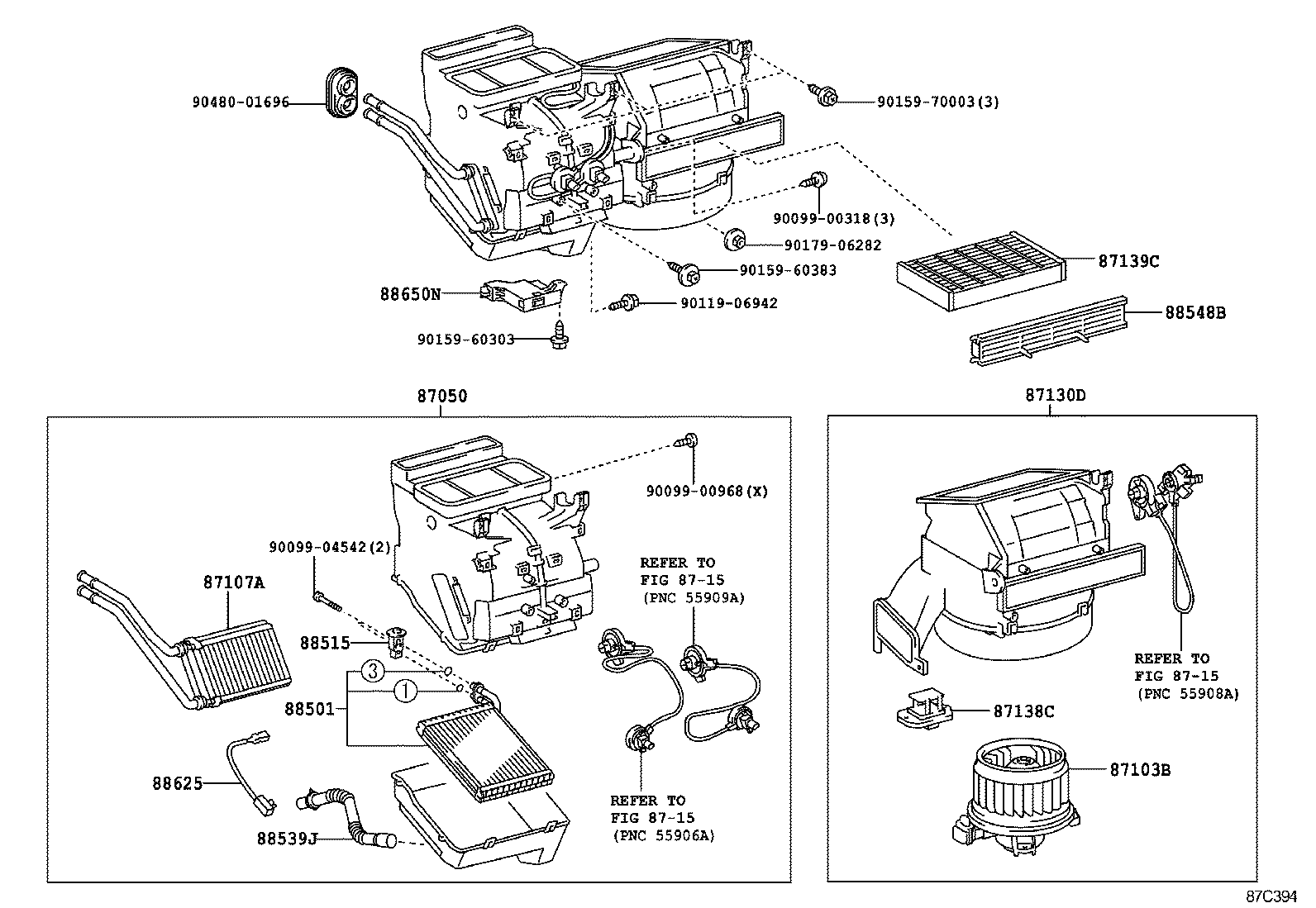

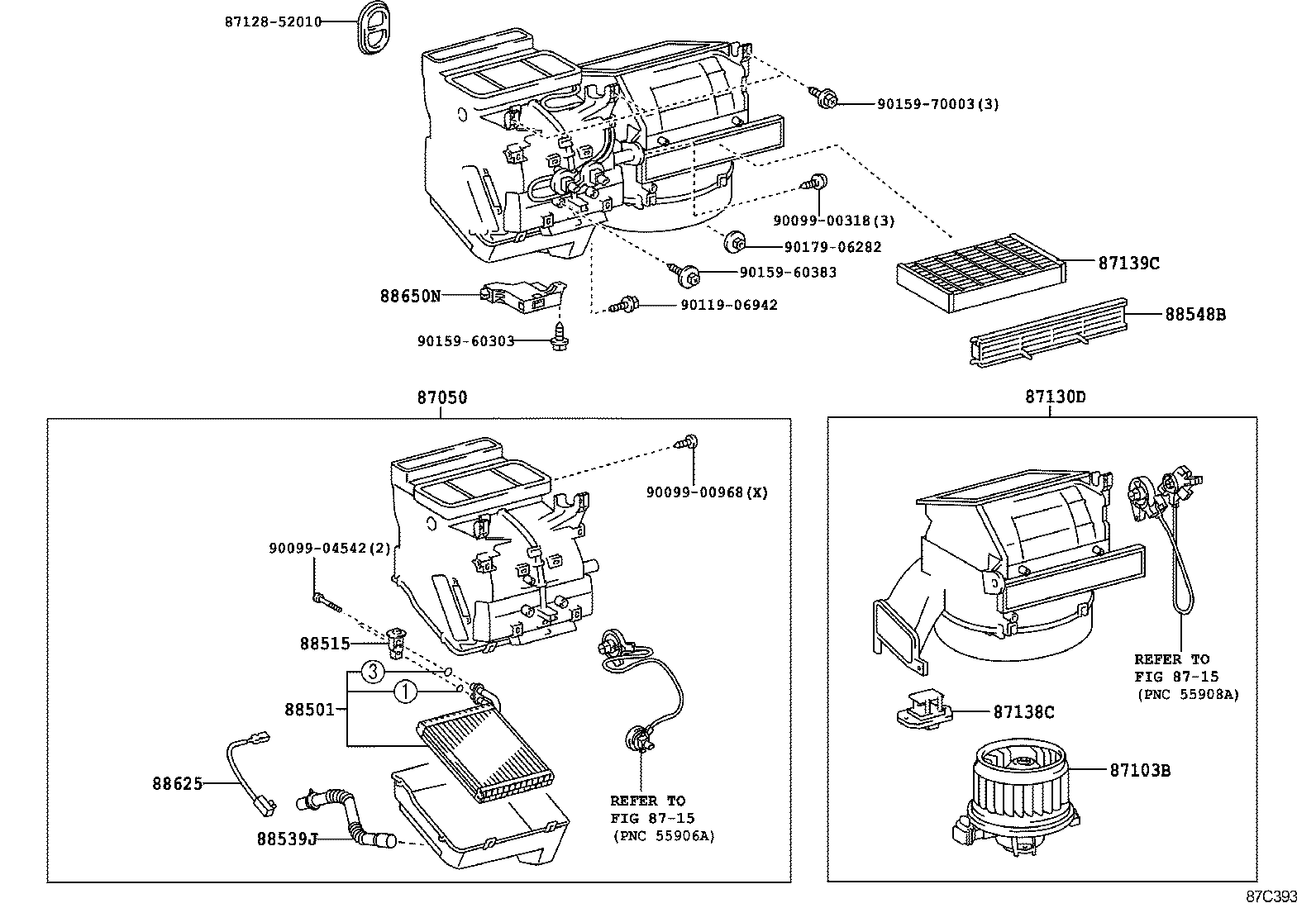

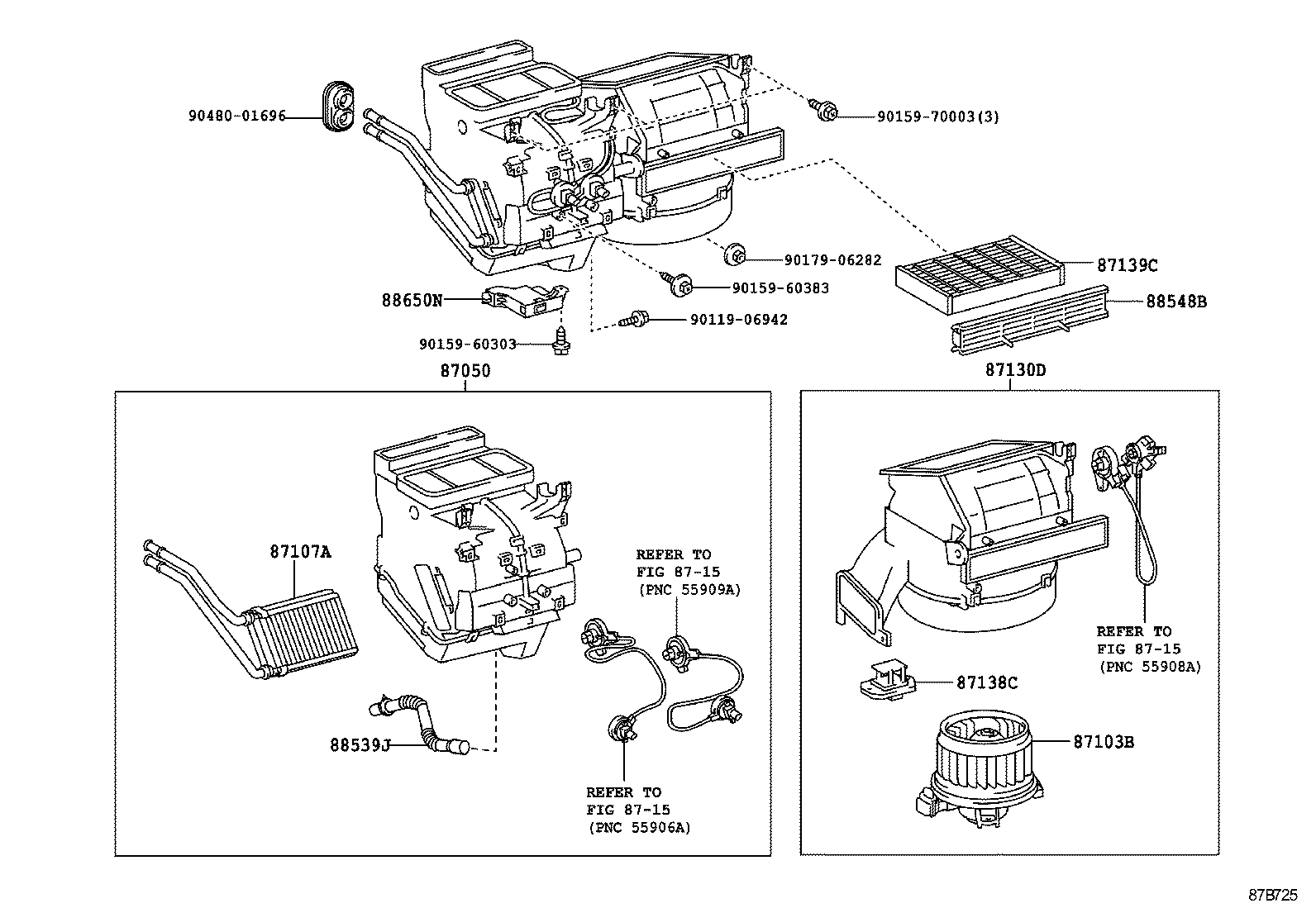

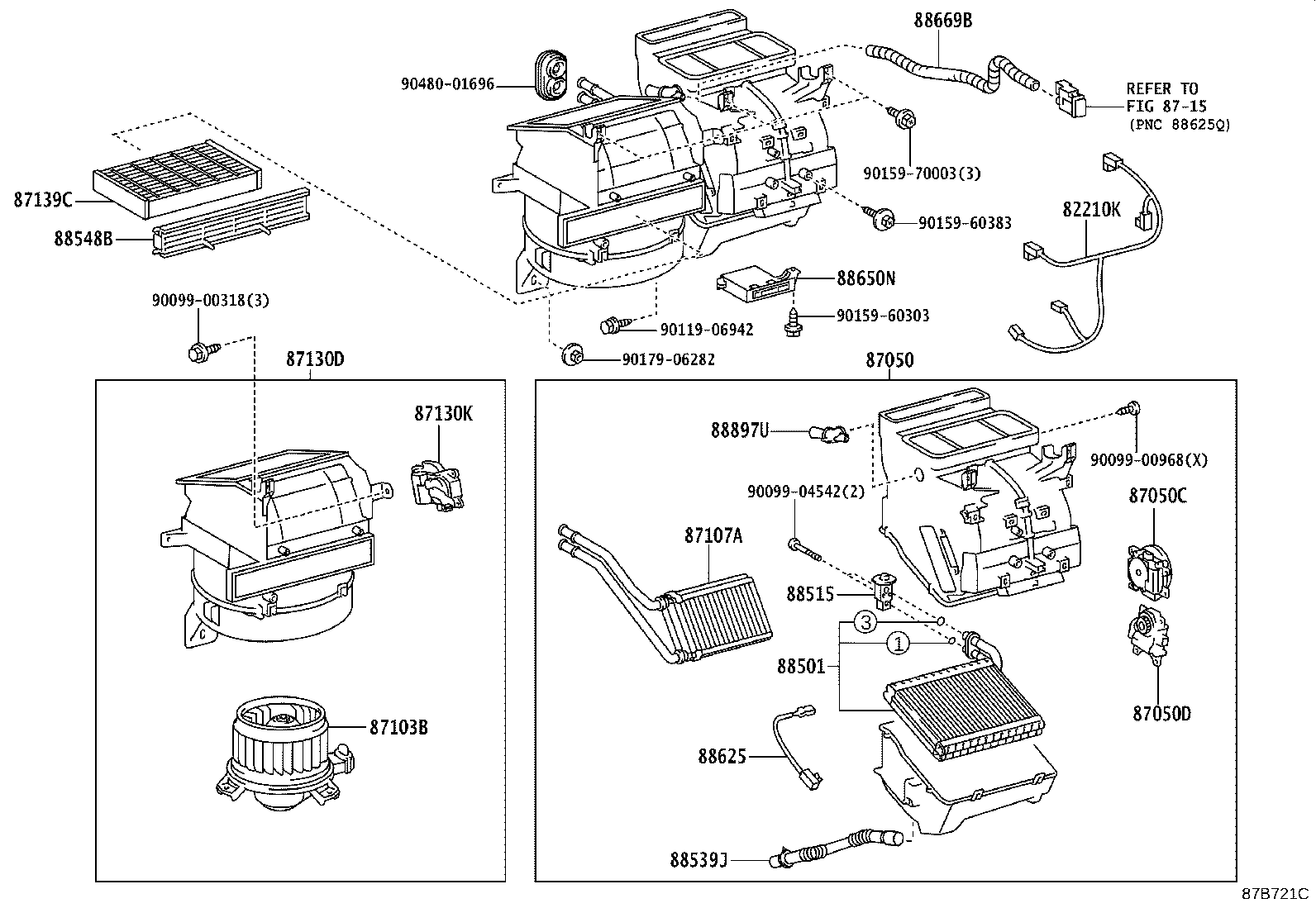

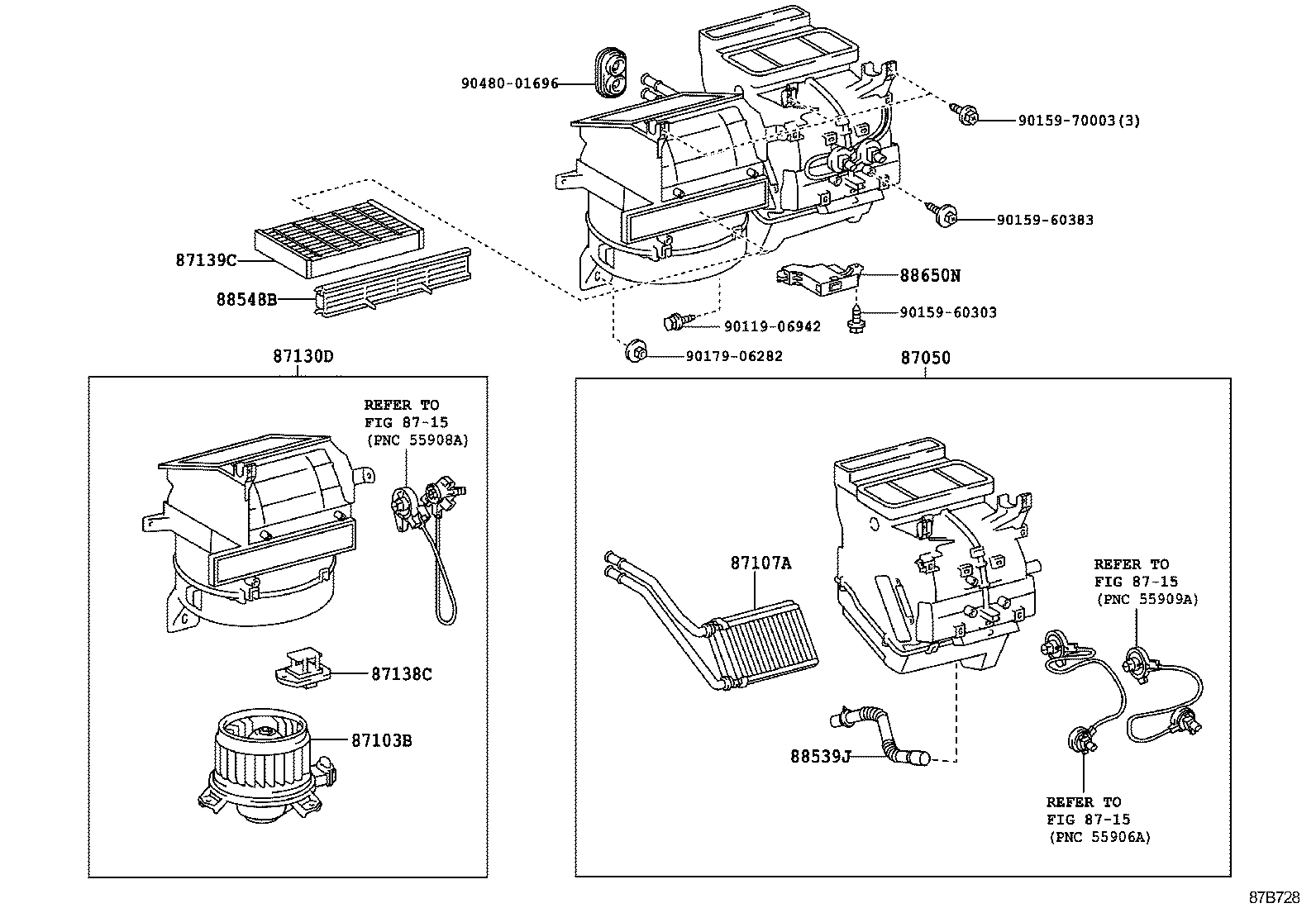

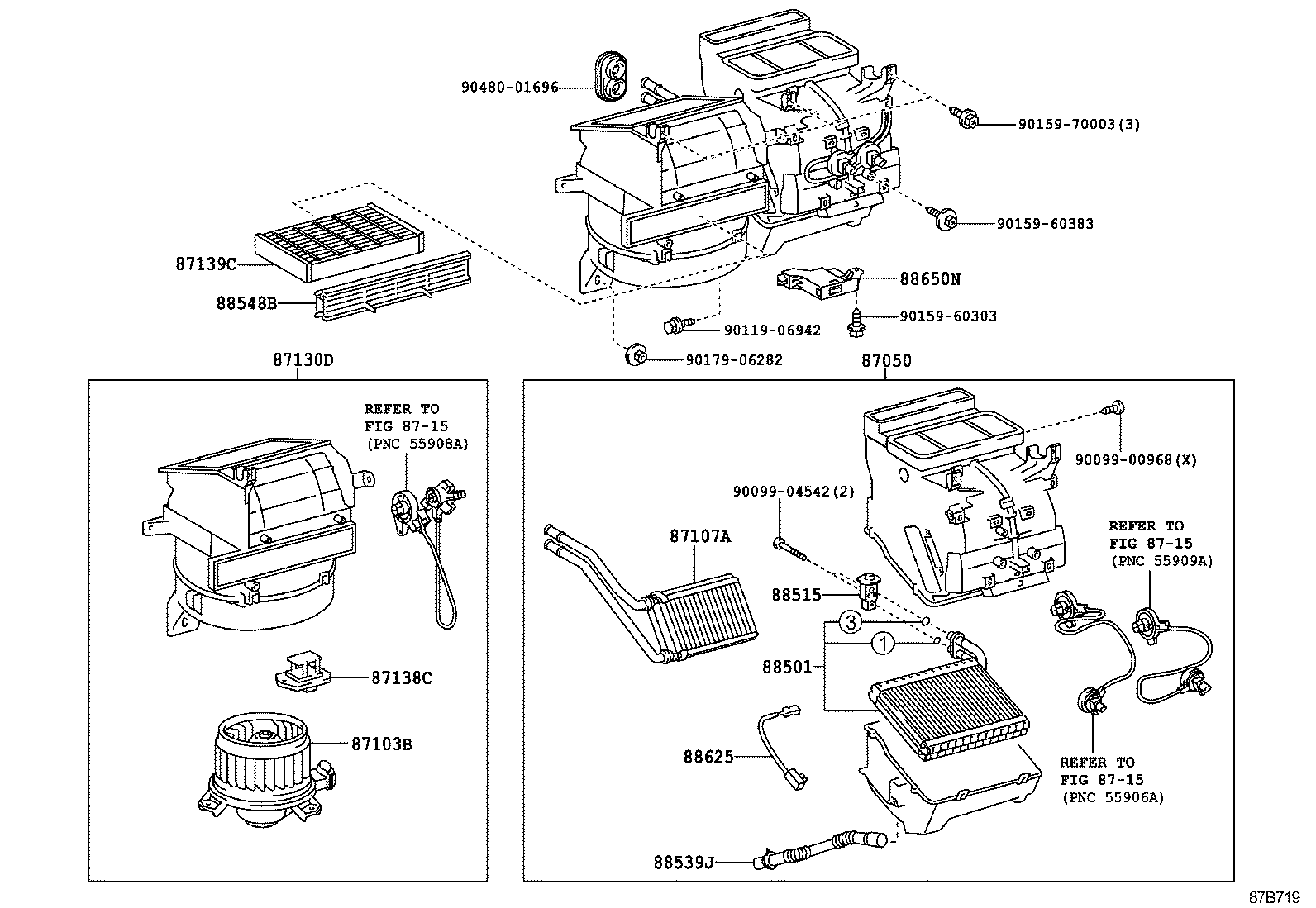

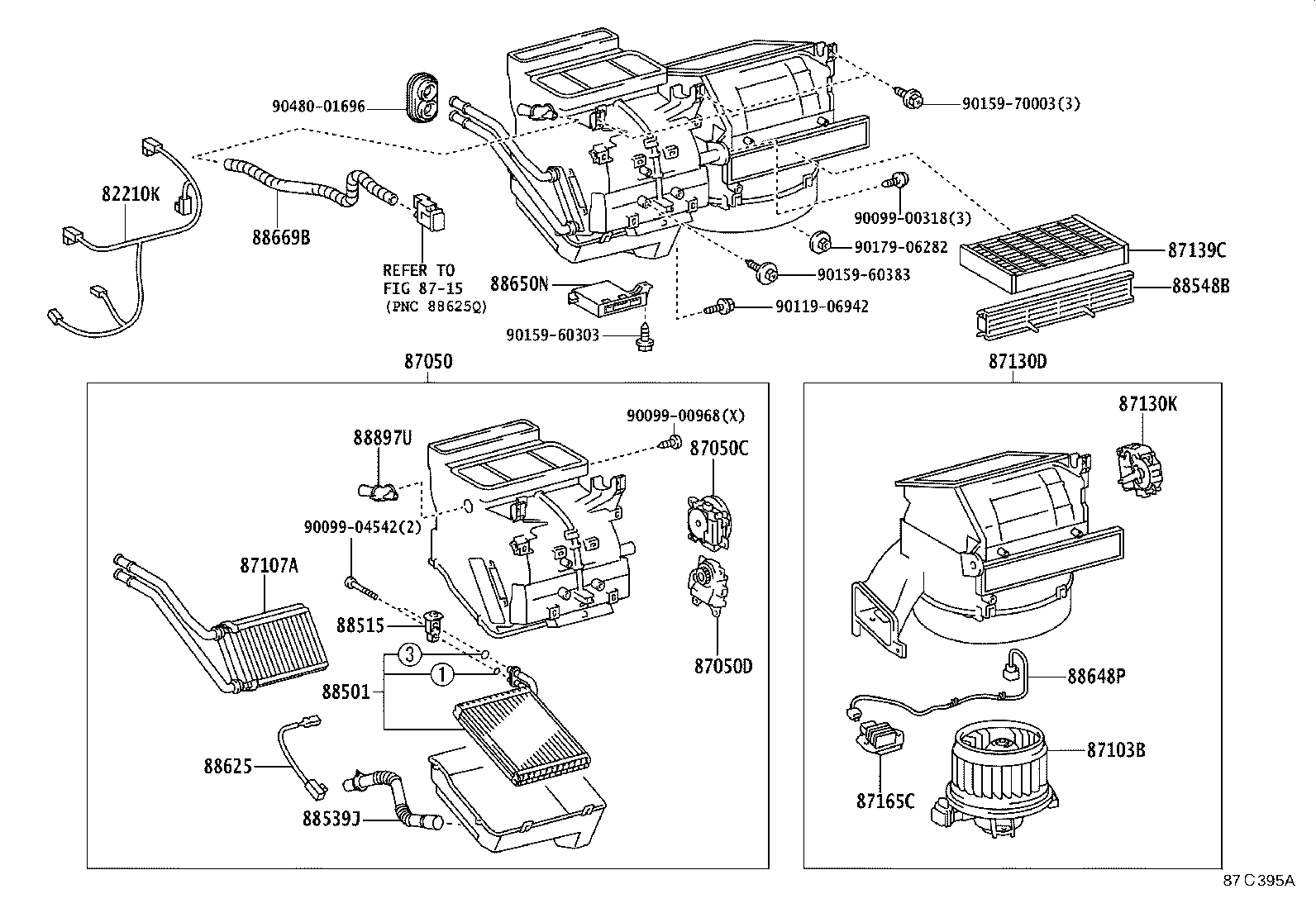

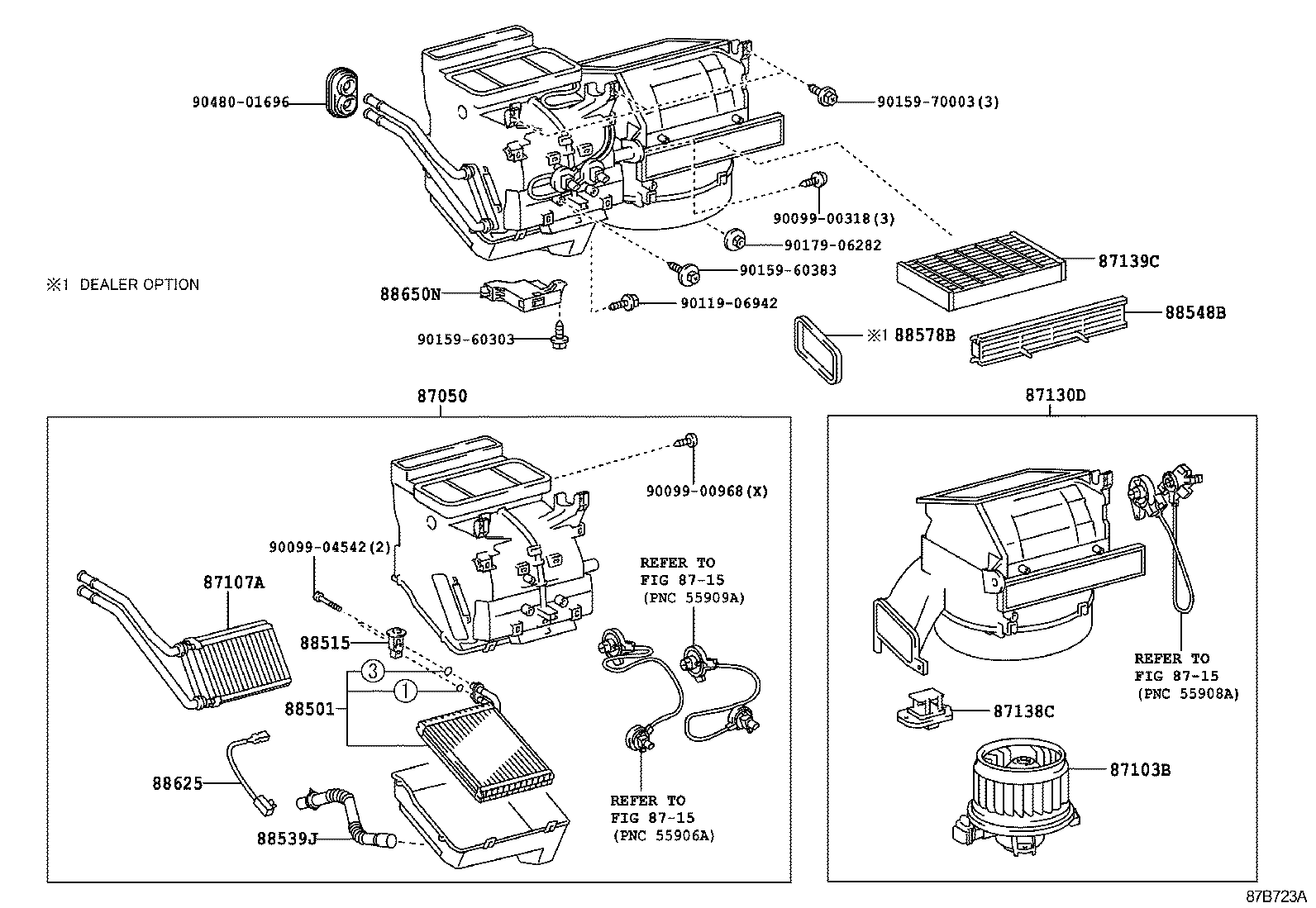

Figure 87C392 87C392 2011-08 → — Figure 87C393 87C393 2011-08 → — Figure 87B723A 87B723A 2011-08 → — Figure 87C394 87C394 2011-08 → — Figure 87C395A 87C395A 2011-08 → — Figure 87B725 87B725 2011-08 → — Figure 87B719 87B719 2011-08 → — Figure 87B721C 87B721C 2011-08 → — Figure 87B728 87B728 2011-08 → — Figure 879932 879932 2011-08 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87103B Motor Sub-assy, Blower W/Fan
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87138C Resistor, Blower
87139C Filter, Clean Air
87165C Control, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88548B Case, Air Filter
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88648P Wire,Air Conditioner,NO.1
88650N Amplifier Assy, Air Conditioner
88669B Hose, Cooler Air
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
