Toyota Yaris

2011-08 → 2020-01 · chassis NCP13# · catalogue 112330 · General

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 8 illustrations

Illustrations

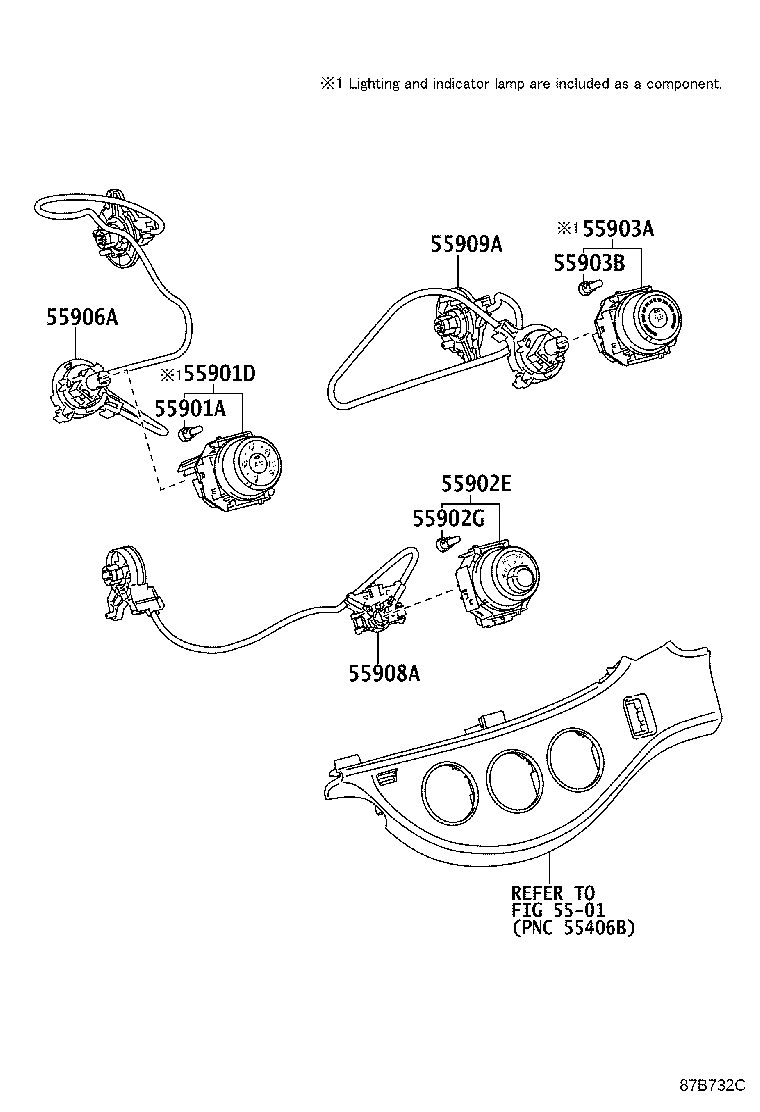

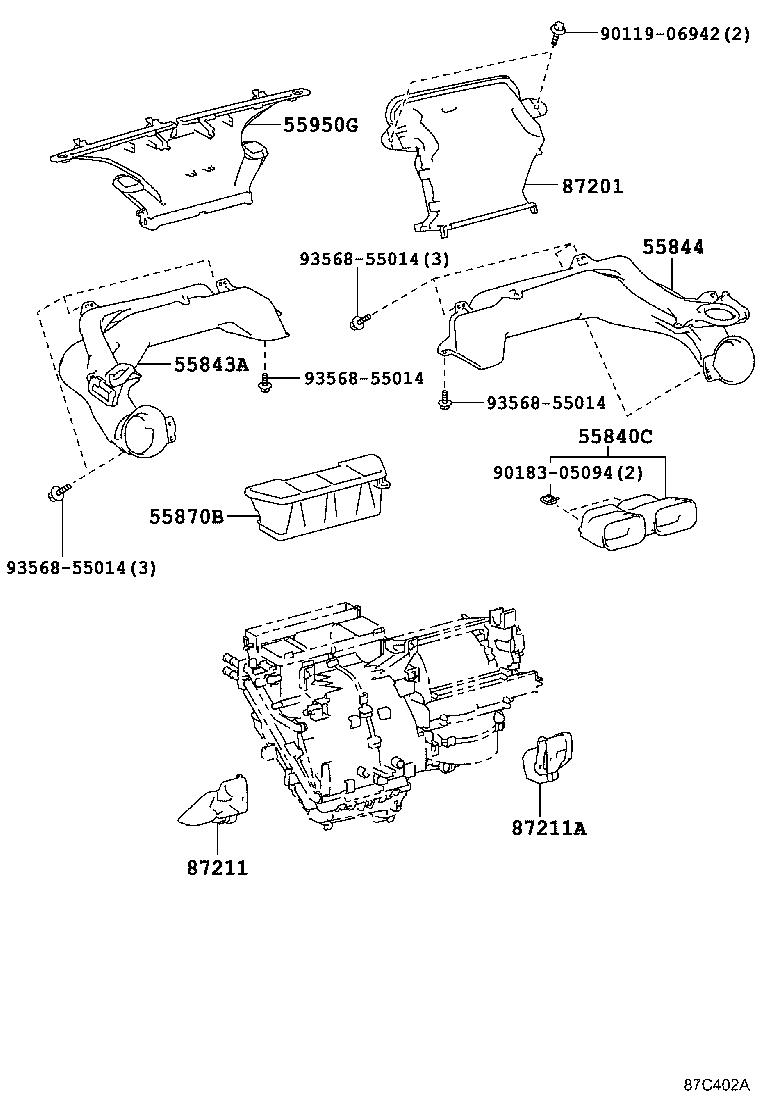

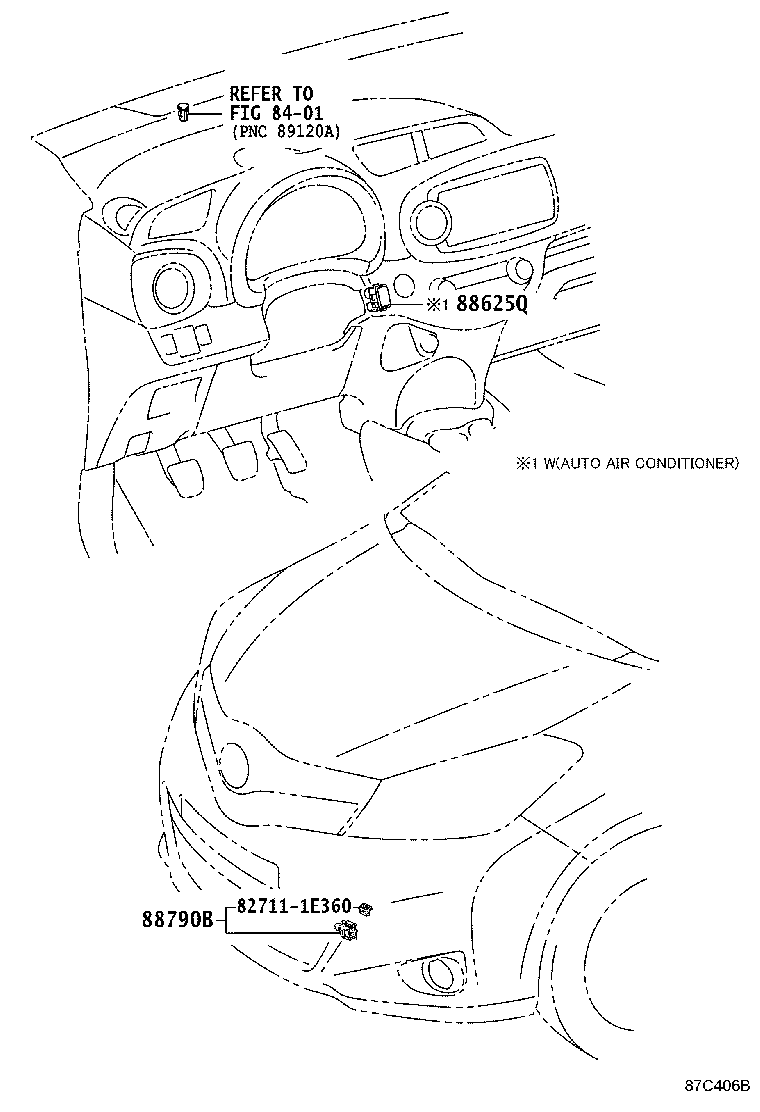

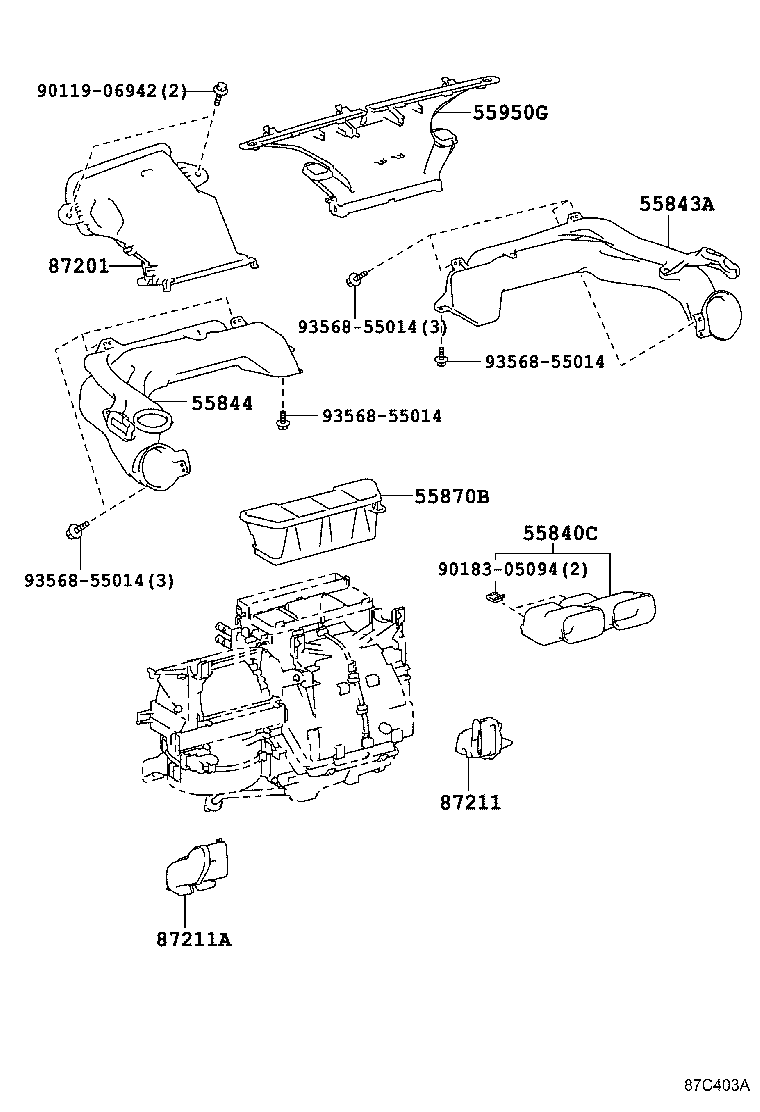

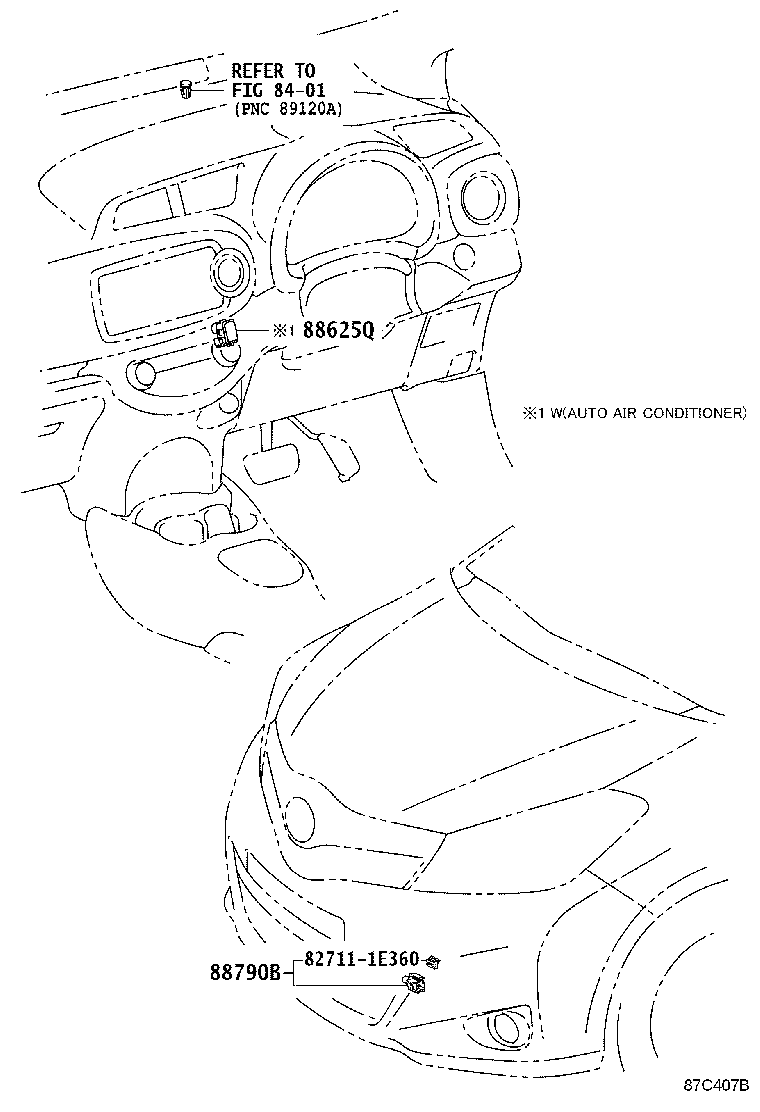

Figure 87B736C 87B736C 2011-08 → — Figure 87B732C 87B732C 2011-08 → — Figure 87C401 87C401 2011-08 → — Figure 87B733 87B733 2011-08 → — Figure 87C402A 87C402A 2011-08 → — Figure 87C403A 87C403A 2011-08 → — Figure 87C406B 87C406B 2011-08 → — Figure 87C407B 87C407B 2011-08 → —

Part groups

PNCDescription
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55901A Bulb, Heater Control Sub-assy, NO.1
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55902G Bulb, Heater Control Sub-assy, NO.2
55903A Control Sub-assy, Heater, NO.3
55903B Bulb, Heater Control Sub-assy, NO.3
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
