Toyota Yaris

2020-05 → present · chassis MXPA10,MXPH10 · catalogue 112340 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

12 part groups · 3 illustrations

Illustrations

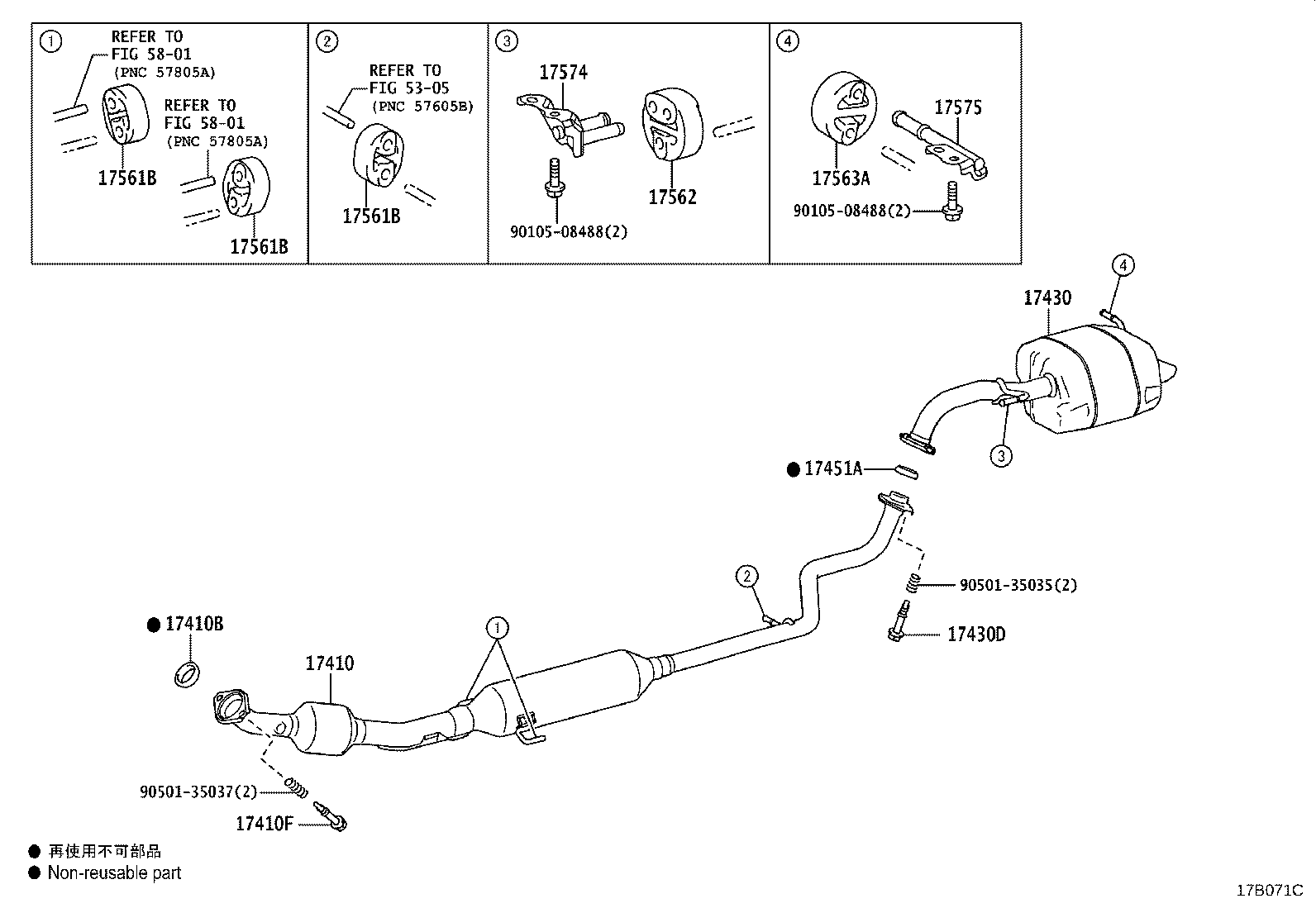

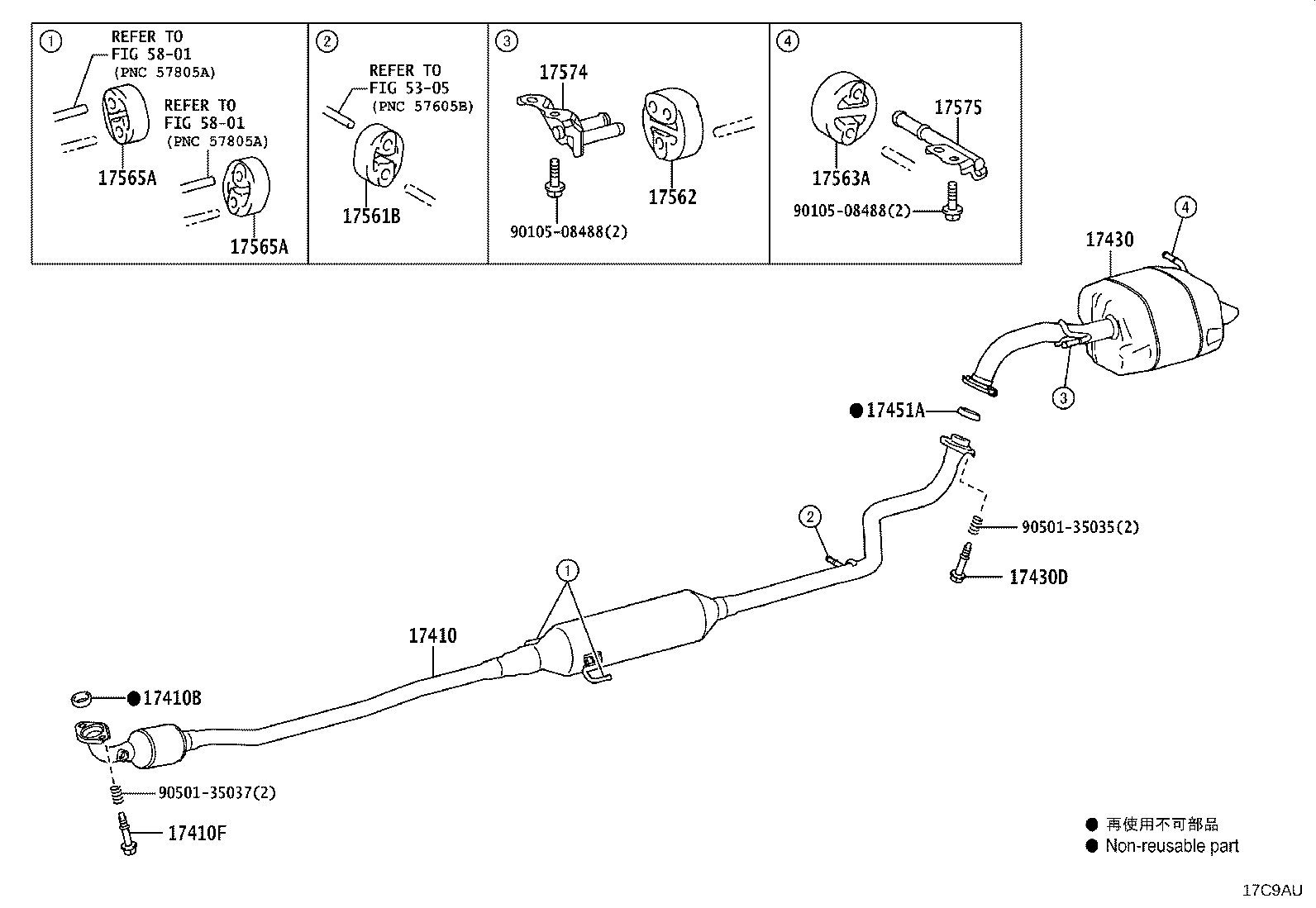

Figure 17B067D 17B067D 2020-05 → 2024-01 Figure 17C9AU 17C9AU 2024-01 → — Figure 17B071C 17B071C 2020-05 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17430 Pipe Assy, Exhaust, Tail
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17451A Gasket, Exhaust Pipe, NO.2
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
