Toyota Yaris

2020-05 → present · chassis MXPA10,MXPH10 · catalogue 112340 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

7 part groups · 2 illustrations

Illustrations

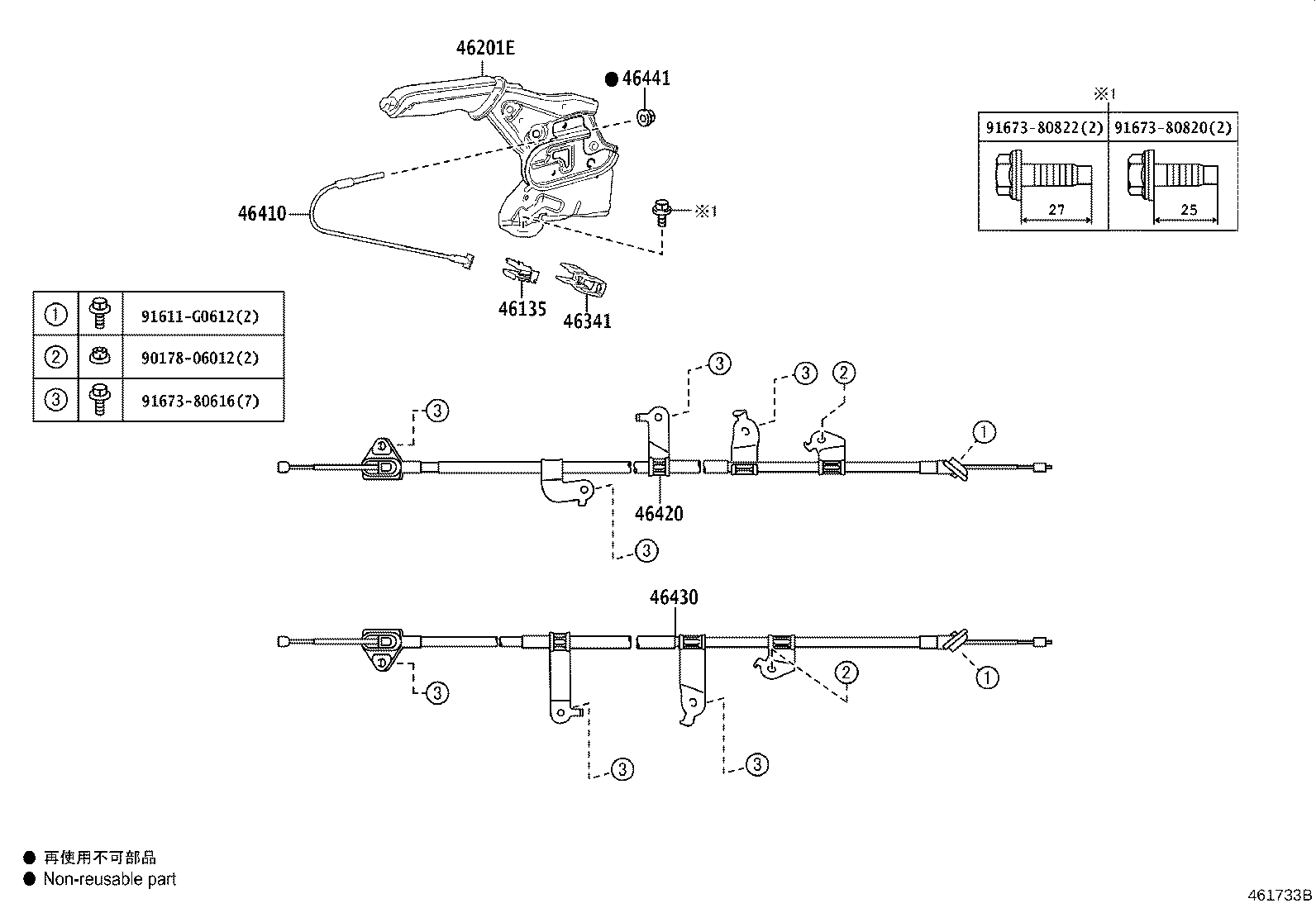

Figure 461731B 461731B 2020-05 → — Figure 461733B 461733B 2020-05 → —

Part groups

PNCDescription
46135 Stopper, Parking Brake Cable End
46201E Lever Sub-assy, Parking Brake
46341 Equalizer, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
