Toyota Yaris

2020-05 → present · chassis MXPA10,MXPH10 · catalogue 112340 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

16 part groups · 3 illustrations

Illustrations

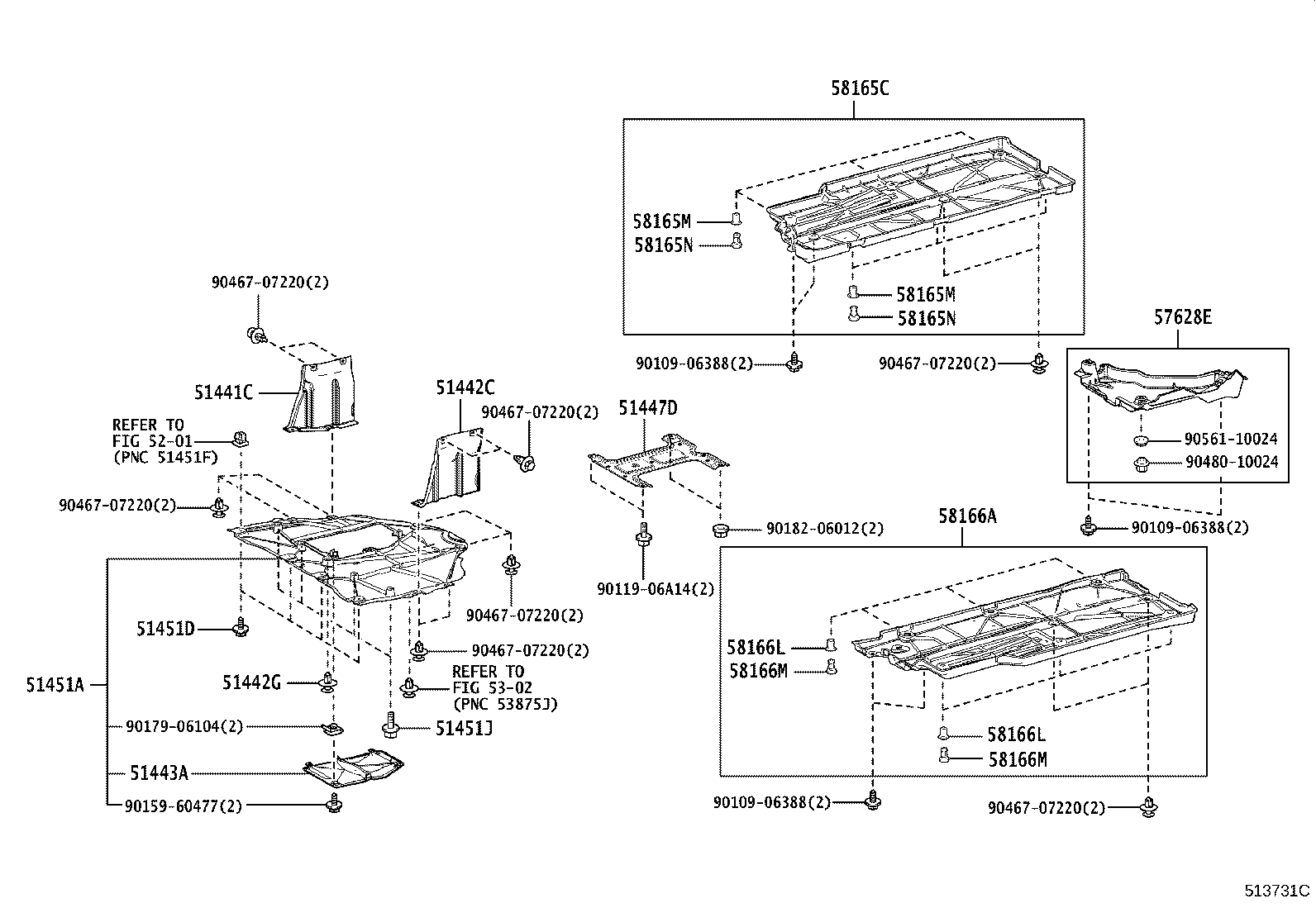

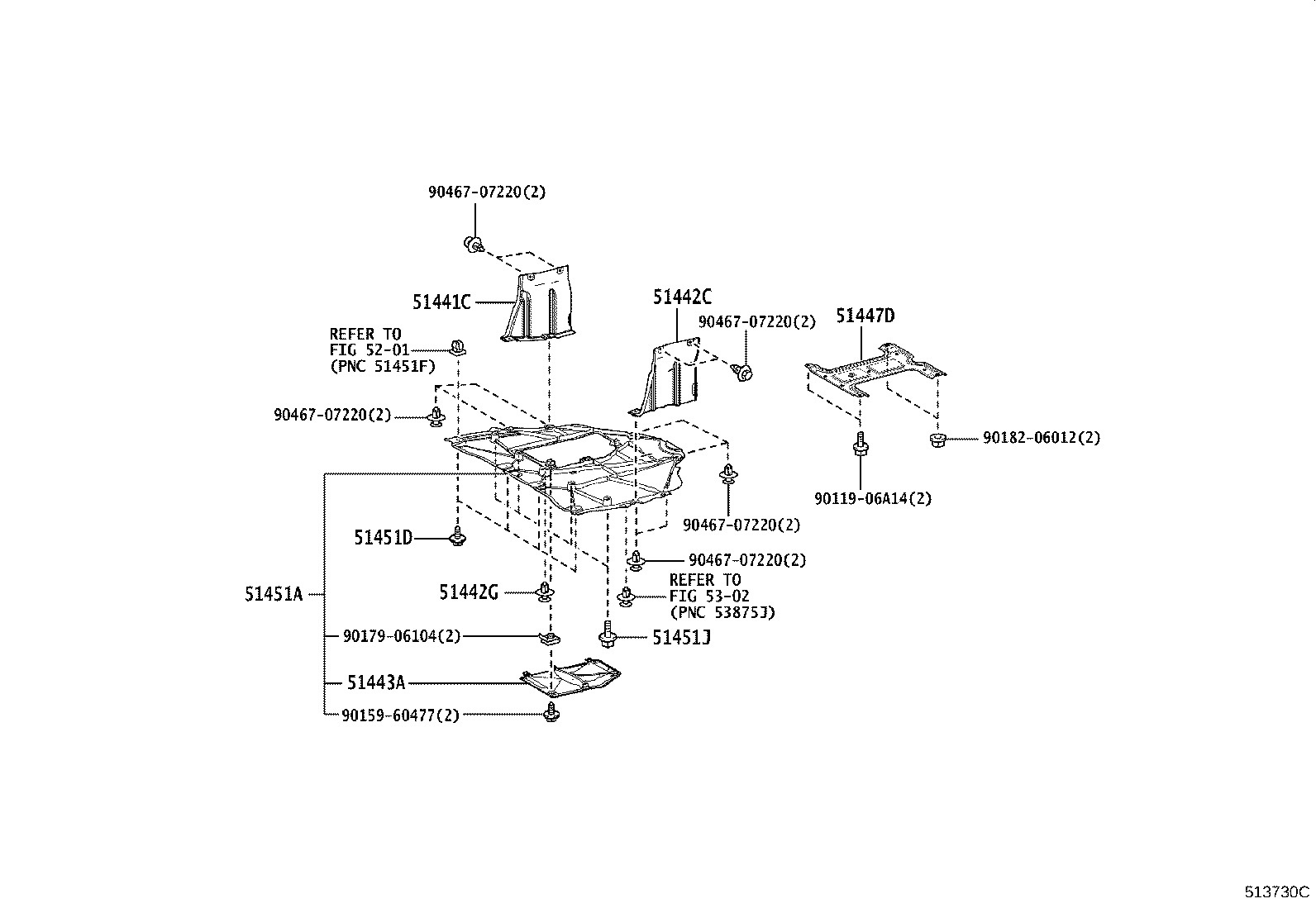

Figure 513757 513757 2020-05 → — Figure 513730C 513730C 2020-05 → — Figure 513731C 513731C 2020-05 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51442G Clip, Engine Under Cover, NO.1
51443A Cover, Engine Under, Rear
51447D Cover, Engine Under, NO.4 Center
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51451J Bolt, NO.1
57628E Cover, Rear Floor Side Member, LH
58165C Cover, Front Floor, RH
58165M Clip, Front Floor Cover, NO.1
58165N Clip, Front Floor Cover, NO.2
58166A Cover, Front Floor, LH
58166L Clip, Front Floor Cover, NO.1
58166M Clip, Front Floor Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
