Toyota Yaris
2020-05 → present · chassis MXPA10,MXPH10 · catalogue 112340 · General
Supported model
Data version 2024-01

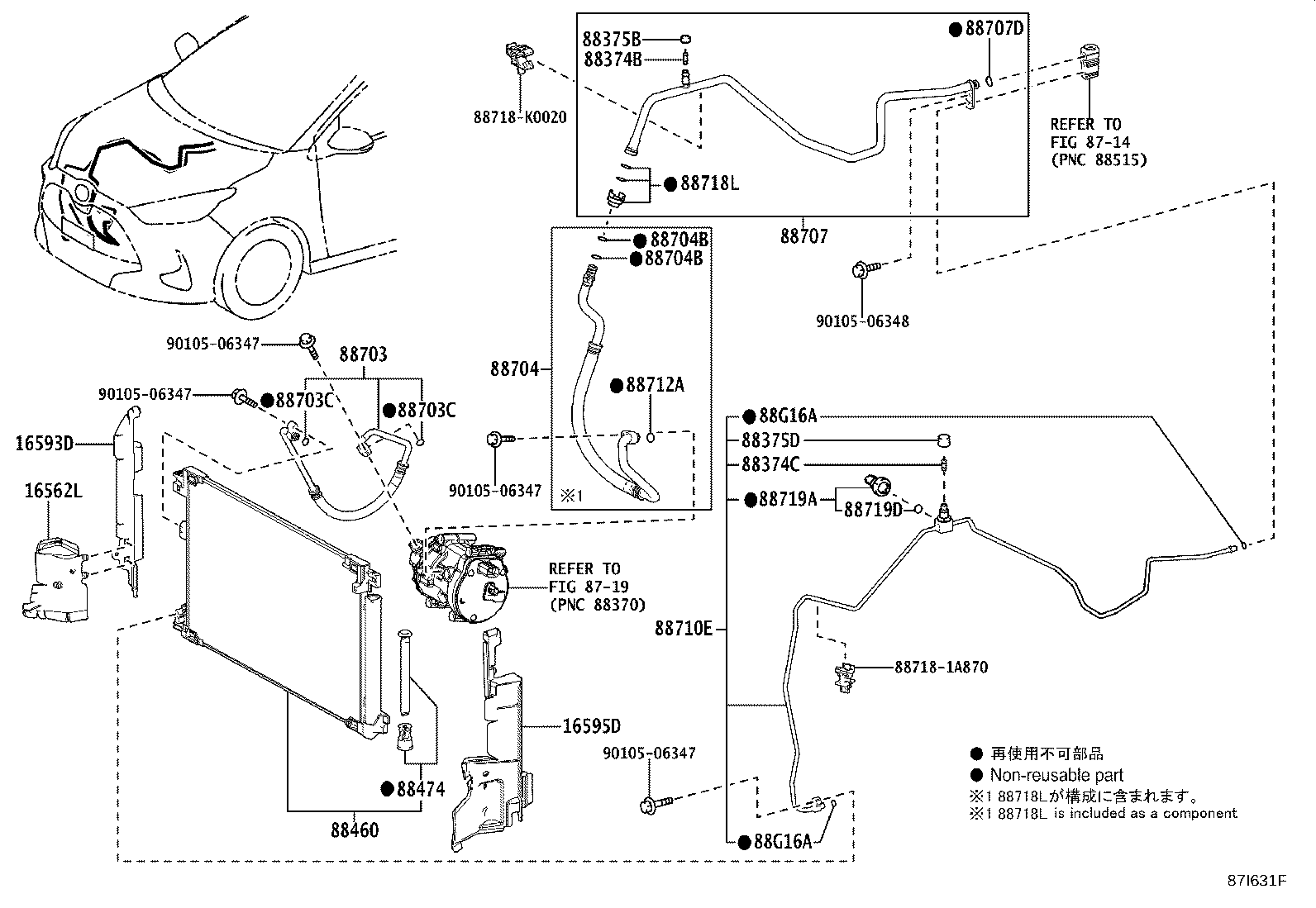

Heating & Air Conditioning - Cooler Piping
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16561D | Seal, Radiator TO Support, NO.1 |
| 16562L | Seal, Radiator TO Support, NO.2 |
| 16593D | Guide, Radiator Air, NO.1 RH |
| 16595D | Guide, Radiator Air, NO.1 LH |
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88703 | Hose Sub-assy, Discharge |
| 88703C | Ring, O(FOR DISCHARGE HOSE) |
| 88704 | Hose Sub-assy, Suction |
| 88704B | Ring, O(FOR SUCTION HOSE) |
| 88707 | Pipe Sub-assy, Suction |
| 88707D | Ring, O(FOR SUCTION TUBE) |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88712A | Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE) |
| 88718L | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
| 88719D | Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR) |
| 88G16A | Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
