Toyota Yaris (ASIA)

2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 4 illustrations

Illustrations

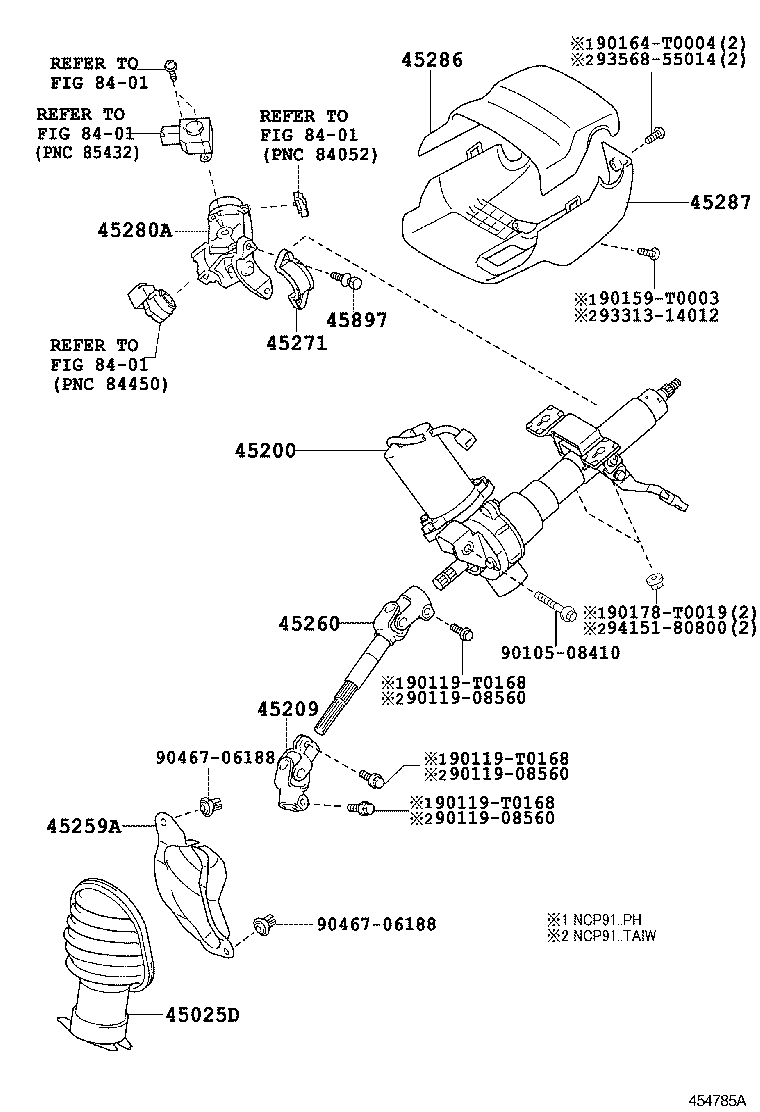

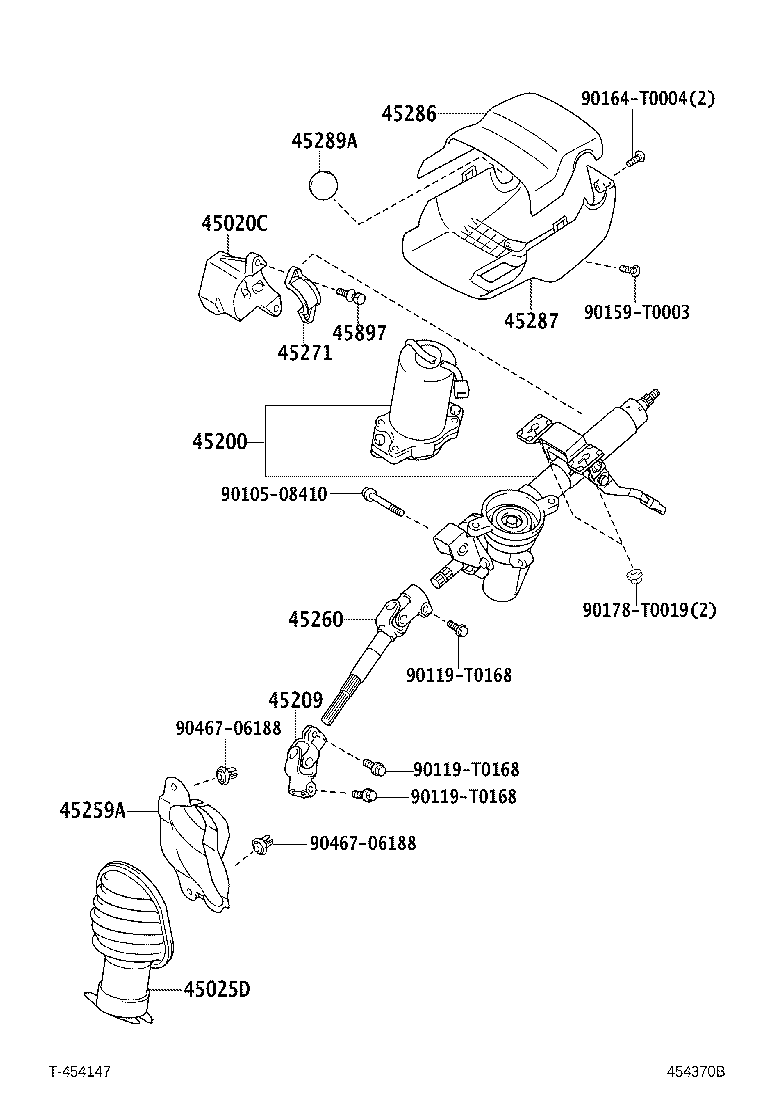

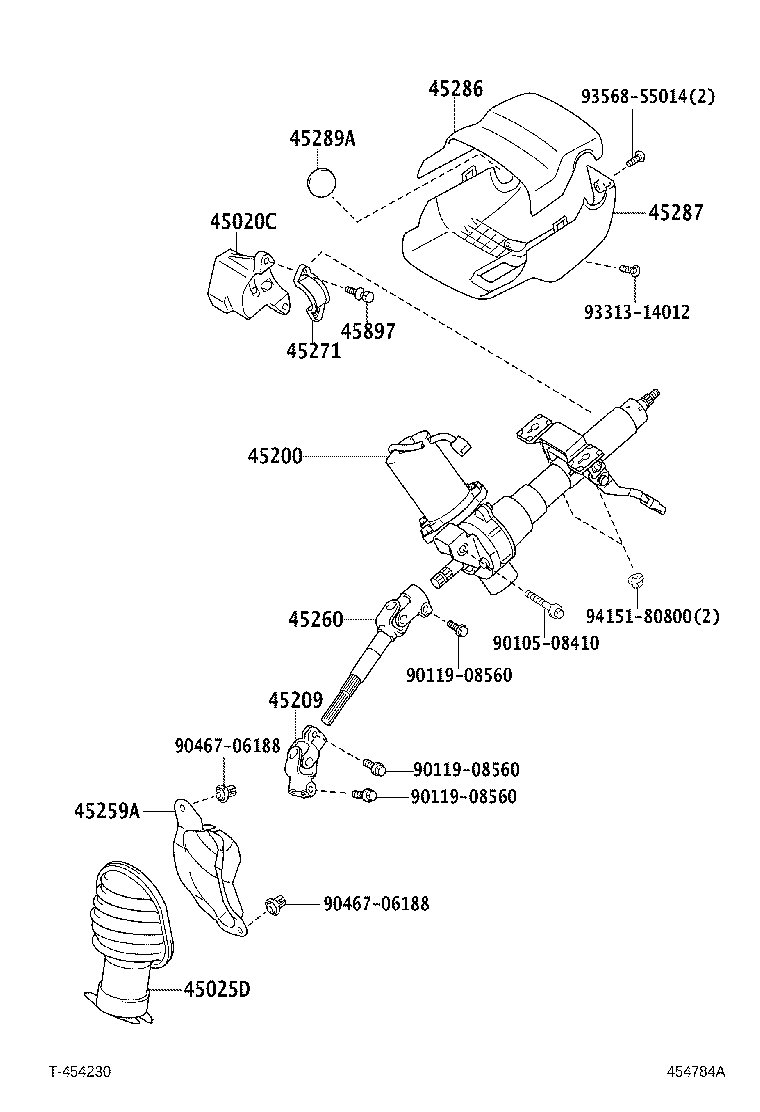

Figure 454369B 454369B 2006-01 → — Figure 454370B 454370B 2006-01 → — Figure 454785A 454785A 2006-11 → — Figure 454784A 454784A 2006-11 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45200 Post Assy, Steering
45209 Yoke Sub-assy, Steering Sliding
45255 Plate, Steering Column Hole Cover
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45287 Cover, Steering Column, Lwr
45289A Support, Steering Column Cover
45874B Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
