Toyota Yaris (ASIA)

2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

10 part groups · 7 illustrations

Illustrations

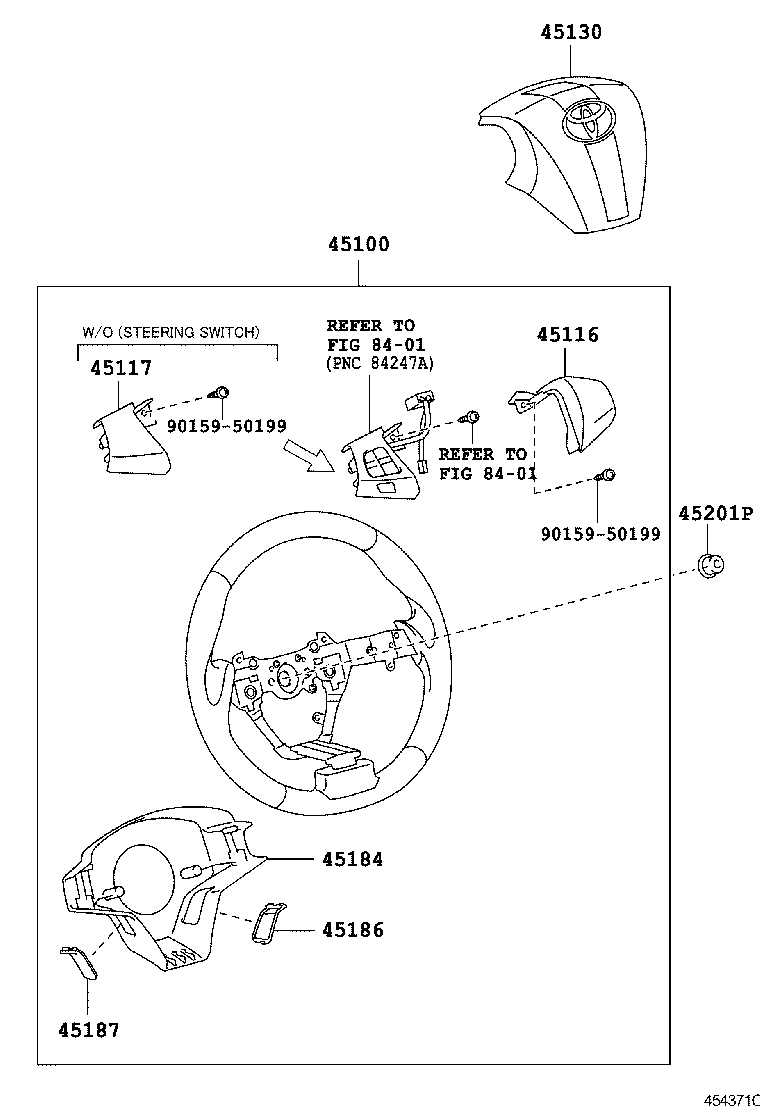

Figure 456040 456040 2006-01 → 2012-02 Figure 456040 456040 2006-01 → 2012-04 Figure 456040 456040 2006-01 → 2013-09 Figure 456040 456040 2006-01 → — Figure 454371C 454371C 2012-02 → — Figure 456094 456094 2012-04 → — Figure 456094 456094 2013-09 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
