Toyota Yaris (ASIA)

2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 20 illustrations

Illustrations

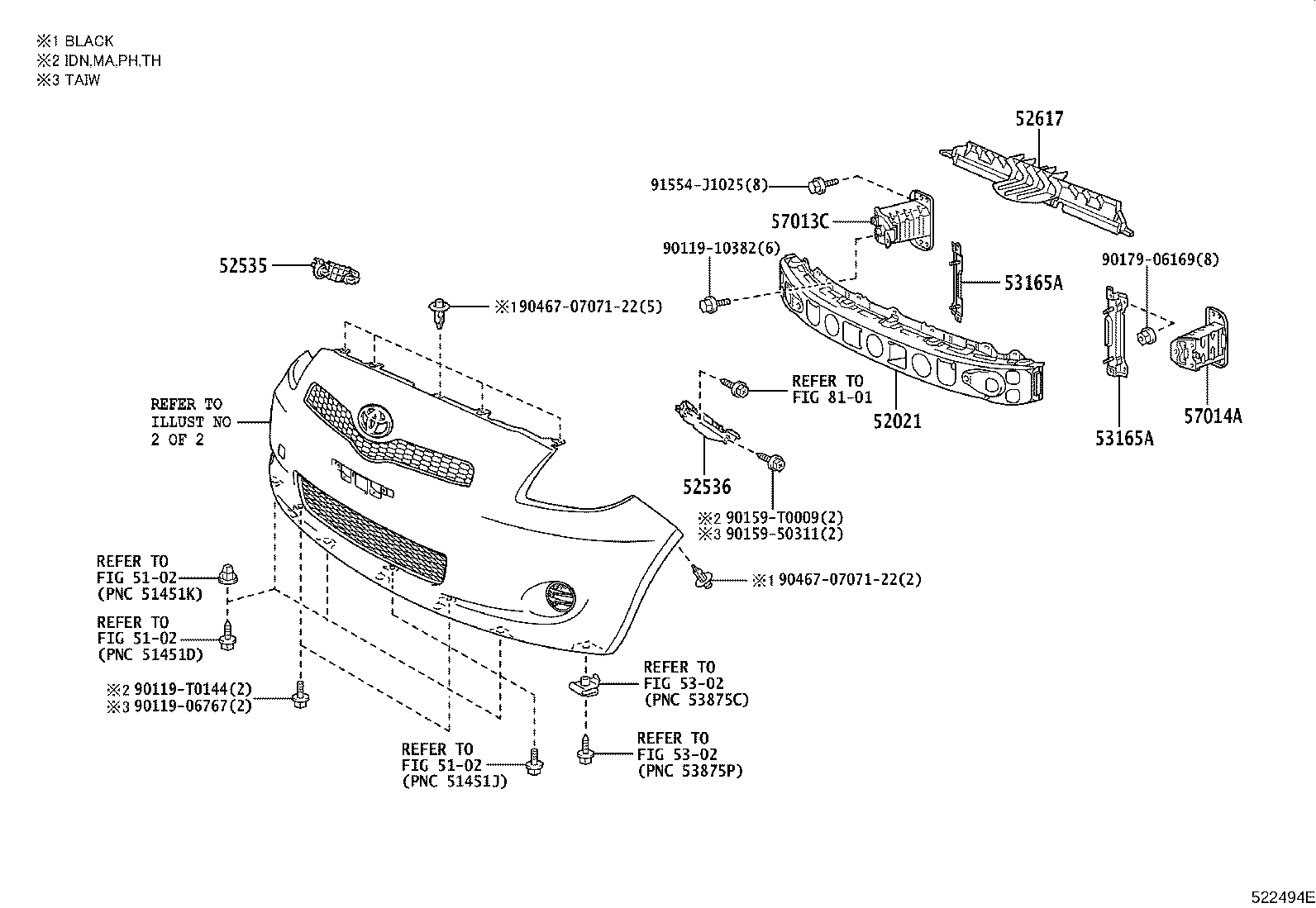

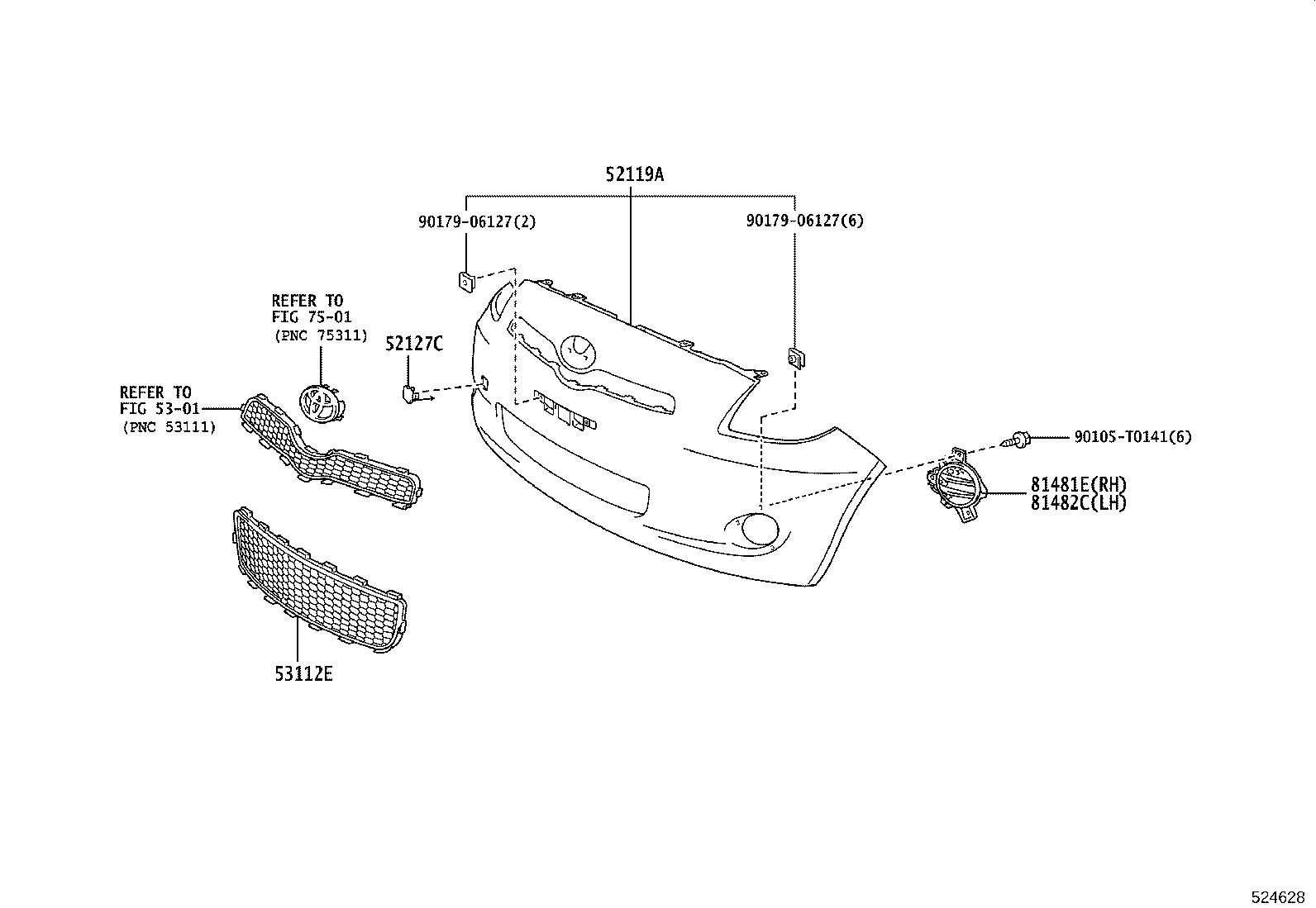

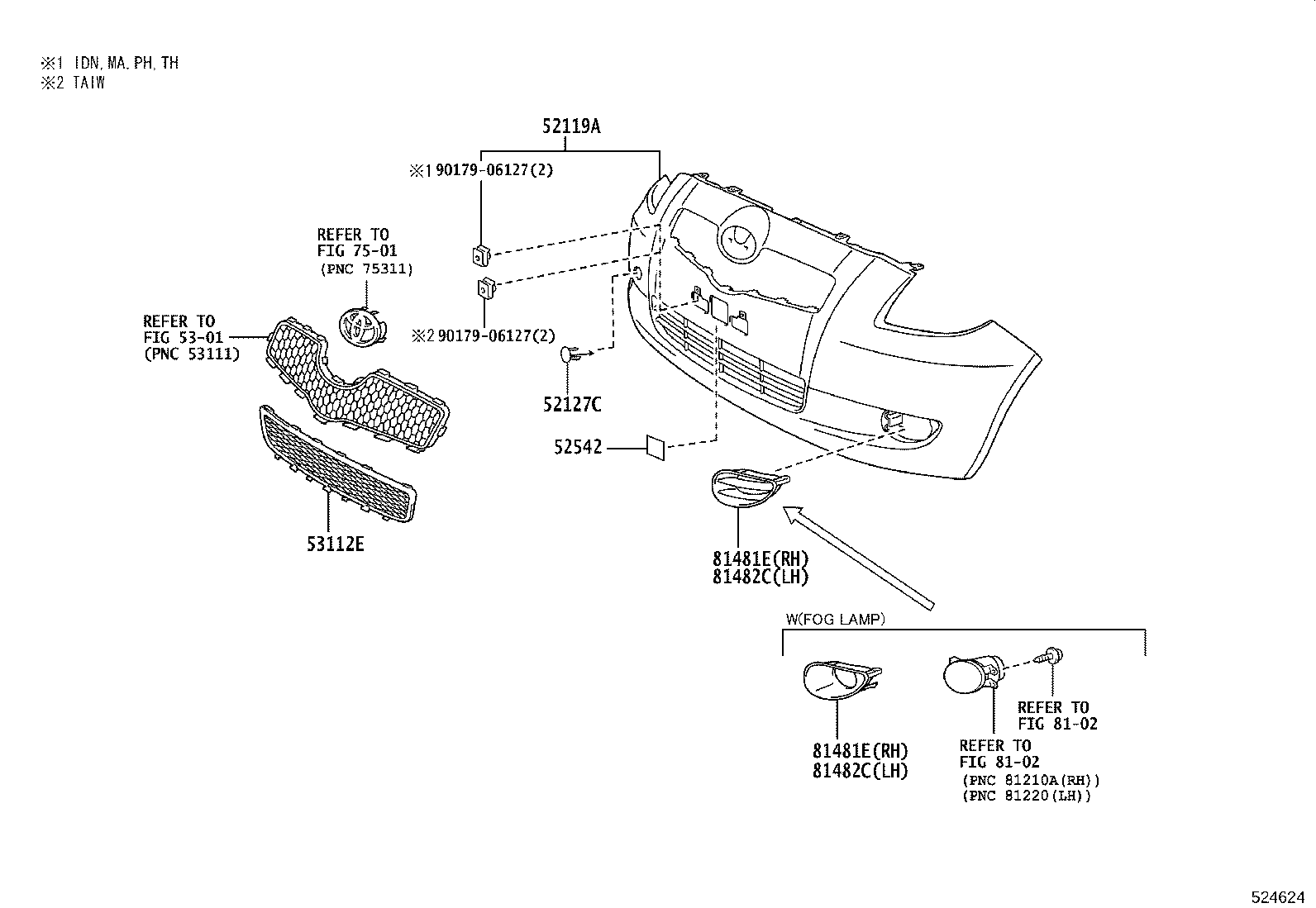

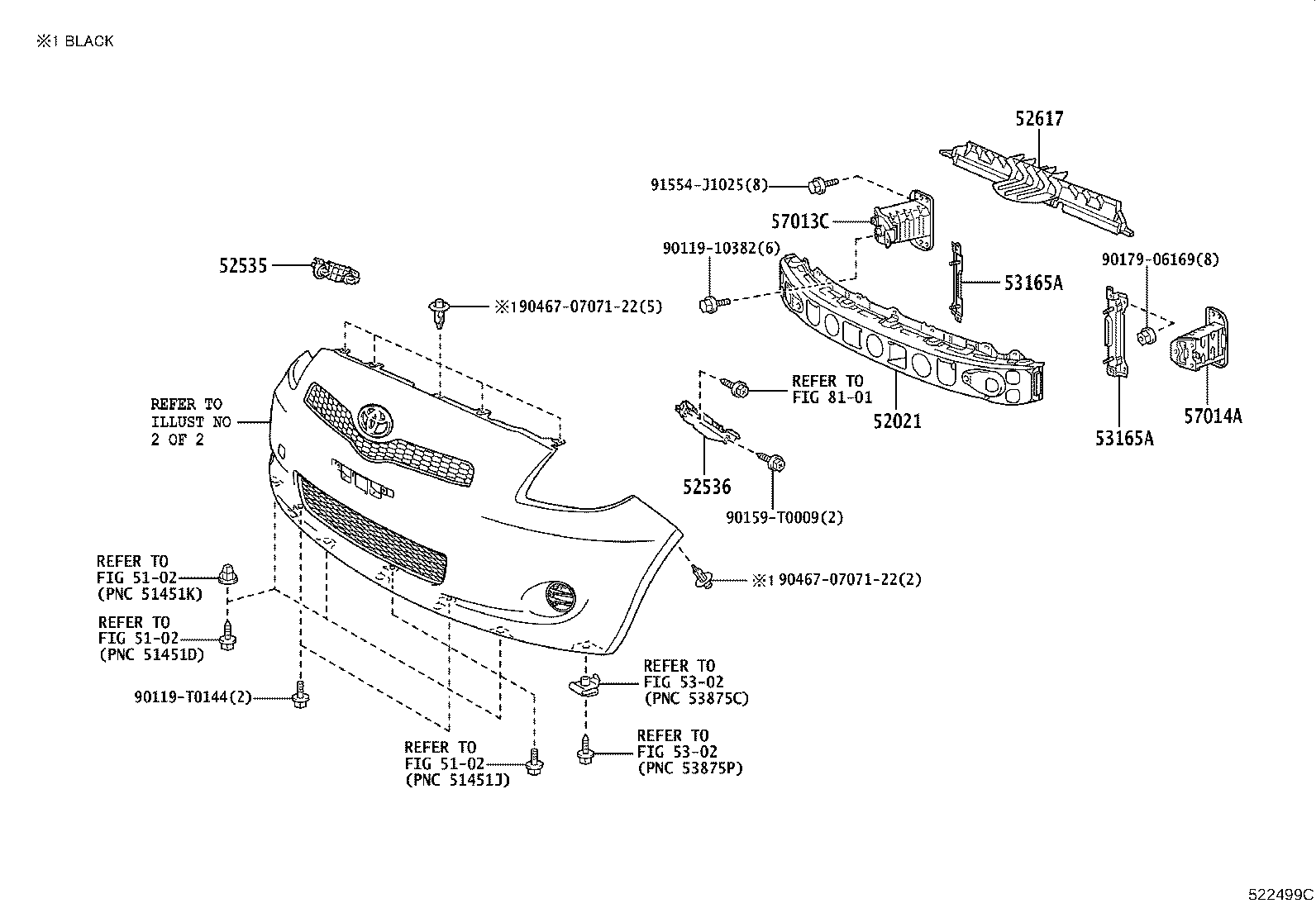

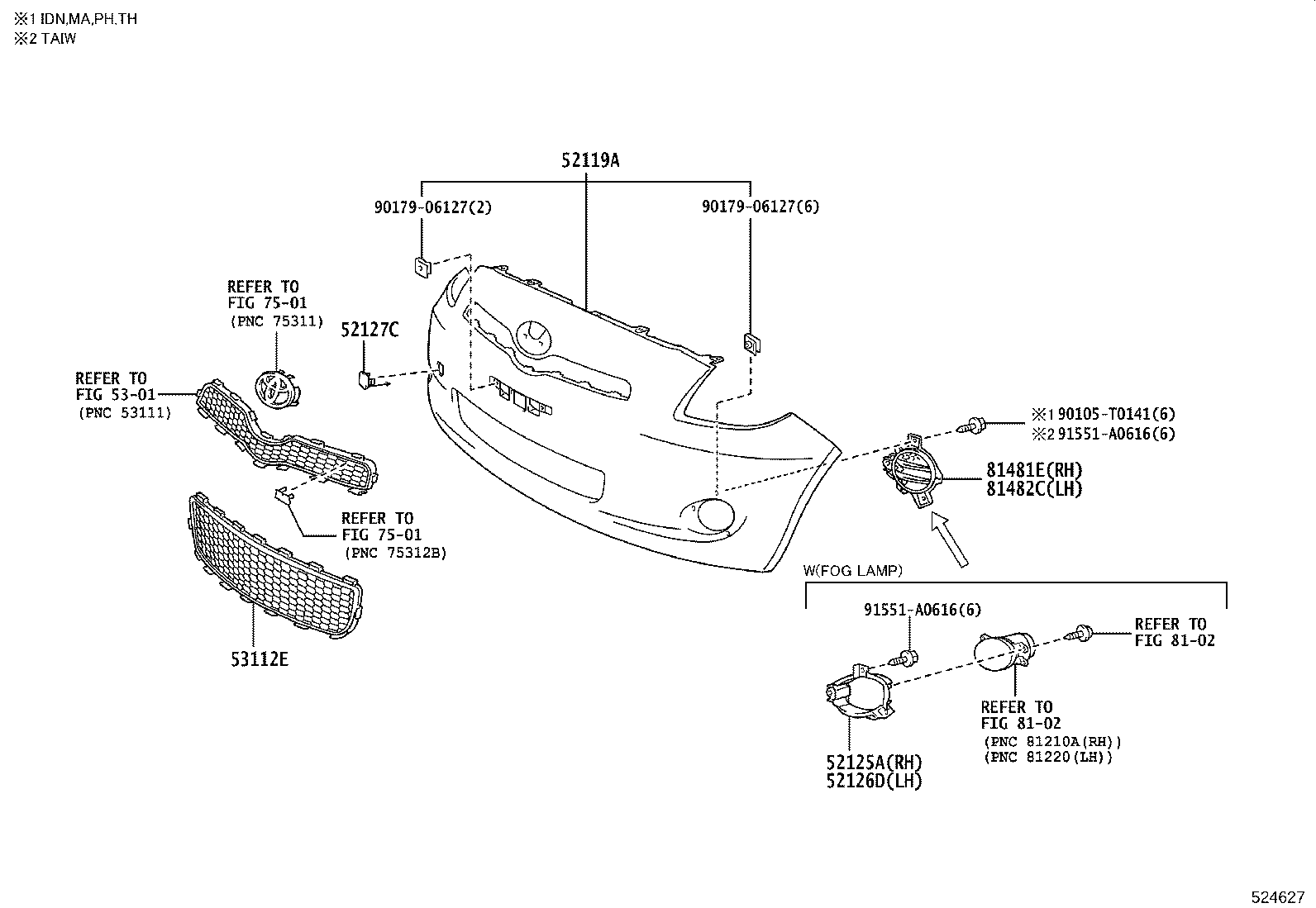

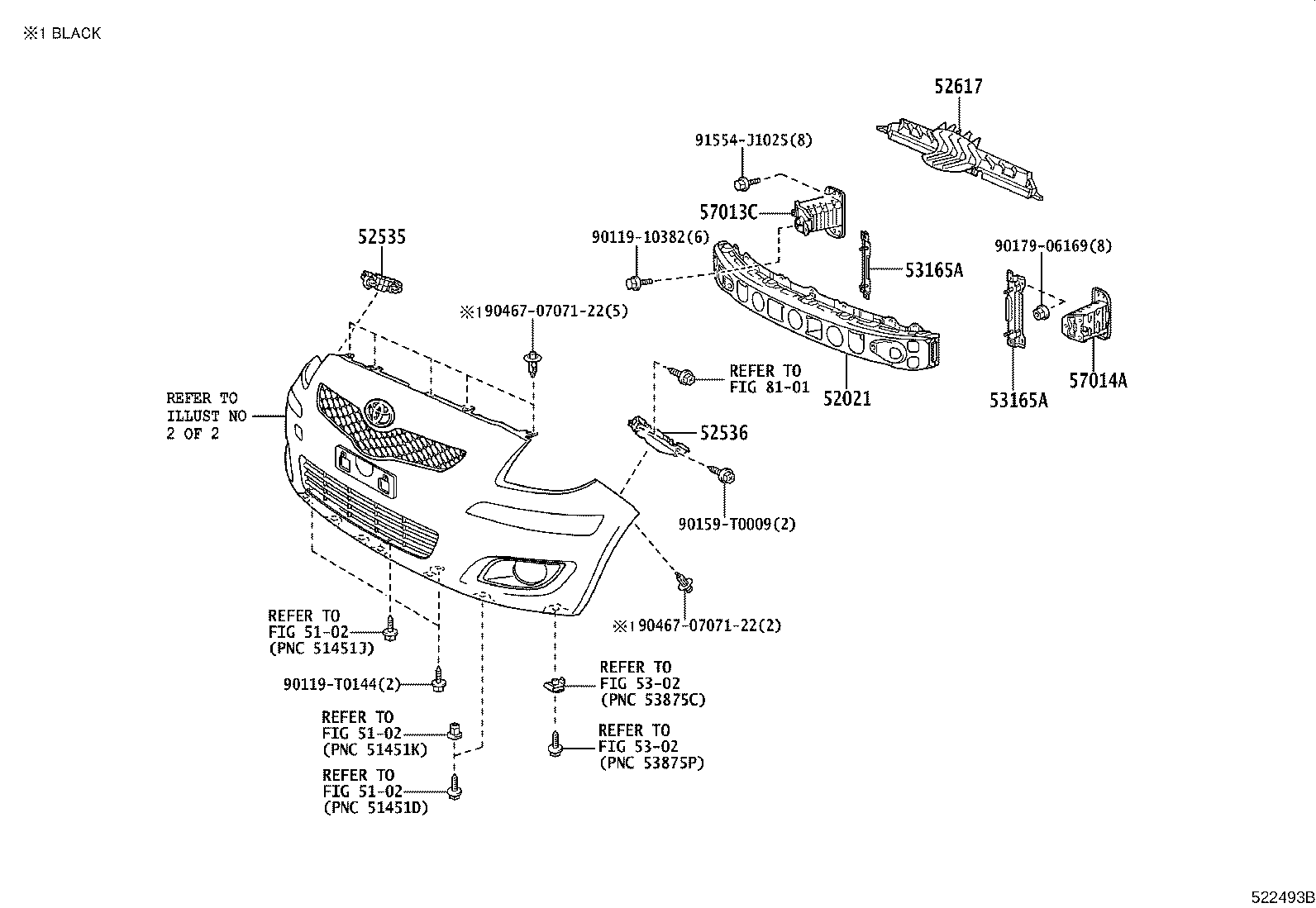

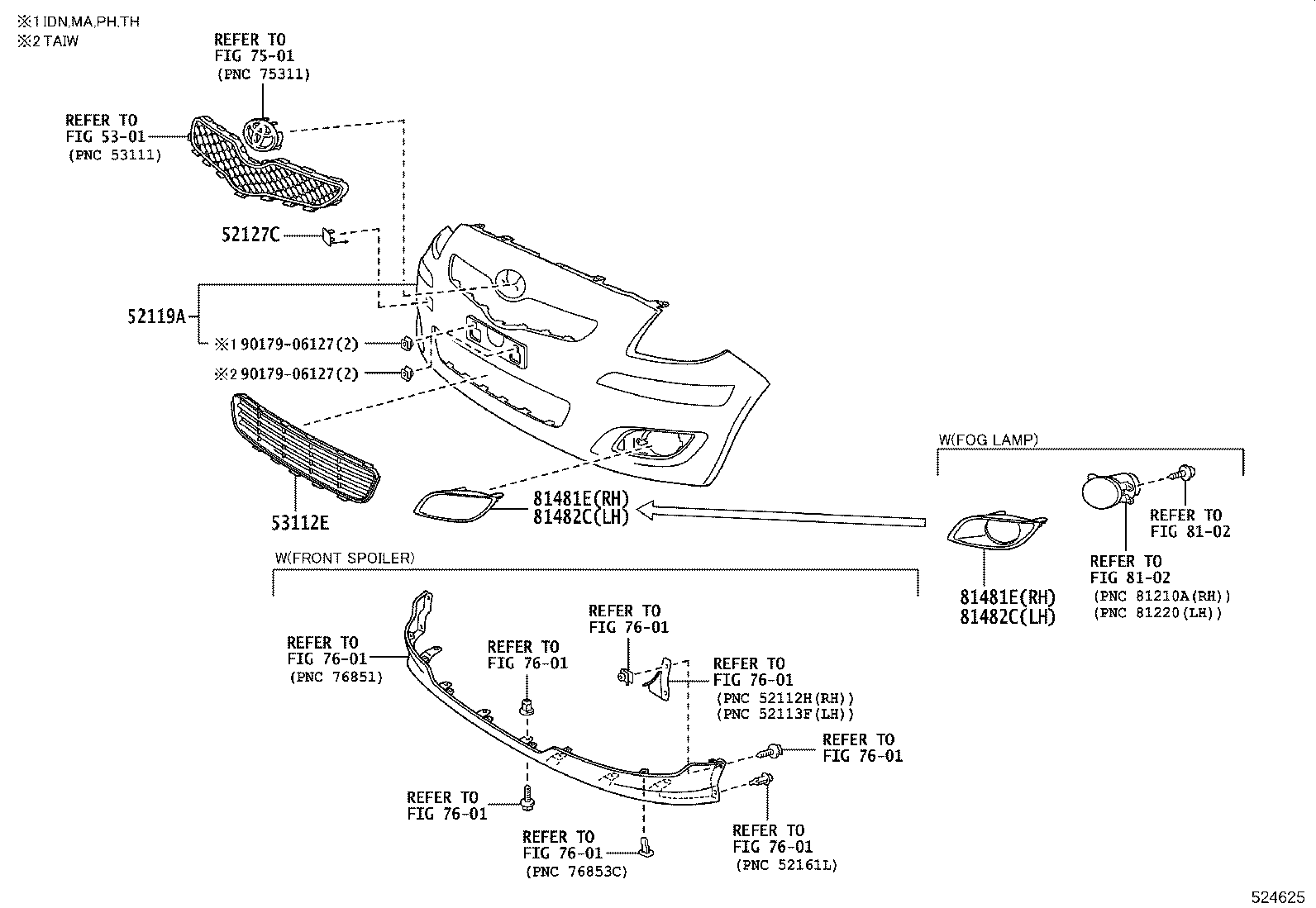

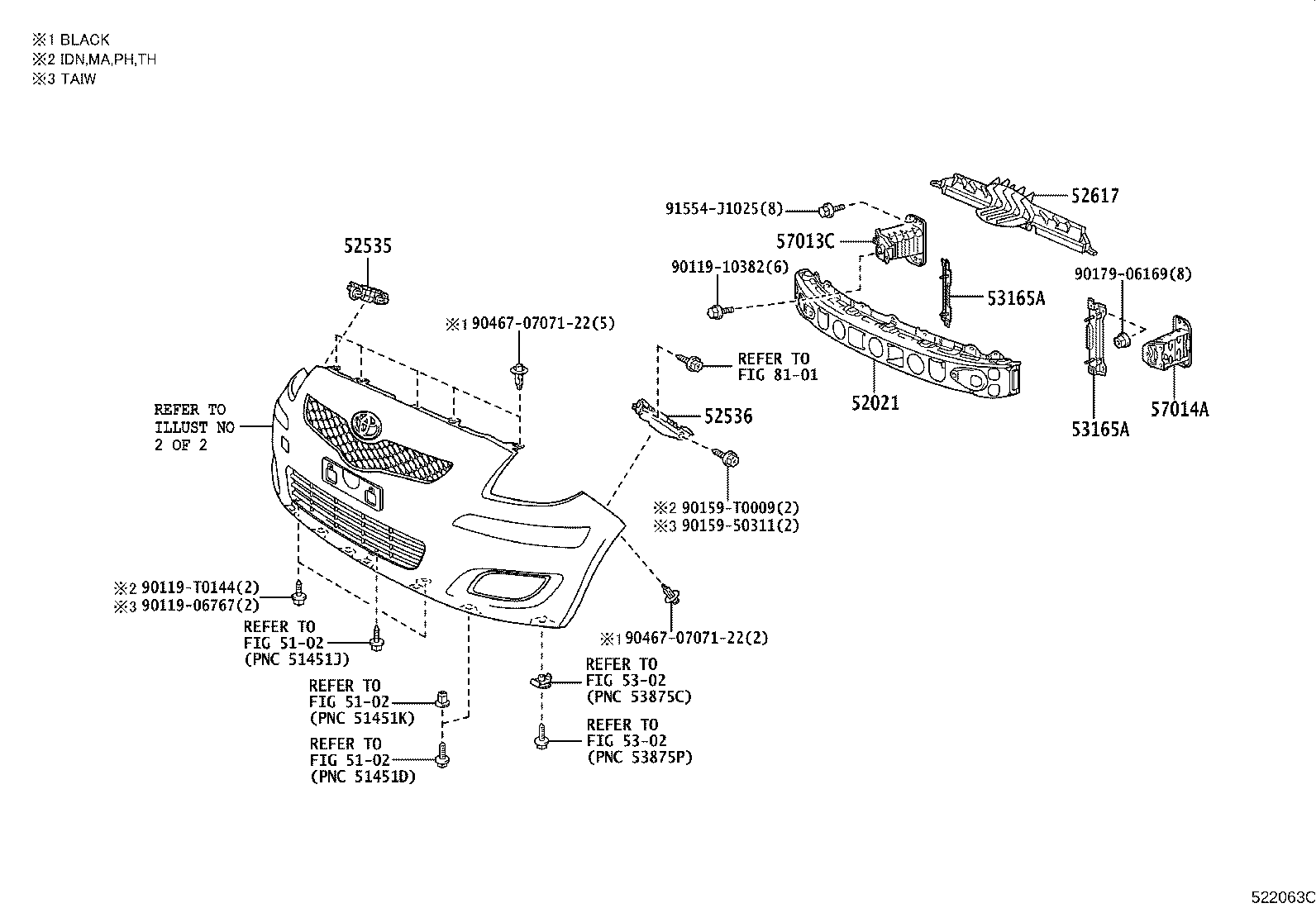

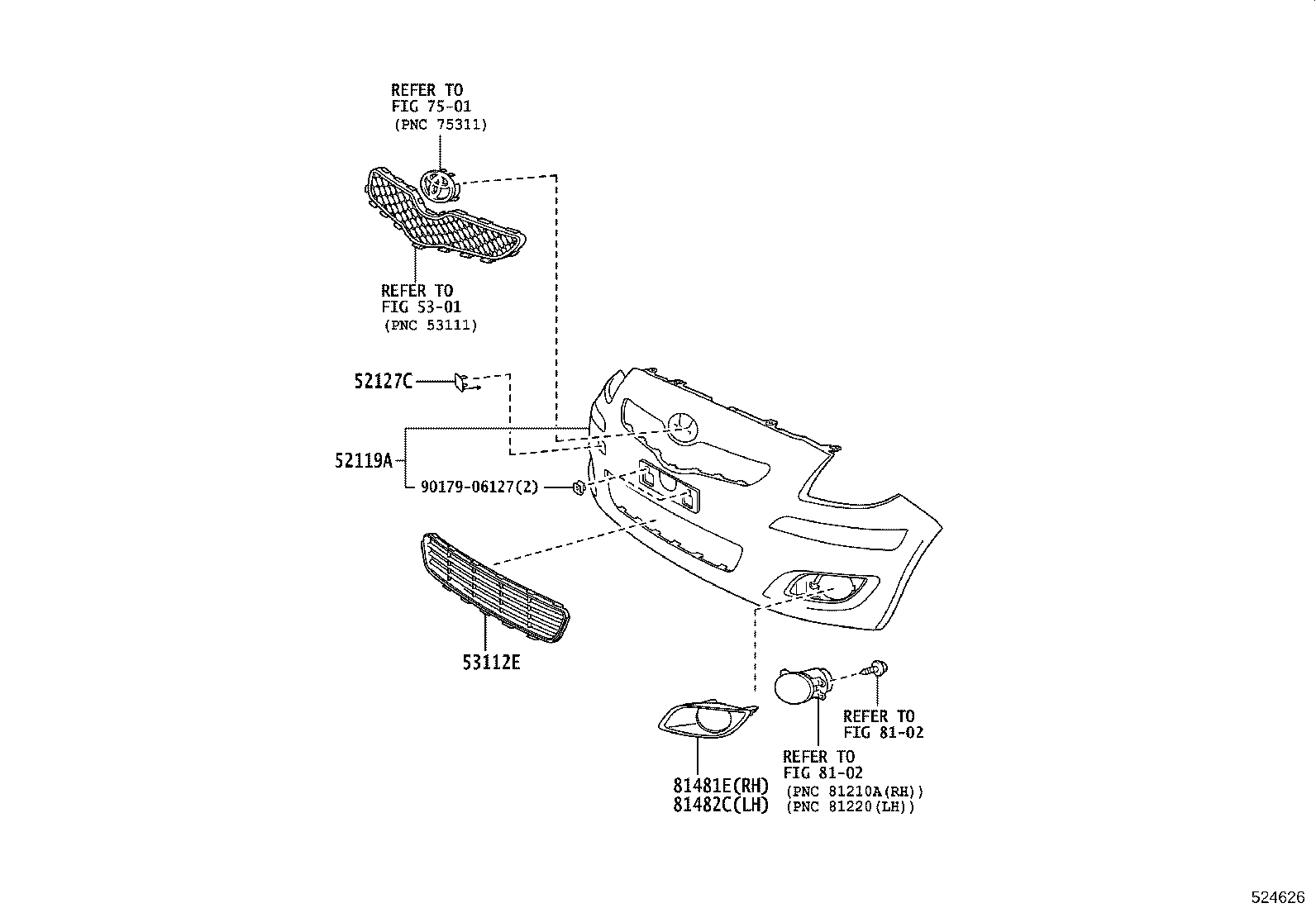

Figure 521479E 521479E 2006-01 → 2009-03 Figure 521479E 521479E 2006-01 → 2009-10 Figure 524624 524624 2006-01 → 2009-03 Figure 524624 524624 2006-01 → 2009-10 Figure 522063C 522063C 2009-03 → 2012-02 Figure 522063C 522063C 2009-03 → — Figure 522063C 522063C 2009-10 → 2012-04 Figure 522063C 522063C 2009-10 → — Figure 524625 524625 2009-03 → 2012-02 Figure 524625 524625 2009-03 → — Figure 524625 524625 2009-10 → 2012-04 Figure 524625 524625 2009-10 → — Figure 522493B 522493B 2012-02 → — Figure 524626 524626 2012-02 → — Figure 522494E 522494E 2012-02 → — Figure 522494E 522494E 2012-04 → — Figure 524627 524627 2012-02 → — Figure 524627 524627 2012-04 → — Figure 522499C 522499C 2012-02 → — Figure 524628 524628 2012-02 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127C Cover, Front Bumper Hole
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52542 Seal, Front Bumper, Center
52617 Absorber, Radiator Support, Upper
53112E Grille, Radiator, Lower NO.1
53165A Bracket, Front Bumper Stone Deflector, NO.1
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
