Toyota Yaris (ASIA)

2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

11 part groups · 10 illustrations

Illustrations

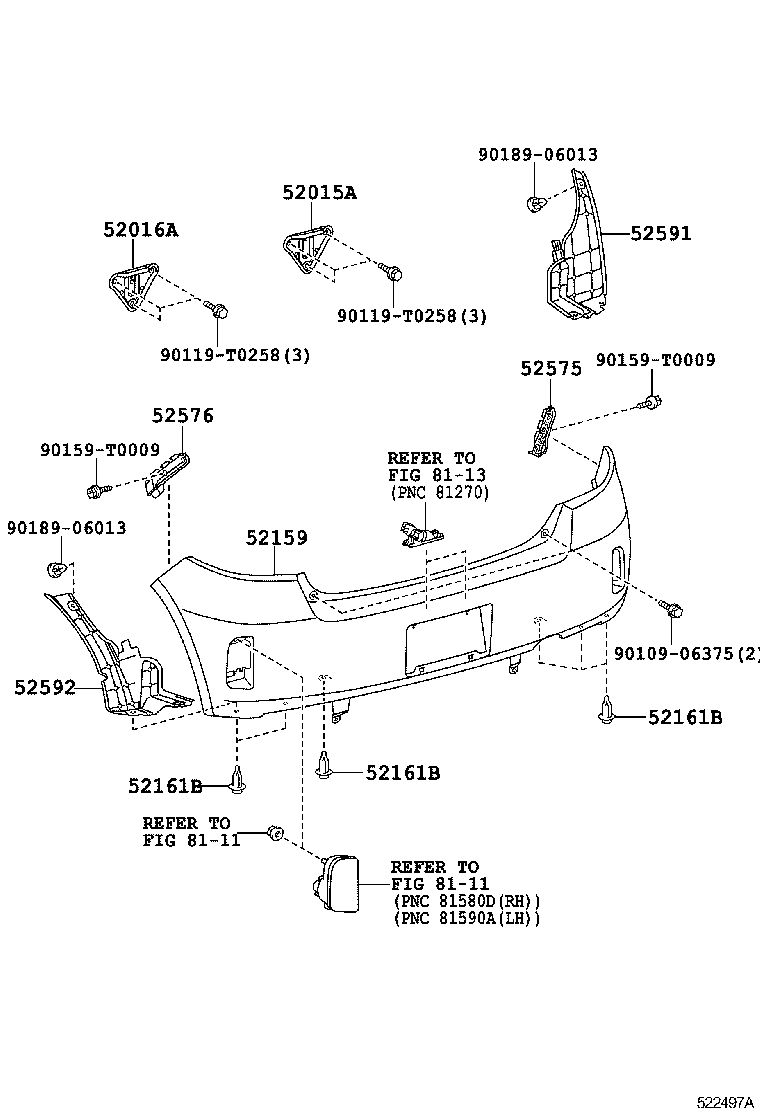

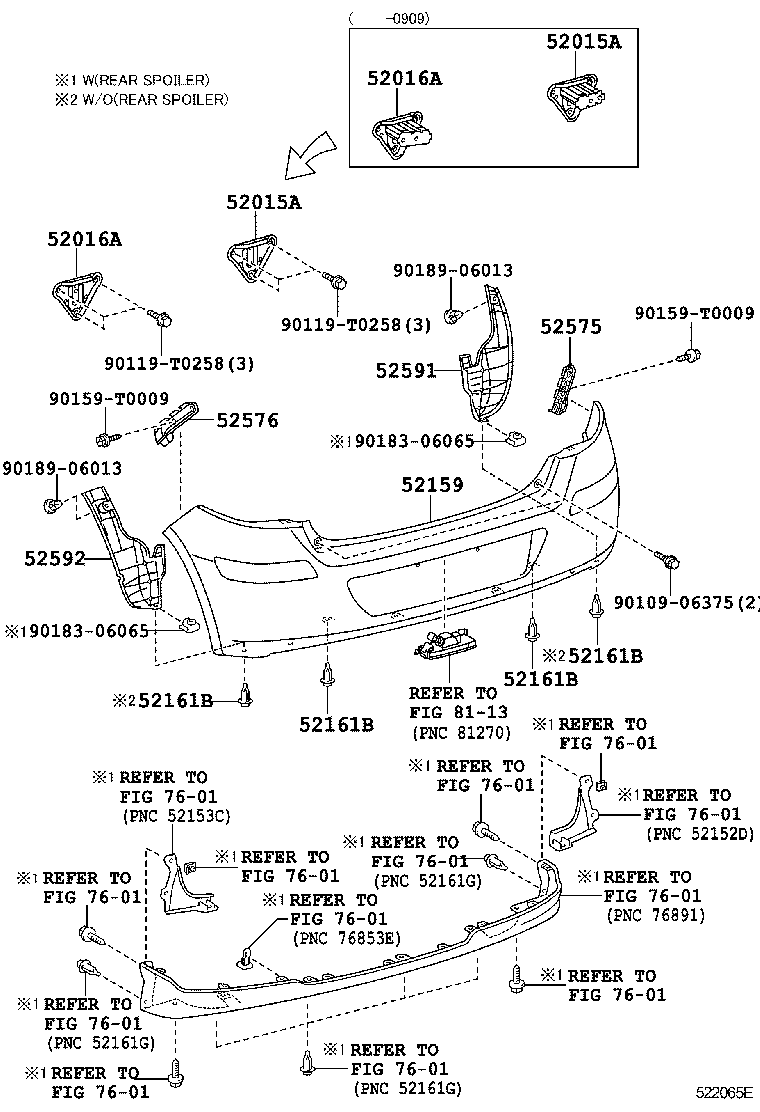

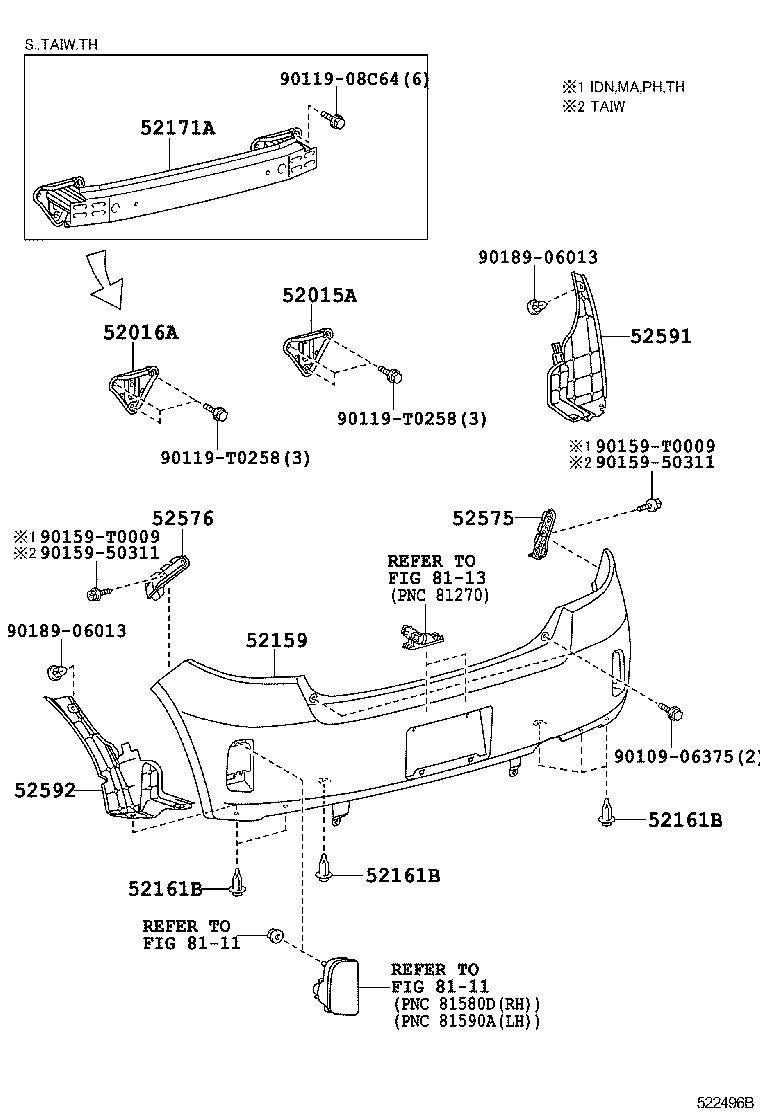

Figure 521482F 521482F 2006-01 → 2009-03 Figure 521482F 521482F 2006-01 → 2009-10 Figure 522065E 522065E 2009-03 → 2012-02 Figure 522065E 522065E 2009-03 → — Figure 522195 522195 2009-10 → 2012-04 Figure 522195 522195 2009-10 → — Figure 522495A 522495A 2012-02 → — Figure 522496B 522496B 2012-02 → — Figure 522496B 522496B 2012-04 → — Figure 522497A 522497A 2012-02 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52067 Support Sub-assy, Rear Bumper Side, RH
52068 Support Sub-assy, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
