Toyota Yaris (ASIA)
2006-01 → 2014-09 · chassis NCP91 · catalogue 113310 · General
Supported model
Data version 2015-01

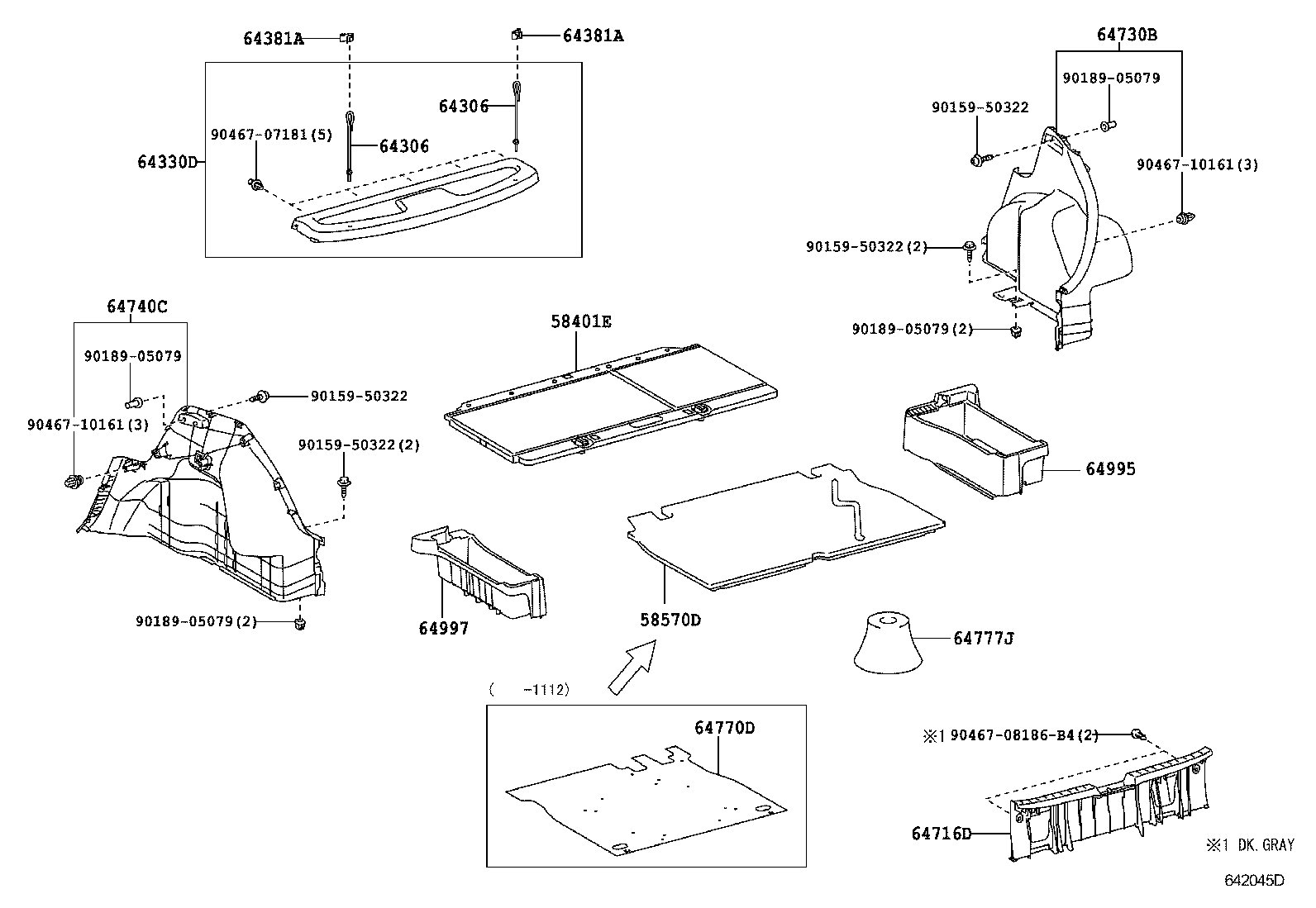

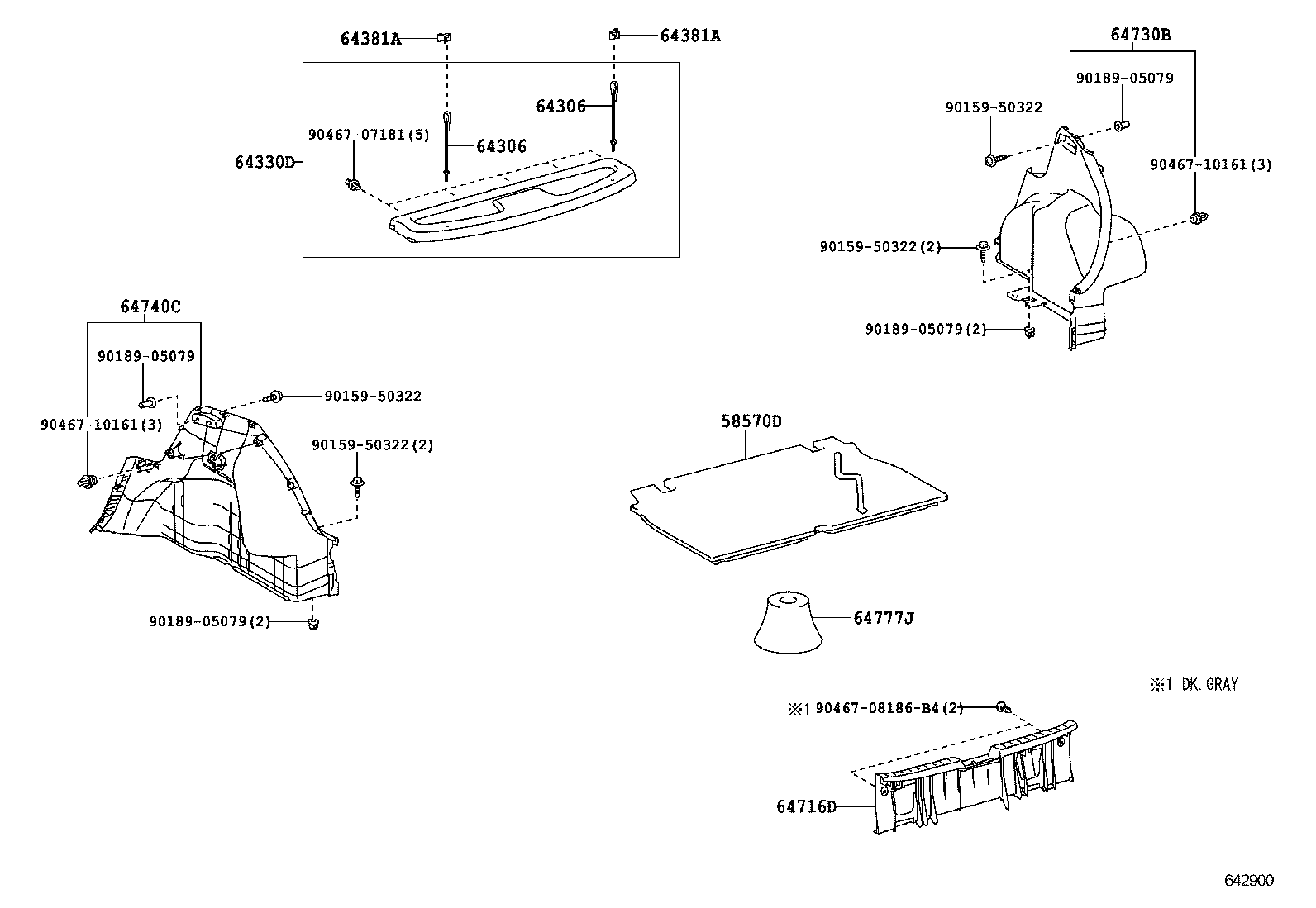

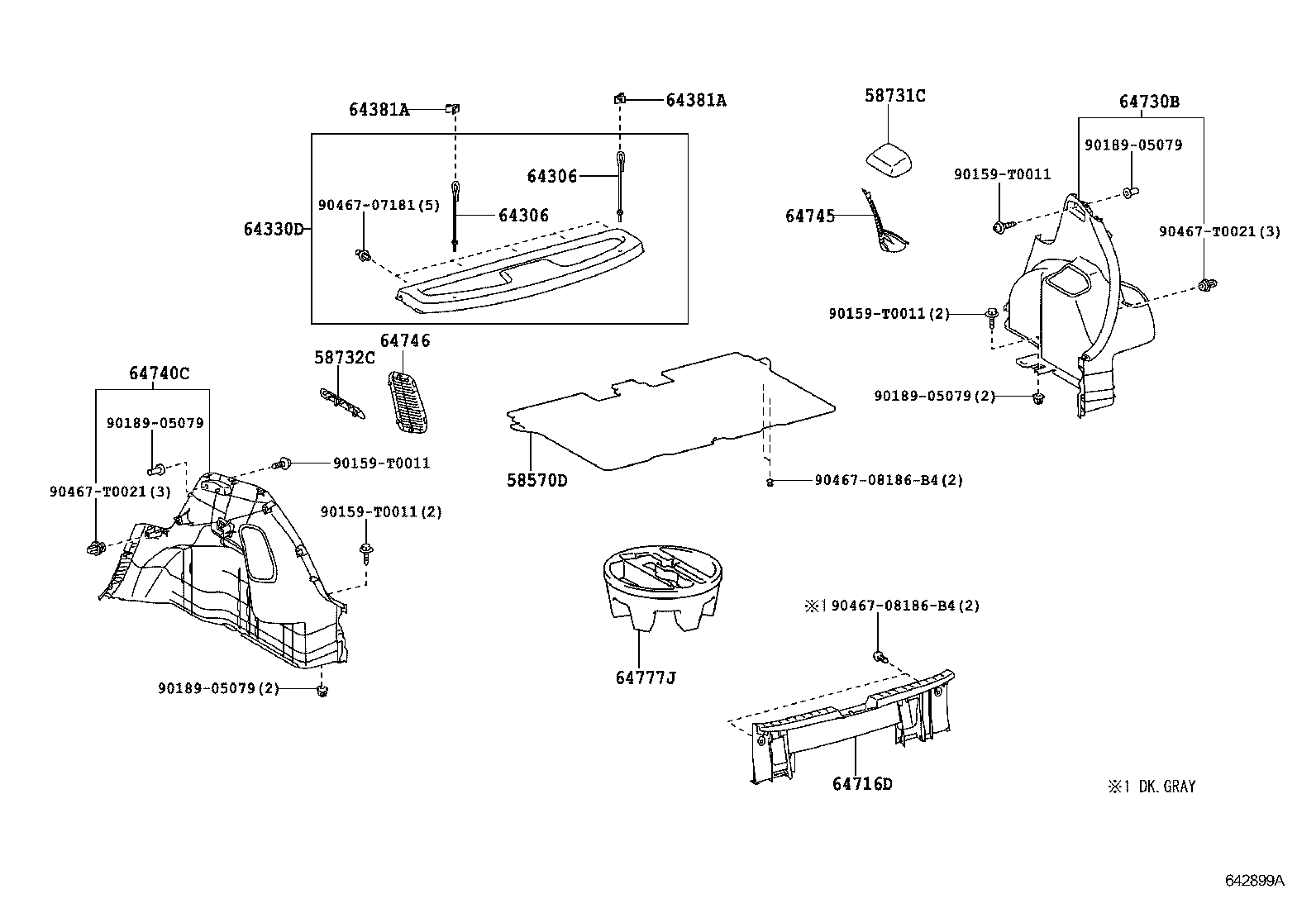

Deck Board & Deck Trim Cover
16 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58401E | Board Sub-assy, Deck |
| 58570D | Carpet Assy, Rear Floor |
| 58731C | Cap, Rear Absorber |
| 58732C | Cap, Rear Absorber |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64381A | Hanger, Package Tray Trim |
| 64716D | Cover, Deck Trim, Rear |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64770D | Cover Assy, Spare Wheel |
| 64777J | Cushion, Spare Wheel |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
